INSTRUCTIONS FOR USE

Pro-Ject 1

pression Carbon Classic

Pro-Ject 1

pression Carbon Classic

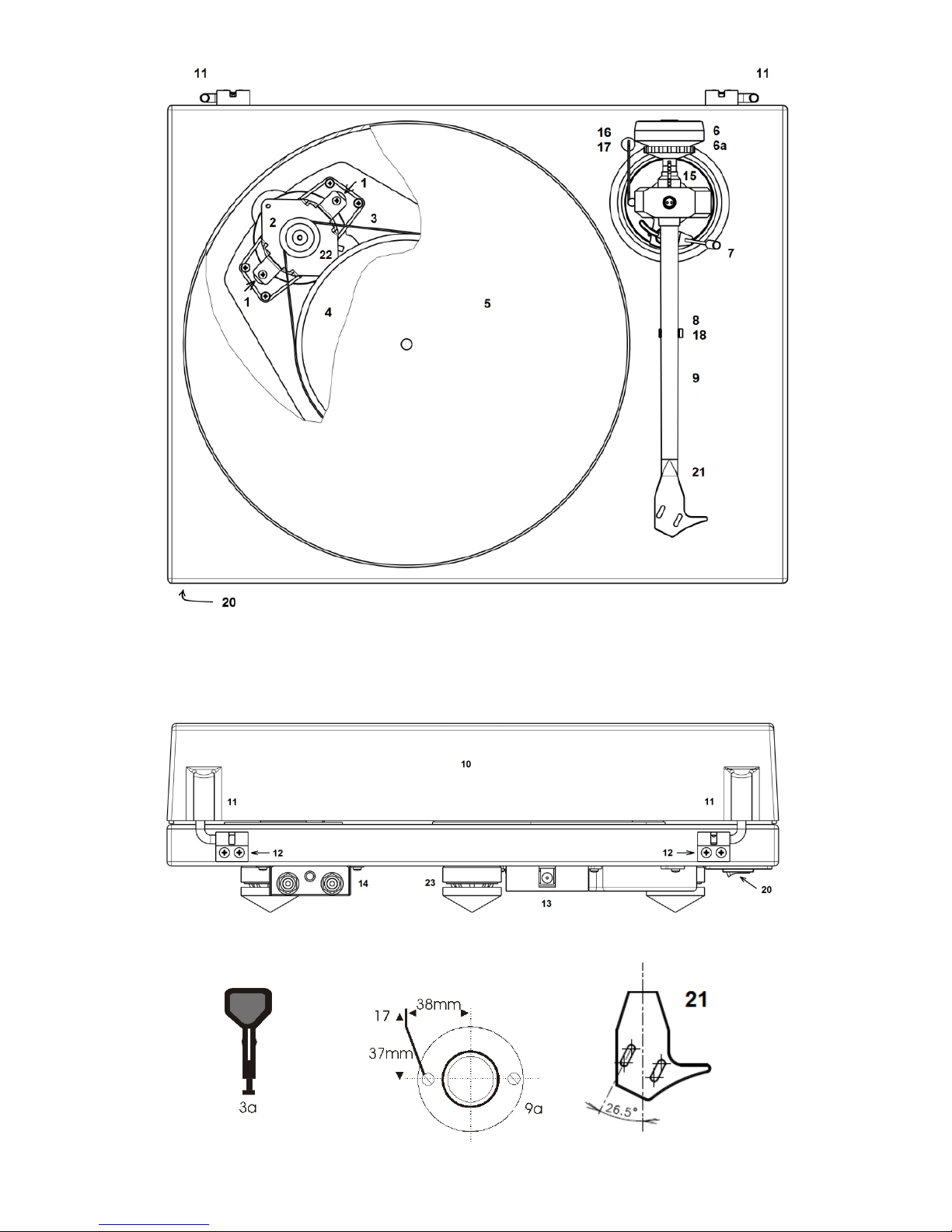

Controls, features and connections

1 Motor brackets with ORTOFON

pads

2 Stepped drive pulle

3 Drive belt * 3a Hook *

4 Hub

5 Platter *

6 Tonearm counterweight * 6a Downforce scale

7 Tonearm lift lever

8/18 Tonearm rest and removable transport lock

9 Tonearm tube 9a Tonearm base

10 Lid *

11 Lid hinges

12 Hinge fasteners

13 Power suppl socket

14 Phono output sockets and earth connection

15 Anti-skating weight adjustment scale

16 Anti-skating weight *

17 Anti-skating weight support hoop

20 Power switch

21 Headshell with finger lift and optional fitted cartridge Ortofon 2M Red

22 Motor

23 Adjustable tip-toe feet with anti-scratch cups *

Connection cable (not shown) *

Power suppl (not shown) *

Universal adapter (not shown) *

Dear music lover,

thank ou for purchasing a PRO-JECT AUDIO record pla er.

In order to achieve maximum performance and reliabilit with this record pla er ou should stud these

instructions for use carefull .

Warning of a hazard for the user, the unit or possible misuse.

Important notice.

The record pla er is supplied with a factor fitted and adjusted cartridge as an option.

** The following instructions for adjusting the cartridge are provided in case the cartridge is replaced

b a different model at a later date.

During assembl and adjustment of the deck small parts could be lost if not carefull placed in a

suitable receptacle. Before starting assembl make ourself acquainted with the parts listed above and

correspondingl numbered in the technical drawings above. Separatel packed items are marked with

an asterisk *.

Set-up

The deck is supplied partiall disassembled and carefull packaged for safe transport. Carefull remove

all parts from the transport packaging.

Make sure the surface ou wish to use the turntable on is level (use a spirit level) before placing the

turntable on it.

Fit the drive belt (3) around the hub (4) and the smaller diameter part of the motor pulle (2). Avoid

getting sweat or grease on the belt as these will deteriorate the performance and reduce the belt's

lifespan. Use absorbent kitchen paper to remove an oil or grease from the outer edge of the hub and the

belt.

Fit the platter over the spindle of the hub. Level the plinth using a spirit level and the adjustable feet

(23).

Remove the transport lock (18) from the tonearm. Store it in the original packaging so it is available for

an future transportation.

We recommend to use the record player without a mat on the platter.

Cartridge downforce adjustment

The counterweight (6) supplied is suitable for cartridges weighing between 6 - 8g (counterweight

no.48).

Adjust the downforce prior to installing the anti-skating weight.

Pushing carefull , turn the counterweight (6) onto the rear end of the tonearm tube (9), so that the

downforce scale (6a) shows towards the front of the pla er. Lower the armlift and position the cartridge

in the space between arm rest and platter. Carefull rotate the counterweight (6) until the armtube

balances out. The arm should return to the balanced position if it is moved up or down. This

adjustment must be done carefull . Do not forget to remove the cartridge protection cap if fitted.

Once the arm is correctl balanced return it to the rest. Hold the counterweight (6) without moving it,

and gentl revolve the downforce scale ring (6a) until the zero is in line with the anti-skating prong (15).

Check whether the arm still balances out.

Rotate the counterweight counter clockwise (seen from the front) to adjust the downforce according

to the cartridge manufacturer's recommendations. One mark on the scale represents 1 mN (= 0,1g /

0,1 Pond) of downforce.

The recommended downforce for the factory fitted cartridge is 18mN.

Adjusting t e vertical tracking angle (vta)

** Put a record and the record weight on the platter. When the needle is lowered into the record groove

and the tonearm is not resting on the lift arm, the tube of the tonearm should be parallel to the surface of

the record.

If it is not, loosen hexagon screw in the tonearm base just enough to allow vertical movement of the

arm pillar without force and slide the arm up or down until it is parallel.

Carefull retighten the hexagon screw without appl ing excessive force (which would deform the arm

pillar) – finger tight is quite sufficient.

Adjusting t e azimut

** The cartridge needle must be vertical in the record groove in order

to trace the groove wall modulations correctl .

A small screw at the bearing end of the arm allows incorrect azimuth to

be corrected if our needle is not mounted exactl perpendicular to

the cartridge bod (which is often the case).

Slacken off the screw just enough to be able to revolve the arm tube

without appl ing force. Please note: do not remove the screw

completel !

With the aid of a good magnif ing glass adjust the needle until it is vertical in the groove (i.e.

perpendicular to the record's surface). Ideall this should correspond to the top surface of the

cartridge bod being parallel to the record surface.

When ou are satisfied that the needle is vertical retighten the screw carefull .

Under no circumstances should the arm tube be adjusted with the needle still in the record

groove! Irreparable damage may be caused to the cantilever suspension! The arm must be lifted

to ma e each adjustment and lowered afterwards to chec it.

Anti-skating force adjustment

The anti-skating force must be adjusted corresponding to the downforce as

follows:

Downforce Groove in the stub (15)

10 - 14mN 1

from bearing rings

15 - 19mN 2

" " "

20mN and bigger

" " "

Hang the loop of the thread of the anti-skating weight in the groove of the anti-skating stub (15)

corresponding to the downforce applied to our cartridge and feed the thread through the loop of the

wire support (17).

Connection to t e amplifier

The record pla er has gold plated female RCA phono sockets (14) so ou can substitute the interconnect

cables supplied with higher qualit cables such as the Pro-Ject Connect it interconnect cables for

connection to the amplifier if ou wish.

Use the Phono input (sometimes labelled gram, disc or RIAA) on our amplifier. Make sure that the

phono input offers correct matching and amplification for the t pe of cartridge used. Line inputs (such as

CD, Tuner, Tape or Video) are not suitable.

Take care to connect the left and right channels correctl . The right channel is usuall marked red, the

left channel black or white. Check the manual supplied with our amplifier for relevant information.

The earthing wire of the tonearm lead should be connected to the earth terminal on our amplifier (if

provided). If our amplifier does not have an input suitable for phono cartridges ou will require a

separate phono amplifier stage for MM or MC cartridges which is then connected between the record

pla er and a free line level input of the amplifier.

For detailed product information regarding Pro-Ject Audio interconnect cables and phono amplifiers

please refer to the Pro-Ject web site www.project-audio.com.

The recommended load impedance for the factory fitted cartridge is: 47ko ms/MM-input

Mains power connection

The turntable is supplied with the universal power suppl with 3 exchangeable sockets adapters

suitable for all countries. Select the correct adapter for our countr and insert the adapter to the

exchangeable part of the power suppl .

Connect the low voltage plug from the power suppl to the socket (13) on the rear of the record pla er

before connecting the power suppl to the mains.

Fitting t e lid

Fit the lid (dust cover 10) carefull over the hinge prongs (11) and adjust the screws (12) until the lid

sta s open where ou want it to without being too stiff to open or close.

Switc ing on and off

Pressing the power switch (20) alternatel starts or stops the motor.

C anging replay speed

To pla records at 45 r.p.m. first remove the platter (5). Using the accessor tool provided (3a), hook

the belt (3) over the larger diameter part of the motor pulle (2). Refit the platter. To revert to 33 r.p.m.

repeat the proceedings using the smaller step on the pulle .

*** In addition, 78 r.p.m. is available after fitting a special pulley, which may be purchased as an

optional extra.

For detailed product information please refer to the Pro-Ject web site www.project-audio.com.

Maintenance and cleaning

Your record pla er requires little or no regular maintenance. Remove dust with a slightl moistened

antistatic cloth. Never use a dr cloth because this will create static electricit which attract more dust!

Antistatic cleaning fluids are available at specialist stores but must be applied sparingl to avoid

damage to rubber parts. It is recommended to fit the needle cover before cleaning or maintenance is

carried out to avoid damage.

If the pla er is not used over a long period of time the drive belt can be removed to prevent unequal

stretching.

Always disconnect the record player from the mains power supply as a precaution before

maintenance!

Fitting and connecting t e cartridge

** All cartridges with half inch mounting holes can be fitted. Leaving the needle's protection cover on,

fit the cartridge to the headshell using the screws supplied with the cartridge b passing one screw

through each slot in the headshell (21). Do not tighten the nuts et.

Connect the tonearm wires to the cartridge pins as follows:

white left channel positive (L+)

red right channel pos. (R+)

green right channel return (R -)

blue left channel return (L -)

The full sound qualit of the record pla er can onl be achieved if the cartridge is correctl adjusted.

Particular tools like the PRO-JECT alignment tool are required to accomplish this job properl .

If ou are not well acquainted with the adjustment of cartridges ou are advised to call upon the willing

help of our PRO-JECT dealer to accomplish this task for ou.

Please note: adjusting a cartridge and tonearm calls for the greatest care in order to avoid

damaging the cartridge or tonearm bearings. Leave this wor to your dealer if you are in any

way unsure of the necessary steps and precautions to be ta en.

Useful tips

The lid is not onl a dust cover but also a resonant structure likel to be excited b , and to pass into

the plinth, the acoustic energ emanating from our loudspeakers during repla . It is therefore

recommended that the lid be removed for optimum sound qualit .

The record pla er should be positioned on a low-resonance surface such as wood or multiple la er pl

board to avoid structural vibrations disturbing repla .

Tec nical specifications

PRO-JECT 1 Xpression Carbon Classic/Pro-Ject 8.6cc EVO

Nominal speeds 33/45 r.p.m.. *** 78 r.p.m. optional

Speed variance 33: 0,2% 45: 0,18%

Wow and flutter 33: 0,14% 45: 0,13%

Signal to noise 68dB

Effective tonearm mass 6g

Effective tonearm length 8,6 " (218,5mm)

Overhang 18,5mm

Power consumption 4W/ 0W standb mode

Outboard power suppl 15V / 0 - 0.8mA DC (set at 0.5mA), universal power suppl

Dimensions (W x H x D) 415 x 130 x 335mm, dust cover open 415 x 400 x 400mm

Weight 5,5kg

Tec nical specifications MM-Cartridge Ortofon 2M SILVER

Frequenc range 20-22.000Hz

Channel separation 23dB/1kHz

Output voltage 4mV

Recommended load

impedance

47kohms/amplifier connection – MM-input

Compliance/st lus t pe 20µm/mN – elliptical

Recommended tracking force 18mN

Weight 7,2g

Potential incorrect use and fault conditions

Pro-Ject turntables are manufactured to the highest standards and undergo strict qualit controls

before leaving the factor . Faults that ma possibl occur are not necessaril due to material or

production faults but can sometimes be caused b incorrect use or unfortunate circumstances. Therefore

the following list of common fault s mptoms is included.

T e platter doesn't turn alt oug t e unit is switc ed on:

The unit is not connected to the mains power suppl .

No mains at the socket.

Drive belt is not fitted or has slipped off.

No signal t roug one or ot er c annel or bot c annels:

No signal contact from the cartridge to the internal tonearm wiring or from that to the arm lead or

from that to the phono box or between that and the amplifier. This could be due to a fault plug,

broken wire or solder joint or simpl loose plug/socket connection.

Phono input not selected at amplifier.

Amplifier not switched on.

Amplifier or speakers defective or muted.

No connection to the loudspeakers.

Strong um on p ono input:

No earth connection from cartridge or arm or arm cable to amplifier, or earth loop.

Distorted or inconsistent sound from one or bot c annels:

Record pla er is connected to wrong input of amplifier, or MM/MC switch incorrectl set.

Needle or cantilever damaged.

Wrong r.p.m., drive belt overstretched or dirt , platter bearing without oil, dirt or damaged.

Service

Should ou encounter a problem which ou are not able to alleviate or identif despite the above

information, please contact our dealer for further advice. Onl when the problem cannot be resolved

there should the unit be sent to the responsible distributor in our countr .

Guarantee repairs will onl be effected if the unit is returned correctl packaged. For this reason we

recommend keeping the original packaging.

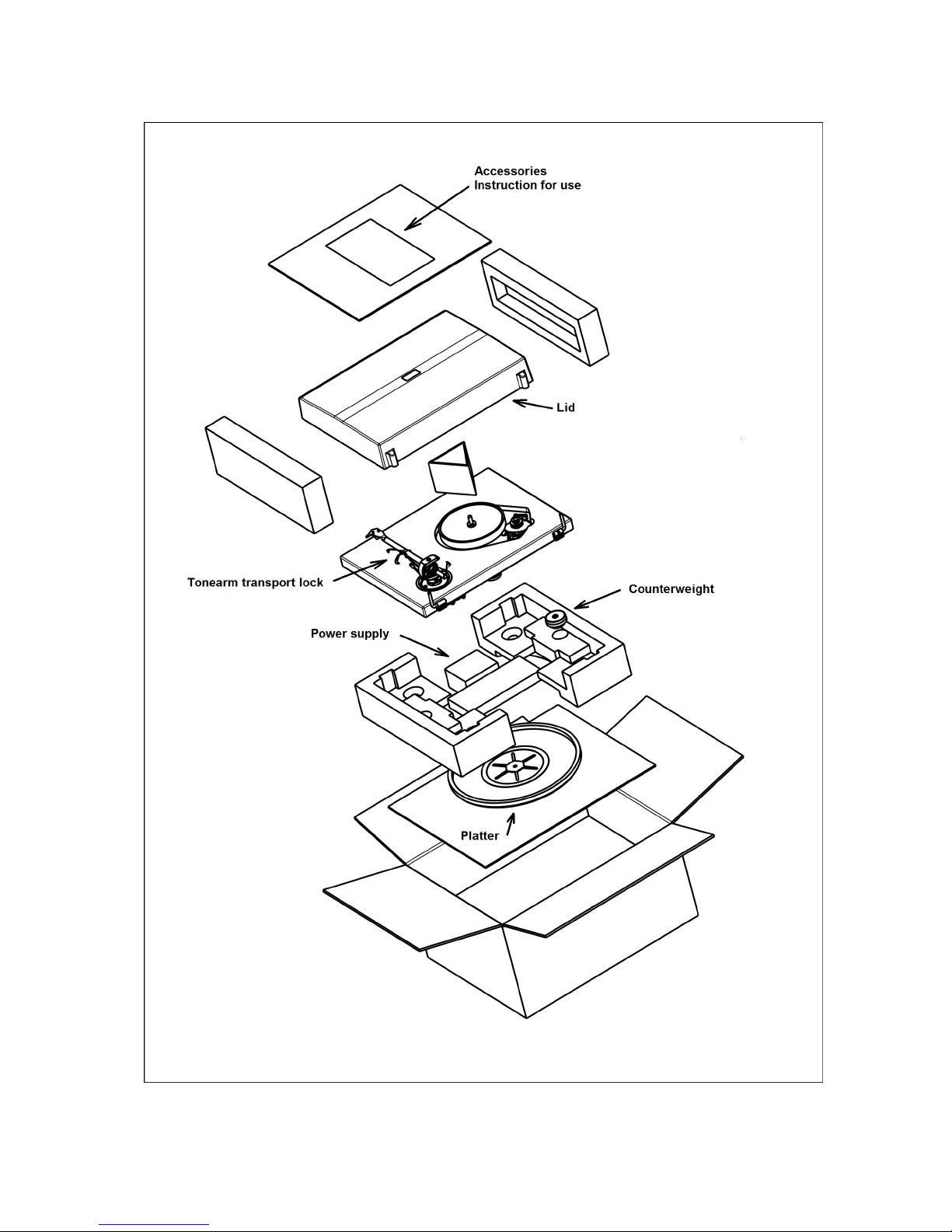

Never return a record pla er without making sure that is it safel disassembled and correctl packaged

in the original packaging according to the diagrams on the last page of this user guide. Please remove

these parts and pack them separatel : lid (10), counterweight (6), anti-skating weight (16) platter (5)

and belt (3). Fit the cartridge protection cap. Insert the transport lock for the tonearm (18) prior to

carefull packaging the record pla er.

Warranty

The manufacturer accepts no responsibility for damage caused by not adhering to these

instructions for use and/or by transportation without the original pac aging. Modification or

change to any part of the product by unauthorized persons release the manufacturer from any

liability over and above the lawful rights of the customer.

PRO-JECT is a Registered Trademark of H.

Lichtenegger.

This guide was produced b : Pro-Ject Audio

S stems Cop right

The information was correct at the time of going

to press. The manufacturer reserves the right to

make changes to the technical specification

without prior notice as deemed necessar to

uphold the ongoing process of technical

development.

Altri manuali per 1 Xpression Carbon Classic

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Pro-Ject Audio Systems Giradischi

Pro-Ject Audio Systems

Pro-Ject Audio Systems Align it PRO Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Debut Carbon EVO Istruzioni operative

Pro-Ject Audio Systems

Pro-Ject Audio Systems Debut Carbon EVO Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject VC-S Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Xtension 12 Evolution Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Juke Box Series Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject Debut SE II Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Essential Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject DEBUT III PHONO SB Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Xtension Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems 12 Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject 2 Xperience Comfort Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems RPM 6.1 SB SuperPack Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Perspective Final Edition Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Debut Carbon Esprit SB Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Xtension Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Debut III/Phono USB Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Xtension 10 Evolution Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject Debut III E Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Debut III SE Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Debut PRO Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Jukebox E Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject RPM 9.1 Manuale utente

Pro-Ject Audio Systems

Pro-Ject Audio Systems Debut S Manuale utente

Manuali Giradischi popolari di altre marche

Gemini

Gemini CDT-05 MKII Manuale utente

Rotel

Rotel RP-820 Manuale utente

Shuman

Shuman MC-250BT Manuale utente

Stanton

Stanton STR8-150 Manuale utente

Audio Technica

Audio Technica AT-LPW40WN Manuale utente

Crosley

Crosley McQueen CR7011-GY Manuale utente

Reloop

Reloop SMP-1 Manuale utente

auna

auna TT-Classic Plus Manuale utente

COMO AUDIO

COMO AUDIO Turntable Analog Manuale utente

Dual

Dual 1009 F Manuale utente

REED

REED Muse3C Manuale utente

AXIOMTEK

AXIOMTEK OPS883-H Series Manuale utente

Pioneer

Pioneer PL-71 Manuale utente

Vestax

Vestax PDX-a1 Manuale utente

Denon

Denon DP-400 Manuale utente

Dual

Dual 504 Manuale utente

Audio-Techica

Audio-Techica AT-LP60XBT Manuale utente

Goldring

Goldring G99 Manuale utente
