RectorSeal StrongArm Manuale utente

:www.rectorseal.com +2601 Spenwick Drive, Houston, TX 77055 '713.263.8001 - 800.231.3345 7713.263.7577 - 800.441.0051

Read and understand this material before

using your StrongArm.

Failure to understand how to safely and

correctly operate this unit may result in

serious injury or death. This unit should

only be operated by qualiﬁed personnel.

E-H-11/SA

Wire Pulling Tools

StrongArm™

Operating, Safety & Parts Manual

Scan This or Visit

www.rectorseal.com/qr/Strongarm-video.html

to View StrongArm Instructional Video

:www.rectorseal.com +2601 Spenwick Drive, Houston, TX 77055 '713.263.8001 - 800.231.3345 7713.263.7577 - 800.441.0051

Operating, Safety & Parts Manual

FOR ADDITIONAL TECHNICAL INFORMATION,

CALL TOLL FREE 1-800-231-3345

RectorSeal®

2601 Spenwick Drive, Houston, TX 77055, USA

www.rectorseal.com

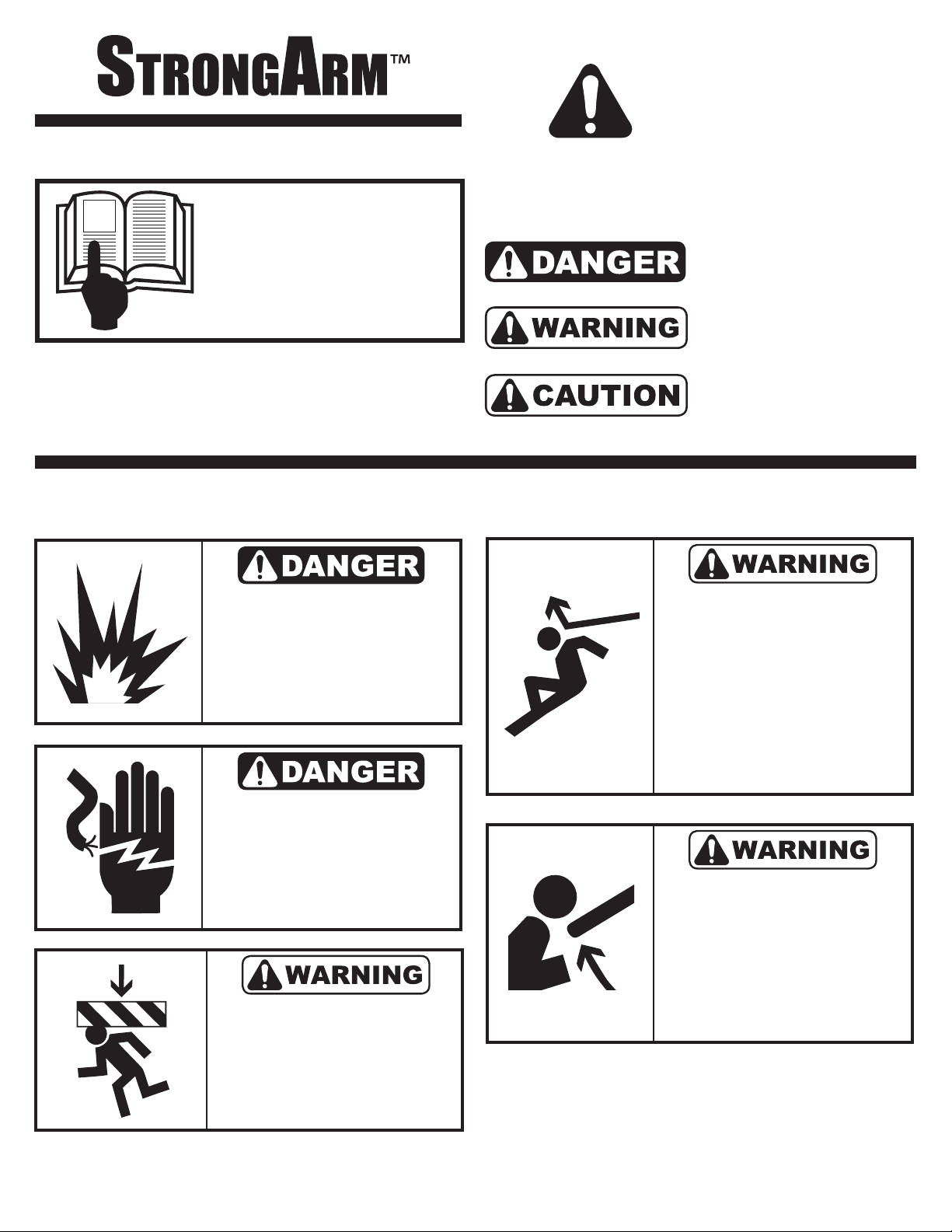

SAFETY ALERT

SYMBOLS

This safety symbol is used to call attention to instructions that

concern your personal safety. It means: ATTENTION! BE AWARE!

THIS IS AN IMPORTANT SAFETY INSTRUCTION!

Immediate hazards which, if not

avoided, WILL result in serious

personal injury or death.

Hazards or unsafe practices which, if

not avoided, COULD result in serious

personal injury or death.

Hazards or unsafe practices which, if

not avoided, COULD result in minor

personal injury or property damage.

IMPORTANT SAFETY INFORMATION

Follow ALL safety instructions provided by the manufacturer

Do not operate the StrongArm cable

puller in a hazardous environment.

Hazards include ammable liquids

and gases.

Failure to observe this warning will

result in severe injury or death.

Risk of electric shock or death.

Never use on or near live electrical

circuits.

Failure to observe this warning

could result in severe injury or

death.

Inspect and verify the maximum

load-bearing capacity or maximum

strength of all structural supports,

pulling system components and

anchoring systems before setting

up the puller. Any component that

cannot withstand the maximum

cable pulling forces could break

and strike nearby personnel with

sufficient force to cause severe

injury or death.

Do not stand directly under a verti-

cal pull. Never use as an overhead

hoist or to suspend a load.

Failure to observe this warning

could result in severe injury or

death.

Read and understand this material

before using your StrongArm.

Failure to understand how to safely

and correctly operate this unit may

result in serious injury or death.

This unit should only be operated

by qualiﬁed personnel.

Do not allow anything other than

the pulling rope to contact the

capstan. A grip, swivel or other

component could break and strike

nearby personnel with great force.

Failure to observe this warning

could result in severe injury or

death.

:www.rectorseal.com +2601 Spenwick Drive, Houston, TX 77055 '713.263.8001 - 800.231.3345 7713.263.7577 - 800.441.0051

IMPORTANT SAFETY INFORMATION

An under-rated or worn rope may break and whip violently.

Use a double-braided composite rope with the following

characteristics:

- Minimum Rated Capacity:

At least 18 kN (4,000 lbs.)

- Average Breaking Strength

At least 98 kN (22,000 lbs.)

Failure to observe this warning could result in severe injury

or death.

Check the condition of the entire rope before use. A worn or

damaged rope can break under tension and whip violently.

Do not allow a stationary rope on a rotating capstan. The

wear generated may cause the rope to break under tension

and whip violently.

Failure to observe these warnings could result in severe

injury or death.

Attach the pulling rope to the cable with appropriate types

of connectors. Select connectors with a minimum rated

capacity of at least 18 kN (4,000 lbs.) An under-rated

connector can break under tension.

Failure to observe this warning could result in severe injury

or death.

Rope cable, or a connecting device can break under tension,

causing the rope to whip violently.

- Do not allow any untrained personnel to remain

in the area during the pull.

- Do not allow any personnel to stand behind with

the pulling rope.

Failure to observe this warning could result in severe injury

or death.

Do not wrap rope around hands,

arms, waist or other body parts.

Do not stand in spent coils or tailed

rope. Hold rope so that it may be

released quickly.

Failure to observe this warning

could result in severe injury or

death.

Keep hands and loose objects

away from the capstan. Rope at the

capstan can crush a hand.

Failure to observe this warning

could result in severe injury or

death.

Shear Point !

Do not put ngers through holes

in upper frame w/ swivel head.

Rotating parts may cut off ngers.

Failure to observe this warning

could result in severe injury or

death.

Position the puller so that it is close to the conduit. Rope,

cable or connectors can break under tension, causing the

rope to whip violently.

Failure to observe this warning could result in severe injury

or death.

:www.rectorseal.com +2601 Spenwick Drive, Houston, TX 77055 '713.263.8001 - 800.231.3345 7713.263.7577 - 800.441.0051

IMPORTANT SAFETY INFORMATION

Entanglement Hazard !

- Do not operate the StrongArm puller while wearing

loose-tting clothing.

- Restrain long hair

Failure to observe this warning could result in severe injury

or death.

Wear eye protection when using

this tool. Failure to wear appropriate

eye protection could result in severe

eye injury from ying debris.

This tool must be grounded to reduce the risk of electric

shock to the operator.

The tool’s electric cord has a grounding conductor and a

grounding plug. Do not modify the plug. Connect the plug to

a GFCI receptacle that is properly installed and grounded in

accordance with all national and local codes and ordinances.

Do not use an adapter.

20-Amp / 115-Volt Plug and GFCI Receptacle

For motor operations instruction and additional warnings

visit www.milwaukeetool.com.

Always lock frame components

in place during assembly or dis-

assembly. Parts may strike nearby

personnel.

Failure to observe this warning

could result in severe injury or

death.

Inspect the puller and accessories before each use.

Replace any worn or damaged component with RectorSeal

replacement parts. A damaged or improperly assembled

part can break and strike nearby personnel with sufficient

force to cause severe injury or death.

Do not allow the rope to become overlapped on the capstan.

If an overlap begins to develop, relax the tailing force

immediately and shut off the cable puller.

Failure to observe this warning could result in severe injury

or death.

Use this tool for the manufacturer’s

intended purpose only. Do not use

the cable puller as a hoist or winch.

The cable puller cannot raise or

lower a load: the load may fall.

Failure to observe this warning

could result in severe injury or

death.

RectorSeal®warrants StrongArm™against defects in materials and workmanship for a period of 1 year following the date

of purchase. RectorSeal®will repair or replace any StrongArm™that fails during the warranty period due to a defect in

materials or workmanship, excluding misuse and normal wear and tear.

:www.rectorseal.com +2601 Spenwick Drive, Houston, TX 77055 '713.263.8001 - 800.231.3345 7713.263.7577 - 800.441.0051

STRONG ARM PARTS DIAGRAM

:www.rectorseal.com +2601 Spenwick Drive, Houston, TX 77055 '713.263.8001 - 800.231.3345 7713.263.7577 - 800.441.0051

STRONG ARM SETUP

(1 & 2) Pull R clip and Captive locking

pin from the Swing Arm. 1

4 5

6 7

(3) Rotate the Swing Arm into position of

about 80 degrees, insert the Captive

locking pin into the Swing Arm and

insert the R clip into the Captive

locking pin.

(4 & 5) Using the main roller as a pivot

point; grab the handle on the main

frame of the puller and walk the puller

body over the top of pivot point.

(6 & 7) Continue until the shaft and mo-

tor are fully extended and the Swing

Arm is pointed downward. Make sure

the hinge locking pins are in the

locked position.

:www.rectorseal.com +2601 Spenwick Drive, Houston, TX 77055 '713.263.8001 - 800.231.3345 7713.263.7577 - 800.441.0051

(8 - 10) You can adjust the overall length

of the frame by turning the front ex-

tension pins 90 degrees and sliding

the upper frame extension out to the

required length. Then turn the front

extension locking pins back 90 de-

grees to lock the upper frame into

position.

STRONG ARM SETUP cont.

11 12

13 14

(11 & 12) Important: Keep the Univer-

sal Adaptor parallel to the pulling sur-

face. Loosen the locknut on the con-

duit pipe and set the puller in place

with the Universal Adaptor setting

below the locknut. Wrap the chain of

the adaptor around the conduit pipe,

then thread the chain through the

hole in the adaptor and lock the chain

into the chain retaining slot.

(13) Hand tighten the conduit locknut.

(14) Make sure the double braided

pulling rope is in contact with the

rollers. You’re ready to pull, no need

to anchor the puller to the oor.

:www.rectorseal.com +2601 Spenwick Drive, Houston, TX 77055 '713.263.8001 - 800.231.3345 7713.263.7577 - 800.441.0051

OPERATING TIPS

(5 & 6) Notice the “V” formed by the

rope and the frame. For easier pull-

ing, keep the rope in this “V” forma-

tion. When the rope becomes a “L”

formation, the pull is more difficult.

(1) Before starting to pull, always check

the forward/reverse switch to be sure

the capstan will turn in the proper

direction.

(2) Make sure the motor is on low speed.

5 6

7 8

(3) Wrap the double braided pulling rope

2 to 3 times around the capstan to

start.

(4) Use the foot pedal on and off switch

to operate the puller.

(7) 2 to 3 wraps of rope on the capstan

are adequate. Too many wraps may

cause knotting on the capstan. If this

occurs, release the foot pedal, ip the

reverse switch and run the puller in

reverse while the knot unwinds.

(8) When the pull is over loosen the

locknut release the chain from the

Universal Adaptor and remove the

puller. Important: The capstan may

be hot from the pull, handle with care.

:www.rectorseal.com +2601 Spenwick Drive, Houston, TX 77055 '713.263.8001 - 800.231.3345 7713.263.7577 - 800.441.0051

OVERHEAD PULL SETUP TIPS

(1 & 2) Unlock the Captive locking

pins on the Upper Frame and rotate

the Swivel Head 180 degrees.

Re-lock the Captive locking pins.

(3 & 4) Pull the R clip and Captive locking

pin on the Swing Arm and swing the

arm up into the required overhead

position.

(5) Reinsert the locking pin and R clip.

(6) Adjust the height of the frame by

turning the front extension pins and

sliding the upper frame extension out

to the required height, then turn the

pins back to lock the upper frame into

position.

(7) Loosen the conduit locknut and se-

cure the Universal Adaptor between

the locknut and the conduit pipe.

Wrap the chain of the adaptor around

the conduit pipe, then thread the

chain thru the adapter’s hole and lock

it into the chain retaining slot. Hand

tighten the conduit locknut.

(8) Make sure the double braided pulling

rope is in contact with the rollers.

You’re ready to pull, no need to

anchor the puller to the oor.

:www.rectorseal.com +2601 Spenwick Drive, Houston, TX 77055 '713.263.8001 - 800.231.3345 7713.263.7577 - 800.441.0051

(1 - 4) To secure the cable puller for

transport, turn the Swing Arm back

around to the starting position then

follow the setup procedure in reverse

order.

DISASSEMBLY TIPS

5 6

7 8

(5 & 6) Wrap the power cord around the

handle, so the foot pedal is resting

under the front roller.

(7 & 8) Position the Swing Arm on top of

the foot pedal and insert the Captive

locking pin and R clip.

Indice

Altri manuali RectorSeal Utensili

RectorSeal

RectorSeal UpperCut IV Manuale utente

Manuali Utensili popolari di altre marche

Martor

Martor SECUNORM 175 Manuale utente

ERKCO

ERKCO 1000 Manuale utente

jbc

jbc N4473 Manuale utente

FEINMETALL

FEINMETALL FZWZ-SET-001 Manuale utente

Worx Professional

Worx Professional Sonicrafter WU676 Manuale utente

Gage Bilt

Gage Bilt GB713SH Manuale utente

Hilti

Hilti DX 9-ENP Manuale utente

norbar

norbar NORTRONIC 34399 Manuale utente

BGS technic

BGS technic 8578 Manuale utente

Makita

Makita DHR241 Manuale utente

Motor Guard

Motor Guard JMB-1250 Manuale utente

Power Adhesives

Power Adhesives 805-12 Manuale utente

Clemco

Clemco 24189 Manuale utente

VVG

VVG VNG 903 Series Manuale utente

Hilti

Hilti FX 3-A Manuale utente

Grizzly

Grizzly H6472 Manuale utente

axing

axing BWZ 5-02 Manuale utente

Dh-Robotics

Dh-Robotics RGI-100 Come usare
