SEM 2226 Series Manuale utente

Operation and Maintenance Manual

This Operations Manual is in reference to the

Security Engineered Machinery Paper Shredders referenced below:

REFERENCE SEM MODEL NUMBERS

SERIES

STRIP CUT

4 mm

CROSS CUT

4 mm x 40

CROSS CUT

2 mm x 15

HIGH

SECURITY

CROSS CUT

. 8 mm x 5

2226

2226S

2226P

2226PSP

2226CC/3

2331

2331P

2331PSP

244

244/4

344

3130

3130P

3130PSP

3140

3140S

3140P

3140PSP

266

266P

266PSP

266/4

5140

5141S

5141P

5141PSP

5140C/4

1324

1324S

1323P

1324PSP

1324CC/3

POP-0024 Rev. 0

Created 05/30/2019

For sales, service, parts, and customer support, contact us:

SECURITY ENGINEERED MACHINERY

5 Walkup Drive • Westborough, MA 01581

[email protected]

1-508-366-1488 • Toll Free US 1-800-225-9293

www.semshred.com

DEFINITION OF NORMAL USE:

This paper shredder is suitable for the destruction of paper.

The cutting shafts, which are made of special hardened steel, are unaffected by small quantities of paper clips

and staples. This does not apply to paper shredders with a particle size of 0.8 mm x 12 mm or smaller, which

do not accept staples or paper clips.

Depending on the shred size produced by the cutting head, small quantities of CDs, DVDs, credit cards,

customer cards, and disks can be partially destroyed. To determine whether your shredder is capable of

shredding these kinds of data carriers, please check at

www.semshred.com

SAFETY PRECAUTIONS:

Please read these operating instructions before putting the machine into operation

and observe the safety precautions. The operating instructions must always be available.

CAUTION

Children must not operate the machine.

Do not reach into the feed opening of the cutting head.

Long hair can become entangled in cutting head.

Take care of ties and other loose pieces of clothing.

Be careful of loose jewelry.

The door must be closed

when operating the document

shredder.

230V / 10A min.

120V / 15A min.

Ensure free access to

mains.

Automatic standby that switches off after 30 minutes. The machine can be switched

off at any time by pressing the switch for 2 seconds. Green LED control light is off.

There will be no power consumption when machine is off. Within 30 minutes the

paper shredder uses the following wattage:

Model

Wattage Use

244/4

1,595

344

1,595

2226 Series

1,595

2331 Series

1,595

3130 Series

1,595

3140 Series

1,595

266 Series

1,730

5140 Series

1,730

Remove the plug before cleaning the machine.

Do not perform any repairs on the document shredder.

Do not operate the machine without the safety flap (

ON/OFF Quick stop Open the door.

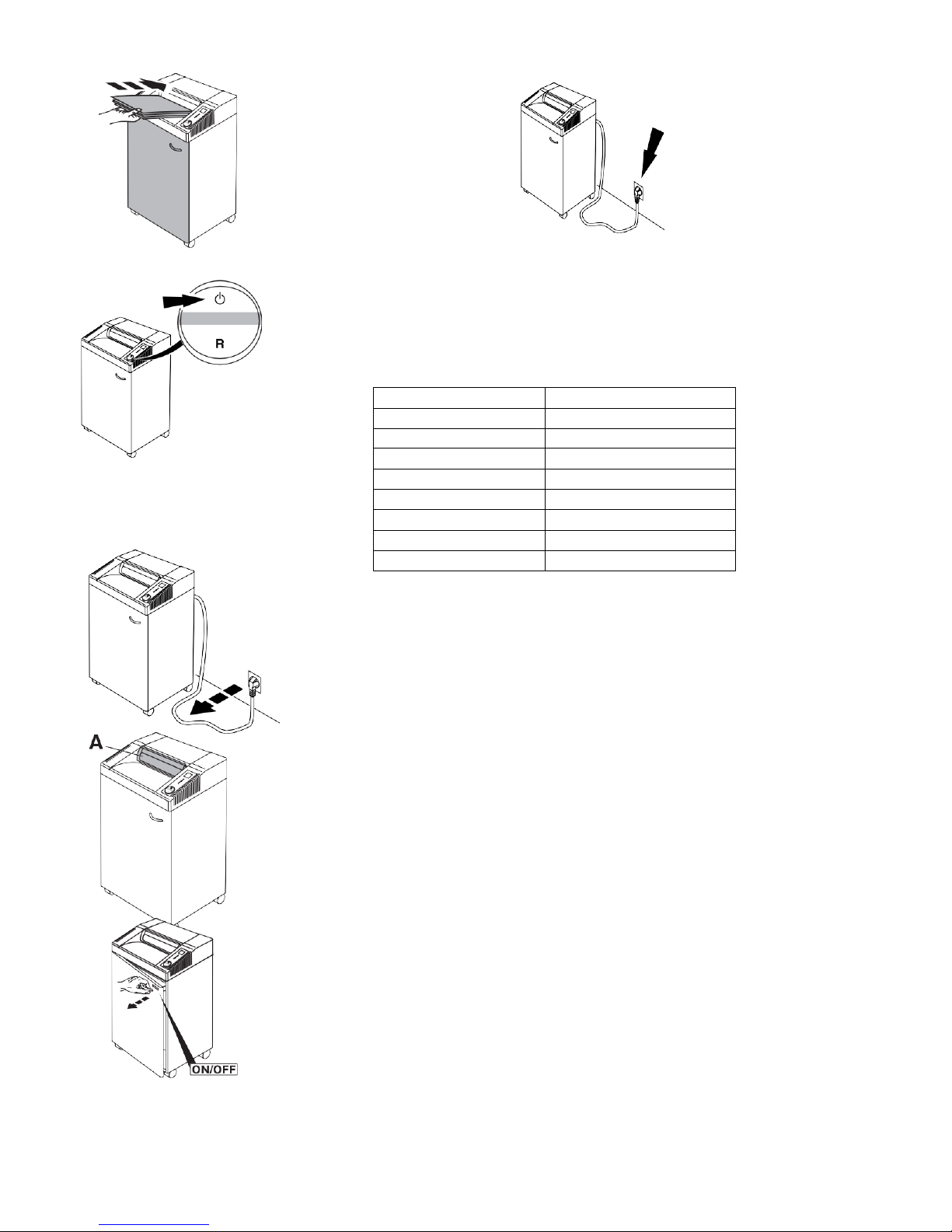

INSTALLATION

REFERENCE MODELS

244/4, 344, 2226 SERIES, 2331 SERIES,

3130 SERIES and 3140 SERIES

Open the door.

Place the machine into the top of the

cabinet.

We recommend that two people set up

this unit! Beware of fingers.

Risk of injury.

All machines have a container inside the

cabinet along with a small supply of

plastic bags.

INSTALLING THE OILER

REFERENCE MODELS

244/4, 344, 2226 SERIES, 2331 SERIES, 3130

SERIES, 3140 SERIES, 266 SERIES, and 5140

SERIES

•

Take the oiler holder out of the cabinet and

hook it into the side of the cabinet (

•

Remove the lid from the oiler (

•

Remove the plastic bag from the oil tube (

•

Put the oil tube into the oiler and screw on (

•

The oil bottle has a fill level indication (

)

Close the door. Plug into the wall socket.

When using for the first time and/or when the oil bottle (

) is changed:

•

Press the rocker switch

•

Press,

and hold

the rocker switch "

until the LED (

) no longer blinks red.

•

Flashing LED

(

): cutting shafts are automatically oiled.

•

Flashing LED

(

): Oil bottle is empty.

OPERATION

Press the rocker switch (

) : green light is on, the machine is now ready

for operation. Starts automatically when paper is inserted.

Automatic standby that switches off after 30 minutes. The machine can be

switched off at any time by pressing the switch for 2 seconds. Green LED

control light is off. There will be no power consumption when the

machine is off.

Note: All machines have an ECC-Display (Electronic Capacity Control)

which indicates the used sheet capacity during shredding process (

LED shows red

(

). Stops automatically if too much paper is inserted.

Automatic reverse if paper.

LED shows yellow

(

). Maximum sheet capacity during shredding process.

LED shows green

(

). Normal sheet capacity during shredding process.

Stops automatically

when no further

paper is inserted.

Stops automatically

when front door is

opened.

Operation - Continued

Stops automatically

when plastic bag is

FULL.

Stops automatically

if too much paper is

inserted. Automatic

reverse if paper

jams (Symbol

"ON/OFF" flashes).

Empty the bag when

“bag full” indicator

illuminates.

Shake the container

several times to ensure

a clean removal.

If required:

Press the

rocker switch "R" and

remove paper.

(Machine runs for a

short time in reverse, if

required repeat

several times).

Reset by pressing the

rocker switch.

Re-feed the paper in

smaller quantities.

Automatic stop if

safety flap (

) is

opened (symbols

and flash

alternatively).

Close the safety flap

and press the rocker

switch, paper is

shredded.

If the machine appears

to be jammed after

continuous running,

reverse with open

safety flap.

If required press the

rocker switch "R"

several times.

SYSTEM LUBRICATION

For systems that include an auto oiler, follow the instructions located on page 5. The

operator can determine when the oil reservoir is empty in two ways:

VISUAL Because the plastic oil jug is hanging from the side of the unit and is visually

available, the operator can simply see that the oil has been exhausted and

recognize that it is time to change the oil jug.

SYSTEM ALERT The system will alert the operator with a flashing yellow light that will

illuminate on the operator control panel.

For systems that do not include an auto oiler, the operator can manually oil the cutting head.

To perform this task, squirt shredder lubricant onto a piece of paper as demonstrated in the picture below. Cover

the oiled sheet with a second sheet of paper (in effect creating an “oil sandwich”) and simply feed the paper into the

system. The oil from the sheets will then be dispersed onto the cutting head.

For added convenience, SEM offers “lubricant sheets” as an option and are noted in the accessories page in this

operator’s manual.

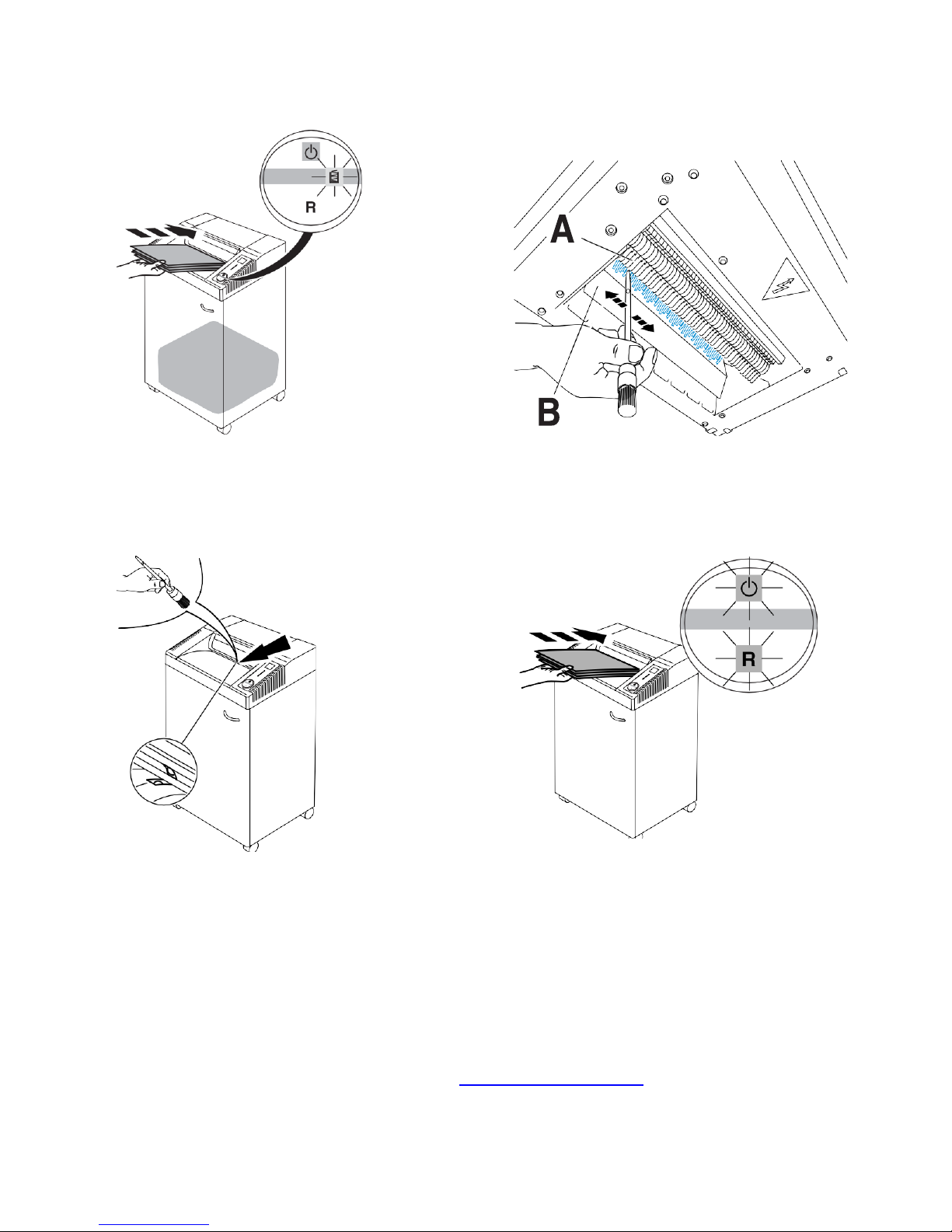

Troubleshooting: Machine will not start

Is the machine plugged in?

Is the rocker switch pressed?

The green light rocker switch is ON? (

Insert paper (

Feed the paper into the center of the

feed opening? (photo cell) (

) Is the door open?

Is the plastic bag full?

9 Is the safety flap open?

Troubleshooting–continued

"Bag full" indicator illuminates but bag is not full.

•

Disconnect from the mains.

•

Remove paper debris between the cutting head (

) and flap (

) with

a brush. Picture above shows the machine from underneath.

Machine will not stop.

Remove plug. Clean the

photo cell (

) with a

small brush.

Machine stops.

Overload protection.

Please let the

machine cool down.

•

Symbols and "R" flash

alternatively.

•

Symbol lights green, machine is

ready for operation.

Still having trouble: Call SEM tech

support at 800-225-9293 or email

at [email protected]
