Security Engineered Machinery Co., Inc.

OPERATIONAL & MAINTENANCE MANUAL

SEM Model 1201P

Shredder

As of April 1, 2009

Security Engineered Machinery Co., Inc.

NATIONWIDE SERVICE

Phone Toll Free: 1(800) 225-9293

Email: [email protected]

Fax: 1(508)366-6814

Website: WWW.SEMSHRED.com

For NATIONWIDE SERVICE call 1(800)225-9293

FORWORD

This manual provides the operation procedures for the paper shredder Model 1201P.

Please read this manual thoroughly before starting up the shredder. Keep this manual

handy so that you can refer to it at any time.

The signal words “Warning” and “Caution” found in this manual and on warning labels

affixed to the shredder correspond to the degree of injury that may result.

! Warning Indicates a potentially hazardous situation, if not

avoided, could result in serious injury.

Indicates a potentially hazardous situation which, if

not avoided, may result in minor or moderate

injury. It is also used to alert against property

damage.

In addition to the signal words mentioned above, the following two symbols are used to

indicate the prohibited actions and to highlight the important actions.

Indicates prohibited actions. Example means “do not

dismantle the product”.

Indicates mandatory actions or restricted actions. Example

means “pull out the power plug”.

DO NOT USE SHREDDER FOR ANY OTHER PURPOSE

THAN DESCRIBED IN THIS MANUAL.

For NATIONWIDE SERVICE call 1(800)225-9293

TABLE OF CONTENTS

Intended Use and Safety Precautions...……………………………………………………4

Specifications……………………………………………………………………….……..7

Parts Identification………………………………………………………………………...8

Safety Functions…………………………………………………………………….……10

Installations…………………………………………………………………………..…..12

Operating Procedures……………………………………………………………….........13

Troubleshooting………………………………………………………………………….17

Daily Maintenance…………………………………………………………………….....19

Parts List……………………………………………………………………………...20-36

For NATIONWIDE SERVICE call 1(800)225-9293

Intended Use

This paper shredder is exclusively designed for destroying paper documents only.

SAFETY PRECAUTIONS

!WARNING

Keep out of reach of children, sharp cutters inside may cause injury.

Do not allow children to use the shredder and do not use it within

children’s reach. If they touch the shredder, injury, burn and/or electric

shock may result.

Do not use the shredder with any other voltage than specified in this

manual. Do not overload the receptacles by plugging too many leads into a

single socket. It may cause a fire or electric shock.

Do not remove the covers, cases or cabinets. Sharp cutters inside may

cause injury.

Do not damage, break or deform the power cord. Do not place heavy

objects on it, pull it or bend it forcedly. Damage power cord may cause a

fire or electric shock.

Do not modify the shredder; it may cause a fire or electric shock.

Stop using the shredder immediately when smoke is emitted, unusual

smell comes out and /or abnormal heat is generated. Turn off the power

switch and pull out the power plug. Then contact us at 800-225-9293. Do

not use it continuously a fire or electric shock may result.

If shredder comes in contact with any foreign material such as a metal,

For NATIONWIDE SERVICE call 1(800)225-9293

water or any liquid, immediately turn off power switch and pull out the

power plug. Then contact us at 800-225-9293

SAFETY PRECAUTIONS Cont….

Do not plug in or unplug the power cord with wet hands, electric shock

may result.

Do not carry out any maintenance or services other than the ones

mentioned in this manual. Opening or removal of covers will expose you

to dangerous moving parts, therefore may cause serious injury.

CAUTION

Do not insert hands or other objects into the throat opening, sharp cutters

inside may cause serious injury.

Do not hold paper near the feed opening with your hands and do not push

paper into it. The pulling force of the motor is very strong and hands may

get pulled in and seriously injured.

Keep all loose articles of clothing, long hair, ties, scarves, necklaces,

bracelets etc away from the feed opening. Injury may result if such items

are drawn in press the “STOP” button immediately.

Do not insert any article other than paper. Do not shred carbon paper, wet

paper, glue backed paper, stickers, self-adhesive envelopes, DHL/FEDEX

labels, security tape, adhesive tape, OHP films, magnet sheets, plastic bags

and clothes attention.

For NATIONWIDE SERVICE call 1(800)225-9293

Do not, place shredder, on an unstable area such as an uneven floor or

tilted stand injury may result if it falls.

SAFETY PRECAUTIONS Cont….

Do not install the shredder in humid or dusty place. Keep water away from

the shredder if water splashes on it fire or electrical shock may result.

Always pull out the plug before moving the shredder. If the power cord is

damaged a fire or electric shock may result.

Turn off the breaker after using the shredder. If it is not used for a long

period of time pull out the power plug. If it is plugged for a long time it

may cause a fire.

Do not pull the power cord when pulling out the plug. I the cord is

damaged a fire may result.

Do not place any heavy object on the shredder if it falls injury may result.

For NATIONWIDE SERVICE call 1(800)225-9293

SPECIFICATIONS

MODEL 1201P

Feed opening/loading width 12.40” (315 mm)

Shred Size Approximately 0.24” x 0.56”

Cutting Type Cross Confetti Cut

Rated Sheet Capacity Letter size copy paper (20lb)

Approximately 22 sheets Maximum 45

sheets

Cutting Speed Approximately 2.2 – 10.45 yard / min

Input Voltage 120V AC / 8.0A (Max. 14A) / 60 Hz

Rated Power Consumption 720 W

Stand-by Power Consumption 0 W (5 min. after operation)

Dimensions 20” x 20” x 34”

Weight Approximately 191.4 lbs

Other Super potential power unit (variable speed

control)

No power consumption during stand-by

Paper jam prevention mechanism

LCD display with backlight

Automatic start/stop, Automatic power cut-

off

Overflow stop, Auto reverse, Auto cut

Cabinet door switch

Circuit breaker (used as power switch)

Safety beep, Error message, Caster

For NATIONWIDE SERVICE call 1(800)225-9293

PARTS IDENTIFICATION

NAME FUNCTION

(1) Throat Opening Paper to be shredded is fed through here

(2) Operation keys and display See Page 8

(3) Breaker used as Main switch Used as the main ON/OFF switch. It works

in case of circuit failure or motor lock in

order to protect the motor from burnout.

(4) Cabinet Door Opened to take out/put in the waste basket

(5) Waste Basket Shredded particles are stored here

(6) Casters Used to move the shredder, Front casters

have stoppers which should be locked at

the installation place.

For NATIONWIDE SERVICE call 1(800)225-9293

OPERATION KEYS AND DISPLAY

NAME FUNCTION

(1) Liquid Crystal Display Current status is displayed

(2) STOP key Stops shredding and paper feeding

(3) START key (shredder) Pressing the upper side of this key after

turning on the breaker or during power

saving mode makes shredder ready for

operation

(4) REVERSE key Cutting block runs in reverse while this key

is pressed

For NATIONWIDE SERVICE call 1(800)225-9293

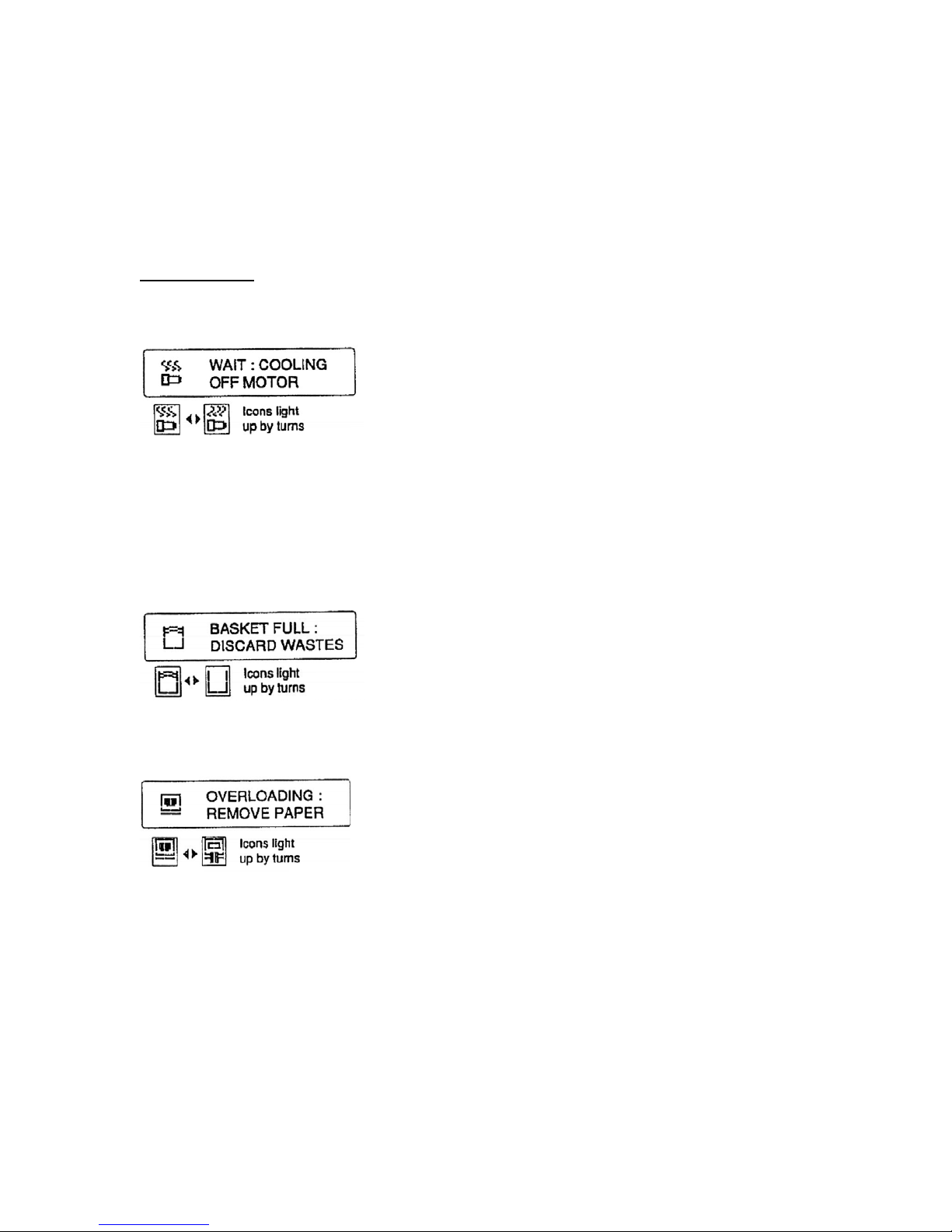

SAFETY FUNCTIONS

Safety Devices

(1) Auto-cut (Motor overheating protection)

When motor is locked or overloaded for a certain period of

time the motor overheat protection is activated to cut off

the motor power. When activated a beep sounds and the

machine will stop. When motor is cooled the machine will

reset automatically and the alarm beeps again.

(2) Cabinet Door Switch

Prevents the shredder from operating while cabinet door is open.

(3) Overflow Stop

When the waste basket becomes full the shredder

automatically stops after leveling shredded material.

(4) Auto Reverse

When exceeding the maximum sheet capacity the

shredder may get jammed the shredder will stop and then

reverses automatically so that the jammed paper can be

removed. Pressing the REVERSE key also activates the

reverse operation.

(5) Circuit Breaker

To protect against circuit failure the motor is locked for a certain period of time, this

feature will protect the motor wiring from burnout and overload.

(6) Feed Opening Switch

The feed opening switch prevents the shredder from operating while the jammed

paper is being removed through its enlarged feed opening this operation uses the auto

reverse function.
