SEWOO LK-P41B Manuale utente
All specifications are subject to change without notice
02%,/(35,17(5
MODEL : LK-P41B
23
Table of Contents
1. Product overview
3
2.
Unpacking
3. Usage and Installation 5
3-1. Control panel usage
5
3-2. Battery Installation
6
3-3. Battery charging
7
3-4. Battery charger usage
8
3-5. Roll paper installation
9
3-6. Leather case usage
10
3-7. Self test
11
4.
Peripherals connection 13
4-1. Bluetooth connectiontion
13
4-2. Interface cable connection
14
5.
Printer specification 15
5-1. Specification
15
6.
CPCL Command Compatibility 17
7.
Setting up the software 20

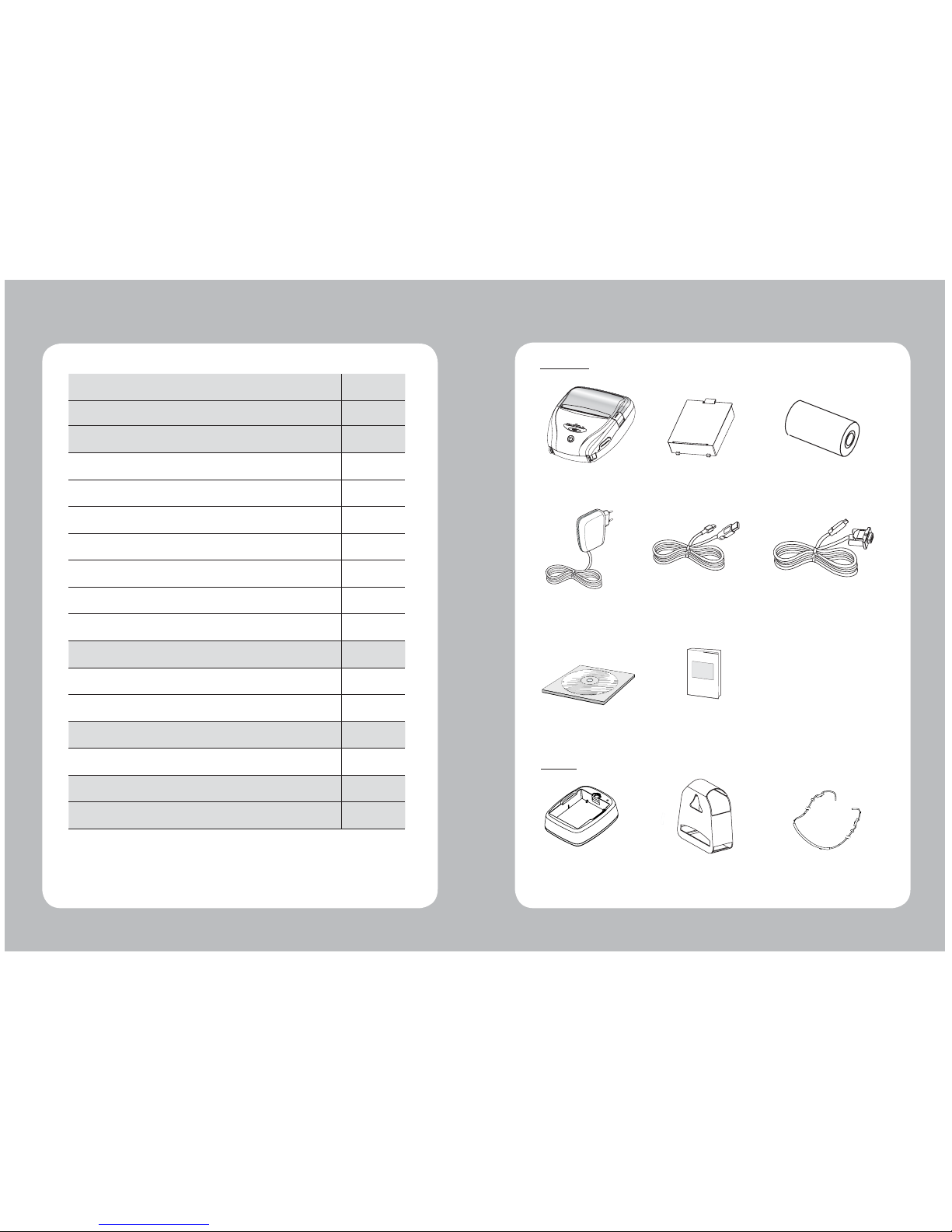

1. Unpacking
Standard
Option
Printer Battery
Serial Cable
Roll paper
USB Cable Shielded
Charger
CD Quick Manual
Battery Holder (Cradle) Leather case Shoulder strip
45
Button
Name
function
Power
button
This button is used to turn the printer on and off.
When the printer is off,press this button for approximately 3 seconds
and it will turn on the power.When you press this button in a state
that the printer is on, the printer will turn off.
Paper
Feed
Button
Paper output can be done manually by pressing this button.
Additionally,self-testing and Hexadecimal Dumping can be
processed..
1. Refer to“3-10” for self test information.
2. Refer to the service manual regarding Hexadecimal Dumping.
Battery
Status
Lamp
1. If the Batt, LED are Lit,the battery is fully charged.
2. If you can hear beeping sound and LED light is turned off, it means
that the battery is at the lowest level.
3. If the battery is not charged at all, the printer turns off
automatically.
Error
Lamp
If the red light is turned on, it means there is no paper roll or the
paper cover is open.

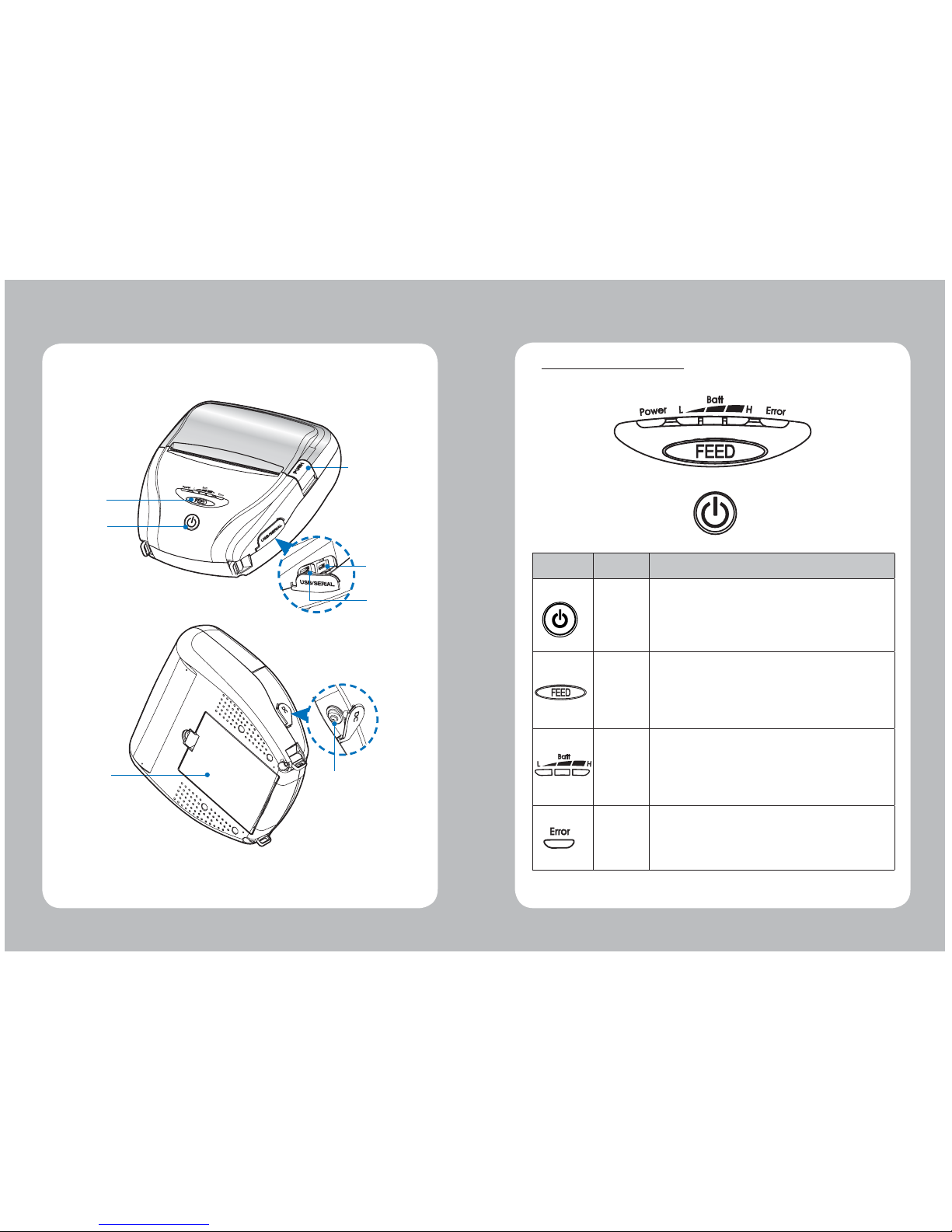

2. Product overview 3. Usage and Installation
3-1 Control panel usage
Paper feed
button
Power
switch
DC Power
Battery
SERIAL
USB
Open Button
67
1. Align battery hook as shown in the picture
2. Push the battery into the printer until it locks in place.
NOTE
As the battery is not charged at the time of your purchase, charge the
battery prior to using the printer
(Battery charger or Cradle can be used to charge)
ⷍCAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions
Hook

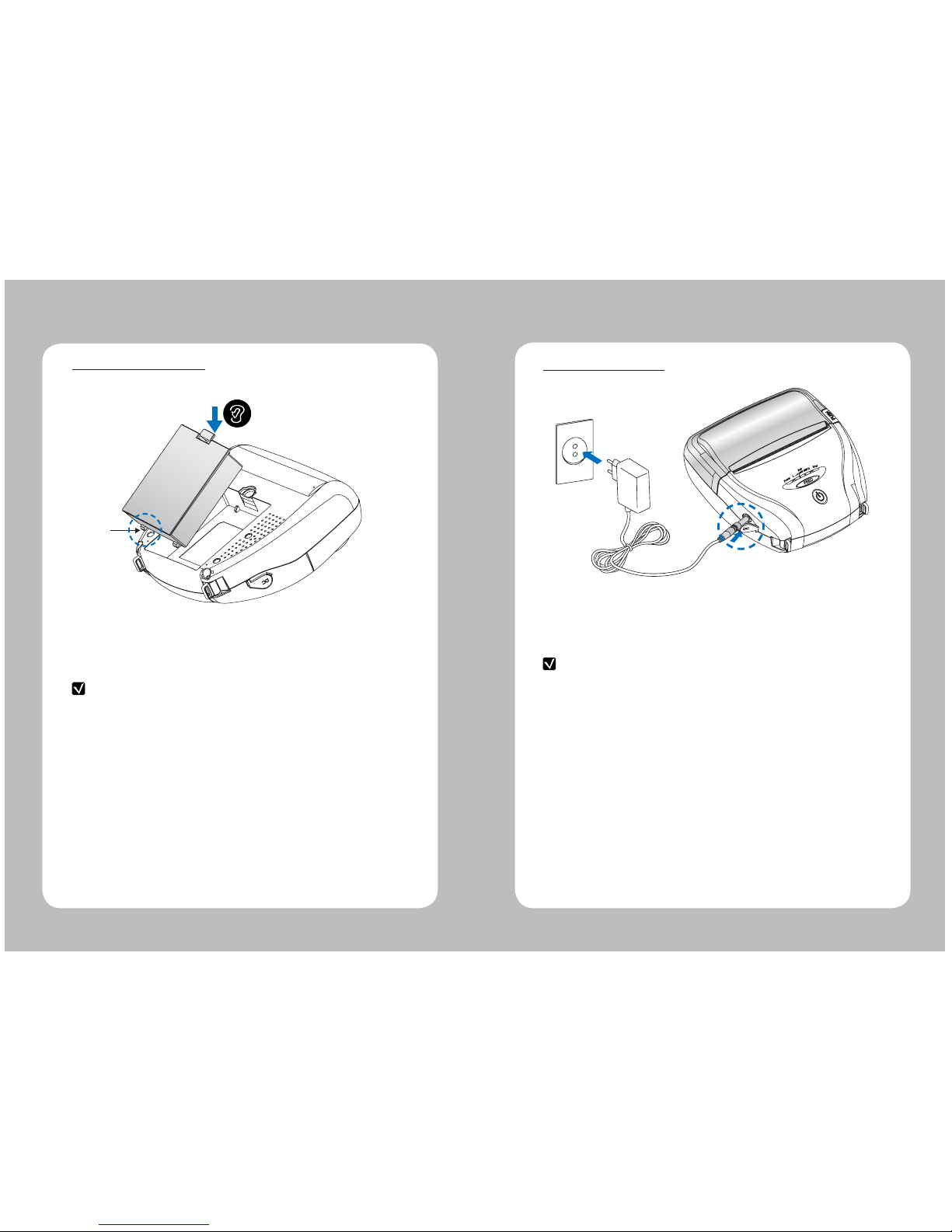

3-2 Battery Installation
NOTE
1. Unless the exclusive charger is used provided by the manufacturer, the printer
can be damaged, and the manufacturer is not liable for the consequential damage.
2. Before removing the battery, make sure that power is turned off.
3. Printer does not work in the status of being connected with charger only.
4. The battery should be installed to operate printer.
5. While charging, do not turn on the power.
6. Do not operate the print while charging the battery.
7. Do not connect the charger while the printer is operated.
1. Be sure that the printer is turned off
2. After open the DC JACK cover, insert DC JACK into the printer.
3. Plug the power code to electrical outlet.
3-3 Battery charging
89
3-5-1 The status of lamp in charging
lamp
Status charging charging complete
Charging Lamp Red
Green
NOTE
In the case the battery is not fixed properly in the holder, the red lamp will be
blinking, Then, extract and reinsert the battery.

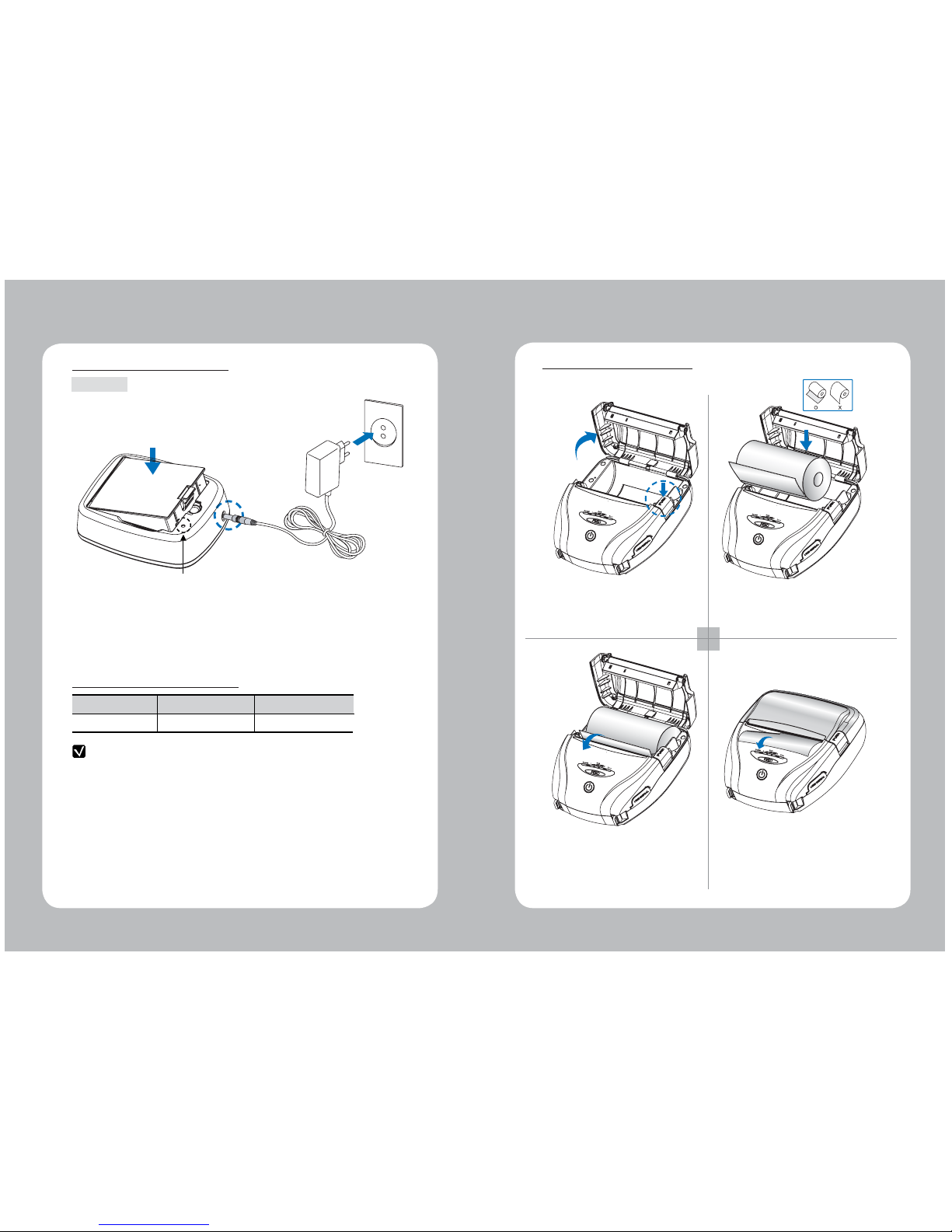

3-4 Battery charger usage
DC Jack
1. Insert the battery into the battery holder as shown above
2. Connect the DC JACK to the power electrical outlet.
3. Plug the power code into the electrical outlet.
4. Once the charging is completed, remove the battery from the holder.
Optional
12
34
Press the PUSH button to open
the paper cover
Pull a short length of paper out of
the printer and close the cover.
Insert the paper in the right
direction
Tear off the additional paper using
tear bar.
3-5 Roll Paper installation
10 11
12
3
Open the leather case
Close the Velcro and stick the
cover.
Place the printer into the leather
case

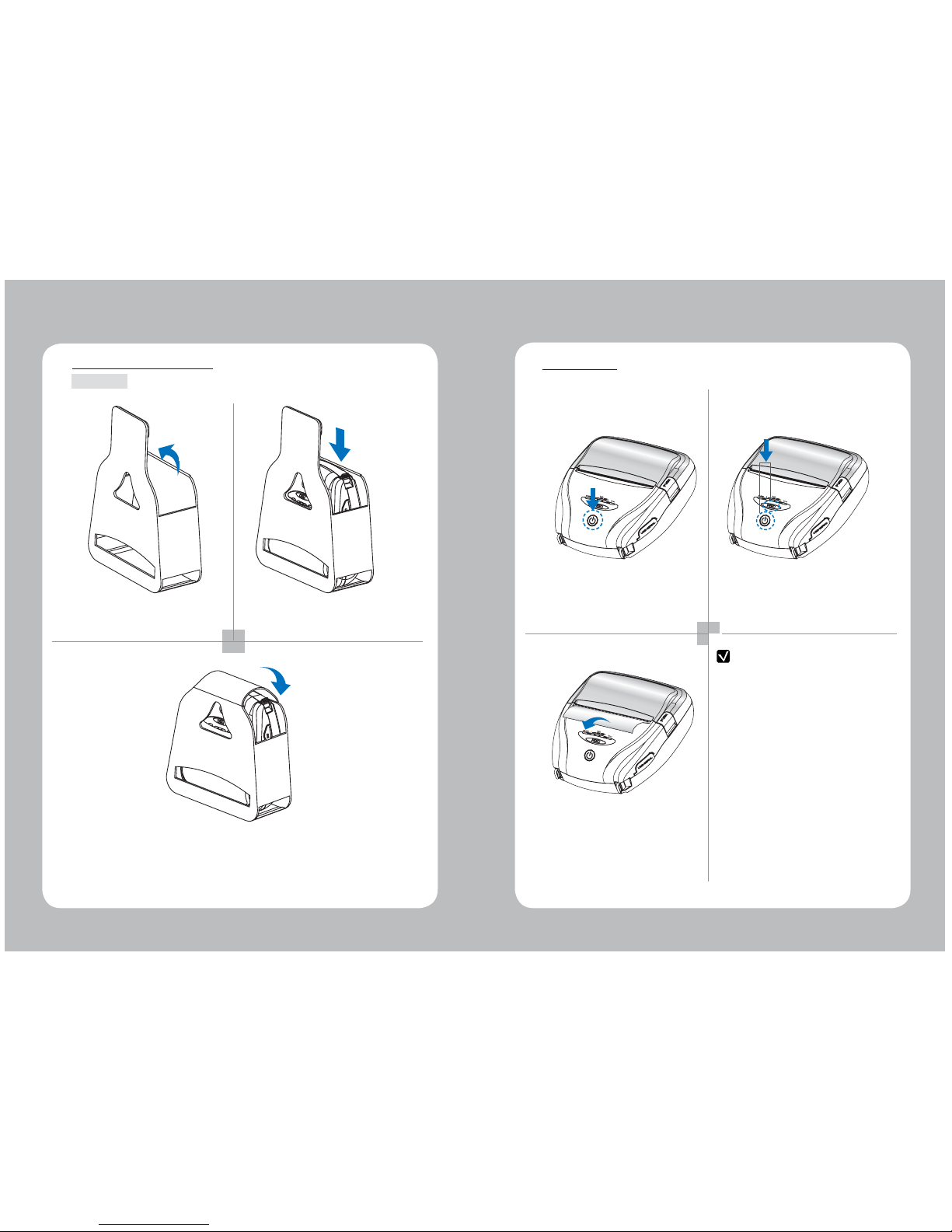

3-6 Leather case usage
Optional
12
3
NOTE
Turn off the power pressing the
power button for approximately
3 seconds.
The printout is produced.
While you are pressing the FEED
button, press the power button
3-7 Self Test
1. To print ASCII pattern additionally,
press the Feed button once more
2. After printing ASCII pattern, the
self test will be finished automatically.
3. If the Feed button is not pressed
to print ASCII pattern, self test will be
finished automatically after 30 seconds.
12 13
When the printer is installed initially or when you face a problem, you can run the
self test and check the information about
-Control Circuit, Mechanism, Print Quality, ROM Version
After checking with self-test and no issues are found, you can examine other
devices and software. This function is working independent of devices and software.
<The sample of self test printout>
م
Motor protection from being overheated
The motor should be stopped and cooled about more than 30 seconds after
continuous printing 1.5 meter
1. Printer can be connected to the PDA and PC which can do wireless
communication.
2. By using Bluetooth function supported in PC, printer can be connected.
This printer can communicate with Peripherals device via Bluetooth
and cables.
4-1 Bluetooth Connection
4. Peripherals connection
14 15
4-2 Interface Cable Connection
1. Connect USB or Serial cable into the cable connector on the printer.
2. Connect the interface cable into the USB or Serial port of the device
(PDA, PC, etc.)
NOTE
Use the cable offered by the manufacturer (USB, Serial)
Serial
USB
Printing Method Direct Thermal
Printing Speed 80mm/sec
Resolution 203 DPI X 203 DPI
Character CPCL 7 Different Font Size (12~48pt)
ESC/POS Font A (12X24), Font B (9X17)
Character per line Font A : 48pt, Font B : 64pt
Character set ALPHA NUMERIC Character, Extension
Character
Barcode EAN-8, EAN-13, Code39, ITF, UPC-A, UPC-E,
Codabar, Code93, Code128, PDF417(2D),
MAXICode (2D)
Emulation ESC/POS, CPCL, Commanl Compatible
Driver Window CE 4.2&5.0, Window Mobile 5.0
Sensor Paper End Sensor , Gap Sensor , Cover Open
Sensor , Black Mark Sensor
Paper paper type Thermal Paper / Label
width 25.4mm ~112mm
thickness 0.06mm ~ 0.09mm
External Diameter Max. ⱒ56mm
Internal Diameter 12.5mm +/-0.5mm
Reliability TPH 50km
Battery Continuous printing operation: 1hr and 30min
Standby: 24hrs
Printing length: 162m
Communications Serial(RS-232C), USB, Bluetooth Class2
Battery Chargerinput AC100~240V, 50/60 Hz
5. Pritner Specification
5-1 Specification
16 17
Battery Charger Battery type Li-ion
output 7.4V, 2200mAh
Charging time 3 hour 40 minute
Size W X D X H(mm) 149 X 161 X 69
W X D X H” 5.8 X 6.3 X 2.7
Weight 0.53kg (With Battery)
Temperature operation -10 ~ 50Ⳅ
storage -20 ~ 60Ⳅ
Humidity operation 35 ~ 95%
Printer Commands Compatibility
PRINT
ⷃ
FORM
ⷃ
JOURNAL
ⷃ
UNITS
ⷃ
Comments
ⷃ
TEXT Compatibility
TEXT
ⷃ
FONT-GROUP(FG)
ⷃ
TEXT CONCATENATION
ⷃ
MULTILINE(ML)
ⷃ
COUNT
ⷃ
SETMAG
ⷃ
SCALABLE TEXT
9
Linear Bar Codes Compatibility
BARCODE
ⷃ
BARCODE-TEXT
ⷃ
Two-Dimensional Bar Codes Compatibility
PDF417 (PORTABLE DATA FILE)
ⷃ
MAXICODE
ⷃ
QRCODE
ⷅ
DATAMATRIX
ⷅ
GS1(RSS)
ⷅ
/05&
Compatible Partially
Compatible
Not
Compatible
ⷃⷅⶹY
Compatible with only
commanders provided
by the manufacturer.
6. CPCL Command Compatibility
