SEWOO LK-P12 Guida utente

MODEL:LK-P12(Peeler)

Portable Printer

J. STEPHEN Lab., Ltd.

28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do, 18103, Korea

TEL : +82-31-8077-5000 FAX : +82-31-459-8880

www.miniprinter.com

P12(Peeler) Rev.C 01/18

System Administrator Manual

Table of Contents

1. INTRODUCTION

1-1 Using This Manual 4

1-2 Using the Menu Chart 4

1-3 Using the Display and Buttons 5

1-3-1 Selecting a Menu 6

1-3-2 Exiting a Menu 6

1-3-3 Printing 6

1-4. Selecting a Language 7

2. USING DIAGNOSTICS

2-1 Diagnostics 8

2-1-1 Printer 9

2-1-2 Display 15

2-1-3 Buttons 16

2-1-4 RAM 17

2-1-5 Data Dump 18

2-1-6 About 19

3. SETTING UP THE PRINTER

3-1 SETUP 20

3-1-1 Stock PWR 21

3-1-2 Backlight 22

3-1-3 Contrast 23

3-1-4 Printer 24

3-1-5 Serial Communications 36

3-1-6 Power Management 40

4. WI-FI 42

4-1 RF Network 42

4-2 Wi-Fi setting utility instruction 50

4-2-1 Port and Wi-Fi Information Tab 51

4-2-2 Wi-Fi Information Tab 51

4-2-3 WPA Authentication Tab 51

4-3 Using the Web Interface 52

4-3-1 Setting Menu 53

4-3-2 IP Setting 54

4-3-3 Link Status 56

4-3-4 Site Survey 57

4-3-5 Statistics 58

4-3-6 Advance 59

4-3-7 Management 60

4-3-8 Reboot and Default 61

4-3-9 Upgrade Firmware 62

4-3-10 Upload Certicate 63

4-3-11 Status 64

4-3-12 Statistics 65

4-3-13 VER. History 66

4-4 Wi-Fi Glossary 67

4-5 Wi-Fi Specications 72

5. BLUETOOTH 73

5-1 Using the Bluetooth Settings Dialog 73

5-1-1 Enabling the Security 73

5-1-2 Changing the Pin 74

5-1-3 Local Name 74

5-1-4 Local Address 75

5-1-5 Printing Info 75

5-2 Bluetooth Interface 76

5-2-1 Printer Connection Settings 77

5-2-2 Getting Bluetooth Information 78

5-2-3 PIN Code Information 78

5-2-4 Discoverable Mode Information 78

5-2-5 Emulation Settings 79

1. INTRODUCTION

1-1. Using This Manual

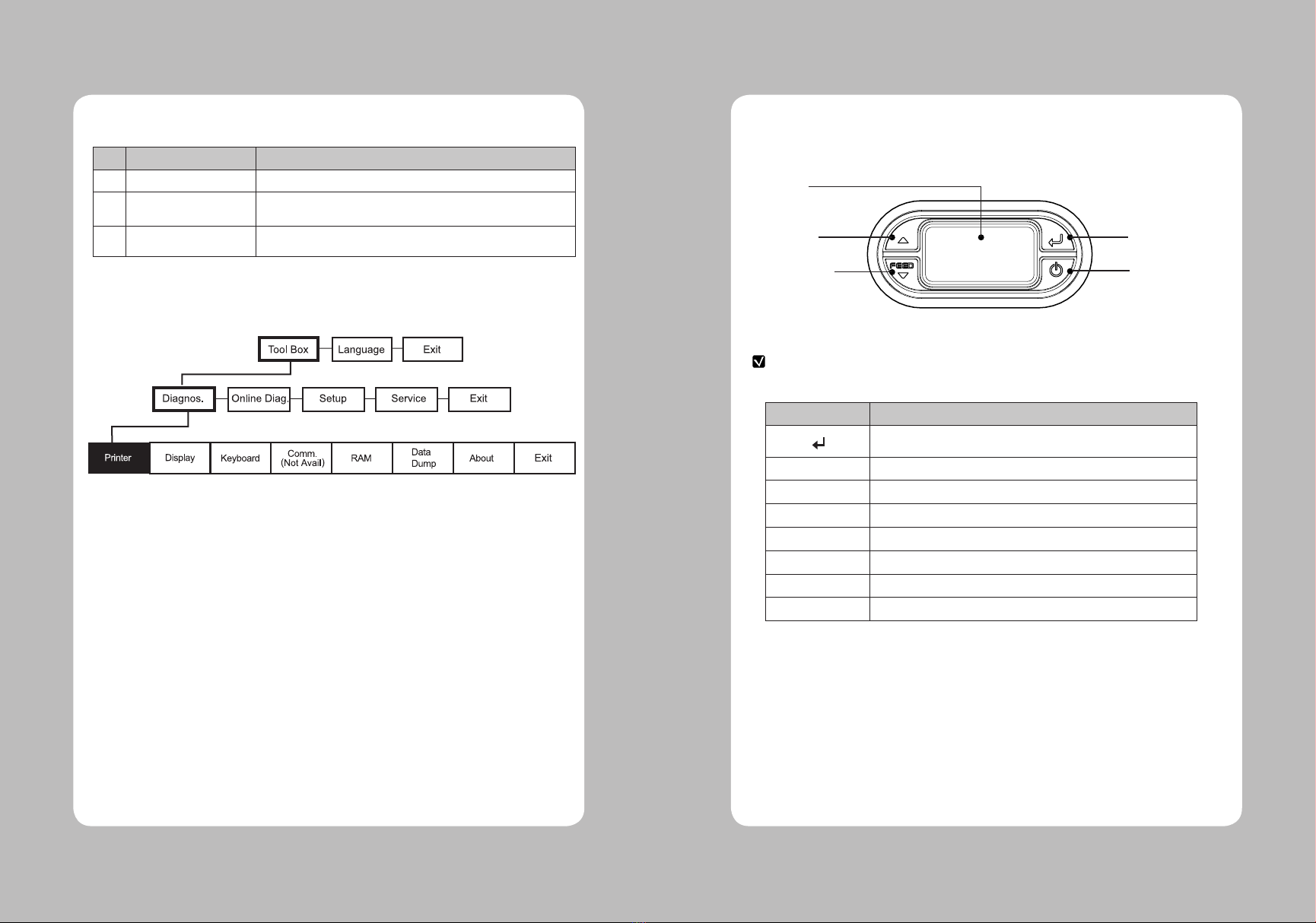

1-2. Using the Menu Chart

Subjects Contents

1Introduction Notes before using printer

2Diagnostics How to print test label, check sensor, check print position, etc.

3Setting Up the Printer How to use the Setting Menu to adjust stock

and printer settings

The black boxes show present position, the boxes with a thick line show how you got there.

1-3. Using the Display and Buttons

NOTE

button operates as feed button in ready condition only.

Screen displays Meaning

Selects the highlighted option.

Moves the Menu position upwards by one step.

Moves the Menu position down one step.

Moves the cursor to the position you want to change.

Increases value.

Decrease value.

Returns to the parent Menu without saving settings.

Returns to parent Menu after saving settings.

Display

Enter button

Power button

Up button

Paper Feed /

Down button

▶

FEED

▼

▲

1. Press the Enter( ) button to enter the Menu.

2. Move the cursor through the menu using the Up(▲) / Down(▼) buttons, and select

an item by pressing the Enter( ) button.

Select Exit Menu or press the power ( )button to return to the previous menu

There are three ways to print.

1. When turning on the printer, press and hold the power ( ) button and the Down(▼)

button. The printer prints a batch (if sent) or prints the printer status information.

2. Select a test label from the Diagnostics menu.

3. Send batch data to the printer.

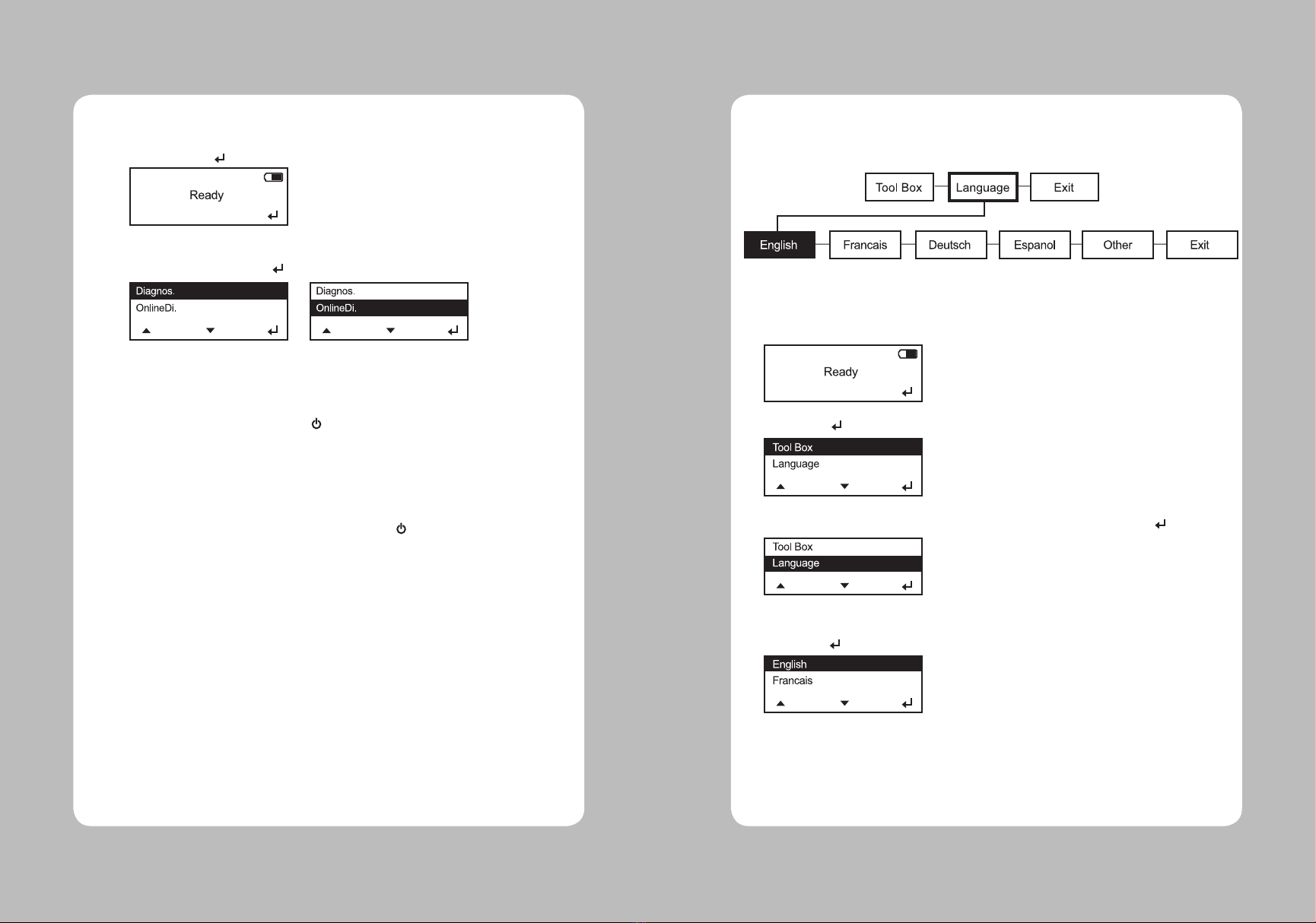

1-3-1. Selecting a Menu

1-3-2. Exiting a Menu

1-3-3. Printing

1-4. Selecting a Language

You can read Menu names or messages on the printer in English, French,

Spanish, German.

1. Turn on the printer. The printer name and software version information is displayed.

2. Press Enter( ) button.

3. Move cursor to language by pressing Down(▼)button and then press Enter( ) button.

4. Move the cursor to the language you want by pressing Up(▲)/Down(▼) button then

press Enter( ) button.

5. The selected language is displayed on the screen.

6. Select exit to return to the diagnostics menu or press the power button to return to

the ready screen.

2-1. Diagnostics

This chapter describes how to use Diagnostics in the Tool Box.

You can view test results through this Menu; however, you cannot change the setting.

1. Turn on the printer. The printer name and software version information is displayed.

2. Press the Enter( ) button.

3. Press the Enter( ) button.

5. If correct the password is typed you will see the screen below.

4. Press Up(▲) and Enter( ) button in the sequence of ,▲, ▲, ▲,

6. The cursor is positioned on the Diagnostics Menu. Enter into Diagnostics Menu by

pressing the Enter( ) button.

2. Using Diagnostics

2-1-1. Printer

To return to initial screen, press the power( )button.

Four test labels can be printed: Diag Label, Test Pattern, Gray Scale,

MIF (Monarch Initialization Files) Info.

**Test Label

1. Select Printer - Test Label - Diag Label in Diagnostics Menu (MPCL Only)

2. Select Printer – Test Label– Test Pattern in Diagnostics Menu.

A Checkerboard pattern will be printed.

Printer Diagnostics Labels will be printed.

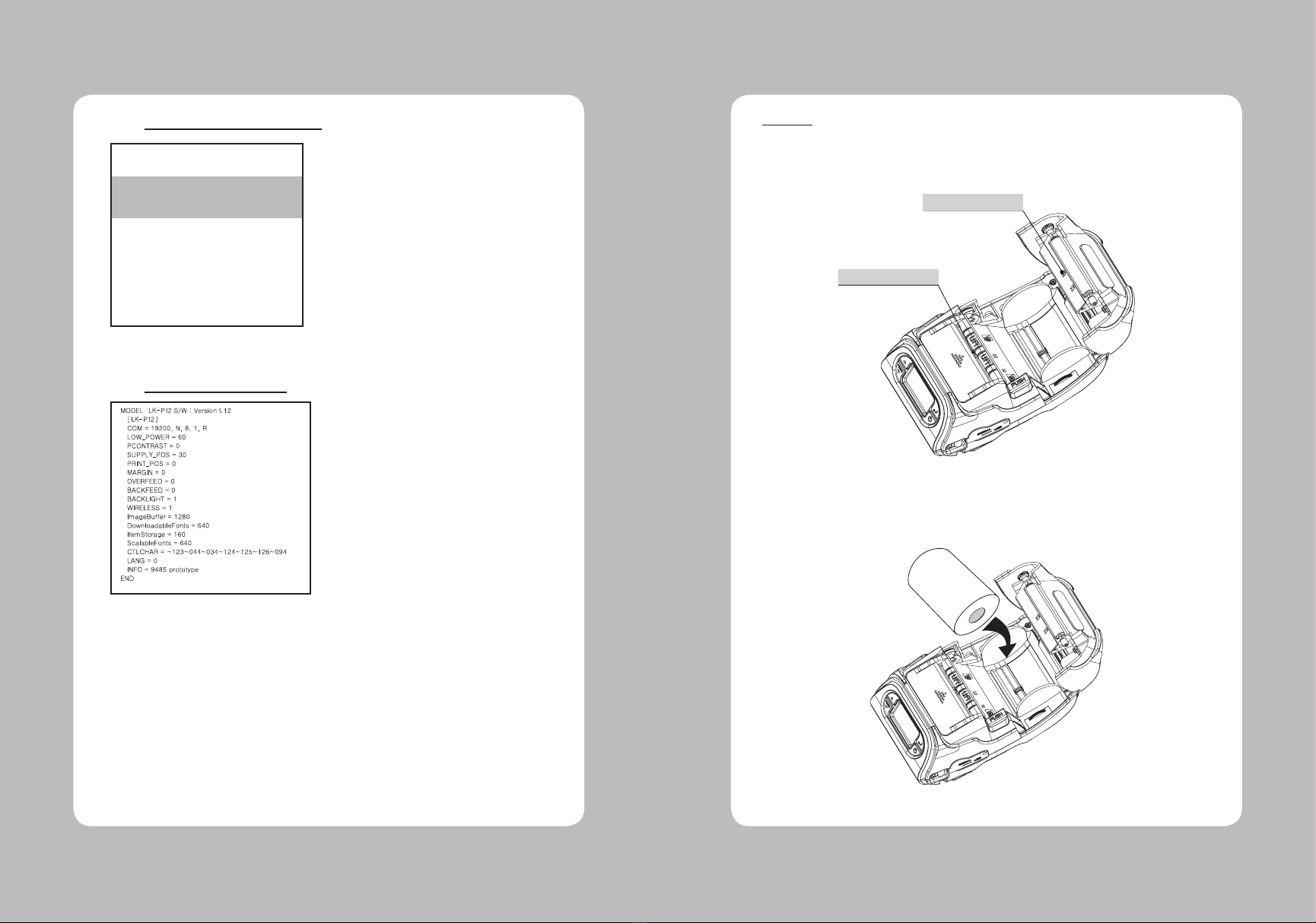

LK-P12 LK-P12

Gray Scale is printed.

MIF Info is printed.

3. Select Printer - Test Label - Gray Scale in Diagnostics Menu.

4. Select Printer – Test Label – MIF Info in Diagnostics Menu. (MPCL Only)

In this Menu, you can read each A/D value of the Black Mark and Gap sensor, or

Peeler and Peel-SW sensors. The position of each sensor is shown in the following

picture.

**Sensors

1. Load stock in the printer.

PEELER SENSOR

B/M & GAP SENSOR

2. Select Printer – Sensors – Black Mark in the Diagnostics Menu.

Check whether the A/D value is changing in Black Mark sensor position while feeding

Black Mark stock manually.

3. Select Printer – Sensors – Peel in Diagnostics Menu. Check whether A/D value is

changing by covering the Peeler Sensor with stock

Make sure the stock is loaded in line with upper/lower Black Mark sensors.

4. Select Printer – Sensors – Gap in Diagnostics Menu. Check whether the A/D value is

changing in the Gap sensor position by feeding Gap

stock manually.

5. Select Printer – Sensors – Gap in Diagnostics Menu.

Check whether A/D value is changing by Peeler S/W position.

Peel-SW

A/D Value = 194

With a roll of stock installed, slide the

peeler body towards the back of the printer.

Lift the peeler wing and slide the peeler body

towards the front of the printer.

6. Press the Enter( ) button to return to the previous menu.

1. Select Printer – Printhead – Temperat in the Diagnostics Menu.

1. You can check the battery indicator located on the upper right side of the screen.

In this Menu, You can check Printhead temperature(TPH) in ℃(Centigrade).

The temperature of Printhead must be lower than 60℃to print.

Press the Enter( ) button to return to the previous menu.

**Printhead

There are two ways to check the battery level.

2. Select Printer – Battery from the Diagnostics Menu, and the battery level is

displayed in voltage on the screen.

**Battery

NOTE

(7.8v above) (7.5v above)

(7.2v above) (6.8v below)

Press the Enter( ) button to return to the previous menu.

1. Select Printer – View Total – Print Inch in Diagnostics Menu.

In this Menu, you can view Total inches printed

**View Total

Press Enter( ) button to return to the previous menu.

Remaining battery power

2-1-2. Display

1. Select Display – Backlight in the Diagnostics Menu

You can check the display in this Menu.

2. Press the Up(▲) button Backlight is turned off, if the same button is pressed once more then it

is turned on.

3. Press Enter( ) button to exit from Backlight Test.

4. Select Display – Pixel in the Diagnostics Menu.

5. Press the Up(▲) button all Pixels on the screen are changed into black color and if it is

pressed once more then all Pixels are changed into white color.

6. Press Enter( ) button to exit from Pixel Test.

2. Press the Up(▲) button, press the Down(▼) button, and press the Enter( ) button.

3. Each icon should change from O to X when pressed.

4. Press the Enter( ) button from the keyboard test.

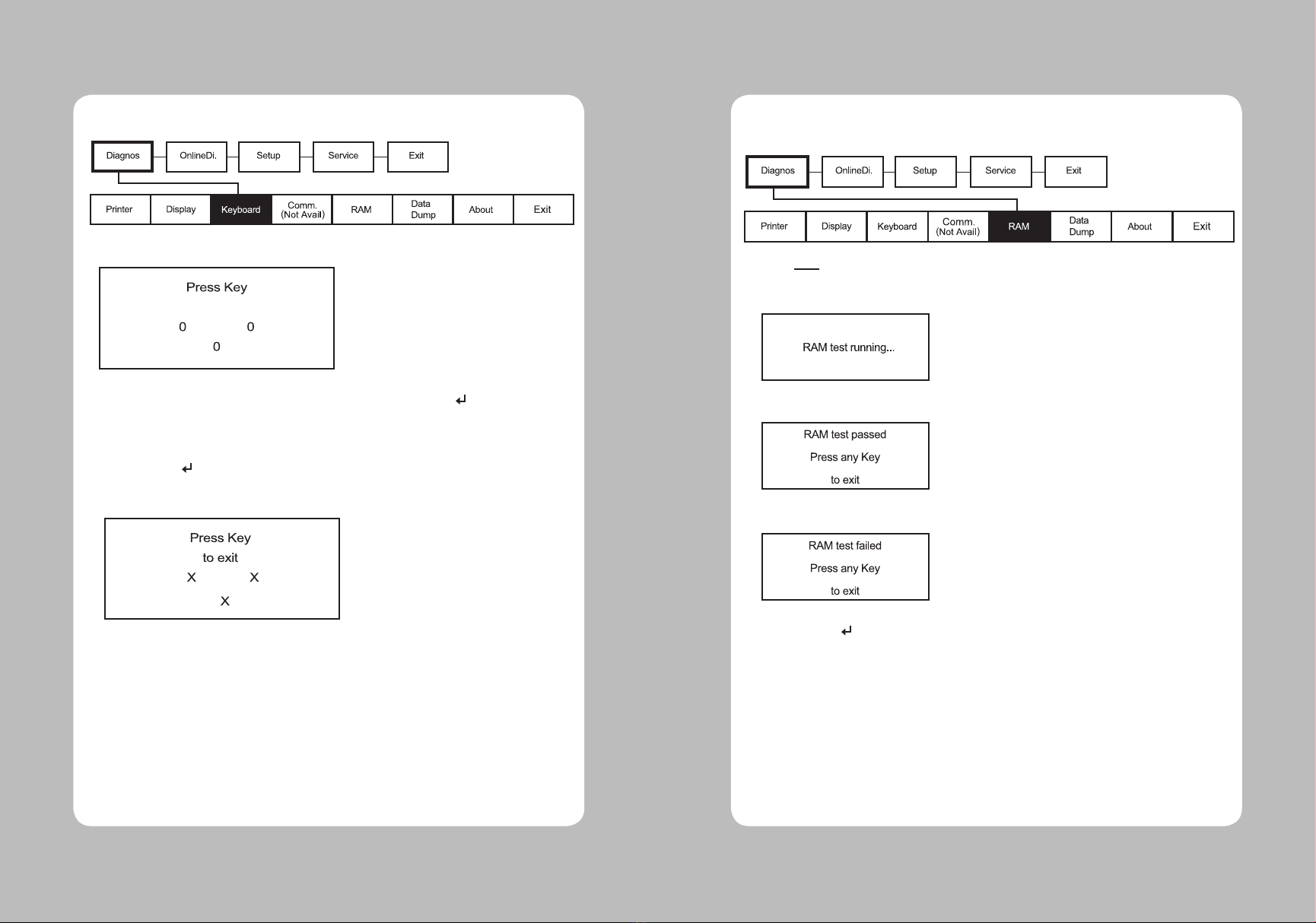

2-1-3. Buttons

1. Select Keyboard from the Diagnostics Menu.

2-1-4. RAM

Select this Menu and check memory of the printer.

1. Select RAM in Diagnostics Menu.

2. The message "RAM test running" is displayed.

3. If the RAM test passes, you will see:

4. If the RAM test fails, you will see:

5. Press the Enter( ) button to return to the previous menu.
