SIIG DP SoundWave 4 Channel PCI Manuale utente
1
DP SoundWave
4 Channel PCI
Quick Installation Guide
04-0517D
Introducing the SoundWave 4 Channel PCI
The DP SoundWave 4 Channel PCI is a high performance
multimedia sound card which takes full advantage of
the PCI bus architecture, while maintaining
compatibility with legacy software.
Features
• Full-duplex playback and recording
• Built in 16-bit CODEC
• Built-in 32 OHM Earphone buffer
• Supports multi-channel output to 2 or 4 speaker
systems
• 4 Channel 16-bit DAC
• ACPI compliant power down management
System Requirements
• Pentium®II266MHz(PIII800MHzrecommended)
or equivalent PC with an available PCI slot
• Windows®7 (32-/64-bit) / Vista (32-/64-bit) / XP
(32-bit) / Server 2003 & 2008 (32-/64-bit) / 2000
• 64MB system memory or above
2
PackageContents
•DP SoundWave 4 Channel PCI
• Spare low profile bracket
• Software CD (Xear 3D)
• Quick installation guide

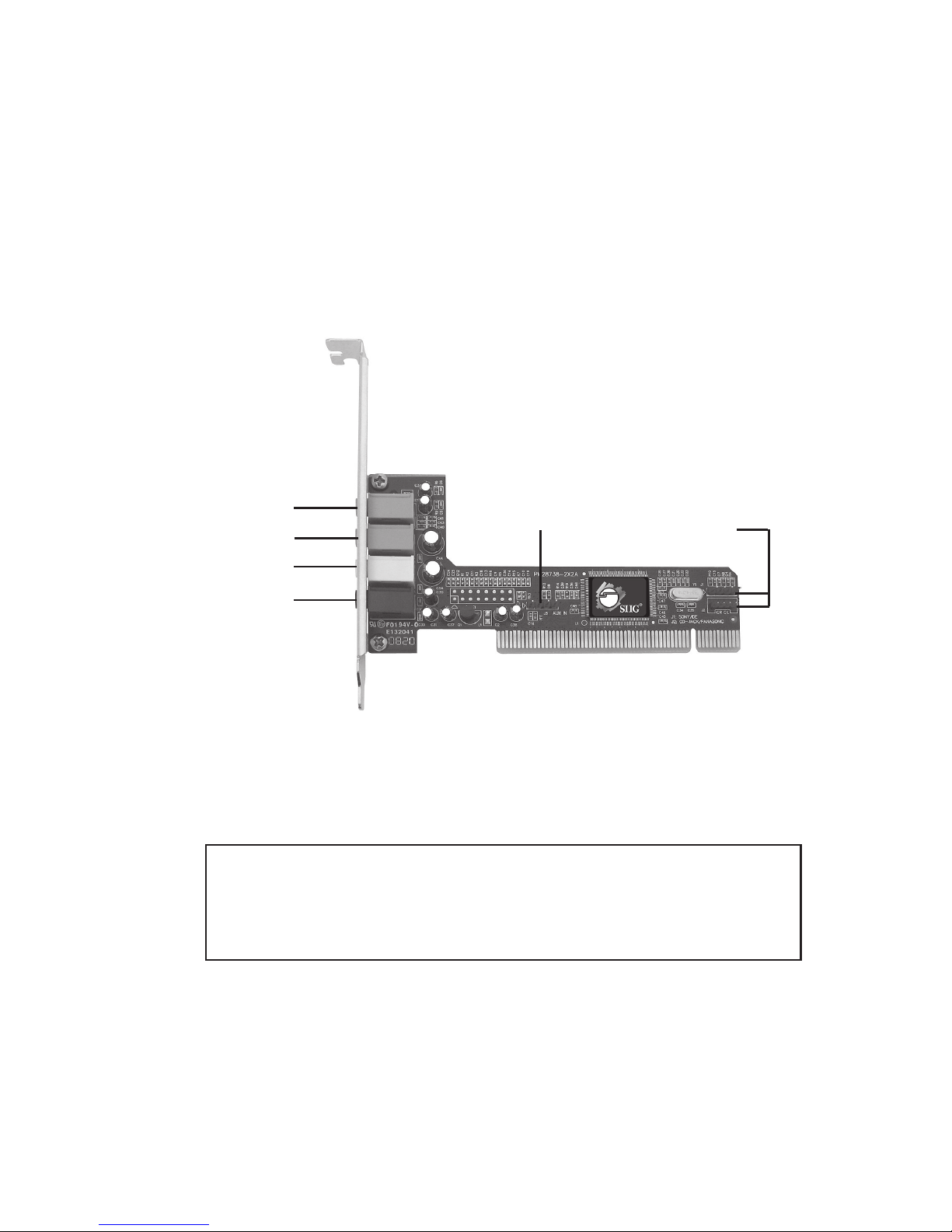

Layout
Line In
Mic In
Front Speaker
Rear Speaker
Analog CD-In
Aux-In
Figure 1: Layout
Note: Youcanconnectto both CD-In and Aux-In at
the same time. However, only one CD-In can be
connected at one time.
3
Connectors
Line In:
This connector provides line-in function. Supports
analog stereo playback only.
Mic In:
This connector provides microphone-in function.
Front Speaker:
This connector provides front source output, you can
connect one set of active speakers, headphones or
audio-in of home stereo.
Rear Speaker:
This connector provides rear sound - four channel
speakers mode must be enabled.
Analog CD-In (J1 and J2 internal):
This connector can be used to attach CD-ROM or DVD-
ROM audio cable. There are two different connectors.
Select the connector that matches your audio cable.
Aux In (internal):
This connector can be used to connect other audio
output devices.
4
Hardware Installation
Note: For low profile systems, replace the currently
mounted bracket with the included low profile bracket.
It is recommended that you remove any previously
installed sound card drivers before installing the DP
SoundWave 4 Channel PCI to avoid any conflicts. If
previously installed drivers are not removed, the DP
SoundWave 4 Channel PCI may not function properly.
General instructions for installing the card are provided
below. Since the design of computer cases and
motherboards vary, refer to your computer’s reference
manual for further information, if needed.
Static Electricity Discharge may permanently damage
your system. Discharge any static electricity build up in
your body by touching your computer case for a few
seconds. Avoid any contact with internal parts and
handle cards only by their external edges.
1. Turn OFF the power to your computer and any
other connected peripheral devices.
2. Unplug the power cord from the back of the
computer.
3. Remove your computer’s cover.
4. Remove the slot bracket from an available PCI slot.
5. To install the card, carefully align the card's bus
connector with the selected PCI slot on the
motherboard. Push the board down firmly, but
gently, until it is well seated.
6. Replace the slot bracket holding screw to secure
the card.
5
7. Connect one end of the audio cable from your
CD-ROM or DVD-player to the CD In on the
soundcard.
8. Replace the computer cover and reconnect the
power cord.
Driver Installation
Windows 7 (32-/64-bit)
1. Install the board then boot up Windows.
2. At the Windows desktop, insert the Software CD:
At the AutoPlay window: Click Open folder to
view files. Double click Win7 folder, then double
click Setup.
If AutoPlay doesn't start: Click Start button, in the
Search programs and files box, type
D:\Win7\setup.exe,press Enter.(Change D: to
match your CD-ROM drive letter)
3. Follow the on-screen instructions to complete the
installation.
To Verify Windows 7 Installation
1. Right click Computer, click Manage, select Device
Manager.
2. Double-click Sound, video and game controllers,
then double click C-Media PCI Audio Device.
3. A message This device is working properly is
displayed, the driver has been correctly installed.
Windows Vista™(32-/64-bit)
1. Install the board then boot up Windows.
2. AttheFoundNewHardwarewindow,clickCancel.
6
3. Insert the Software CD:
At the AutoPlay window: Click Open folder to
view files. Double click Vista folder, then double
click Setup.
If AutoPlay doesn't start: Click Start, in the Start
Search box,type D:\Vista\setup.exe,pressEnter,
then click Allow.(Change D: to match your CD-
ROM drive letter)
4. Select Yes, I want to restart my computer now,
then click Finish.
To Verify Windows Vista Installation
1. Right click Computer, click Manage, click
Continue, select Device Manager.
2. Double-click Sound, video and game controllers,
then double click C-Media PCI Audio Device.
3. A message This device is working properly is
displayed, the driver has been correctly installed.
Windows XP (32-bit) / Server 2003 (32-/64-bit) / 2000
1. Install the board then boot up in Windows.
2. At the Add New Hardware Wizard, click Cancel.
3. Insert the Software CD. Click Start, Run, type
D:\setup.exe, then click OK. (Change D: to match
your CD-ROM drive letter)
4. Click Next three times.
5. Select Yes, I want to restart my computer now,
then click Finish.
7
To Verify Windows XP / Server 2003 / 2000 Installation
1. Right click My Computer and click Manage, select
Device Manager.
2. Double-click Sound, video and game controllers,
then double click C-Media PCI Audio Device.
3. A message This device is working properly is
displayed, the driver has been correctly installed.
Windows Server 2008 (32-/64-bit)
1. Install the board then boot up in Windows.
2. AttheFoundNewHardwarewindow,clickCancel.
3. Insert Software CD
At the AutoPlay window: Click Open folder to
view files. Double click Setup.
If AutoPlay doesn't start: Click Start, in the Start
Search box, type D:\setup.exe, press Enter.
(Change D: to match your CD-ROM drive letter)
4. Select Yes, I want to restart my computer now,
then click Finish.
To Verify Windows Server 2008 Installation
1. Right click Computer, click Manage, double click
Diagnostics, click Device Manager.
2. Double click Sound, video and game controllers,
then double click C-Media PCI Audio Device.
3. A message This device is working properly is
displayed, the driver has been correctly installed.
8
Uninstalling the Sound Card Driver
Windows 7
1. Click Start, Control Panel, then click Programs.
2. Doubleclick Uninstall a Programunder Programs.
3. Double click C-Media PCI Audio Device, select
Yes, I want to restart my computer now, then click
Finish to restart Windows.
Windows Vista
1. Click Start, then Control Panel.
2. Doubleclick Uninstall a Programunder Programs.
3. Double click C-Media PCI Audio Device, click
Continue. Follow on-screen instructions to
uninstall the driver.
Windows XP / Server 2003 / 2000
1. Click Start, Settings, then Control Panel.
2. Double click Add/Remove Programs.
3. Select C-Media PCI Audio, then click
Change/Remove or Add/Remove button.
4. Follow the on-screen instructions to uninstall the
driver.
Windows Server 2008
1. Click Start, then Control Panel.
2. Double click Programs and Features.
3. Double click C-Media PCI Audio.
4. Select Yes, I want to restart my computer now,
then click Finish to restart Windows.
9
Speaker Configuration
Windows 7
Make sure to log in as Administrator or an account with
administrative privileges.
1. Right click the volume control icon located in the
taskbar by the system clock.
2. ClickPlayback devices,selectC-MediaPCI Audio
Device, click Configure.
3. Followthe on-screen instructions to configureyour
speakers.
Windows Vista
Make sure to log in as Administrator or an account with
administrative privileges.
1. Right click the volume control icon located in the
taskbar by the system clock.
2. ClickPlayback devices,selectC-MediaPCI Audio
Device, click Configure.
3. Followthe on-screen instructions to configureyour
speakers.
Windows XP / Server 2003 / 2000
1. From the main desktop, click Start, Settings,
Control Panel.
2. Click Sounds and Multimedia, select Audio tab.
3. Click Advancedunder Sound Playback, then click
the Speakers tab.
4. Click the drop down arrow and select your
speakers.
5. Click Apply, then OK to save the settings.
10
Windows Server 2008
Make sure to log in as Administrator or an account with
administrative privileges.
1. Right click the volume control icon located in the
taskbar by the system clock. If prompted, click Yes
toenable WindowsAudio Service,otherwisecontinue
to step 2.
2. ClickPlayback ,select C-Media PCIAudio Device,
click Configure.
3. Follow on-screen instructions to setup your
speakers.
Utilities Software
Xear 3D is an audio setup utility for your soundcard.
Xear 3D quick start icon, located in the system tray by
the clock, installs automatically during driver
installation. In addition to configuring speaker type,
sound effects and listening environment, the utility
includes mixer and equalizer software. Simply click on
the quick start icon to open the audio setup utility.
Note: In Xear 3D, please select four speakers
under Analog Output to get the full 4 channel
capability.
