SIIG CyberSerial ExpressCard Manuale utente

CyberSerial ExpressCard

Quick Installation Guide

04-0574A

Introducing the CyberSerial ExpressCard

The CyberSerial ExpressCard adds one high-speed serial

ports to an ExpressCard equipped computer.

FeaturesandBenefits

•Compatible with hi-speed modems, monitoring

equipment, serial networking and other serial

devices

•One DB9 RS232 ports with 16950 UART

•Supports data rate of up to 920 Kbps

•Built-in 128-byte FIFO buffers dramatically increase

data transmit/receive speed, especially under

Windows multitasking environment

SystemRequirements

•Notebook or desktop computer with an available

ExpressCard slot

•Windows®7 (32-/64-bit) / Vista (32-/64-bit) / XP

(32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / 2000

PackageContents

•CyberSerialExpressCard

• Driver CD

• Quick installation guide

Layout

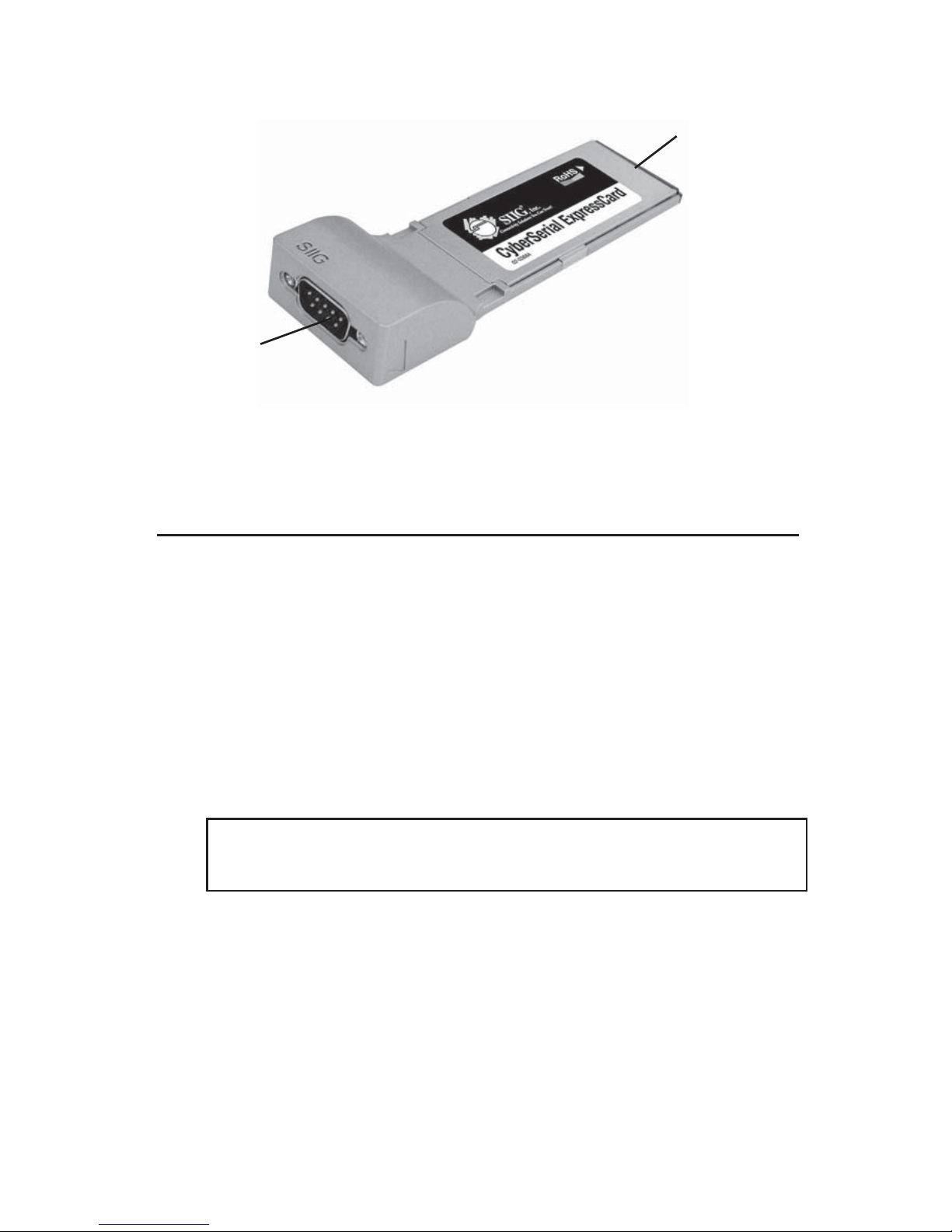

Figure 1: CyberSerial ExpressCard

ExpressCard

Connector

Serial port

Hardware Installation

General instructions for installing the CyberSerial

ExpressCard are provided below. Since the design of

notebookcomputersvary,referto yoursystem’sreference

manual for further information, if needed.

1. Insert the CyberSerial ExpressCard into the

ExpressCard slot of the computer with it's Express

Card Connector facing the slot. Push the card into

the slot gently, yet firmly for a solid connection.

Note: Some ExpressCard slots will click when the

ExpressCard is fully inserted into the slot.

2. If your system was powered off when you plugged

in the ExpressCard, turn it on and go to Driver

Installation on page 3. Otherwise, go directly to

Driver Installation on page 3.

Driver Installation

This section provides information on how to install the

CyberSerial ExpressCard drivers.

Windows7/WindowsVista™

1. At the Found New Hardware window, click Locate

and install driver software (recommended), click

Continue.Insert the driver CD.

2. Click Don't search online.

3. Click I don't have the disc. Show me other options.

4. Click Browse my computer for driver software

(advanced).

For 32-bit: Type in D:\XP-Later\32-bit, click Next.

(Change D: to match your CD-ROM drive letter)

For 64-bit: Type in D:\XP-Later\64bit, click Next.

(Change D: to match your CD-ROM drive letter)

5. Click Close.

6. Repeat step 2-5 to complete the installation.

WindowsXP/Server2003

1. At the Found New Hardware Wizard, select No, not

this time,then click Next.

2. Select Install from a list or specific location

(Advanced),then click Next.

3. Insert the driver CD, check Include this location in

the search,uncheck the other box.

For 32-bit: Type in D:\XP-Later\32-bit, click Next.

(Change D: to match your CD-ROM drive letter)

For 64-bit: Type in D:\XP-Later\64-bit, click Next,

click Continue Anyway. (Change D: to match your

CD-ROM drive letter)

4. Click Finish.

5. Repeat steps 1-4, then restart Windows to complete

the installation.

WindowsServer2008

1. At the Found New Hardware window, click Locate

and install driver software (recommended). Insert

the driver CD.

2. Click Don't search online.

3. Click I don't have the disc. Show me other options.

4. Click Browse my computer for driver software

(advanced).

For 32-bit: Type in D:\XP-Later\32-bit, click Next.

(Change D: to match your CD-ROM drive letter)

For 64-bit: Type in D:\XP-Later\64bit, click Next.

(Change D: to match your CD-ROM drive letter)

5. Click Close.

6. Repeat step 2-5 to complete the installation.

Windows2000

1. At the Found New Hardware Wizard, click Next.

2. Select Search for a suitable driver for my device

(recommended), and click Next.

3. Check Specify a location, uncheck the other boxes,

then click Next.

4. Insert the driver CD, type in D:\2K, then click OK.

(Change D: to match your CD-ROM drive letter)

5. Click Next , then click Finish.

6. Repeat steps 1-5, then restart Windows to complete

the installation.

ToVerifyWindowsInstallation

1. Check Device Manager to verify successful driver

installation.

Windows 7 / XP / Server 2003 / 2000: Right click

Computer or My Computer, click Manage, click

Device Manager.

WindowsVista:RightclickComputer,click Manage,

click Continue, then click Device Manager.

Windows Server 2008: Right click Computer, click

Manage, double click Diagnostics, click Device

Manager.

2. Click on the +(plus sign) in front of Ports (COM &

LPT), CyberSerial 16C950... should be displayed.

Changing COM Port Number

Some serial devices need a specific COM port in order to

work. If your serial device works properly, do not

change this setting.

1. From the Device Manager window double click

Ports (COM & LPT), then double click the serial

port you want to change.

2. Click Settings tab.

3. Click the down arrow that is next to the COM Port

Number box, select a COM port that is not in use,

then click OK.

4. Click OK, then close Device Manager to save the

changes.

Removing the ExpressCard

Before ejecting the CyberSerial ExpressCard from the

computer, first use the Safely Remove Hardware utility

to stop it. Not following the steps below could lead to

system crashes, data corruption or data loss.

1. Click the Unplug or Eject Hardware or Safely

Remove Hardware icon located in the taskbar by

the system clock.

2. Click StopSIIGCyberPro 1SboardorSafelyremove

SIIG CyberPro 1S board

3. AttheSafeToRemoveHardwarebox,theCyberSerial

ExpressCard can be ejected from the computer.

Technical Support and Warranty

QUESTIONS? SIIG’sOnline Support hasanswers! Simplyvisit our

web site at www.siig.com and click Support. Our online support

database is updated daily with new drivers and solutions. Answers

toyour questions could bejusta few clicks away. Youcan also submit

questions online and a technical support analysts will promptly

respond.

SIIGoffers alifetimemanufacturerwarrantywith thisproduct. Please

see our web site for more warranty details. If you encounter any

problems with this product, please follow the procedures below.

A) If it is within the store's return policy period, please return the

product to the store where you purchased from.

B) Ifyour purchase has passed thestore'sreturn policy period, please

follow these steps to have the product repaired or replaced.

Step 1: Submit your RMA request.

Go to www.siig.com, click Support, then RMA to submit a

request to SIIG RMA. If the product is determined to be

defective, an RMA number will be issued.

Step 2: After obtaining an RMA number, ship the product.

•Properly pack the product for shipping. All software, cable(s)

and any other accessories that came with the original package

must be included.

•Clearly write your RMA number on the top of the returned

package. SIIG will refuse to accept any shipping package, and

will not be responsible for a product returned without an

RMA number posted on the outside of the shipping carton.

•You are responsible for the cost of shipping. Ship the product

to the following address:

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

RMA #:

•SIIG will ship the repaired or replaced product via Ground

in the U.S. and International Economy outside of the U.S. at

no cost to the customer.

CyberSerialExpressCardisatrademarkofSIIG,Inc. SIIGandtheSIIGlogoareregisteredtrademarks

ofSIIG,Inc. Microsoft,WindowsandWindows Vista are either registered trademarksortrademarks

of Microsoft Corporation in the United States and/or other countries. Other names used in this

publication are for identification only and may be trademarks of their respective companies.

About SIIG, Inc.

Foundedin1985,SIIG,Inc.isaleadingcomputerupgrademanufacturer

of I/O connectivity products, including PCI & ISA serial and parallel

ports, USB, Serial ATA & UltraATA controllers, FireWire (1394a/b),

networking, sound cards, and other accessories. SIIG is the premier

one-stop source of upgrades.

SIIGproducts offercomprehensive usermanuals, manyuser-friendly

features, and are backed by an extensive manufacturer warranty.

High-quality control standards are evident by the overall ease of

installation and compatibility of our products, as well as one of the

lowest defective return rates in the industry. SIIG products can be

found in computer retail stores, mail order catalogs, through major

distributors, system integrators, and VARs in the Americas and the

UK, and through e-commerce sites.

PRODUCT NAME

CyberSerialExpressCard

FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS

B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE

FCCCOMPLIANCESTATEMENT:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

Phone: 510-657-8688
