CyberPro PCI 2S
Quick Installation Guide
04-0342C
Introducing the CyberPro PCI 2S
The CyberPro PCI 2S high-speed serial I/O card provides
two additional 9-pin serial ports. Depending on the
model purchased, this board will fit into either a Full or
Low Profile chassis.
FeaturesandBenefits
•Conforms to PCI v2.2 Plug and Play
•Full support for Windows-based software
•Reduces CPU load and improves system
performance dramatically
•IRQ sharing feature reduces IRQ conflicts
•High-speed serial port (9-pin) works with 56K V.90
external modems, ISDN terminal adapters, PDAs,
digital cameras, label printers and other serial port
devices
•Built-in FIFO buffers dramatically increase data
transmit/receivespeed,especiallyunderWindows'
multitasking environment
•Each serial port can be configured for either 5V or
12V output, for serial devices that require power
SystemRequirements
•Pentium or equivalent computer with an available
PCI slot
•Windows®95/98/98SE/ME/NT 4.0/2000/XP (32-
/64-bit)/Server2003(32-/64-bit)/Vista(32-/64-bit)
2
PackageContents
•CyberPro PCI 2S board
• 2-port fan-out cable
• Low profile bracket (Dual Profile board only)
• Driver CD
• Quick installation guide
Layout

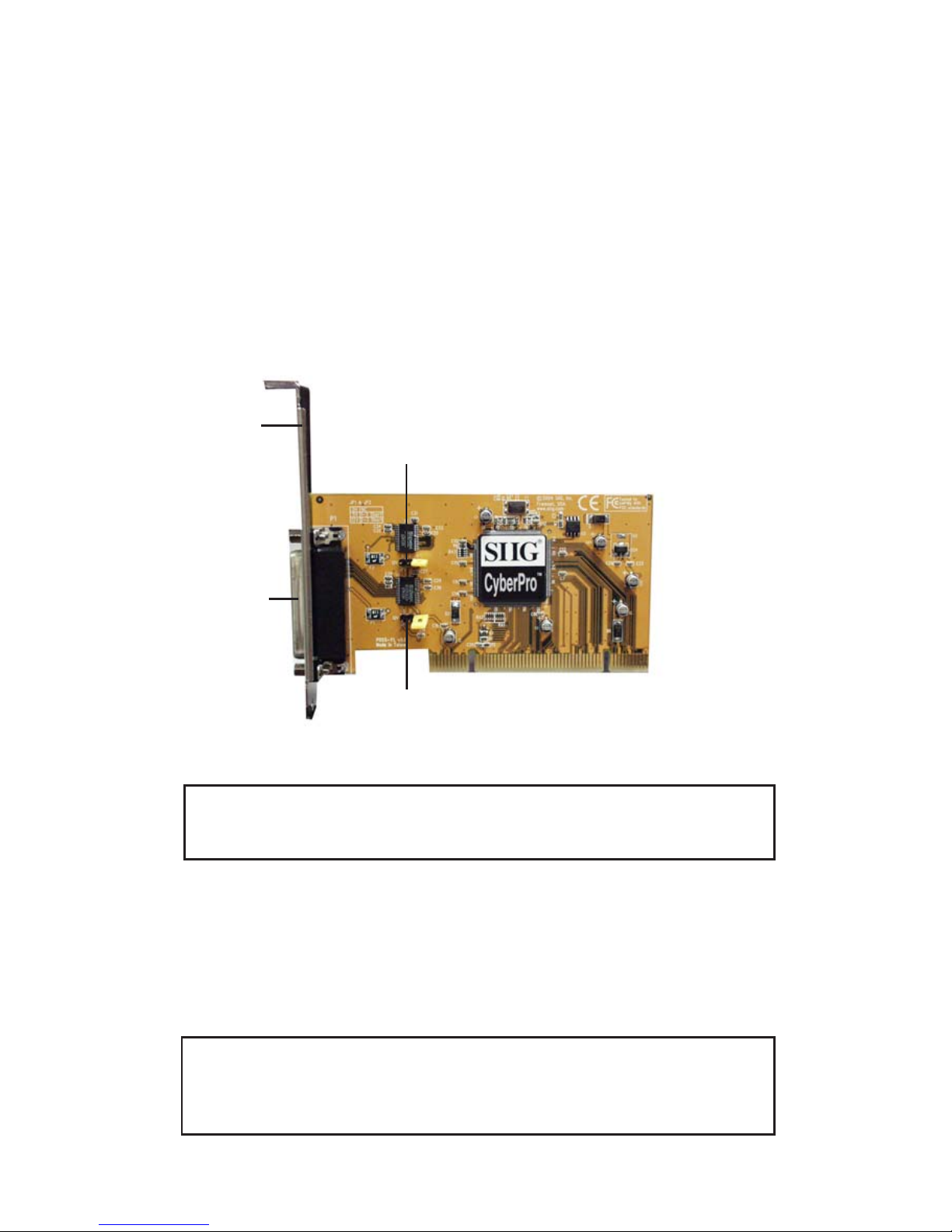

Figure 1. Layout
* Note: Depending on the model purchased, the
bracket size will be either Full or Low profile.
JumperSettings(JP1,JP2)
Open = 0 volts (default)
Short 1-2 = 5V
Short 2-3 = 12V
Note: Mostserialdevicesdonotrequireadditional
power through the serial port. Refer to your serial
device's manual for more information.
Fan-out
cable
connector
(25-pin)
JP1 (Serial port 1)
JP2 (Serial port 2)
Full
profile
bracket*
3
Fan-outCable
25-pin
connector 9-pin serial
9-pin serial

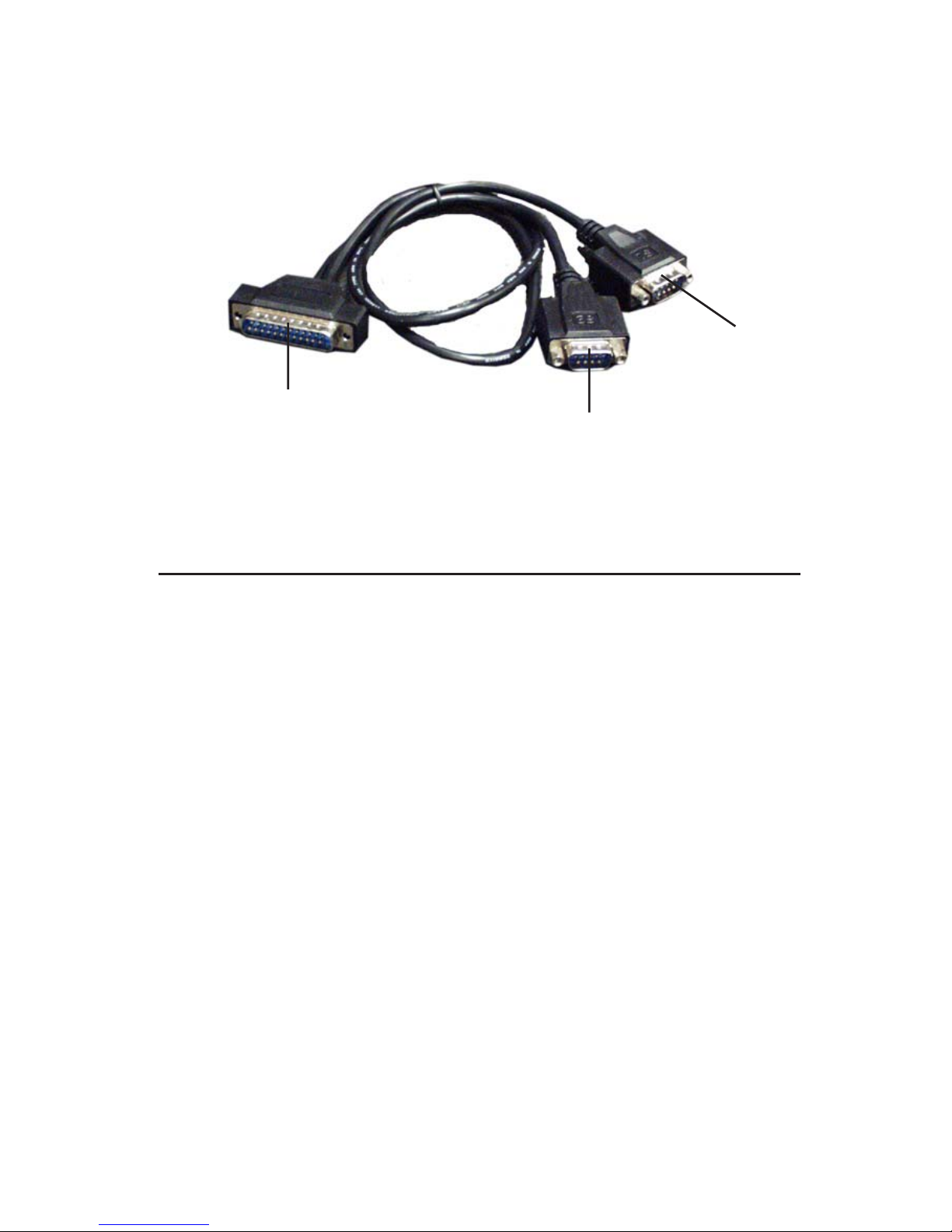

Figure 2. Fan-out cable
Hardware Installation
General instructions for installing the card are provided
below. Since the design of computer cases and
motherboards vary, refer to your computer’s reference
manual for further information, if needed.
Static Electricity Discharge may permanently damage
your system. Discharge any static electricity build up in
your body by touching your computer’s case for a few
seconds. Avoid any contact with internal parts and
handle cards only by their external edges.
1. Turn OFF the power to your computer and any
other connected peripheral devices.
2. Unplug the power cord from the back of the
computer.
3. Remove your computer’s cover.
4. Remove the slot bracket from an available PCI slot.
4
5. SetJP1 andJP2 jumpersettingstothedesiredvoltage
only if your serial device needs additional power
from the serial port. However, most serial devices
do not require additional power. For more
information see Figure 1 on page 2. The jumpers
can be removed if power is not required.
6. To install the card, carefully align the card's bus
connector with the selected PCI slot on the
motherboard. Push the board down firmly, but
gently, until it is well seated.
7. Replace the slot bracket holding screw to secure the
card.
8. Replacethecomputer coverandreconnect thepower
cord.
9. Connect the 2-port fan-out cable to the board's
25-pin connector. See Figure 2 on page 3for more
details.
Driver Installation
This section provides information on how to install the
CyberPro PCI 2S drivers.
Windows95
1. At the Update Device Driver Wizard, click Next.
2. Insert the driver CD, click Other Locations.
3. Type in D:\9x, click OK, then click Finish. (Change
D: to match your CD-ROM drive letter)
4. From the Insert Disk window, click OK. When the
Copying Files dialog box pops up, type in D:\9x,
then click OK.
5. Restart Windows to complete the installation.
5
Windows98/98SE
1. At the Add New Hardware Wizard, click Next.
2. Select Search for the best driver for your device
(Recommend), then click Next.
3. Insert the driver CD, check Specify a location,
uncheck the other boxes, type in D:\9x, then click
Next. (Change D: to match your CD-ROM drive
letter)
4. Click Next, then Finish.
5. Repeat steps 1-4.
6. Restart Windows to complete the installation.
WindowsME
1. At the Add New Hardware Wizard, select Specify
the location of the driver (Advanced), then click
Next.
2. Insert the driver CD, check Specify a location,
uncheck the other box, type in D:\ME, then click
Next. (Change D: to match your CD-ROM drive
letter)
3. Click Next, then Finish.
4. Repeat steps 1and 2.
5. Click Next, Next, then Finish.
6. Restart Windows to complete the installation.
ToVerifyWindows95/98/98SE/MEInstallation
1. Right click My Computer, click Properties,then
click Device Manager.
2. Double click Ports (COM & LPT), CyberSerial PCI
16Cxxx... should be displayed two times.
6
3. Double click Multi-function adapters, SIIG
CyberPro 2S PCI board and PCI Function should
be displayed.
WindowsNT4.0
1. From the desktop click Start, then Run.
2. Insert the driver CD, type in
D:\NT4\Install_serial.exe, then click OK.
(Change D: to match your CD-ROM drive letter)
3. Click Next when the Welcome window appears.
4. Select Install, then click Next.
5. Click Yes, then click Exit.
6. Restart Windows to complete the installation.
ToVerifyWindowsNT 4.0Installation
1. Click Start, Settings, Control Panel.Double click
Ports device icon.
2. Two new COM ports will be assigned when
successfully installed.
Windows2000
1. At the Found New Hardware Wizard, click Next.
2. Select Search for a suitable driver for my device
(recommended), then click Next.
3. Check Specify a location, uncheck the other boxes,
then click Next.
4. InsertthedriverCD,type in D:\2000,thenclickOK.
(Change D: to match your CD-ROM drive letter)
5. Click Next and Finish.
6. Repeat steps 1-5 two more times.
7. Restart Windows to complete the installation.
7
32-bitWindowsXP/Server2003
1. At the Found New Hardware Wizard, insert the
driver CD.
For XP w/SP1 or earlier/ Server 2003: go to step #2.
For XP w/SP2 or later/Server 2003 wSP1 or later:select
No, not this time, click Next.
2. Select Install the software automatically
(Recommended,then click Next.
3. Click Finish.
4. Repeat steps 1-3 two more times.
5. Restart Windows to complete the installation.
64-bitWindowsXP/Server2003
1. At the Found New Hardware Wizard, insert the
driver CD.
For XP w/SP1 or earlier/ Server 2003: go to step #2.
For XP w/SP2 or later/Server 2003 wSP1 or later:select
No, not this time, click Next.
2. Select Install the software automatically
(Recommended,then click Next.
3. Click Continue Anyway, then click Finish.
4. Repeat steps 1-3 several more times.
5. Restart Windows to complete the installation.
8
ToVerifyWindows2000/XP/Server2003
Installation
1. Right click My Computer, click Manage, then click
Device Manager.
2. Click on the +(plus sign) in front of Ports (COM &
LPT), CyberSerial PCI 16Cxxx... should be
displayed two times.
3. Double click Multifunction adapters, SIIG
CyberPro 2S PCI board should be displayed.
WindowsVista™
1. At the Found New Hardware window, insert the
driver CD, click Locate and install driver software
(recommended), then click Continue.
2. Click Next, then click Close.
3. Repeat step #2 to complete the driver installation.
Note: Windows Vista driver installation process
may take several minutes to complete.
ToVerifyWindowsVistaInstallation
1. Right click Computer,click Manage,clickContinue,
then click Device Manager.
2. Click on the +(plus sign) in front of Ports (COM &
LPT), CyberSerial 16Cxxx... should be displayed
two times.
3. Double click Multifunction adapters, SIIG
CyberPro 2S PCI board should be displayed.
9
Changing COM Port Address
Some serial devices need a specific COM port in order to
work. If your serial device works properly, do not
change this setting.
Windows95/98/98SE/ME
1. From the Device Manager window double click
Ports (COM & LPT), then double click the
CyberSerial PCI serial port you want to change.
2. Click Settings tab, click the down arrow that is next
to the Port Name box and select a COM address that
is not currently in use.
3. Click OK, then close Device Manager to save the
changes.
Windows2000/XP/Server2003/Vista
1. From the Device Manager window double click
Ports (COM & LPT), then double click the
CyberSerial PCI serial port you want to change.
2. Click Settings tab and click Advanced.
3. Click the down arrow that is next to the COM Port
number box and select a COM port that is not in use.
Click OK.
4. Click OK, then close Device Manager to save the
changes.
10
