SIIG JU-P40412-S1 Manuale utente

04-0801B

4-Port USB 3.0 PCIe

Installation Guide

Introduction

The 4-Port USB 3.0 PCIe adds four USB 3.0 ports

to your PCIe-enabled desktop PC, enhancing

existing systems with the latest USB 3.0

technology.

Key Features and Benefits

• Compliant with Universal Serial Bus 3.0

Specification

• Compliant with PCI Express Base

Specification, Revision 2.0

• Supports data rate up to 5Gb/s and

backward compatible with USB 2.0/1.1

devices

Package Contents

• 4-Port USB 3.0 PCIe

• Driver CD

• Installation guide

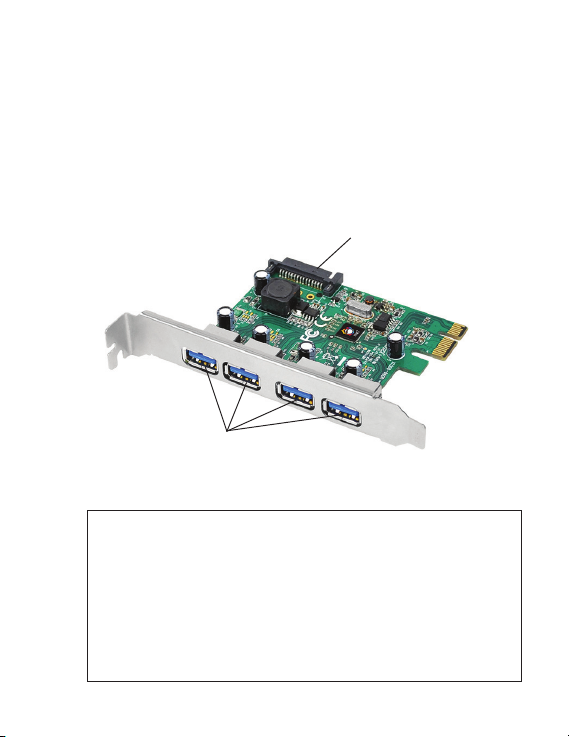

Figure 1: Layout

*Note: The host adapter will work with or

without the power connected. However,

we recommend this connection if your

USB devices are not recognized, lose

connection to Windows randomly or all

ports are connected to USB devices.

System Requirements

• Desktop PC with an available PCIe slot

• Windows®

8 (32-/64-bit) / 7 (32-/64-bit) /

Vista (32-/64-bit) / XP (32-/64-bit) / Server

2003 & 2008 (32-/64-bit) / Server 2008 R2

Layout

SATA power connector

(optional)*

USB 3.0 ports

Hardware Installation

Since the design of computer cases and

motherboards vary, refer to your computer’s

reference manual for further information.

Static Electricity Discharge may permanently

damage your system. Discharge any static

electricity build up in your body by touching your

computer’s case for a few seconds. Avoid any

contact with internal parts and handle cards

only by their external edges.

1. Turn OFF the power to your computer and

any other connected peripheral devices.

2. Unplug the power cord from the computer.

3. Remove your computer cover.

4. Remove the slot bracket from an available

PCIe slot.

5. Carefully align the card's bus connector

with the selected PCI Express slot on the

motherboard. Push the card down firmly,

but gently, until it is well seated.

6. Replace the slot bracket holding screw to

secure the card.

7. Connect the system power supply to the

cards's SATA power connector. This

connection is optional. Please see Layout

on page 2 for more information.

8. Replace the computer cover and reconnect

the power cord.

Driver Installation

Note: For Windows 8, the driver is already

embedded in the operating system. So no

additional installation steps are needed.

Windows 7 (32-/64-bit) / Vista (32-/64-bit) /

2008 R2

1. Install the card and boot up Windows.

2. For Windows Vista, click Cancel at the

Found New Hardware.

For other OS, go directly to step 3.

3. Insert the driver CD.

For Windows 7 / 2008 R2: At the CD AutoPlay

box, click Open folder to view files, then

double click Setup.

For Windows Vista: At the CD Autoplay

window, double click Setup.

4. Click Yes or Continue at the User Account

Control. For 2008 R2, skip this step.

5. At Welcome to InstallShield wizard..., click

Next.

6. Select I accept the terms of the license

agreement, click Next.

7. At ReadytoInstalltheProgram,clickInstall.

8. Click Finish, then restart the computer.

Windows XP (32-/64-bit) / Server 2008 &

2003 (32-/64-bit)

1. Install the card and boot up Windows.

2. Click Cancel at the Found New Hardware

window.

3. Insert the driver CD. Click Start, Run. Type

D:\Setup.exe, click OK. (Change D: to

match your CD\DVD-ROM drive letter)

4. At Welcome to InstallShield wizard..., click

Next.

5. Select I accept the terms of the license

agreement, click Next.

6. At ReadytoInstalltheProgram,clickInstall.

7. Click Finish, then restart the computer.

To Verify Successful Installation

1. Go to Device Manager to verify installation.

For Windows 8 / Windows 7/ Windows XP /

Server 2008 R2 / Server 2003: Right click

Computer or My Computer, click Manage,

then click Device Manager.

For Windows Vista: Right click Computer,

click Manage, click Continue, then click

Device Manager.

For Windows 2008: Right click Computer,

click Manage, double click Diagnostics,

then click Device Manager.

2. Double click Universal Serial Bus

controllers. A Renesas Electronics USB

3.0 Host Controller and a Renesas

Electronics USB 3.0 Root Hub should be

displayed.

For Windows 8, a Renesas USB 3.0

eXtensible Host Controller is displayed.

Technical Support and Warranty

QUESTIONS? SIIG’s Online Support has answers! Simply visit our web site at

www.siig.com and click Support. Our online support database is updated daily with

new drivers and solutions. Answers to your questions could be just a few clicks away.

You can also submit questions online and a technical support analysts will promptly

respond.

SIIG offers a lifetime manufacturer warranty with this product. This warranty covers

the original purchaser and guarantees the product to be free of any defects in materials

or workmanship for the life of the product.

SIIG will, at our discretion, repair or replace (with an identical product or product

having similar features and functionality) the product if defective in materials or

workmanship. This warranty gives you specific legal rights, and you may also have other

rights which vary from state to state. Please see our web site for more warranty details.

If you encounter any problems with this product, please follow the procedures below.

A) If it is within the store's return policy period, please return the product to the store

where you purchased from.

B) If your purchase has passed the store's return policy period, please follow the steps

below to have the product repaired or replaced.

Step 1: Submit your RMA request.

Go to www.siig.com, click Support, then Request A Product Replacement to

submit a request to SIIG RMA or fax a request to 510-657-5962. Your RMA request

will be processed, if the product is determined to be defective, an RMA number will

be issued.

Step 2: After obtaining an RMA number, ship the product.

• Properly pack the product for shipping. All accessories that came with the

original package must be included.

• Clearly write your RMA number on the top of the returned package. SIIG will

refuse to accept any shipping package, and will not be responsible for a product

returned without an RMA number posted on the outside of the shipping

carton.

• You are responsible for the cost of shipping to SIIG. Ship the product to the

following address:

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

RMA #:

• SIIG will ship the repaired or replaced product via Ground in the U.S. and

International Economy outside of the U.S. at no cost to the customer.

PRODUCTNAME

4-Port USB 3.0 PCIe

FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS B

OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE

FCCCOMPLIANCESTATEMENT:

This device complies with part 15 of the FCC Rules. Operation is subject

to the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE

SIIG,Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

Phone: 510-657-8688

4-Port USB 3.0 PCIe is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered

trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft

Corporation. All other names used in this publication are for identification only and may be

trademarks of their respective owners.
