DP 4-Port USB 3.0 PCIe i/e

Quick Installation Guide

04-0816B

Introduction

The DP 4-Port USB 3.0 PCIe i/e adds four USB 3.0

ports (1 internal & 3 external) to your

PCIe-enabled desktop PC enhancing existing

systems with the latest USB 3.0 technology.

Key Features and Benefits

• Adds four SuperSpeed USB 3.0 ports to

PCIe-enabled desktop PC

• Compliant with Universal Serial Bus 3.0

Specification

• Compliant with PCI Express Base

Specification

• Supports per port over-current protection

System Requirements

• Desktop PC with an available PCIe slot

• Windows®8 (32-/64-bit) / 7 (32-/64-bit) /

Vista (32-/64-bit) / XP (32-/64-bit) / Server

2003 & 2008 (32-/64-bit) / Server 2008 R2

Package Contents

•DP 4-Port USB 3.0 PCIe i/e adapter

• Spare low profile bracket

• Driver CD & quick installation guide

Layout

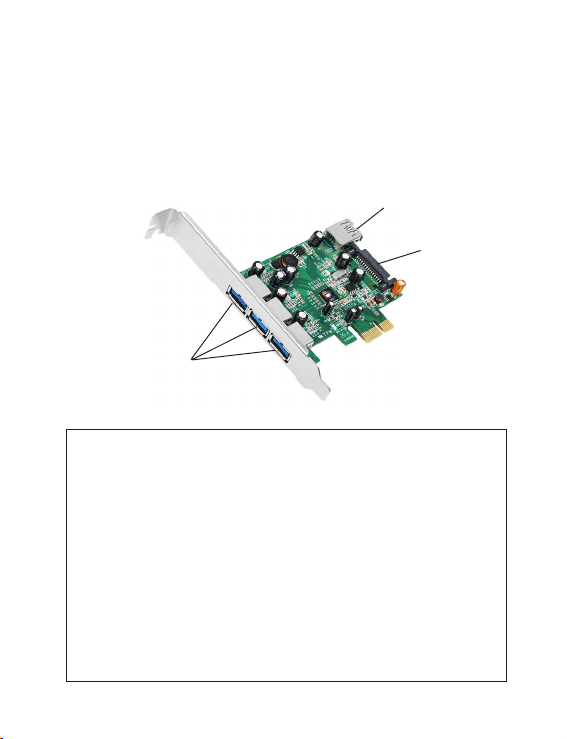

Figure 1: Board Layout

USB 3.0 Port

*Note: This power connector is designed

to provide additional power to the board

when needed. Connect this power

connector only if one or both of the

following conditions occur:

- Device(s) not being detected

- All ports are used at the same time

Power off your system first before making

this connection.

Power Connector

(optional)*

Hardware Installation

General instructions for installing the card are

provided below. Since the design of computer

cases and motherboards vary, refer to your

computer’s reference manual for further

information, if needed.

Static Electricity Discharge may permanently

damage your system. Discharge any static

electricity build up in your body by touching your

computer’s case for a few seconds. Avoid any

contact with internal parts and handle cards only

by their external edges.

Note: For low profile systems, remove the full

height bracket and install the low profile bracket

now.

1. Turn OFF the power to your computer and

any other connected peripheral devices.

2. Unplug the power cord from the back of the

computer.

3. Remove your computer cover.

4. Remove the slot bracket from an available

PCIe slot.

5. Carefully align the card's bus connector

with the selected PCIe slot on the

motherboard. Push the board down firmly,

but gently, until it is well seated.

6. Replace the slot bracket holding screw to

secure the card.

7. Replace the computer cover and reconnect

the power cord.

Driver Installation

Note: For Windows 8, the driver is already

embedded in the operating system. So no

additional installation steps are needed.

Windows 7 (32-/64-bit) / Vista (32-/64-bit) /

2008 R2

1. Install the card and boot up Windows.

2. Click Cancel at the Found New Hardware

(if prompted).

3. Insert the driver CD.

For Windows 7 / 2008 R2: At the CD AutoPlay

box, click Open folder to view files, then

double click Setup.

For Windows Vista: At the CD Autoplay

window, double click Setup.

4. Click Yes or Continue at the User Account

Control. For 2008 R2, skip this step.

5. At Welcome to InstallShield wizard..., click

Next.

6. Select I accept the terms of the license

agreement, click Next.

7. At ReadytoInstalltheProgram,clickInstall.

8. Click Finish, then restart the computer.

Windows XP (32-/64-bit) / Server 2008 &

2003 (32-/64-bit)

1. Install the card and boot up Windows.

2. Click Cancel at the Found New Hardware

window.

3. Insert the driver CD. Click Start, Run. Type

D:\Setup.exe, click OK. (Change D: to

match your CD\DVD-ROM drive letter)

4. At Welcome to InstallShield wizard..., click

Next.

5. Select I accept the terms of the license

agreement, click Next.

6. At ReadytoInstalltheProgram,clickInstall.

7. Click Finish, then restart the computer.

To Verify Successful Installation

1. Go to Device Manager to verify installation.

For Windows 8 / Windows 7/ Windows XP /

Server 2008 R2 / Server 2003: Right click

Computer or My Computer, click Manage,

then click Device Manager.

For Windows Vista: Right click Computer,

click Manage, click Continue, then click

Device Manager.

For Windows 2008: Right click Computer,

click Manage, double click Diagnostics,

then click Device Manager.

2. Double click Universal Serial Bus

controllers. A Renesas Electronics USB

3.0 Host Controller and a Renesas

Electronics USB 3.0 Root Hub should be

displayed.

For Windows 8, a Renesas USB 3.0

eXtensible Host Controller is displayed.

Technical Support and Warranty

QUESTIONS? SIIG’s Online Support has answers! Simply visit our web site at

www.siig.com and click Support. Our online support database is updated daily with

new drivers and solutions. Answers to your questions could be just a few clicks away. You

can also submit questions online and a technical support analyst will promptly respond.

SIIG offers a lifetime manufacturer warranty with this product. This warranty covers

the original purchaser and guarantees the product to be free of any defects in materials

or workmanship for the life of the product.

SIIG will, at our discretion, repair or replace (with an identical product or product having

similar features and functionality) the product if defective in materials or workmanship.

This warranty gives you specific legal rights, and you may also have other rights which

vary from state to state. Please see our web site for more warranty details.

If you encounter any problems with this product, please follow the procedures below.

A) If it is within the store's return policy period, please return the product to the store

where you purchased from.

B) If your purchase has passed the store's return policy period, please follow the steps

below to have the product repaired or replaced.

Step 1: Submit your RMA request.

Go to www.siig.com, click Support, then click REQUEST A PRODUCT

REPLACEMENT to submit a request or fax a request to 510-657-5962. Your RMA

request will be processed, if the product is determined to be defective, an RMA

number will be issued.

Step 2: After obtaining an RMA number, ship the product.

• Properly pack the product for shipping. All accessories that came with the

original package must be included.

• Clearly write your RMA number on the top of the returned package. SIIG will

refuse to accept any shipping package, and will not be responsible for a product

returned without an RMA number posted on the outside of the shipping

carton.

• You are responsible for the cost of shipping to SIIG. Ship the product to the

following address:

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

RMA #:

• SIIG will ship the repaired or replaced product via Ground in the U.S. and

International Economy outside of the U.S. at no cost to the customer.

About SIIG, Inc.

Founded in 1985, SIIG, Inc. is a leading manufacturer of IT connectivity

solutions (including Serial ATA and Ultra ATA Controllers, FireWire, USB,

and legacy I/O adapters) that bridge the connection between Desktop/

Notebooksystems andexternal peripherals. SIIGcontinues togrow byadding

A/V and Digital Signage connectivity solutions to our extensive portfolio.

SIIGproducts offercomprehensive user manuals,many user-friendlyfeatures,

and are backed by an extensive manufacturer warranty. High quality control

standards are evident by the overall ease of installation and compatibility of

our products, as well as one of the lowest defective return rates in the industry.

SIIG products can be found in computer retail stores, mail order catalogs,

throughmajor distributors, system integrators, and VARs in the Americas and

the UK, and through e-commerce sites.

DP 4-Port USB 3.0 PCIe i/e is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered

trademarksof SIIG, Inc. All other names usedin this publication are for identificationonlyand

may be trademarks of their respective owners.

PRODUCTNAME

DP 4-Port USB 3.0 PCIe i/e

FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS B

OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE

FCCCOMPLIANCESTATEMENT:

This device complies with part 15 of the FCC Rules. Operation is subject

to the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE

SIIG,Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

Phone: 510-657-8688
