SIIG Parallel Pro Manuale utente

Installation

2-1

DMA

0135791011 12

LPT

MODE

PRT

IRQ

PORT

ADDRESS

Chapter 2

Installation

This chapter will guide you through the installation of your

Parallel Pro

. It includes instructions on:

• properly configure the jumpers on your board

•

install your

Parallel Pro

in your computer

2-1 Board Layout

Parallel

(Printer)

Port

Figure 2-1.

Parallel Pro

Board Layout

2-2

Parallel Pro User's Manual

2-2 Configuring the

Parallel Pro

Prior to installing the

Parallel Pro

, verify the configuration

about your computer. The factory default jumper settings

shouldworkwithmostsystems. However,youshouldmake

sure that the default settings on the board are different from

any other existing devices' in your system. A conflict

results when two addresses are the same. Please refer

to the following sections for alternate jumper settings and

Chapter 3: Verifying and Configuring System Resources

for

more information regarding system resources.

2-2.1 Setting Jumpers

The following illustrates the installed positions on a 2-pin

jumper. Italsoshowsthenon-jumperedpositionandposition

for convenient storing.

To change a jumper, simply remove a selected jumper by

pullinguponitspulltab.Toinstallajumper,centeritoverthe

two appropriate pins and push down gently until it is seated.

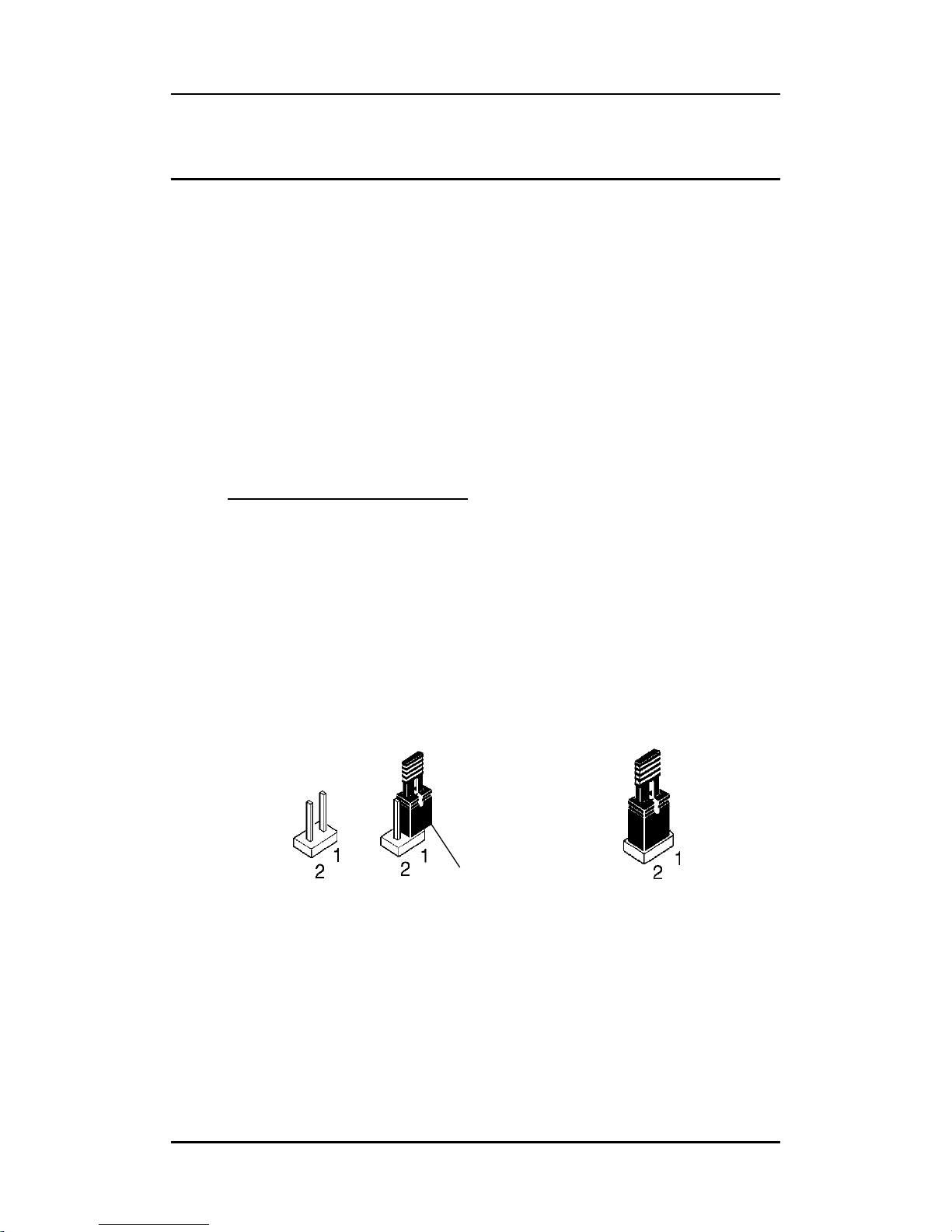

Figure 2-2. Jumper Positions

No Jumper Installed Jumper Installed

Storage

Position

Installation

2-3

PORT

ADDRESS

2-2.3 Configuring the Parallel (Printer) Port

The parallel port is factory set as I/O port address 278h,

IRQ9

ECP/EPP mode and DMA 3. These configurations

can be changed by resetting J2, J3, J4 and J1 respectively.

I/O Port Address

Description Jumper Jumper Setting

378h J2

278h* J2

DMA

0135791011 12

LPT

MODE

PORT

ADDRESS

PRT

IRQ

Description Jumper-Pins Default Setting

Parallel Port J2 278 278h

J3 9 IRQ 9

J4 ECP/EPP ECP/EPP

J1 3 DMA 3

Figure 2-3. Default Jumper Settings

2-2.2 Default Jumper Settings

= Factory Default

2-4

Parallel Pro User's Manual

PRT

IRQ

57912

10 11

7912

10 11

7912

10 11

7912

10 11

7912

10 11

7912

10 11

Interrupt Request

Description Jumper Jumper Setting

IRQ5 J3

IRQ7 J3

IRQ9* J3

IRQ10 J3

IRQ11 J3

IRQ12 J3

Note: A typical sound card will use IRQ5. If you want to

useIRQ5 asyour parallelport setting,please referto your

sound card’s manual and reconfigure your sound card’s

IRQ settings to avoid conflicts.

= Factory Default

Installation

2-5

Port Mode

Description Jumper Jumper Setting

SPP/BPP J4

ECP/EPP* J4

EPP J4

ECP J4

Note: If EPP mode is selected, the I/O address 3BCh

cannot be used.

DMA Channel

Description Jumper Jumper Setting

DMA 0 J1

DMA 1 J1

DMA 3* J1

No DMA J1

Selected

= Factory Default

LPT

MODE

0 1 3

DMA
