SIIG CE-ED0011-S1 Manuale utente

EDID Reader/Writer

CE-ED0011-S1

Quick Installation Guide

Safety and Notice

The EDID Reader/Writer has been tested for conformance to safety regulations and

requirements, and has been certified for international use. However, like all electronic

equipments, it should be used with care. Please read and follow the safety instructions to

protect yourself form possible injury and to minimize the risk of damage to the unit.

 Follow all instructions and warnings marked on this unit.

 Do not attempt to service this unit yourself, except where explained in this manual.

 Provide proper ventilation and air circulation and do not use near water.

 Keep objects that might damage the device and assure that the placement of this unit

is on a stable surface.

 Use only the power adapter and power cords and connection cables designed for this

unit.

 Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to

the device before cleaning.

Features

The EDID Reader/Writer can emulate the EDID (Extended Display Identification

Data) information of the attached video display. It stores and recalls a default EDID

settings in non-volatile memory allowing your computer boot directly from EDID

read/write. It can also read and store the EDID of your display and even let you

modify the EDID and upload the modified EDID to displays.

*Extended Display Identification Data (EDID) is a standard data format that contain

basic information about a monitor

and its capabilities, including vendor information,

maximum image size, color characteristics, factory pre-set timings, frequency range

limits, and character strings for the monitor name and serial number.

The information is stored in the display and is used to communicate with the system

through a Display Data Channel (DDC

)

between the monitor and the PC graphic

adapter. The system uses this information for configuration

purposes, so the

monitor and system can work together.

 Keeps computers from deactivating inactive DVI port

 Reads and remembers the EDID of displays

 Writes EDIDs into the EDID Reader/Writer or the displays

 Default EDID built-in

 No power required after initial programming

 Maintain DVI video resolution

Introduction

Package Contents

Technical Specifications

 Video Bandwidth: 1.65 Gbps

 Display side connector: 1 x DVI-I female connector (digital only)

 Communication: 1 x D-sub 9-pin (RS-232)

 Non-volatile RAM: 256 byte

 Power Supply: 5V 2A

 Dimensions: 85x40x28 mm (LxWxH)

 Weight: 180g

 EDID Reader/Writer

 5V 2A power adaptor

 User’s Manual

Front View

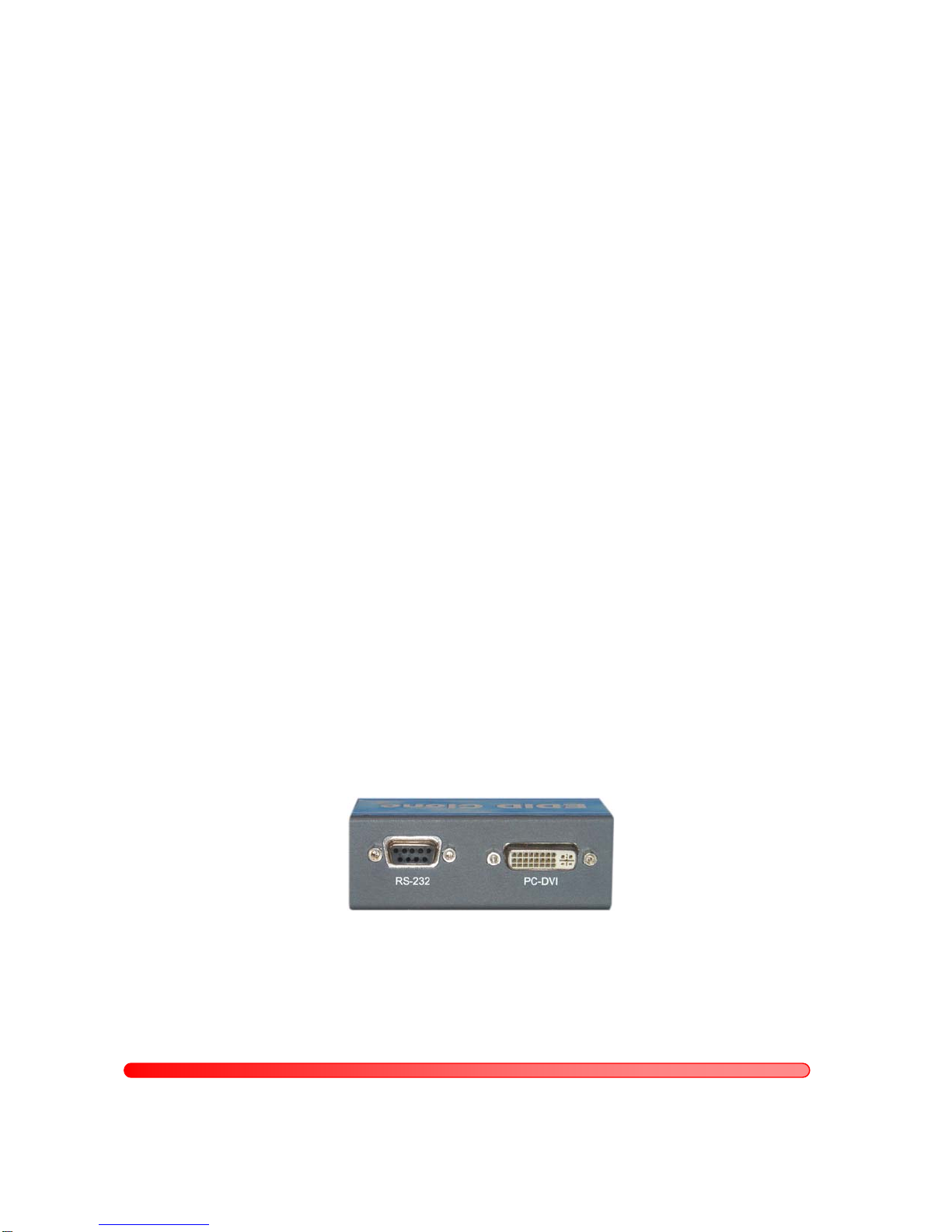

Rear Panel

Panel Descriptions

5 6

5. RS232: Link your computer with the reader/writer here in

order to read/write EDIDs from/ to displays.

6. PC-DVI: Connect your PC and the reader/writer here.

1. Monitor-DVI: Connect your display to CV-1001 here

2. 5V DC power jack

3. Red LED: Lights to indicate power on

4. Green LED: Light to indicate to process of reading o

writing EDIDs

1 2 3 4

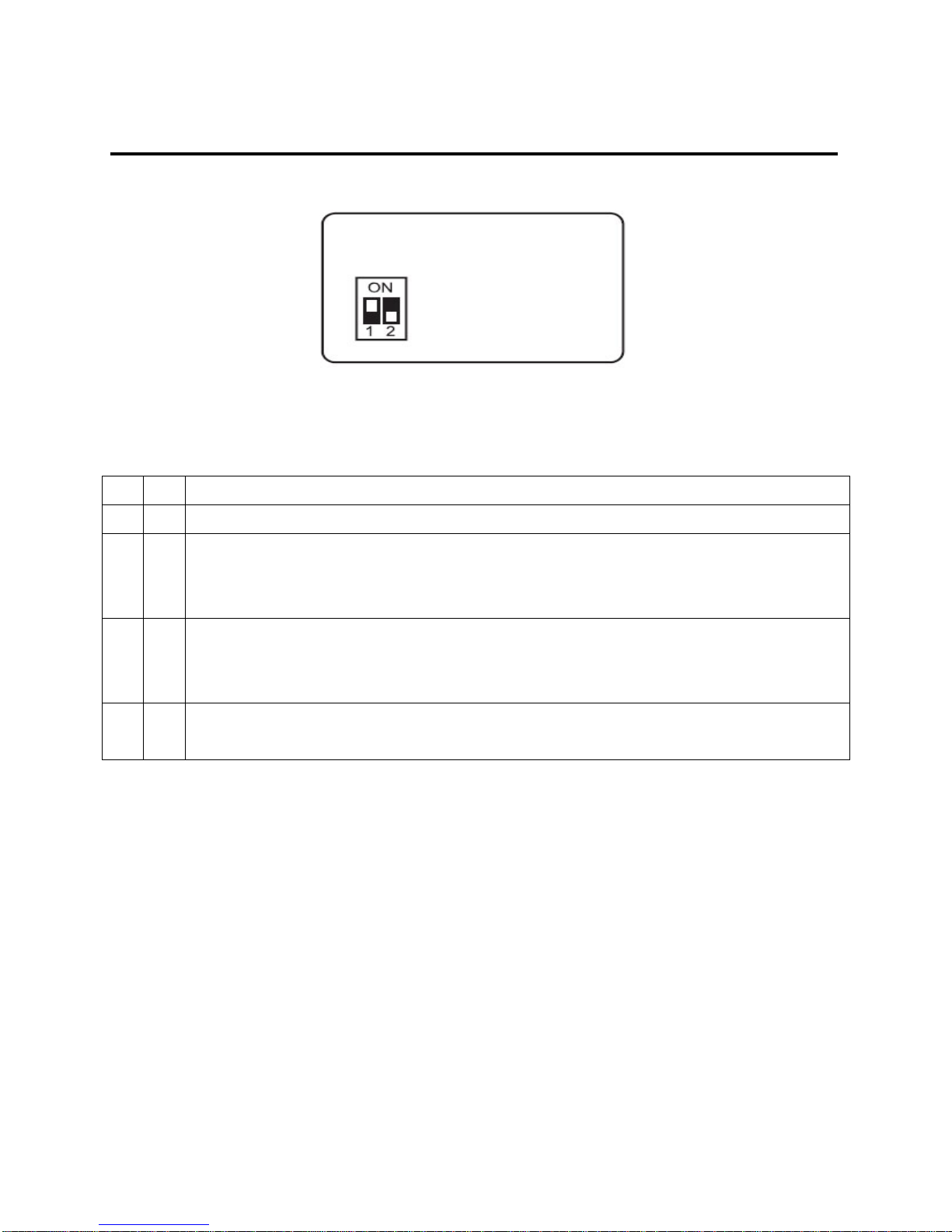

Button View

Note: Please don’t plug DVI cable into PC-DVI connector when you are

changing one mode to another.

1 2 Mode

Off Off Reserved mode, no use.

Off On Recording: Connect the monitor to the DVI-monitor connector, once

the recording process is completed, the EDID Reader/Writer has copied the

EDID from the monitor into its flash memory and the green LED will turn off

On On Writing default: Write the default EDID into unit to replace the existing EDID in

the EDID Reader/Writer. Once the writing process is completed, the green LED

will turn off.

On Off Connection mode: Set DIP switches at this position before you connect your

computer to the unit.

* To avoid initiating undesired errors during switching between modes (e.g. changing from

Recording mode to Connection mode might overwrite the EDID of the display in the EDID

Reader/Writer by the default EDID), please unplug the power cord before you change one

of the above modes to another. Plug in the power cord after you have changed the

position of the DIP switches.

1. Read the EDID from a display

2. Recall the default universal EDID

3. Write EDIDs to displays

Hardware Installation

1. Set the DIP switches at the button of EDID Reader/Writer at 1on, 2on.

2. Plug in 5V DC power cord, when the green LED turns off, remove 5V DC powe

cord.

3. Connect your monitor to the EDID Reader/Writer.

4. Connect the EDID Reader/Writer to your computer by a DVI cable and boot up

your computer.

1. Set the DIP switches at the button of EDID Reader/Writer at 1off, 2on.

2. Connect your monitor to the EDID Reader/Writer and plug in the 5V DC powe

cord.

3. Remove 5V DC power cord when the green LED turns off.

4. Connect the EDID Reader/Writer to your computer by a DVI cable and boot up

1. Set the DIP switches at the button of EDID Reader/Writer at 1on, 2 off.

2. Plug in 5V DC power cord.

3. Connect your monitor (DVI cable) and computer (RS-232 cable) to the EDID

Reader/Writer.

4. Boot up your computer and install the software.

5. Please refer to the Software Operation.

Before executing the software, please make sure:

1. The power supply is well connected.

2. DIP switches are at the right position as shown below.

1. Get started

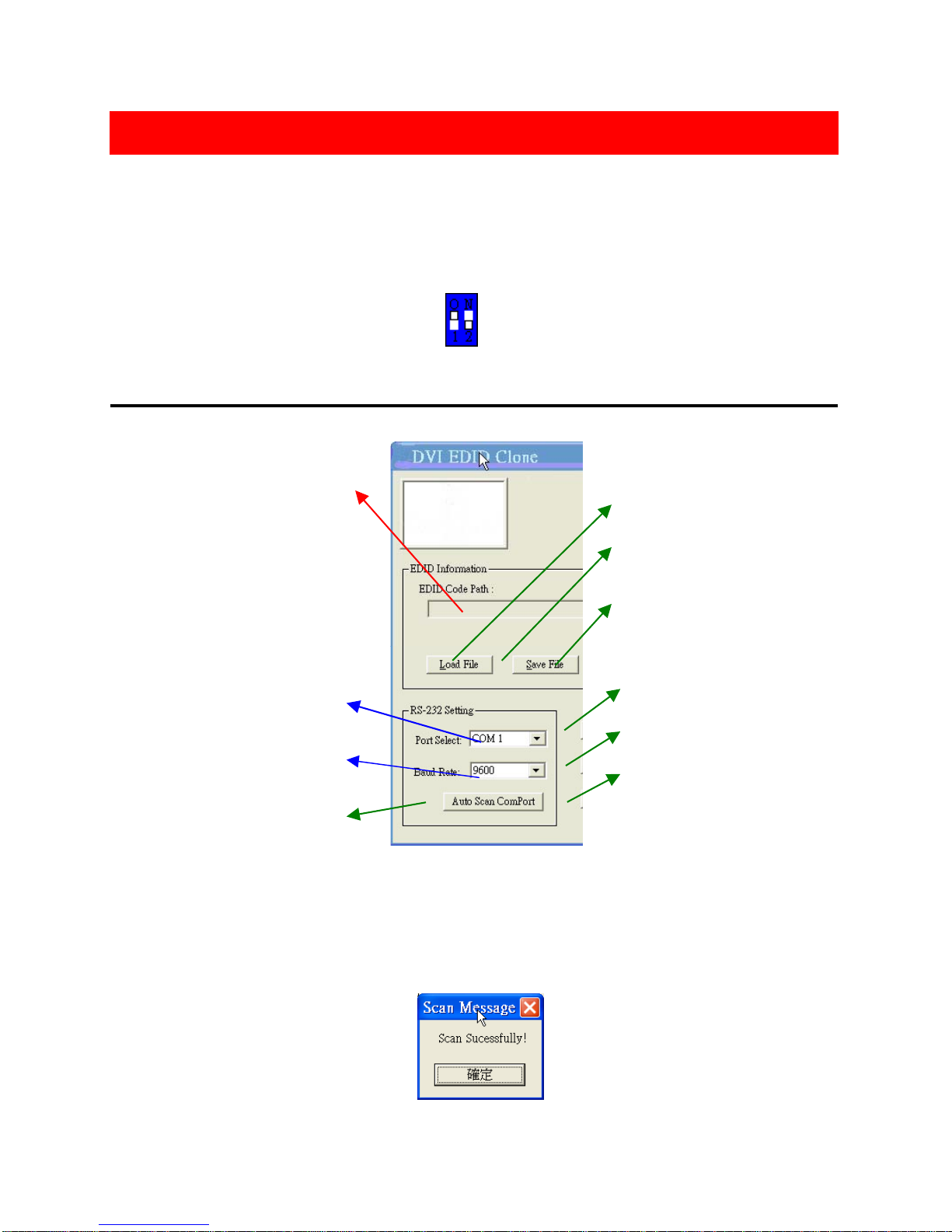

1. First, make sure of the correct setup, and click on Auto Scan ComPort (1). If the

installation is accurate, the following pop-up message window will show up,

indicating the serial port [9] is automatically detected and successfully connected.

Software Operation

(8)

(9)

(10

(1)

(2)

(3)

(4)

(5)

(6)

(7)

2. If the error message as shown below appears, it means inappropriate setup occurs.

Please do the check at the power supply and serial port connection.

2. Read EDID

1. If users would like to read EDID information from the connected monitor, simply

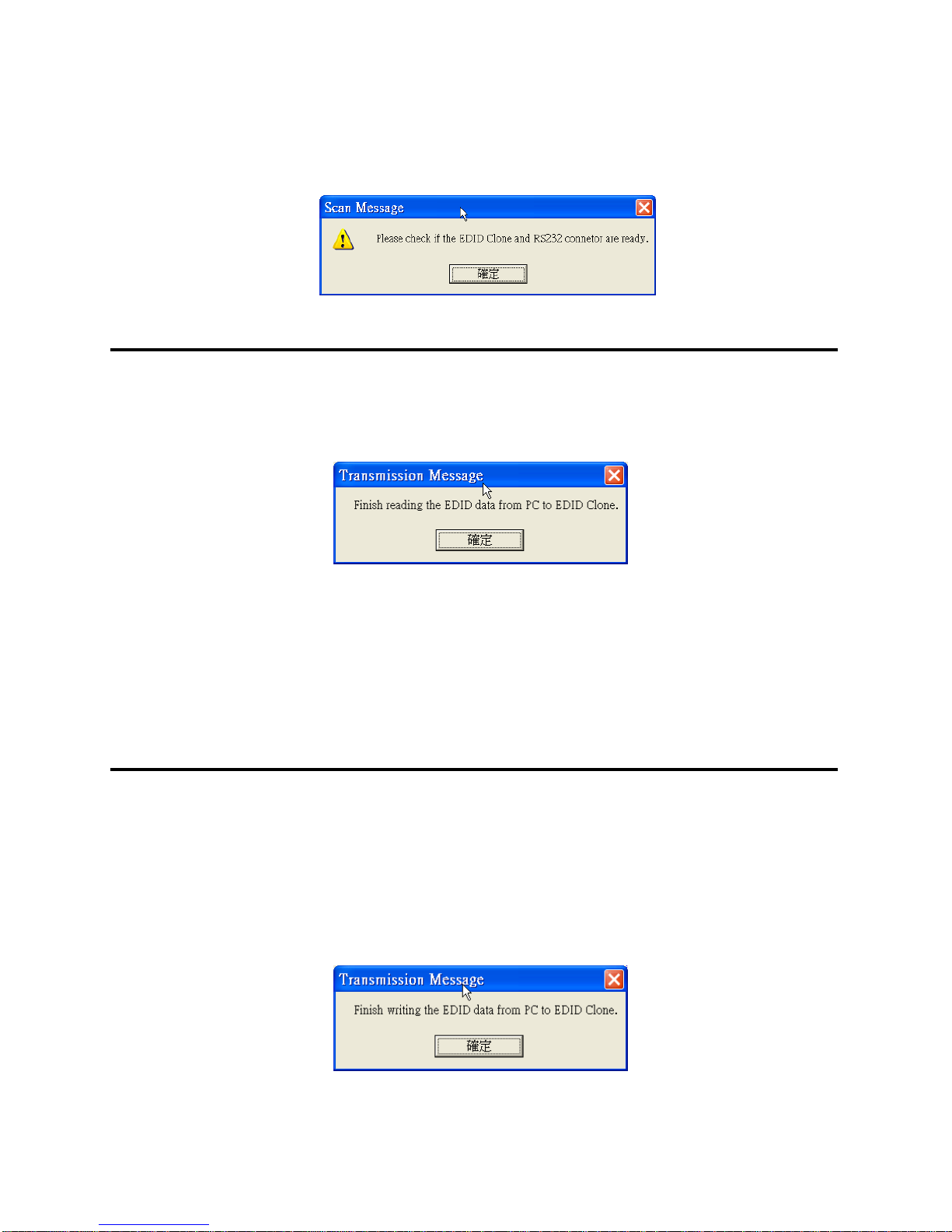

click on Read EDID (5). You can see the following message to inform you the

correct read of EDID has been finished.

2. Click on Analyze (4), to make a quick analysis on the read EDID information, which

users can monitor or modify

3. To save the EDID information for future reference, please click on Save File (3) and

the pop-up will guide you to save the EDID information in PC.

3. Write EDID

1. You can modify EDID content in the pop-up after clicking Analyze (4) button. Also,

you can load the previously saved EDID information in the analysis window by

clicking on the Load File (2) button.

2. While finishing editing EDID content, you can click on Write EDID button [6] to write

the EDID information to EDID Reader/Writer. After the write action is completed, the

following message window will show up.

4. DVI Monitor Write

Executing DVI Monitor Write (7) might cause damage to your monitor’s EDID information.

For instance, the sudden power surge or the disconnection of the serial port while

updating EDID might result in incomplete update process. Therefore, the DVI Monitor

Write (7) feature is not recommended to use. If users would like to update the monitor’s

EDID content with understanding such risk, please make a copy of the original EDID, and

make sure the action won’t damage to your monitor’s EDID information.

1. Click Analyze (4) button or you can load the previously saved EDID information in

the analysis window by clicking on Load File (2) button

2. Click on DVI Monitor Write (7) button, and wait for the following message showing

up. While successfully done with EDID update, you can see the following message

window pop up.
