SIIG ID-P40411-S1 Manuale utente

DP RS422/485 PCI

Express Adapter Card

Quick Installation Guide

04-0810A

Introduction

The DP RS422/485 PCI Express Adapter Card is a

high-speed serial card that provides additional

serial ports to your system.

Key Features and Benefits

•Compliant with PCI Express Base

Specification, Revision 1.1

•Supports serial port transfer rate up to

921Kb/s

•Built-in 15KVDC ESD serial interface

protection

•Built in 128-byte FIFO buffer

•RS-422 & RS485 auto detect and switch

•Plug-n-Play, I/O address and IRQ assigned

by BIOS

System Requirements

•PCI Express equipped system with an

available PCI Express slot

•Windows®

7 (32-/64-bit) / Vista (32-/64-

bit) / XP (32-/64-bit) / Server 2003 &

2008(32-/64-bit) / Server 2008 R2 / 2000

PackageContents

•DP RS422/485 PCI Express Adapter Card

• Spare enhanced low-profile bracket

• Fan Out Cable

• Jumper (4pcs for ID-P20211-S1; 8pcs for

ID-P40411-S1 )

• Quick installation guide

• Driver CD

Layout

Figure 1: 2-Port RS422/485 PCI Express Adapter Card

Figure 2: 4-Port RS422/485 PCI Express Adapter Card

ID-P20211-S1

ID-P40411-S1

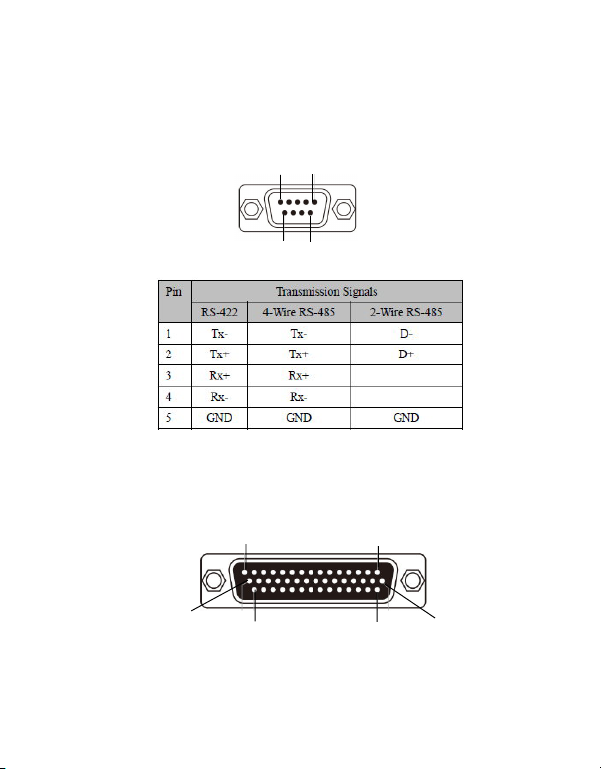

Pin Assignment

Male DB9 Connector:

Female DB44 Connector:

15 1

44 31

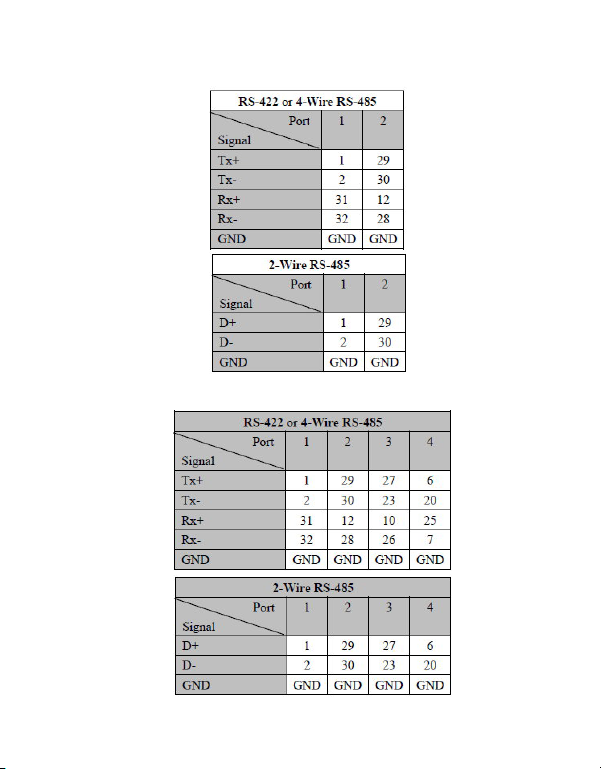

4-Port RS422/485 PCI Express:

2-Port RS422/485 PCI Express:

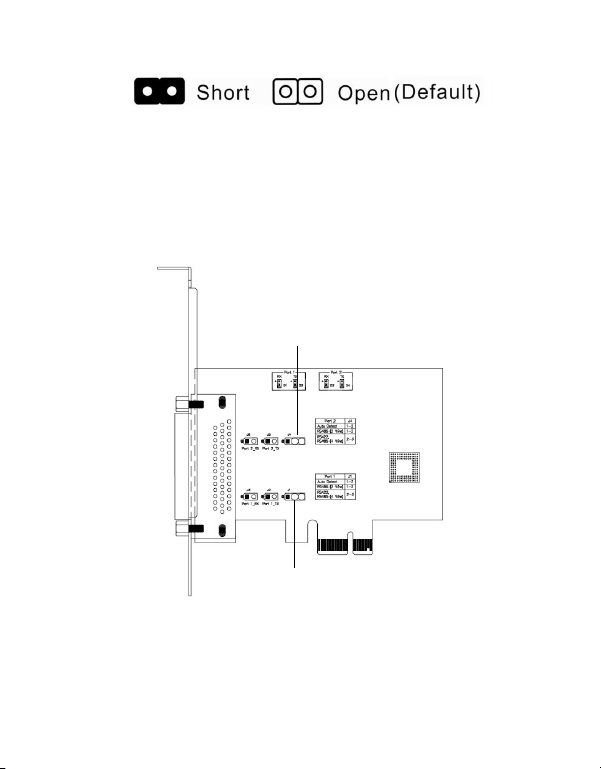

Jumper Settings

RS-422 or 4-wire RS-485 working model with

termination resistor

2-wire RS-485 working model with termination

resistor

This RS-422/485 PCI Express Serial board equips

independent TX and RX termination resistors for

each serial port. User can modify the jumper

setting (short the pins) to avoid impedance

mismatched problem when operate under Multi-

drop transmission. Resistors should be added

near the receiving side.

Default jumper setting is Open (disconnect 120

ohms termination resistors across the two wires)

DP 2-Port RS422/485 PCI Express Adapter Card

Figure 3: ID-P20211-S1 Pin Layout

1. Pin 1-2 jumper setting is short by default,

Auto Detect / RS-485(2-Wire)

This COM port can automatically detect

the state of RS-422 full duplex or RS-485

half duplex and control the data

transmitting and receiving wires at the same

port.

2. Pin 2-3 jumper setting is short for RS-422/

RS-485(4-Wire)

This COM port forces to run RS-422 full

duplex mode.

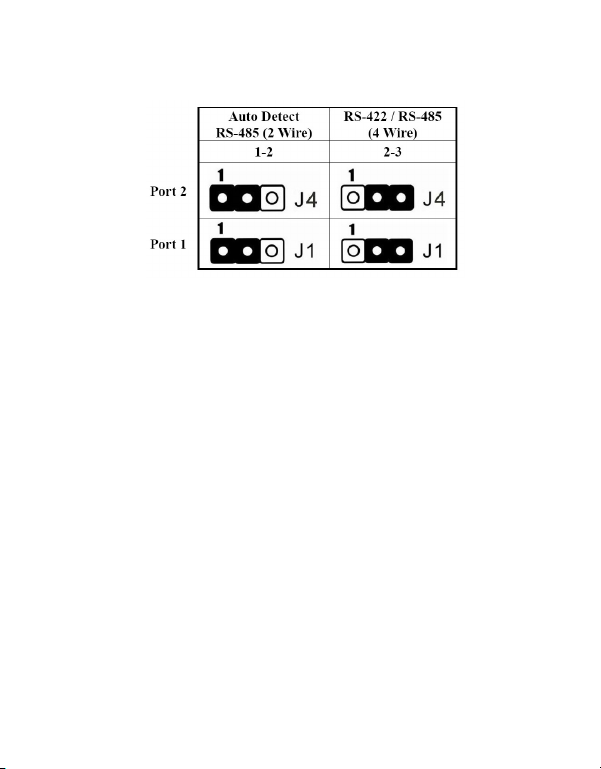

Figure 4: ID-P20211-S1 Pin Assignment

DP 4-Port RS422/485 PCI Express Adapter Card

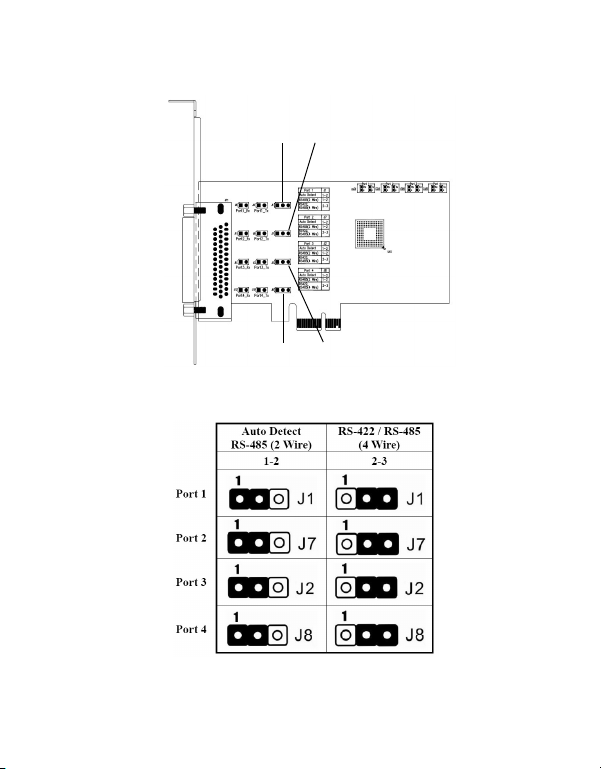

Figure 5: ID-P40411-S1 Pin Layout

Figure 6: ID-P40411-S1 Pin Assignment

J8 J2

1. Pin 1-2 jumper setting is short by default,

Auto Detect / RS-485(2-Wire)

This COM port can automatically detect

the state of RS-422 full duplex or RS-485

half duplex and control the data

transmitting and receiving wires at the same

port.

2. Pin 2-3 jumper setting is short for RS-422/

RS-485(4-Wire)

This COM port forces to run RS-422 full

duplex mode.
