SOYO SY-6KE Manuale utente

SY-6KE

Mainboard

Quick Start Guide

CTested To Comply

With FCC Standards

FOR HOME OR OFFICE USE

POST CONSUMER

RECYCLED PAPER

100%

Hardware

Installation

Quick BIOS

Setup

Introduction

The SOYO CD

SOYO™

SY-6KE Mainboard

Pentium

II processor

82440 LX AGP/PCI Mainboard

66MHz Front Side Bus supported

ATX Form Factor

Trademarks:

Soyo is a registered trademark of Soyo Computer Inc. All trademarks are the property of their

owners.

Product Rights:

Product and corporate names mentioned in this publication are used for identification purposes

only and may be registered trademarks or copyrights of their respective companies.

transmit, transcribe, store in a retrieval system, or translate into any language, in any form or by

any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, any part of

this publication without express written permission of Soyo Computer Inc.

Disclaimer:

Soyo Computer Inc. makes no representations or warranties regarding the contents of this

manual. We reserve the right to revise the manual or make changes in the specifications of the

product described within it at any time without notice and without obligation to notify any

person of such revision or change. The information contained in this manual is provided for

general use by our customers. Our customers should be aware that the personal computer field is

the subject of many patents. Our customers should ensure that their use of our products does not

infringe upon any patents. It is the policy of Soyo Computer Inc. to respect the valid patent rights

of third parties and not to infringe upon or assist others to infringe upon such rights.

Restricted Rights Legend:

Use, duplication, or disclosure by the Government is subject to restrictions set forth in

subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at

252.277-7013.

About This Guide:

This Quick Start Guide is for assisting system manufacturers and end users in setting up and

installing the mainboard. Information in this guide has been carefully checked for reliability;

however, no guarantee is given as to the correctness of the contents. The information in this

document is subject to change without notice.

If you need any further information, please visit our Web Site on the Internet. The address is

"http://www.soyo.com.tw".

6KE Serial - Version 1.0 - Edition: August 1998

*Thesespecificationsaresubjecttochangewithoutnotice

SY-6KE

Quick Start Guide

Introduction

Congratulationsonyourpurchaseofthe

SY-6KE

Mainboard.ThisQuickStartGuide

describesthestepsforinstallingandsettingupyournewmainboard.

Thisguideisdesignedforalluserstoprovidethebasicstepsof mainboardsettingand

operation.Forfurtherinformation, pleasereferto SY-6KEMainboardUser'sGuideand

TechnicalReferenceonlinemanualincludedontheCD-ROMpackedwithyourmainboard.

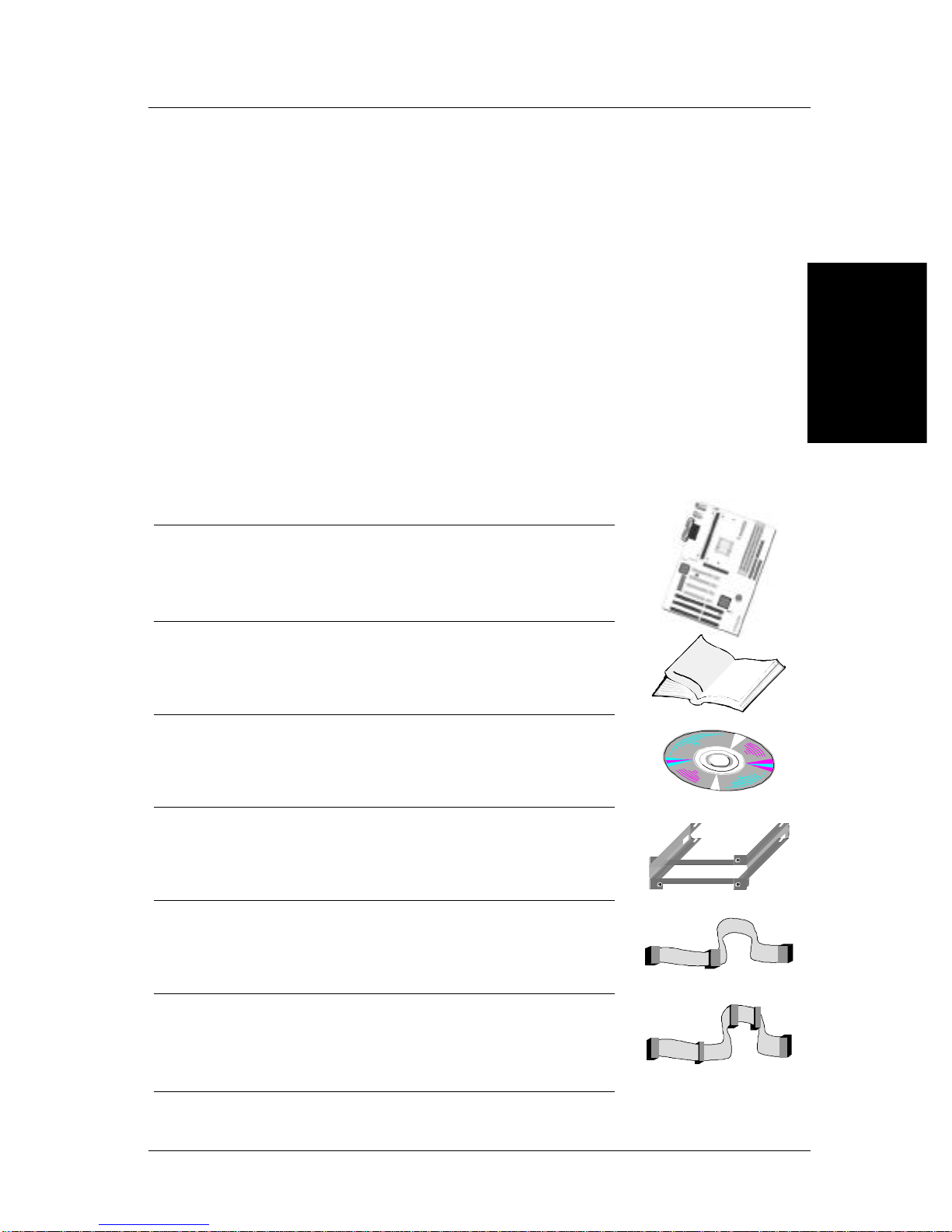

Unpacking

*Ifyourboardcomeswithadriverdiscandapapermanual,theQuickStartGuideandtheCD-ROMarenotincludedinthepackage.

Whenunpackingthemainboard,checkforthefollowingitems:

TheSY-6KE 82440LX AGP/PCI Mainboard

ThisQuickStartGuide

TheInstallation CD-ROM

TheCPURetentionSet

OneIDEDeviceFlat Cable

OneFloppyDiskDriveFlatCable

SY-6KE Quick Start Guide

Introduction

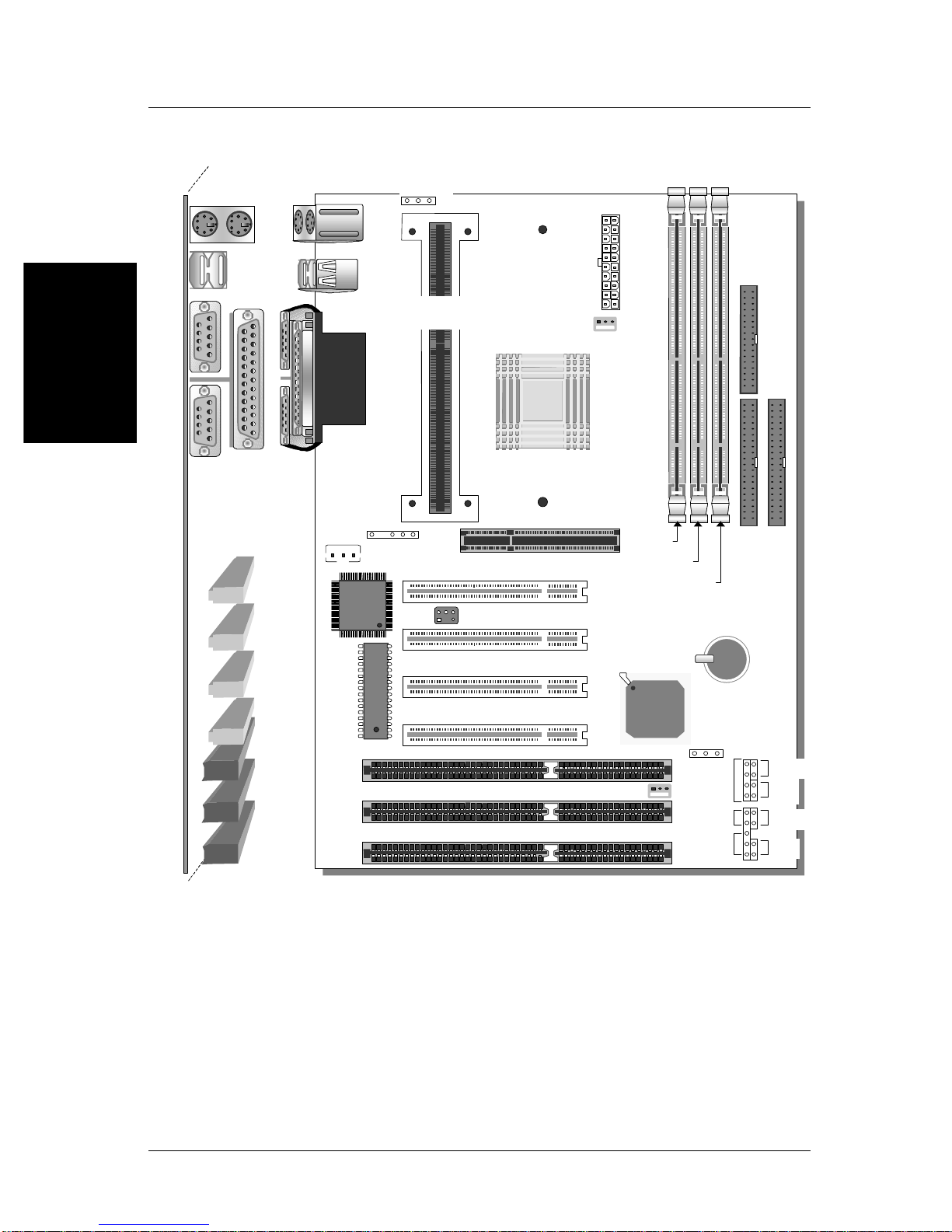

SY-6KE Mainboard Layout

Key Features

SupportsIntelPentium

IIprocessors

(233-366MHz)&Celeron™

Auto-detectCPUvoltage

PC97,ACPI,UltraDMA/33

Power-onbymodemoralarm

SupportsWake-On-LAN(WOL)

SupportsWake-UpbyPS/2Keyboard

orMouse

SupportsCreativeSB-LINK™(PC-PCI)

forPCIaudiocard

1x32-bitAGPslot

4x32-bitbusmasteringPCIslots

1xIrDAport

Supportsmultiple-bootfunction

DMIutility

ATXpowerconnector

COM 1

COM 2

PRT

USB 1

USB 2

PS/2 KB

Connector

PS/2 Mouse

Connector

PCI Slot #1

PCI Slot #2

PCI Slot #3

PCI Slot #4

ISA Slot #1

ISA Slot #2

IR1

JP5

3V Lithium

Battery

CPUFAN

CHAFAN

JP44

1 3

SB-LINK™

Slot 1 for

Pentium®

II Processor

Intel

AGP Set

82443 LX

IDE 1IDE 2

FDC

DIMM 1

DIMM 2

DIMM 3

AGP Slot

ATX Power

Intel

82371 AB

ISA Slot #3

Ultra

I/O Chipset

Flash BIOS

1 3

Speaker

Keylock

Power

LED Reset

PWRBT

Turbo

LED

HDD LED

JP10

1 3

WOL

Header

(PC-PCI)

CMOS Clear

Jumper

Wake-Up by PS/2 Keyboard

SY-6KE

Quick Start Guide

Hardware

Installation

Toavoiddamagetoyourmainboard,followthesesimpleruleswhile

handlingthisequipment:

Beforehandlingthemainboard,groundyourselfbygraspinganunpaintedportionof

thesystem'smetalchassis.

Removethemainboardfromitsanti-staticpackaging.Holditbytheedgesandavoid

touchingitscomponents.

Checkthemainboardfordamage.Ifanychipappearsloose,presscarefullytoseatit

firmlyinitssocket.

Followthedirectionsinthissectiondesignedtoguideyouthroughaquickandcorrect

installationofyournew

SY-6KE

Mainboard.Fordetailedinformation,pleaserefer to SY-6KE

MainboardUser'sguideandTechnical Reference onlinemanualincludedontheCD-ROM

packedwithyourmainboard.

PREPARATIONS

Gatherandprepareallthenecessaryhardwareequipmenttocompletetheinstallation

successfully:

Pentium

processorwithbuilt-inCPUcoolingfan(boxedtype)

SDRAMmodule

Computercaseandchassiswithadequatepowersupplyunit

Monitor

PS/2Keyboard

PointingDevice(PS/2Mouse)

VGACard

SoundCard(optional)

Speaker(s)(optional)

DiskDrives:HDD,CD-ROM,Floppydrive…

ExternalPeripherals:Printer,Plotter,andModem-(optional)

InternalPeripherals:ModemandLANcards(optional)

SY-6KE Quick Start Guide

Hardware

Installation

Install the Mainboard

Followthestepsbelowinordertoperformtheinstallationofyournew

SY-6KE

Mainboard.

Step 1. Install the CPU

Mark your CPU Frequency:

RecordtheworkingfrequencyofyourCPU

thatshouldbeclearlymarkedontheCPUcover.

233MHz (66 x 3.5) 300MHz (66 x 4.5) 366MHz (66 x 5.5)

266MHz (66 x 4.0) 333MHz (66 x 5.0)

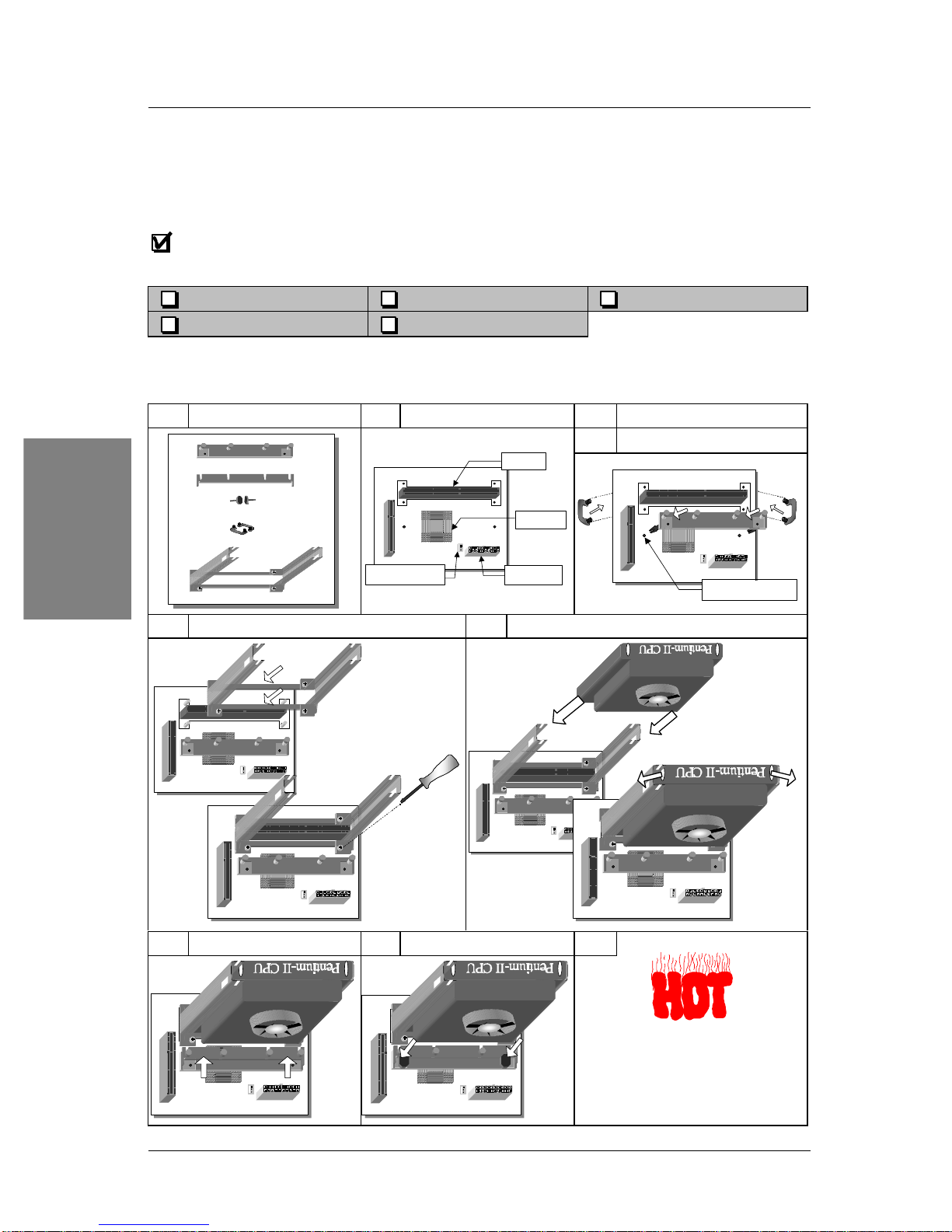

CPU Mount Procedure:

TomountthePentium

IIprocessorthatyouhave

purchasedseparately,followthese instructions.

Unpack the Retention Kit 2

Position the Mainboard 3

Insert the Screws

Install the Supporting Base

Install the Retention Clip 6

Install the CPU

Install the Support Clip 8

Insert the Latches 9

Remember to connect the

CPU Cooling Fan to the

CPUFAN power connector on

the mainboard.

Supporting Base

Support Clip

Screws (x2)

Retention Clip

Latches (x2)

ATX Power

Heat Sink

Slot 1

CPUFAN Power Larger Pinhole

SY-6KE

Quick Start Guide

Hardware

Installation

Step 2. Make Connections to the Mainboard

Thissectiontellshowtoconnectinternalperipheralsandpowersupplytothemainboard.

InternalperipheralsincludeIDEdevices(HDD,CD-ROM),FloppyDiskDrive,Chassis Fan,

FrontPanelDevices(TurboLED,InternalSpeaker,ResetButton,IDELED,and KeyLock

Switch.),Wake-On-LANcard,VGAcard,SoundCard,andotherdevices.

FormoredetailsonhowtoconnectinternalandexternalperipheralstoyournewSY-6KE

Mainboard,pleasereferto SY-6KE MainboardUser'sGuideandTechnical Reference online

manualonCD-ROM.

Connectors and Plug-ins

PCI Audio Card Header: SB-Link™(PC-PCI) Wake-On-LAN Header: JP44

Connect the SB-Link™(PC-PCI) cable from your

PCI audio card to this header. Connect the WOL cable from

your LAN card to JP44.

CPU Cooling Fan: CPUFAN Chassis Fan: CHAFAN

Connect the CPU cooling fan cable to the

CPUFAN power connector. Connect the case cooling fan cable to the

CHAFAN power connector.

USB TB LED SPK

Plug your USB devices

to this header. Connect your Turbo LED

cable to this header. Connect the speaker cable to

this header.

RESET IDE LED KB-LOCK

Connect the reset button

to this header. Connect the IDE device

LED to this header. Connect the Power LED and

the KB Lock switch to this

header.

IrDA (Infrared Device Header): IR1

Connect the cable from your IrDA device to this header.

ATX Power On/Off: PWRBT ATX Power Supply: ATX PW

Connect your power switch to this header

(momentary switch type).

Depending on the BIOS setting, turning off

the system is done by “one touch”or by

pressing the switch for >4s longer than 4s.

Attach the ATX Power cable to this

connector.

When using the PS/2 Keyboard

Wake-Up function, please make

sure the ATX power supply can

take at least 720mA load on the 5V

Standby lead (5VSB) to meet the

standard ATX specifications.

SY-6KE Quick Start Guide

Hardware

Installation

SY-6KE

Quick Start Guide

Hardware

Installation

Step 3. Configure Memory

YourboardcomeswiththreeDIMMsockets,providingsupportforupto384MBofmain

memoryusingDIMMmodulesfrom8MBto128MBwithnorestrictiononmemory

configuration.Therefore,youcaninstallmemorymodulesinanycombination.

For66MHzfrontsidebusCPUsuse12nsorfastermemory.

Memory Configuration

DIMM BanksMEMORY

CONFIGURATION DIMM 1 DIMM 2 DIMM 3

RAM Type EDO/SDRAM EDO/SDRAM EDO/SDRAM

RAM Module Size

(MB) 8/16/32/64/128 8/16/32/64/128 8/16/32/64/128

Notice 1: Only install 3.3V EDO DIMM modules on this mainboard; other voltages are

not supported by the SY-6KE mainboard.

Notice 2: Do not install EDO types of DIMM when you already use SDRAM.

Step 4. Set the CPU Frequency

YoudonotneedtosetanyjumperfortheCPUfrequency.Instead,CPUsettingarechanged

throughtheBIOS[CHIPSETFEATURESSETUP].Pleasereferto Chapter3-QuickBIOS

SetupfordetailsonhowtosetthePentium

IIprocessorfrequency.

Step 5. Enable/Disable PS/2 Keyboard Wake-Up (JP10)

YoucanchoosetoenabletheWake-UpbyPS/2KeyboardorMousefunctionbyshorting

pin1-2onjumperJP10,otherwise,shortpin2-3todisablethisfunction.

Support Wake-Up

by Keyboard Enable Disable* (*Default)

JP10 Setting EnableWake-up

by Keyboard or

Mouse function

(short pin 1-2)

DisableWake-up

by Keyboard or

Mouse function

(short pin 2-3)

SY-6KE Quick Start Guide

Hardware

Installation

Step 6. Clear CMOS Data (JP5)

CleartheCMOSmemorybymomentarilyshortingpin2-3onjumperJP5foratleast5

seconds,andthenbyshortingpin1-2toretainnewsettings. Thisjumpercanbeeasily

identifiedbyitswhitecoloredcap.

CMOS Clearing Clear CMOS Data Retain CMOS Data (Default)

JP5 Setting Short pin 2-3 for

at least 5 seconds

to clear the CMOS.

Short pin 1-2 to

retain the new

settings.

Note: You must unplug the ATX power cable from the ATX power connector when

performing the CMOS Clear operation.

Indice

Altri manuali SOYO Scheda madre

SOYO

SOYO SY-6BA+III Manuale utente

SOYO

SOYO SY-6VCA Manuale utente

SOYO

SOYO SY-V6BE+ Manuale utente

SOYO

SOYO SY-P4I875P DRAGON 2 V1.0 Manuale utente

SOYO

SOYO Super 7 SY-5EMA+ Manuale per l'uso e la cura

SOYO

SOYO SY-P4I845GV Manuale utente

SOYO

SOYO SY-6IZM/3 Manuale utente

SOYO

SOYO Mainboard SY-5S Manuale utente

SOYO

SOYO SY-P4VDA Manuale utente

SOYO

SOYO SY-6VBA 133 Manuale utente

SOYO

SOYO SY-7VCA2 Manuale utente

SOYO

SOYO 6KM Series Manuale per l'uso e la cura

SOYO

SOYO SY-P4S DRAGON Ultra Manuale utente

SOYO

SOYO SY-6IWM/L Manuale utente

SOYO

SOYO Motherboard SY-6BA+ IV Manuale utente

SOYO

SOYO 6KB Manuale per l'uso e la cura

SOYO

SOYO SY-6IWM Manuale utente

SOYO

SOYO SY-P4VSA Manuale utente

SOYO

SOYO DRAGON Lite SY-KT333 Manuale utente

SOYO

SOYO SY-5EMA Pro Super 7 Manuale per l'uso e la cura

SOYO

SOYO Motherboard SY-6ZB Manuale utente

SOYO

SOYO Super 7 SY-5SSM Manuale per l'uso e la cura

SOYO

SOYO SY-K7VMP2 Manuale utente

SOYO

SOYO SY-K7VTA PRO Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
