SOYO SY-7VCA Manuale utente

SY-7VCA

Motherboard

Quick Start Guide

Hardware

Installation

Quick BIOS

Setup

Introduction

The SOYO CD

SOYO™

SY-7VCA Motherboard

Socket 370 for Intel PIII & Celeron processors

VIA VT82C694X AGP/PCI Motherboard

66/100/133 MHz Front Side Bus supported

ATX Form Factor

Trademarks:

Soyo is the registered trademark of Soyo Computer Inc. All trademarks are the properties of

their owners.

Product Rights:

All names of the product and corporate mentioned in this publication are used for identification

purposes only. The registered trademarks and copyrights belong to their respective companies.

manual may be reproduced, transmitted, transcribed, translated into any other language, or

stored in a retrieval system, in any form or by any means, such as by electronic, mechanical,

magnetic, optical, chemical, manual or otherwise, without permission in writing from Soyo

Computer Inc.

Disclaimer:

Soyo Computer Inc. makes no representations or warranties regarding the contents of this

manual. We reserve the right to amend the manual or revise the specifications of the product

described in it from time to time without obligation to notify any person of such revision or

amend. The information contained in this manual is provided to our customers for general use.

Customers should be aware that the personal computer field is subject to many patents. All of

our customers should ensure that their use of our products does not infringe upon any patents. It

is the policy of Soyo Computer Inc. to respect the valid patent rights of third parties and not to

infringe upon or to cause others to infringe upon such rights.

Restricted Rights Legend:

Use, duplication, or disclosure by the Government is subject to restrictions set forth in

subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at

252.277-7013.

About This Guide:

This Quick Start Guide can help system manufacturers and end users in setting up and installing

the Motherboard. Information in this guide has been carefully checked for reliability; however,

to the correctness of the contents there is no guarantee given. The information in this document

is subject to amend without notice.

For further information, please visit our Web Site on the Internet. The address is

"http://www.soyo.com.tw".

7VCA Serial - Version 1.3 - Edition: September 2000

*Thesespecificationsaresubjecttoamendwithoutnotice

SY-7VCA

Quick Start Guide

Introduction

Congratulationsonyourpurchaseofthe

SY-7VCA

Motherboard.ThisQuickStart Guide

illustratesthestepsforinstallingandsettingupyournewMotherboard.

ThisguideprovidesalluserswiththebasicstepsofMotherboardsettingandoperation.For

furtherinformation,pleaserefertothe SY-7VCAMotherboardUses’Guidethatcamewith

yourMotherboard.

Unpacking

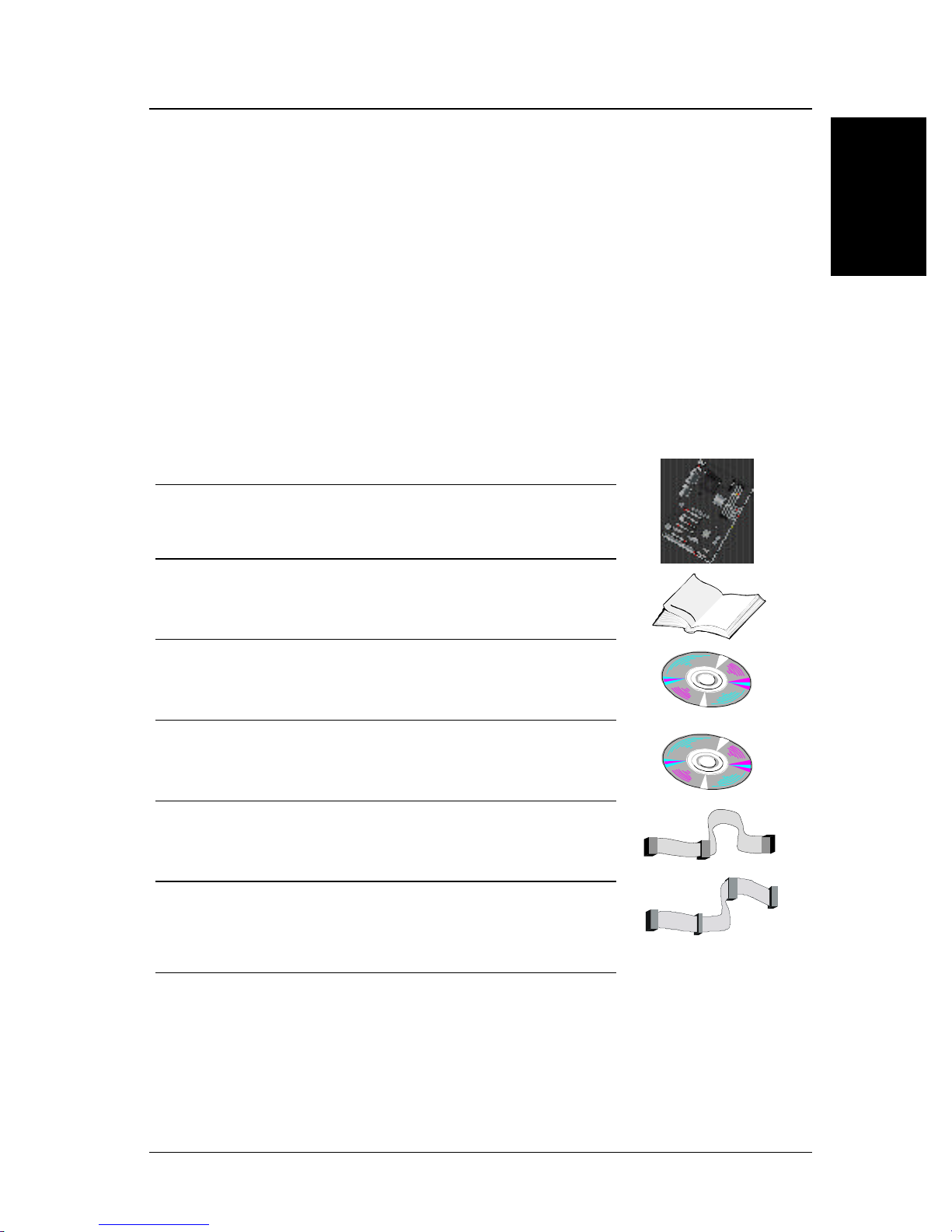

WhenunpackingtheMotherboard,checkforthefollowingitems:

TheSY-7VCAVT82C694XAGP/PCIMotherboard

TheQuickStartGuide

TheInstallationCD-ROM

SOYOBonusPackCD-ROM

OneIDEDeviceATA66FlatCable

OneFloppyDiskDriveFlatCable

SY-7VCA Quick Start Guide

Introduction

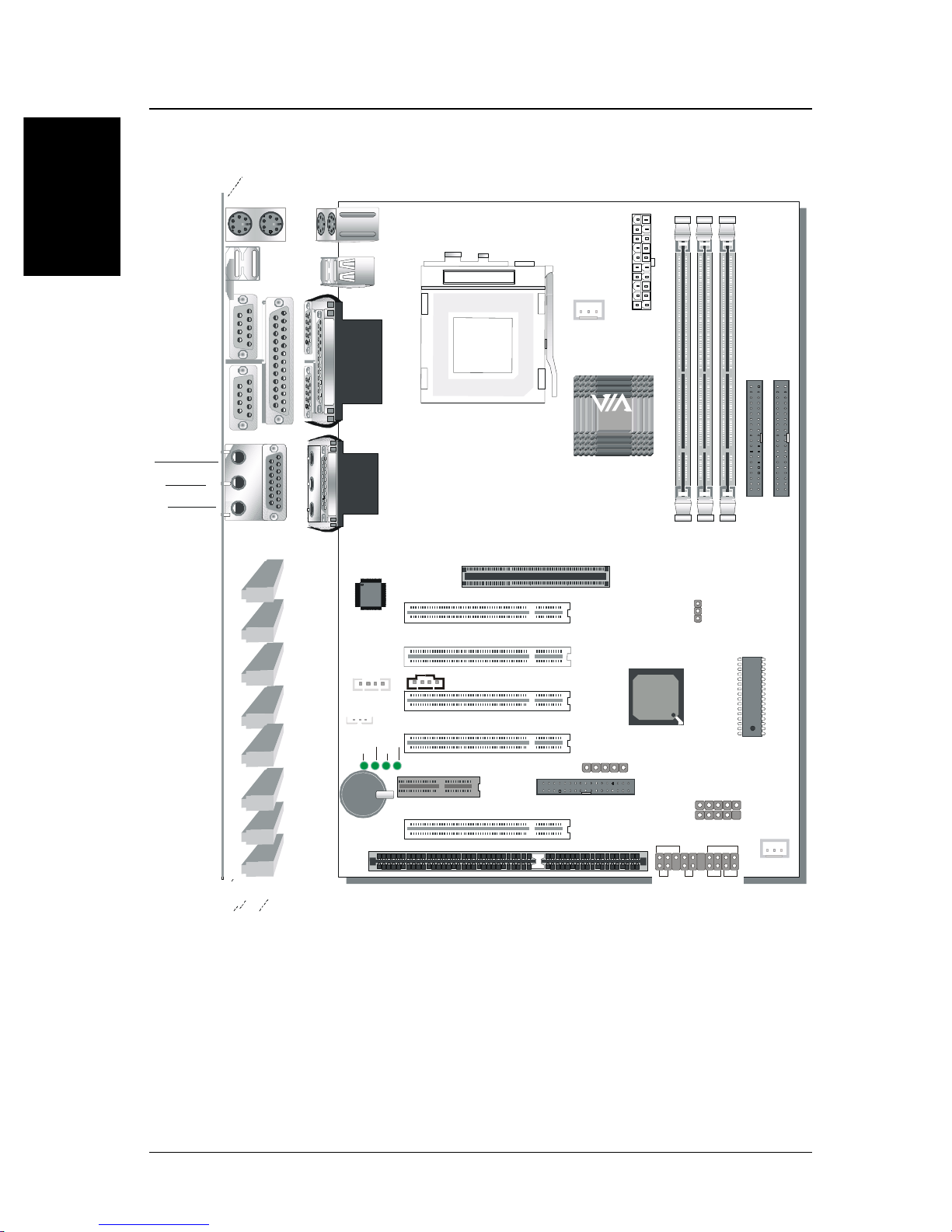

SY-7VCA Motherboard Layout

(Optional)

Speaker

Power

LED

STR

LEDHDD

LED

ResetPWRBT

PRT

PS/2 KB

Connector

PS/2 Mouse

Connector

PCI Slot #1

PCI Slot #3

PCI Slot #4

PCI Slot #5

CPUFAN

1 3

IDE 1 IDE 2

FDC1

ATX Power

AUDIO-OUT

LINE-IN

MIC-IN

GAME

Socket 370

DIMM 2

DIMM 3

DIMM 1

COM1

COM2

PCI Slot #2

CHAFAN

USB 1

SDRAM

VT82C694X

AGP Slot

Lithium

Battery

USB2

SIRCON

JP5

JP10

CDIN1

CDIN2

1 4

ISA Slot

AMR

CODEC

AC97

Via

VT82C686A

Flash BIOS

SY-7VCA

Quick Start Guide

Introduction

Key Features

SupportsIntel®processors

-FSB66MHz:Celeron



(400-700MHz)

-FSB100MHz:Pentium®III(500E-

850MHz)

-FSB133MHz:Pentium®III(533-

933MHz)

Supports66/100/133MHzFrontSide

BusFrequency

Auto-detectCPUvoltage

EasyCPUsettingsinBIOSwiththe

“SOYOCOMBOSetup”

PC99,ACPI

UltraDMA33/66(ATA33/66)

SupportsWake-On-LAN(WOL)

Power-onbymodemandalarm

Supportsonboardhardwaremonitoring

SupportssuspendtoRAM(STR)

Supports5setsofvoltagemonitoring

Supportsmultiple-bootfunction

5x32-bitbusmasterPCIslots

1x16-bitISAslot.

1x32-bitAGPslot

4xUSBportsonboard

(USB1:2Ports,USB2:2Ports)

ATXpowerconnector

HardwareRandomNumberGenerator

(RNG)forenablingenhancedplatform

security

RTChardwaretohandleY2KCentury

Rollover

SY-7VCA Quick Start Guide

Hardware

Installation

ToavoiddamagetoyourMotherboard,pleasefollowthesesimpleruleswhile

handlingthisequipment:

BeforehandlingtheMotherboard,groundyourselfbytouchingontoanunpainted

portionofthesystem'smetalchassis.

RemovetheMotherboardfromitsanti-staticpackaging.Holdthemotherboardbythe

edgesandavoidtouchingitscomponents.

ChecktheMotherboardfordamage.Ifanychipappearstobeloose,presscarefully

toseatitfirmlyinitssocket.

Followthedirectionsinthissectionwhichisdesignedtoguideyouthroughaquickand

correctmethodtoinstallyournew

SY-7VCA

Motherboard.Fordetailedinformation,please

refertotheSY-7VCAMotherboard User'sguideandTechnicalReference onlinemanualon

intheCD-ROMpackagethatcamewithyourMotherboard.

Gatherandprepareallnecessarycomponentstocompletetheinstallationsuccessfully:

Socket370 processor with built-in CPU cooling fan (boxed type)

SDRAM module(s)

Computer case with adequate power supply unit

Monitor

PS/2 Keyboard

Pointing Device (PS/2 Mouse)

Speaker(s) (optional)

Disk Drives: HDD, CD-ROM, Floppy drive…

External Peripherals: Printer, Plotter, and Modem (optional)

Internal Peripherals: Modem and LAN cards (optional)

Note: 1.

Ifyouwanttouseanexternalspeakerconnectedto"Line-out"port,pleasemake

suretousean"amplifiedspeaker"thatcangenerateproperoutputsoundvolume.

SY-7VCA

Quick Start Guide

Hardware

Installation

Install the Motherboard

Toperformtheinstallationofyournew

SY-7VCA

Motherboard,followthestepsbelow:

Step 1. CPU Installation

MarkyourCPUFrequency:

RecordtheworkingfrequencyofyourCPUthat

shouldbeclearlymarked ontheCPUcover.

FSB66MHz

400MHz(66x6.0) 466MHz(66x7.0) 533MHz(66x8.0) 600MHz(66x9.0) 667MHz(66x10.0)

433MHz(66x6.5) 500MHz(66x7.5) 566MHz(66x8.5) 633MHz(66x9.5) 700MHz(66x10.5)

FSB100MHz

500MHz(100x5.0) 600MHz(100x6.0) 700MHz(100x7.0) 800MHz(100x8.0)

550MHz(100x5.5) 650MHz(100x6.5) 750MHz(100x7.5) 850MHz(100x8.5)

FSB133MHz

533MHz(133x4.0) 667MHz(133x5.0) 800MHz(133x6.0) 933MHz(133x7.0)

600MHz(133x4.5) 733MHz(133x5.5) 866MHz(133x6.5)

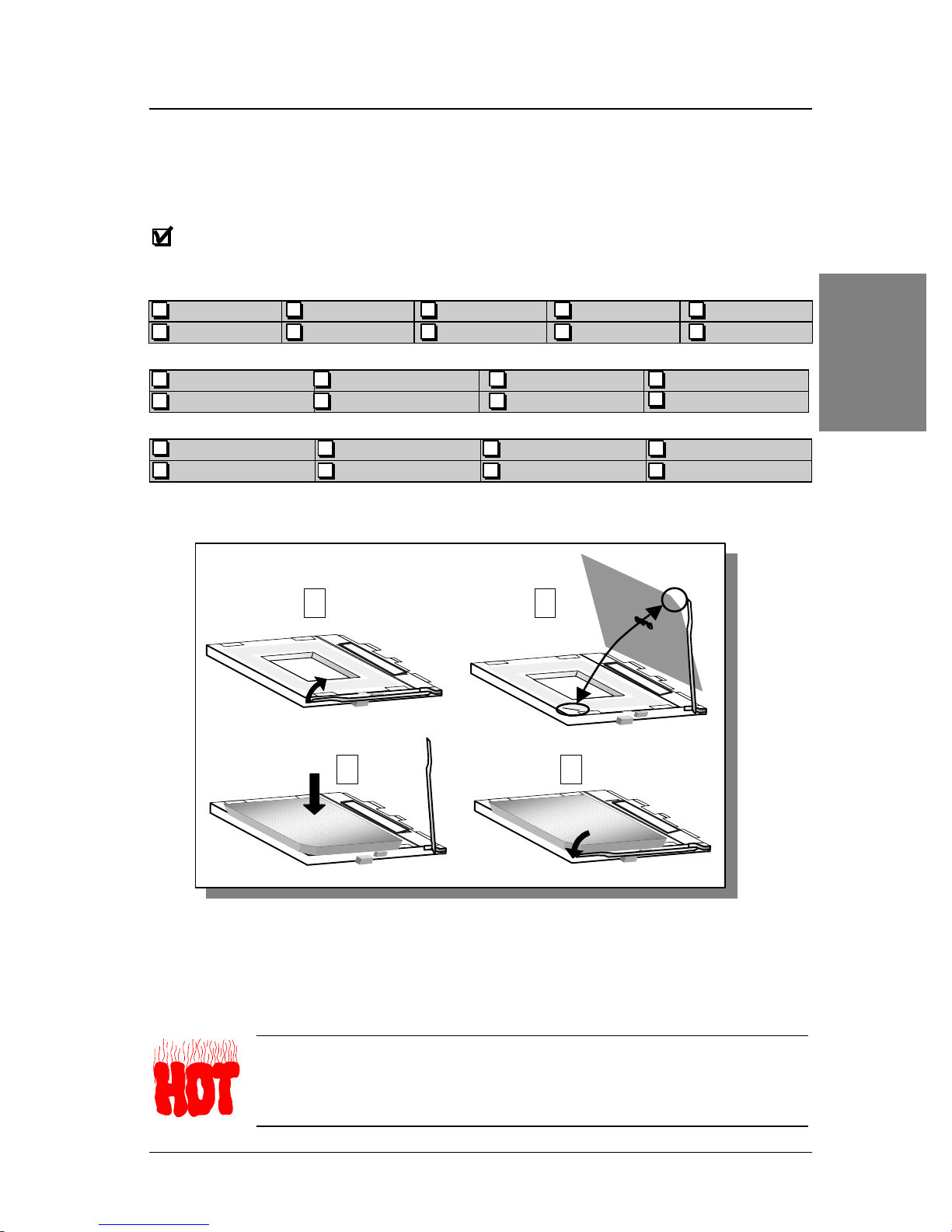

CPU Mount Procedure:

TomounttheCoppermine

processorthatyouhave

purchasedseparately,followtheseinstructions.

Liftthesockethandleuptoaverticalposition.

AlignthebluntedgeoftheCPUwiththematchingpinholeedgeonthesocket.

Seattheprocessorinthesocketcompletelyandwithoutforcing.

ThenclosethesockethandletosecuretheCPUinplace.

RemembertoconnecttheCPUCoolingFantotheappropriatepower

connectorontheMotherboard. Thefanis akeycomponentthatstabilizesthe

system.Itpreventstheequipmentfromoverheatingandprolongsthelifeof

yourCPU.

cke

cket3

SY-7VCA Quick Start Guide

Hardware

Installation

Step 2. Connections to the Motherboard

ThissectiontellshowtoconnectinternalperipheralsandthepowersupplytotheMotherboard.

TheinternalperipheralsconsistofIDEdevices(HDD,CD-ROM),FloppyDiskDrive,Chassis

Fan,FrontPanelDevices(STRLED,InternalSpeaker,ResetButtonandIDELEDSwitch.),

Wake-On-LANcard,VGAcard,SoundCard,andotherdevices.

FormoredetailsonconnectinginternalandexternalperipheralstoyournewSY-7VCA

Motherboard,pleasereferto SY-7VCAMotherboardUser'sGuideandTechnicalReference

onlinemanualontheCD-ROM.

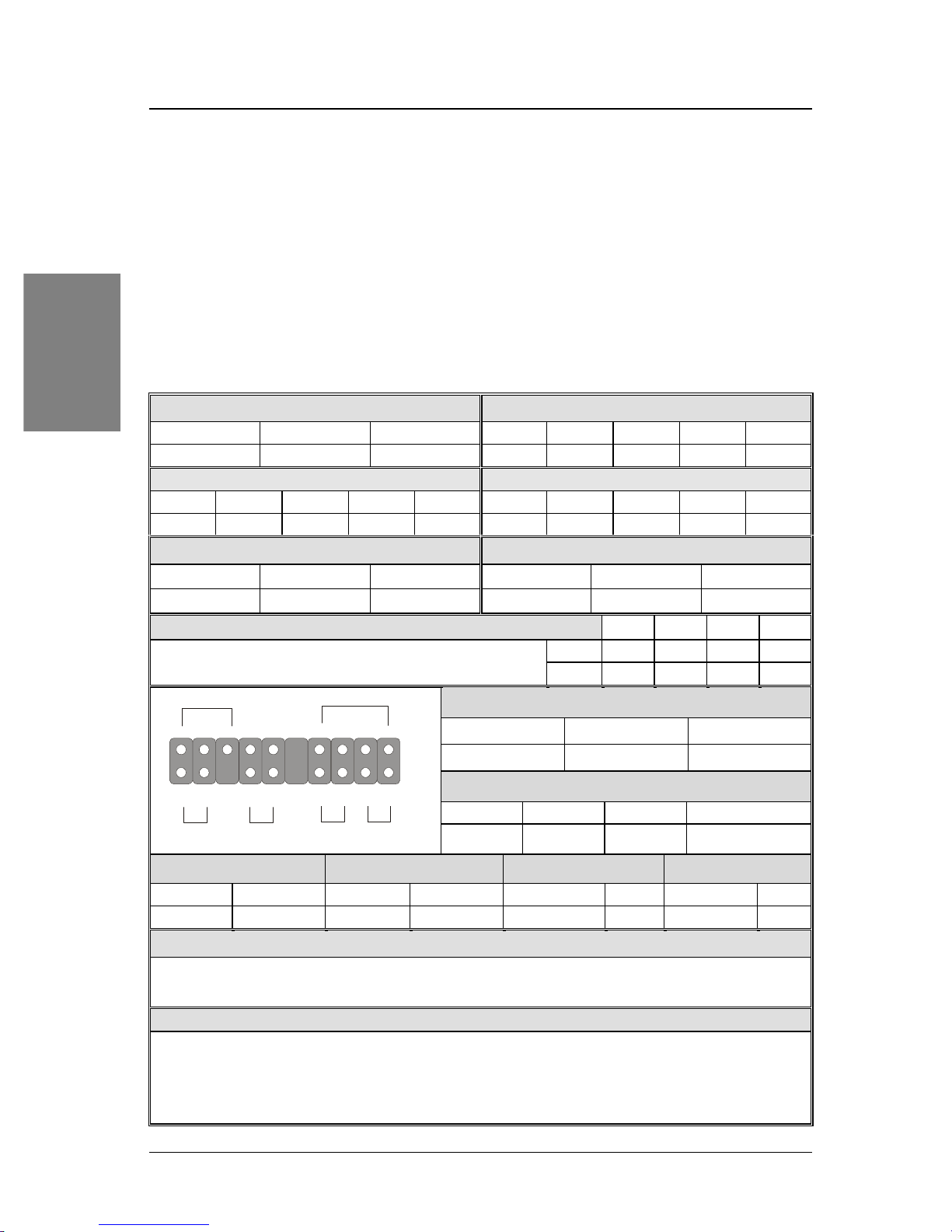

Connectors and Plug-ins

Wake-On-LANHeader:JP10 StandardIrDA(Infrared Device Header):SIRCON

Pin1 Pin2 Pin3 Pin1 Pin2 Pin3 Pin4 Pin5

5V-SB GND MP_Wakeup VCC None IRRX GND IRTX

USB2:(PORT1) USB2 : (PORT2)

Pin1 Pin2 Pin3 Pin4 Pin5 Pin6 Pin7 Pin8 Pin9 Pin10

Power Data- Data+ GND GND Power Data- Data+ GND None

CPUCoolingFan:CPUFAN ChassisFan: CHAFAN

Pin1 Pin2 Pin3 Pin1 Pin2 Pin3

GND 12V SENSOR GND 12V SENSOR

CD-IN:CDIN1/CDIN2 Pin1 Pin2 Pin3 Pin4

CDIN1 LG G R

ConnecttheCDLine-incordfromtheCR-ROMdevice

tothematchingconnectorCDIN

CDIN2 GLGR

PowerLED

Pin1 Pin2 Pin3

5V NC GND

Speaker

Pin1 Pin2 Pin3 Pin4

5V NC NC Speakerout

HDDLED STRLED¡°PWRBT RESET

Pin1 Pin2 Pin1 Pin2 Pin1 Pin2 Pin1 Pin2

LEDAnode LEDCathode LEDAnode LEDCathode PowerOn/Off GND ControlPIN GND

ATXPowerOn/Off:PWRBT

Connectyourpowerswitchtothisheader(momentaryswitchtype).

Toturnoffthe system, pressthisswitchandholddown for longerthan4seconds.

ATXPowerSupply:ATXPW

AttachtheATXPowercabletothisconnector.(ThismotherboardrequiresanATXpowersupply,anAT

powersupplycanNOTbeused.)

WhenusingthePower-OnbyPS/2Keyboardfunction,pleasemakesuretheATXpowersupplyisableto

provideatleast720mAonthe5VStandbylead(5VSB)inordertomeetthestandardATXspecifications.

Power LED

Speaker

Reset

PWRBT

STR LED

HDD LED

SY-7VCA

Quick Start Guide

Hardware

Installation

¡°

Note:TheSTRLEDisconnectedtotheVoltagethatfeedstheDIMMsockets.Therefore

thefollowingtableapplies:SuspendtoRAM NormalOperation PowerOff

STRLED ON ON OFF

Step 3. Configure Memory

YourboardcomeswiththreeDIMMsockets,providingsupportforupto1.5GBofmain

memoryusingunbufferedandregisteredDIMMmodulesfrom8MBto512MB.Onthis

motherboard,DRAMspeedcanbesetindependentfromthe CPUfrontsidebusspeed.

DependingontheDRAMclockspeedsettingintheBIOSsetup,appropriatememory

modulesmustbeused.For66MHzDRAMspeed,usePC66memory;for100MHzDRAM

speed,usePC100memory;for133MHzDRAMspeed,usePC133memory.

Memory Configuration Table

Number of

Memory Modules DIMM 1 DIMM 2 DIMM 3

RAM Type SDRAM / VCM SDRAM

Memory Module

Size (MB) 8/16/32/64/128/256/512 MB

Note:Always install memory modules in the order prescribed in this table.

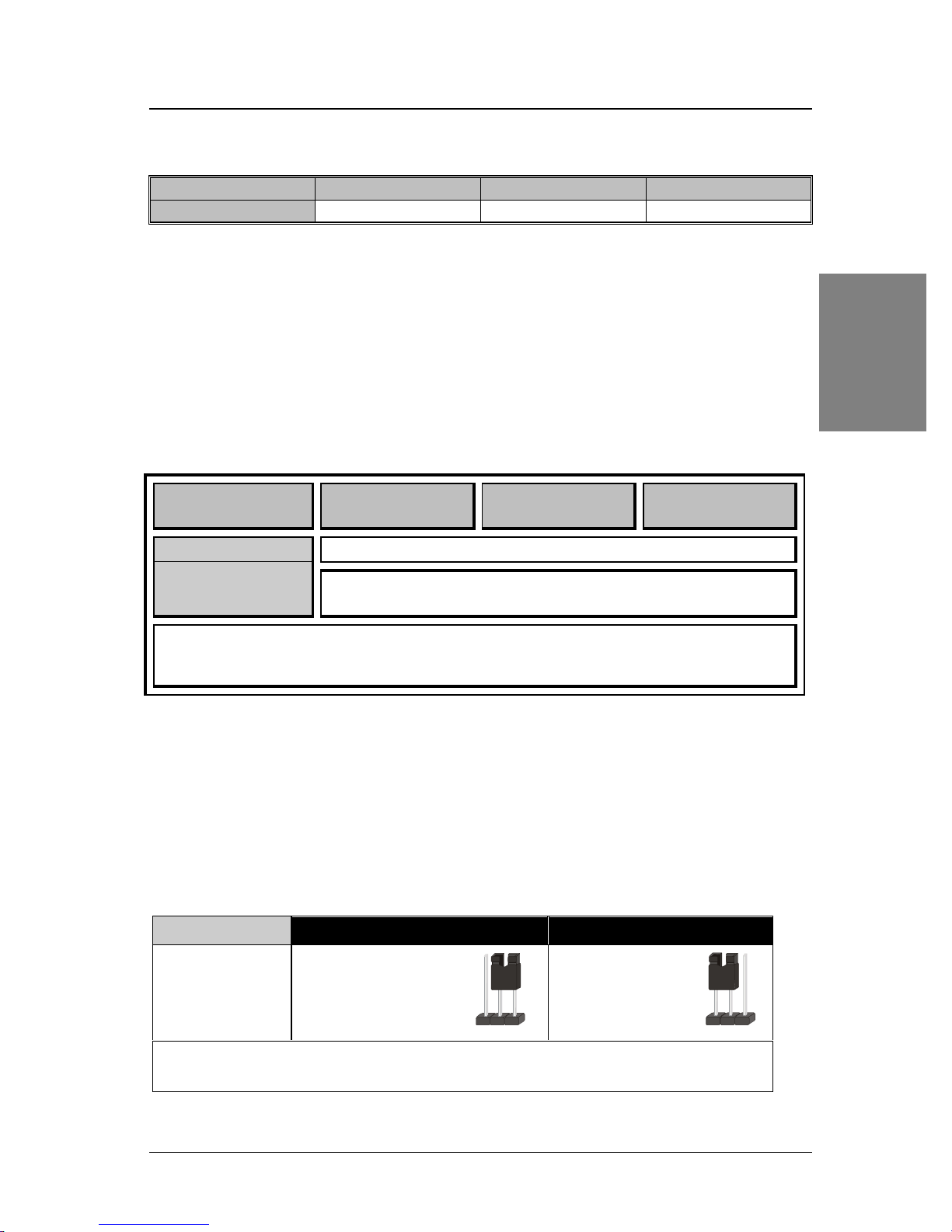

CMOS Clear (JP5)

InsomecasestheCMOSmemorymaycontainwrongdata,followthestepsbelowtoclear

CMOSmemory.

CleartheCMOSmemoryby momentarilyshortingpin2-3onjumperJP5. Thisjumper

canbeeasilyidentifiedbyitswhitecoloredcap.

Thenputthejumperbackto1-2toallowwritingnewofdataintotheCMOSmemory.

CMOS Clearing Clear CMOS Data Retain CMOS Data

JP5Setting Shortpin2-3for

atleast5secondsto

cleartheCMOS

Shortpin1-2 to

retainnewsettings

Note: You must unplug the ATX power cable from the ATX power connector when

performing the CMOS Clear operation.

SY-7VCA Quick Start Guide

Hardware

Installation

Debug LEDs

TheDebugLEDsgiveanindicationofthestatusofthesystemduringboot-up.Ifthesystem

doesnotboot-upproperly,usethetablebelowtofindoutatwhatpointinboot-upsequence

theproblemarises.AxmeanstheLEDisoff, aLmeanstheLEDislit.

Code Explanation

X X X

D8 D3 D2 D1

Initialization of the chipset. The MCH and ICH registers will be set to the most

conservative values by the BIOS to make sure the system boots up properly.

X X LX

D8 D3 D2 D1

The BIOS is now decompressing the BIOS code into shadow RAM. Most of

the BIOS code is stored in the BIOS Flash ROM IC in compressed form to

save space. At boot-up this code is decompressed and stored to RAM for faster

execution.

X X L L

D8 D3 D2 D1

The checksum for the decompressed code is calculated and checked. The

checksum is calculated by adding all data bytes together and storing the result

in the BIOS ROM. If the calculated checksum is different from the checksum

stored in the ROM, the code stored in the FLASH ROM is corrupted.

XLX X

D8 D3 D2 D1

The chipset (MCH and ICH) registers are set to the values selected by the user.

XLXL

D8 D3 D2 D1

Now the BIOS will set the CPU Vcore voltage and the FSB bus frequency to

the user selected value. If the system stops at this point, the settings selected by

the user are inappropriate. Please select more conservative settings.

XL L X

D8 D3 D2 D1

The Hardware Monitor Functionality is initialized. The settings the user

selected in the BIOS for the Hardware Monitor are written into the Hardware

Monitor registers.

XLLL

D8 D3 D2 D1 If the VGA card does not work or is not inserted at all, the system will display

this code for a short period of time.

LXXX

D8 D3 D2 D1

At this point the BIOS is initializing the CPU. The L2 cache latency values are

set, and more important, the CPU micro-code is written into the CPU.

LX X L

D8 D3 D2 D1

Now the system is testing the RAM inserted on the board. The screen will

show the BIOS testing the RAM by a running counter. After finishing the test,

the screen will show the amount of RAM in your system.

LXLX

D8 D3 D2 D1 The super I/O registers are set to the default values. This includes the serial,

parallel and IR etc settings.

LXL L

D8 D3 D2 D1

At this point the IDE busses (primary and secondary) are scanned for devices.

This includes HD drives and ATAPI CD-ROM drives that are connected to the

IDE bus. After scanning the detected devices are displayed on screen.

L L X X

D8 D3 D2 D1 The serial and parallel port registers are set to the values selected by the user.

L L XL

D8 D3 D2 D1

Now the BIOS will scan the peripheral busses for add-on cards. This includes

the PCI and AGP busses. If any add-on cards are detected, the resources it

requires are assigned by the BIOS in accordance with user settings.

L L L X

D8 D3 D2 D1

The ESCD and DMI (Desktop Management Interface) values are checked. If

there are changes, the BIOS will flash the new values into the BIOS Flash

ROM IC.

L L L L

D8 D3 D2 D1

At this point the BIOS passes control to the Operating System (OS). All LEDs

will be on and will stay on to indicate a successful boot.

Altri manuali per SY-7VCA

Indice

Altri manuali SOYO Scheda madre

SOYO

SOYO Super 7 SY-5EMA Manuale utente

SOYO

SOYO SY-P4I845GEISA Manuale utente

SOYO

SOYO DRAGON 2 Motherboard 2 Manuale utente

SOYO

SOYO 5ehm Manuale utente

SOYO

SOYO SY-7IZM Manuale utente

SOYO

SOYO SY-D6IBA Manuale per l'uso e la cura

SOYO

SOYO SY-6BE Manuale utente

SOYO

SOYO SY-7IWM Manuale utente

SOYO

SOYO 82430 TX P54C Manuale per l'uso e la cura

SOYO

SOYO SY-6VZA Manuale utente

SOYO

SOYO SY-P4VDA Manuale utente

SOYO

SOYO DRAGON Lite SY-KT333 Manuale utente

SOYO

SOYO Super 7 V1.0 Manuale utente

SOYO

SOYO SY-7IWM/L V1.0 Manuale utente

SOYO

SOYO SY-7IWB Manuale utente

SOYO

SOYO SY-K7V DRAGON Plus Manuale utente

SOYO

SOYO SY-7IWB V1.0 Manuale utente

SOYO

SOYO SY-P4I875P DRAGON 2 V1.0 Manuale utente

SOYO

SOYO SY-7IWA-F Manuale utente

SOYO

SOYO SY-5EMA Pro Super 7 Manuale per l'uso e la cura

SOYO

SOYO SY-K7V DRAGON Plus Manuale utente

SOYO

SOYO SY-6IEB Manuale per l'uso e la cura

SOYO

SOYO SY-6BE+ Manuale utente

SOYO

SOYO SY-K7VTA-B Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
