Sylvac S25 Manuale utente
Quickstart
SYLVAC-SCAN
S25/S25T
English
Original version drafted in French
Optical measuring machines
2
QUICKSTART
SUMMARY
1. Unpacking and installation of the machine 3
1.1 Necessary material for the installation 3
1.2 Unpacking the machine 3
1.3. Depalletising methods 4
1.4. Electrical connections 7
2. Safety advice 8
3. Overview and configuration 9
4. Quickstart of the Sylvac-Reflex SCAN+ Software 10
4.1 Software 10
4.2. Touch panel 10
5. Maintenance and servicing 12
6. Packing up the machine (moving or sending the machine) 14
6.1 Secure the moving parts 14
6.2. Affix the safety components 14
6.3. Packing the machine 14
7. Technical data 15
7.1 Machine S25/S25T 15
7.2. Drawings of the machines S25T (in mm) 16
7.3. Attaching the machine on the workbench 17
7.4. Pictures of the machines S25T 18
8. Certificates of conformity and calibration 19
8.1 Certificate of conformity 19
8.2. Certificate of calibration 19
3
QUICKSTART
1. UNPACKING AND INSTALLATION OF THE MACHINE

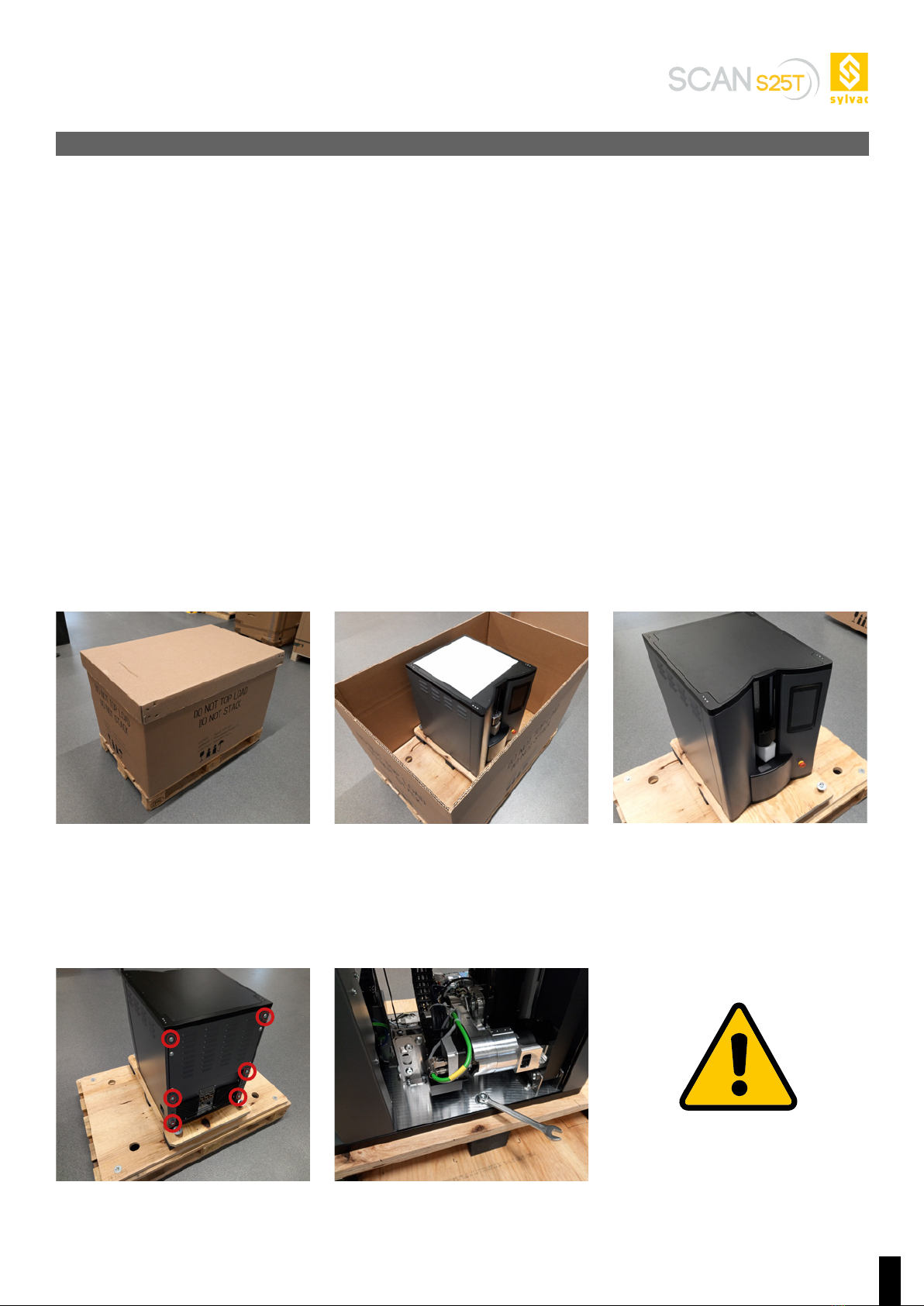

1.2.Unpacking the machine
To unpack the machine, follow the steps below :
Keep all the packing parts
for an eventual sending !
The procedures of this quickstart are valid for the machines Sylvac SCAN S25(T).
1) Remove the box.
1.1. Necessary material for the installation
- Allen key 3mm
- Allen key 4mm
- Combination wrench 13mm
2) Result
3) Open the 2 lateral sides of the ma-
chine to gain access to the ma-
chine lock on the transport.
4) Uncoupling the machine / palle-
ting by unscrewing the 2 M8 locking
nuts linking the machine to the pallet
(wrench 13mm). Machine ready to be
installed.
4
QUICKSTART

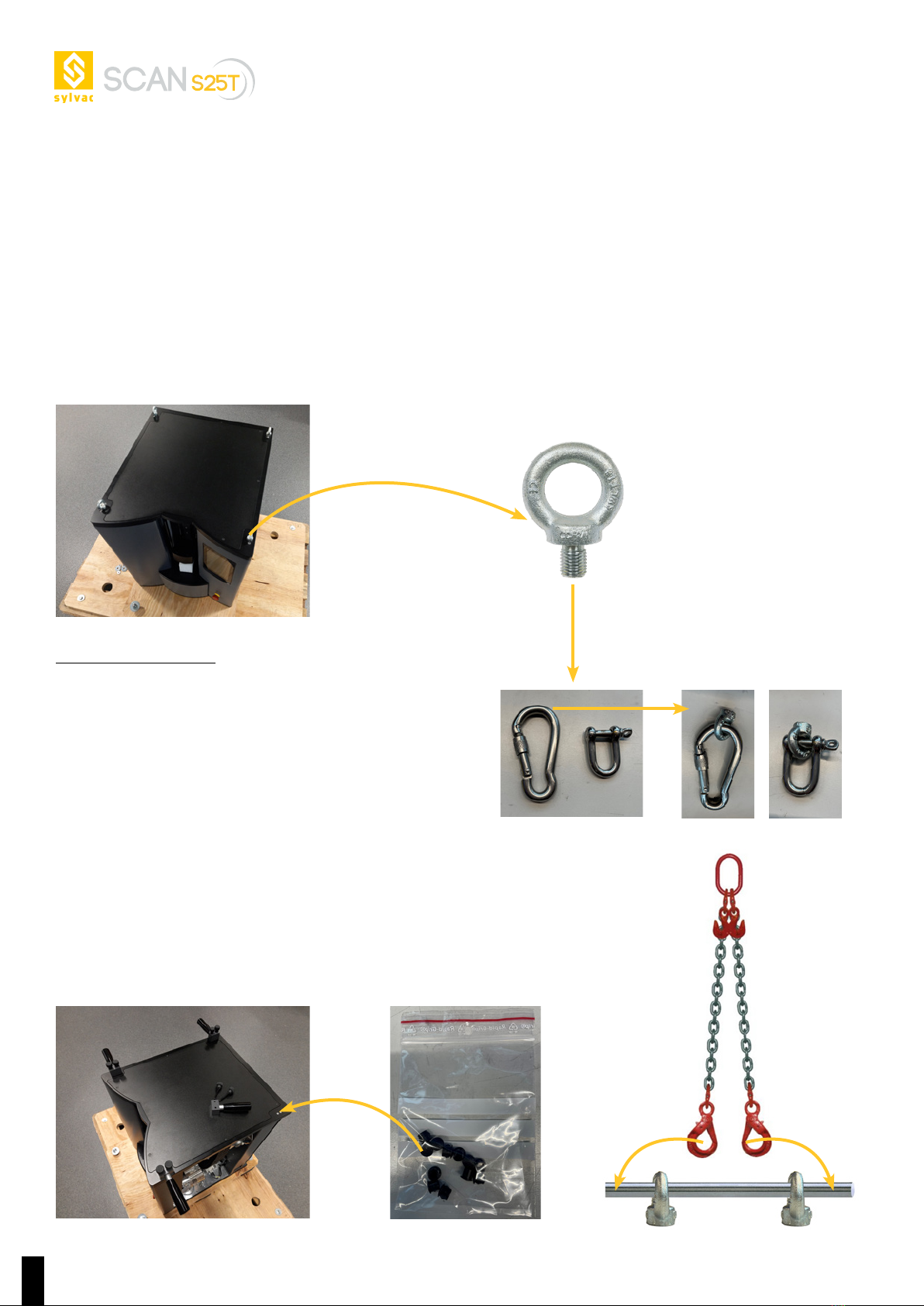

1.3. Depalletising methods
1) Hoist or lift using the 4 M6 lifting rings supplied (straps or hooks not supplied and under the responsibility of the
installer). See chapter 2 for safety regulations.
2) Use of the 4 handles supplied (to be fixed to the ceiling of the machine with the screws supplied).
1.3.1. Depalletising with a hoist or an elevator
The machine is lifted by a strap. (not provided / machine’s
weight = 73kg)
1.3.1.1 Commissioning
The SYLVAC-SCAN S25(T) can be lifted with the dedicated
loops and a strap device.
Ensure that general and local accident prevention regula-
tions are complied with.
Sylvac declines all responsibility in case of accident or ma-
chine damage due to a wrong utilisation of lifting device and
accessories.
1.3.2. Depalletising by handles (principle requiring 2 people) :
This procedure is also valid as a setting method. A bridge crane or an
elevator is not mandatory for this method or any other means of lifting.
Example of loops to lift
the machine :
14mm loop
Example of lifting device with an iron bar
/!\ Watch out for possible slippage
Caps to put on the
holes once who have
removed the handles.
5
QUICKSTART
1.3.3. Procedure for levelling the machine
There are no specific requirements for levelling the S25T machine independently. The machine sits on 3 padded feet
on the underside of the machine. When installing on to a suitable bench, its is recommended to check the level of the
stand and adjust as required for a correct installation.
1.3.4. Removing the security parts (locking for transport)
1.3.4.1. Slide unlocking
Remark : Needs to be done after the machine is settled and ready to be
used.
With the right side panel open, spot the locking part (red parts) :
Remove the locking part
before starting the part
up or risk causing serious
damage!
1) Open the panel
2) Unlock the slide locking part
Image of slide locking part
Remove red locking part by unscrewing the 4 screws using 4mm allen key.
View 1 View 2 View 3
6
QUICKSTART
1.3.4.2. Tilt unlocking
1. Launch ReflexScan+ software and head to the Diagnostics of the controller.
2. Check if the motor is free and not controlled by the drive: status bar is red. (blue square on the image). Do not mani-
pulate the pins if the status bar is green, click on the «servo» button to make it red (motor is not controlled by the drive.)
3. Check the Tilt value, the value should be between + 0.05° (red square on the image)
4. Only then, you can proceed to take out the pins.
Otherwise, please set the tilt to zero before removing the locking part.
Remove red locking part and the two
locking pins.
Image of red locking part
7
QUICKSTART
I
A
B
G
C
D
E
F
H
J
K
L
A
H
D
The tailstock is settled on a foam to avoid eventual shocks during
transport. As it is motorized, use the software to unlock it and move it.
1.4. Electrical connections
The machine has to be unplugged to proceed to electrical connections.
The cabling below indicates a typical environment and can vary depending on the computer used. The physical position of
every connection depends on the characteristics of the chosen computer.
Check the voltage of the computer and the monitor before plugging them into the mains!
Do not attempt to alter the mains supply voltage of the computer/controller. Contact your SYLVAC agent if the voltage
indicated does not match your mains supply.
A. Main power supply
B. Keyboard
C. Mouse
D. Automation Ethernet Plug (OPC/UA or Profinet)
E. Touch screen (if supplied)
F. Dongle
G. VGA Screen
H. CTRL, CAMERA and Display Ethernet Plug
I. I/O connector
J. Security connector
K. Pneumatic input
L. Footpedal input
‘Tilt Align’ Part : installed in the
headstock to control optical align-
ments during transport. Image of the tilt alignment part
The tilt alignment part
should be kept with the
machine to control Tilt
misalignment during the
transport. This part is not
used once the machine
installed.
8
QUICKSTART
2. SAFETY ADVICE
Sylvac machines have been developed with state of the art technology. However, it is important to understand and comply
with a few safety rules.
Read the manual carefully.
Only use the machine in the manner described.
Unqualified or inexperienced people are not authorised to use the machine.
Do not operate the machine without the lateral covers.
Sylvac SA accepts no liability for any unauthorised modifications.
Emergency stop button: Do not block access to the emergency stop button.
Sylvac SA accepts no liability if the user does not comply with the instructions written on the
machine and contained in the user manual.
9
QUICKSTART
F
B
C
G
E
D
A
3. OVERVIEW AND CONFIGURATION
A - Motorised tailstock: supports the upper part of the measured part can be moved automatically along the calliper according to
the size of the piece through the jog on the touchpad.
B - Part to be measured: for the user to affix the piece to be measured between the stocks.
C - Headstock: supports the bottom part of the measured part.
D - ON/OFF switch: machine main start/stop switch (low voltage)
E - Emergency stop button: Press to stop the machine in the event of a dangerous situation. Pull it out once the danger has been
removed.
F - Reflex click button (on touchpad)
G - Touchpad with Reflex Scan+App
10
QUICKSTART

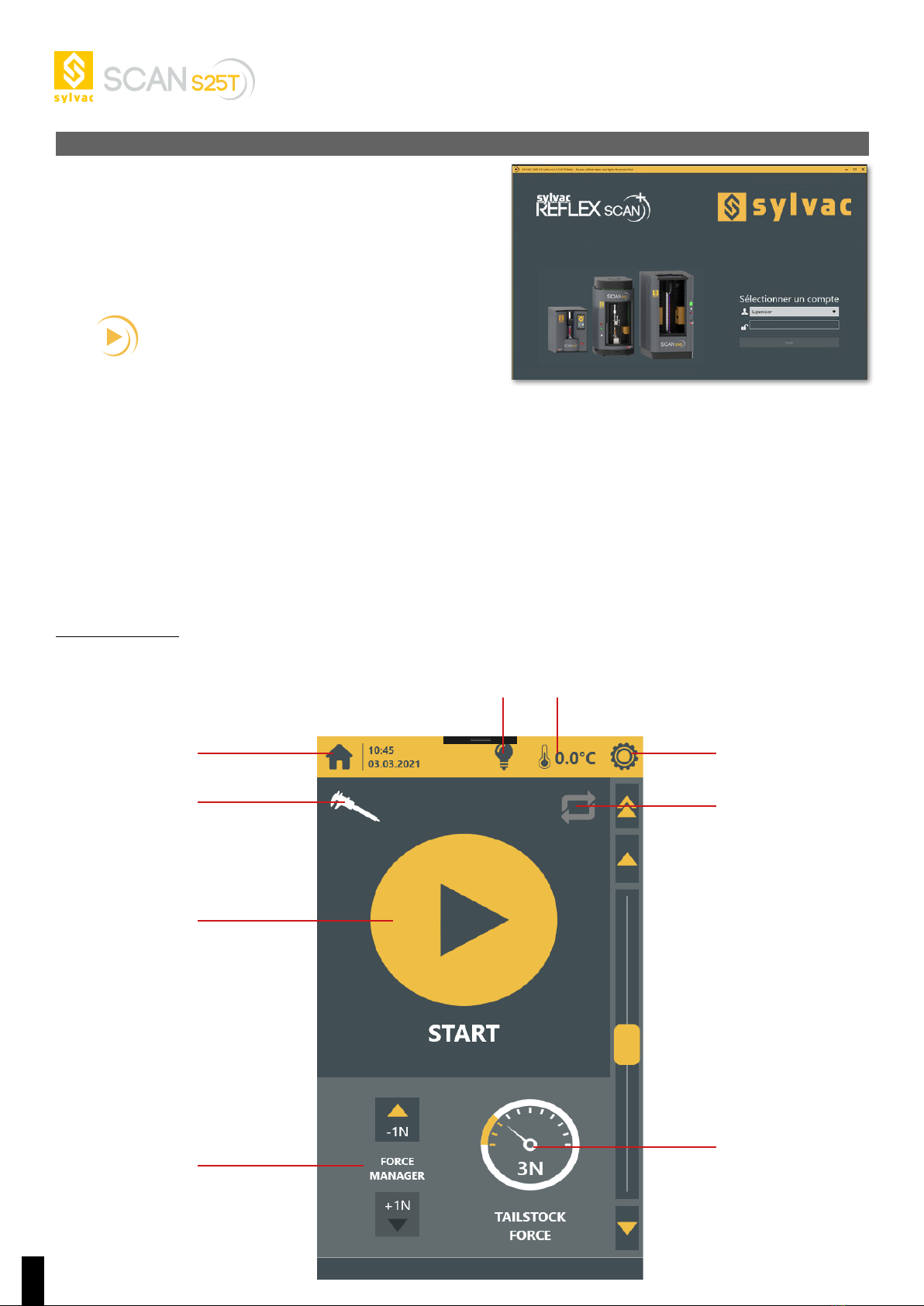

4. QUICKSTART OF THE SYLVAC-REFLEX SCAN+SOFTWARE
1 - Turn on the machine using the ON/OFF button
2 - Start up the computer
3 - Launch the Sylvac-Reflex Scan+ software by clicking on the
icon
4 - The below window will be displayed on your screen. Log in as a supervisor using the password “123”.
5 - Please refer to Reflex SCAN+’s manual for all features and details.
4.1. Software
4.2. Touch panel
Home screen
Reflex-Click mode;
part recognition /
auto-measure
Start/Stop*
Replay mode
Tailstock clamping
force indicator
Working temperatureMachine light on/off
Settings
4.2.1 Main screen
Increment
force
