TRENDnet TEG-PCITXR Manuale utente

TEG-PCITXR

Quick Installation Guide

Table of Contents

Version 08.08.2007

English ..................................................................................................... 1

1. Before You Start

2. How to Install .....................................................................................

................................................................................

Troubleshooting ........................................................................................ 4

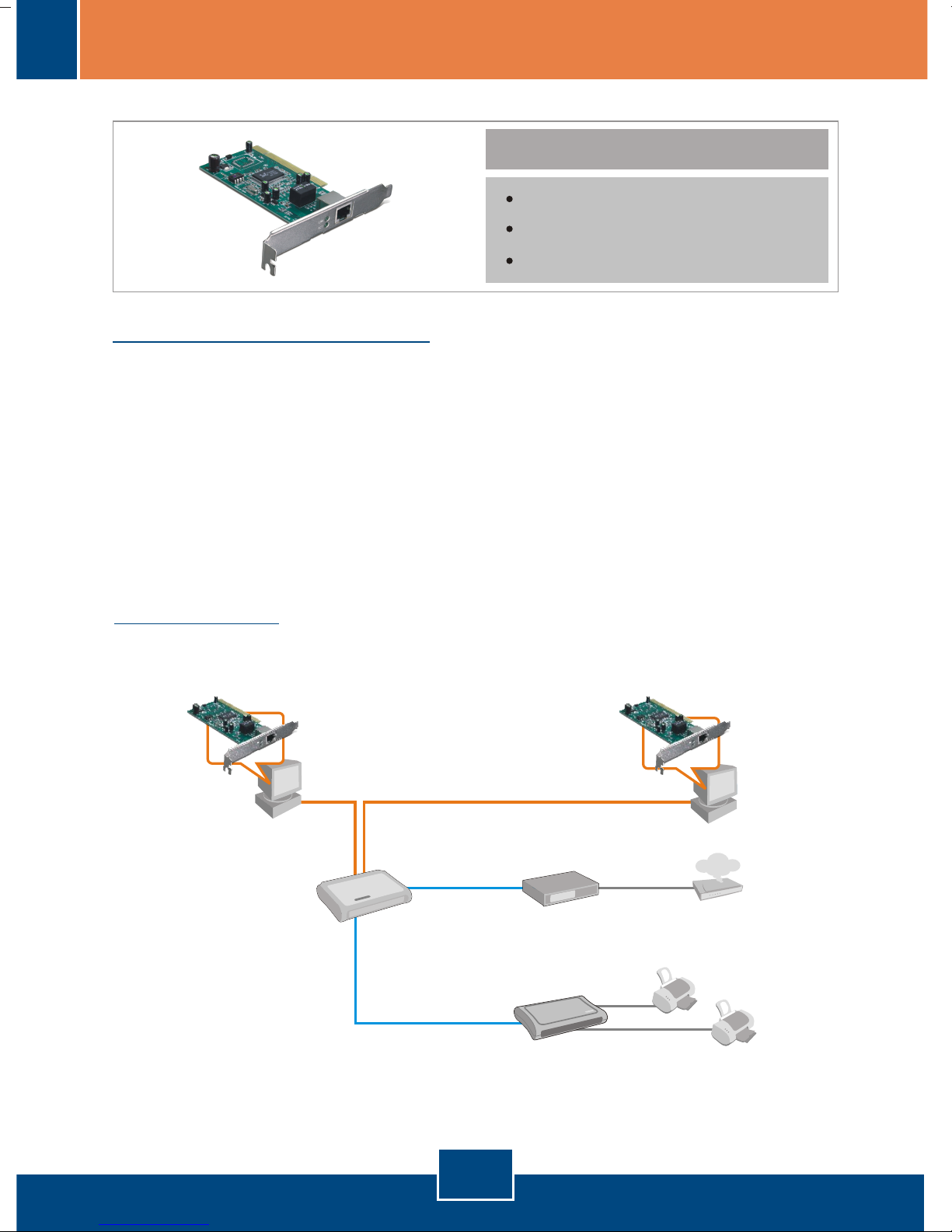

System Requirements

Application

TEG-PCITXR

Quick Installation Guide

Driver CD-ROM

Package Contents

1. Before You Start

English

?CD-ROM Drive

?CPU: 300Mhz or above/ 800Mhz or above (Windows Vista)

?Memory: 256MB RAM or above/ 512MB RAM or above (Windows Vista)

?Windows Vista/2003 Server/XP/2000/ME/98

?A RJ-45 Ethernet cable

32-bit PCI 2.1 slot

Cable/DSL

Modem

Cable/DSL 4-Port

Firewall Router

(TW100-BRF114)

Workstations with 10/100/1000Mbps

Gigabit PCI Adapter

(TEG-PCITXR)

10/100Mbps

Multi-Port Print Server

(TE100-P21)

Printers

Internet

5-Port 10/100/1000Mbps

Gigabit Switch

(TEG-S5)

2. How to Install

English

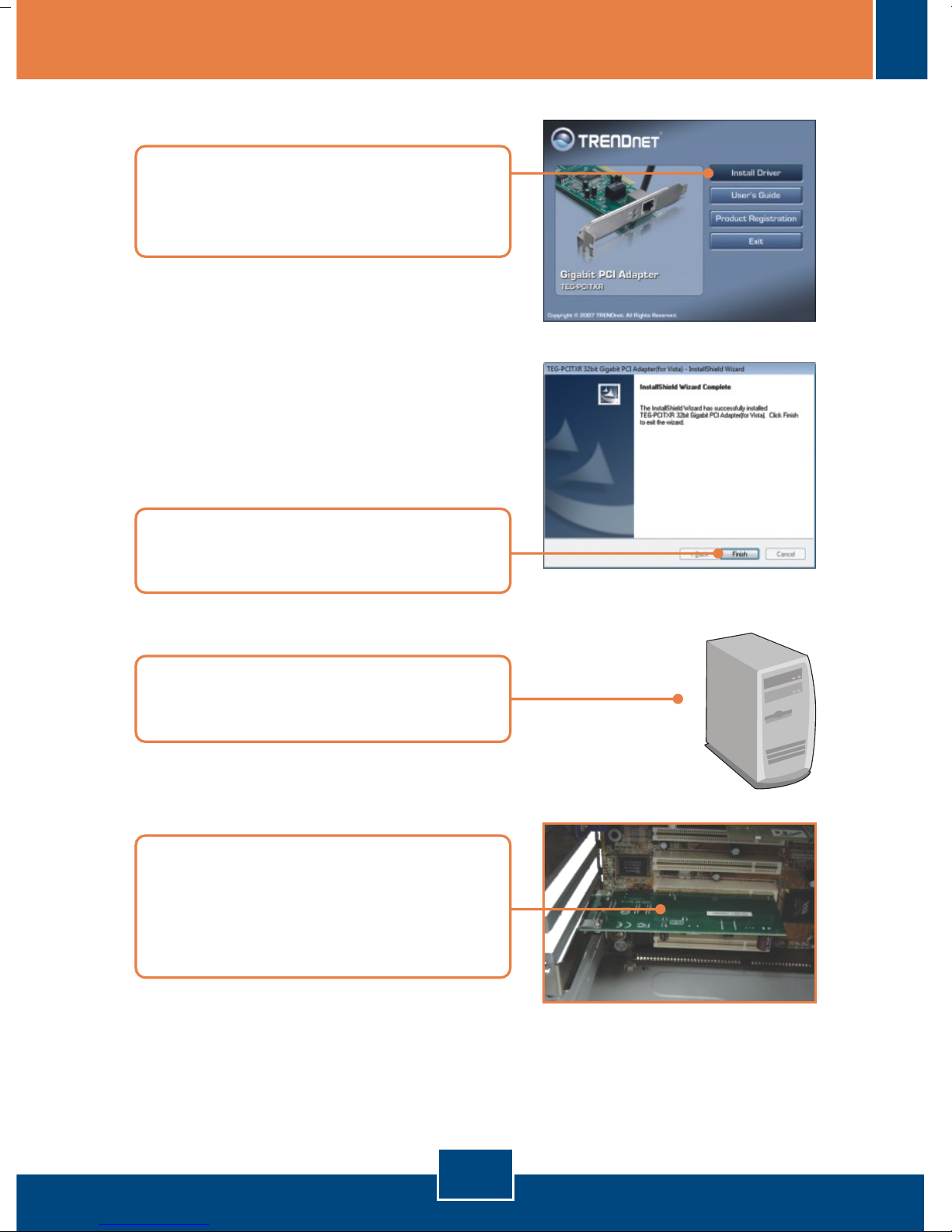

1. Insert the Driver CD-ROM into

your computer's CD-ROM Drive,

click Install Driver

2. Follow the InstallShield Wizard

instructions and then click Finish.

3. Shutdown your computer and then

open your computer's case

4. Insert the PCI Card firmly into an

available PCI slot, and then turn

ON the computer and wait until the

Windows desktop appears.

Your installation is now complete.

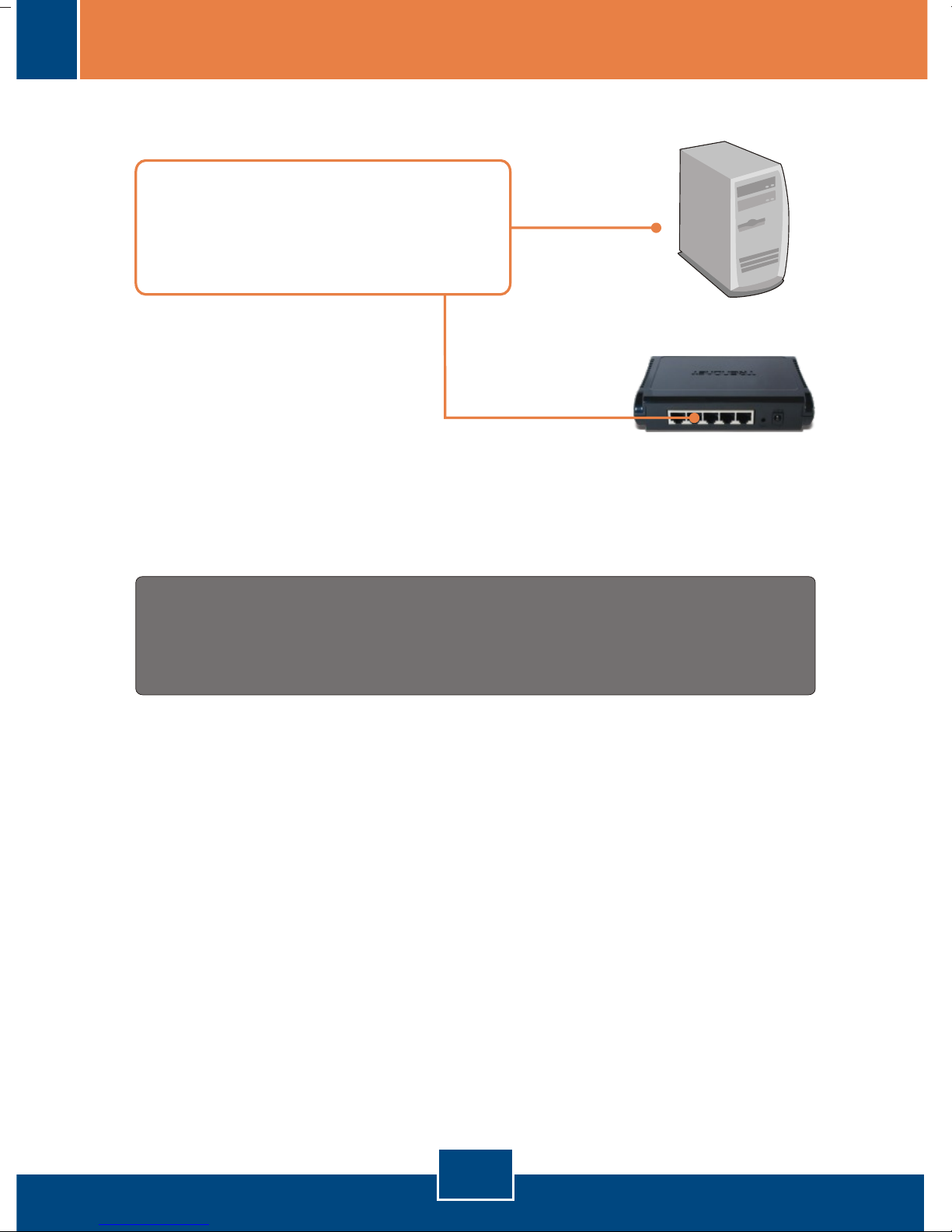

5. Connect a RJ-45 network cable

from the computer to an available

Ethernet port on your router or

switch.

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

English

Troubleshooting

Q1:

A1:

Q2:

A2:

Q3:

A3:

Q4:

A4:

Windows is unable to recognize my hardware. What should I do?

First, verify that your computer meets the system requirements as specified in

Section 1. Second, go to Start -> Control Panel -> System -> Hardware >

Device Manager. In the list of device types, double-click on Network Adapters.

If you see the device with a yellow question mark or exclamation point next to it,

double-click on it, click on Drivers and click Update Drivers. Follow the

Hardware Update Wizard instructions as illustrated in Section 2. Third, if the

device manager fails to recognize the presence of a new network adapter, verify

that the network adapter is firmly seated in the PCI Slot.

Windows recognizes my new hardware, but I'm unable to connect to my

network. What should I do?

First, verify that the RJ-45 Ethernet Cable is securely connected from your

switch or router to your network adapter. Second, verify that the LEDs on your

network card are lit. Third, verify that the TCP/IP settings are set to Obtain an IP

address automatically.

How do I install the drivers on Windows 98 or ME?

Please refer to the User's Guide included on the Driver CD-ROM.

Why am I only getting a network connection speed of 100Mbps instead of

1000Mbps?

First, check the Ethernet Cable. Make sure you are using CAT-5e or CAT-6

Ethernet Cables. Some CAT-5 cables are not rated to run in Gigabit. Second,

check the switch to make sure it is a 1000Mbps switch.

If you still encounter problems or have any questions regarding the TEG-PCITXR,

please contact Trendnet's Technical Support Department.

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received. Including interference that may

cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO

OPERATE THE EQUIPMENT.

Waste electrical and electronic products must not

be disposed of with household waste. Please

recycle where facilities exist. Check with you Local

Authority or Retailer for recycling advice.

ADVERTENCIA

En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de

alimentacón necesario para su funcionamiento. El uso de un adaptador distinto al

mencionado puede producir daños fisicos y/o daños al equipo conectado. El adaptador

de alimentación debe operar con voltaje y frecuencia de la energia electrica domiciliaria

existente en el pais o zona de instalación.

TRENDnet Technical Support

Product Warranty Registration

Please take a moment to register your product online.

Go to TRENDnet’s website at http://www.trendnet.com/register

US Canada

24/7 Tech Support

Toll Free Telephone: 1(866) 845-3673

Europe (Germany France Italy Spain Switzerland UK)

English/Espanol - 24/7

Francais/Deutsch - 11am-8pm, Monday - Friday MET

English/Espanol - 24/7

Francais/Deutsch - 11am-8pm, Monday - Friday MET

Worldwide

Telephone: +(31) (0) 20 504 05 35

Toll Free Telephone: +00800 60 76 76 67

. . . . .

20675 Manhattan Place

Torrance, CA 90501

USA
