TYAN M4881 Manuale utente

http://www.TYAN.com

QUAD CPU Card /// M4881

Revision 1.00

manual may be reproduced or translated without prior written consent from TYAN

Computer Corp.

All registered and unregistered trademarks and company names contained in this manual

are property of their respective owners including, but not limited to the following.

TYAN, QUAD CPU Cardsare trademarks of TYAN Computer Corporation.

AMD, Opteron, and combinations thereof are trademarks of AMD Corporation.

Nvidia and nForce are trademarks of Nvidia Corporation

Phoenix BIOS is a trademark of Phoenix Technologies.

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE,is a trademark of SuSE AG.

Linux is a trademark of Linus Torvalds

IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.

Winbond is a trademark of Winbond Electronics Corporation.

Broadcom®is a trademark of Broadcom Corporation and/or its subsidiaries

ATI and Rage XL are trademarks of ATI Corporation

Information contained in this document is furnished by TYAN Computer Corporation and

has been reviewed for accuracy and reliability prior to printing. TYAN assumes no liability

whatsoever, and disclaims any express or implied warranty, relating to sale and/or use of

TYAN products including liability or warranties relating to fitness for a particular purpose

or merchantability. TYAN retains the right to make changes to product descriptions and/or

specifications at any time, without notice. In no event will TYAN be held liable for any

direct or indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this document.

http://www.TYAN.com

Table of Contents

Before you begin… Page 3

Chapter 1: Introduction

Congratulations Page 4

Hardware Specifications Page 4

Chapter 2: Board Installation

2.00 Board Image Page 6

2.01 Block Diagram Page 8

2.02 Board Parts, Jumpers and Connectors Page 9

2.03 power switch jumper (J1) Page 11

2.04 CPU fan connector(J2,J3,J4,J5 ) Page 11

2.05 PWR CON ( PWR3 ) Page 12

2.06 PWR CON(PWR 4) Page 12

2.07 Chassis 3PIN FAN Connectors（J6,J7）Page 13

2.08 OEM Reserved Connectors and Jumpers Page 13

2.09 Installing the Processors Page 13

2.10 Heatsink Retention Frame Installation Page 14

2.11 Thermal Interface Material Page 15

2.12 Heatsink Installation Procedures Page 16

2.13 Finishing Installing the Heatsink Page 17

2.14 Tips on Installing Motherboard in Chassis Page 18

2.15 Installing the Memory Page 19

2.16 HT Slot Brief Introduction Page 22

2.17 Installing the Power Supply Page 22

2.18 Finishing Up Page 24

Chapter 3: Install M4881 to S4881

3.01 Installing HT4881 cards Page 25

3.02 Installing heat sinks of S4881 Page 25

3.03 Installing M4881 Page 26

3.04 Installing heat sinks of M4881 Page 26

Chapter 4: Diagnostics Page 27

Technical Support Page 28

http://www.TYAN.com

Before you begin…

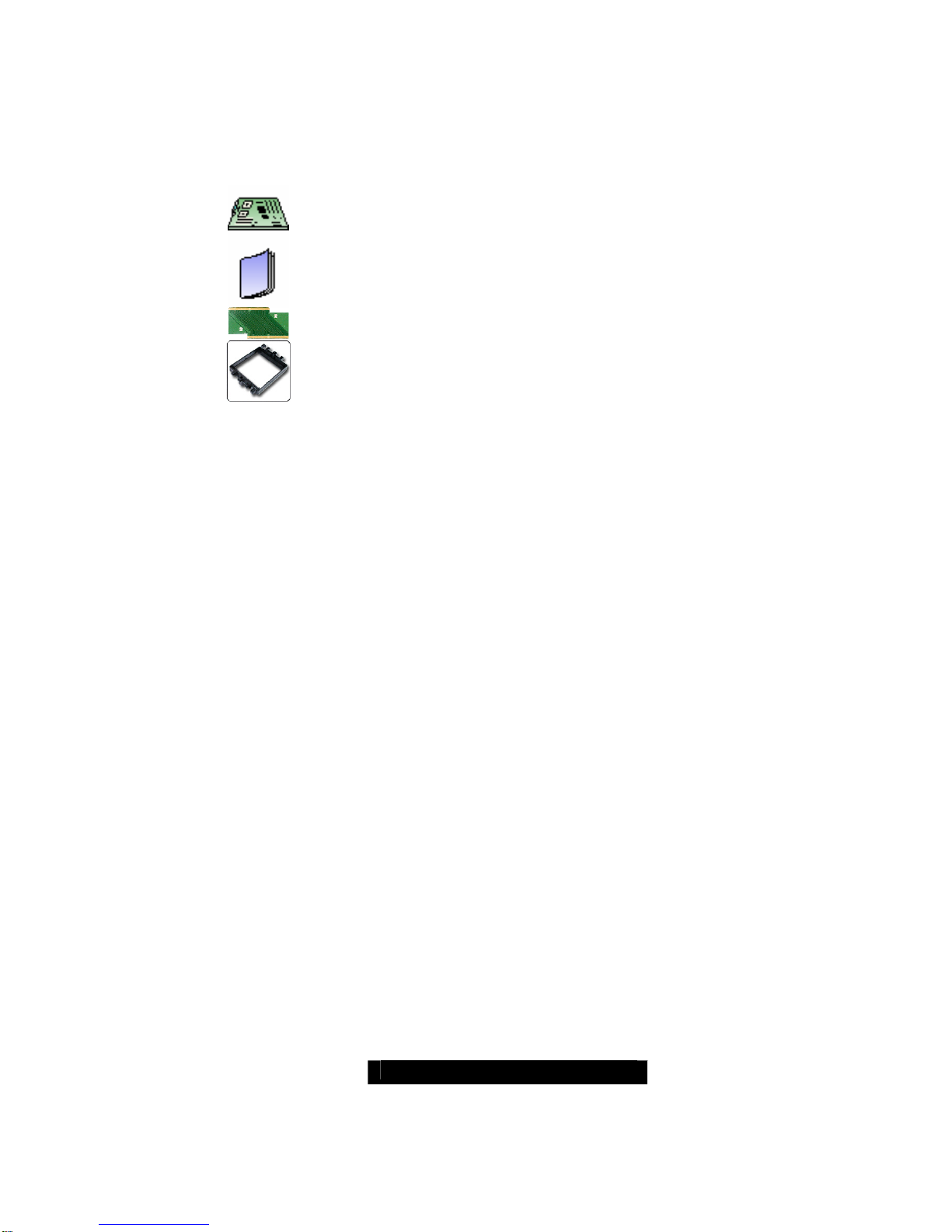

Check the box contents!

The retail motherboard package should contain the following:

1x QUAD CPU Cards motherboard

1x QUAD CPU Cards user’s manual

2 x HT 4881 card

4 x CPU Mounting Kit

If any of these items are missing, please contact your vendor/dealer for replacement

before continuing with the installation process.

http://www.TYAN.com

Chapter 1: Introduction

Congratulations

You have purchased one of the most powerful AMD OpteronTM processor solutions, the

QUAD CPU Cards M4881. It is the expansion board of Tyan Thunder K8QW S4881. You

may upgrade four-way S4881 to eight-level processing platform through use of HT4881

and M4881 add-on modules.

Remember to visit TYAN’s Website at http://www.TYAN.com. There you can find

information on all of TYAN’s products with FAQs, online manuals and BIOS upgrades.

Hardware Specifications

Processor

-Quad µPGA 940-pin ZIF sockets

-Supports four Single/Dual Core AMD

OpteronTM 800 series processors

-Four onboard 4-phase VRMs

-Integrated 128-bit DDR Memory

controller

Memory

-128-bit dual channel memory bus

-Sixteen 184-pin DDR DIMM sockets

(Four per CPU)

-Supports up to 64 GB Reg/ECC DDR

-Supports DDR266, DDR333, or

DDR400

-Supports Single/Dual and Quad Rank

memory

HT 4881 card

-Used to connect M4881 to S4881

System management

-One Analog Devices ADT7476

Hardware Monitoring IC and one

Analog Devices ADT7463 Hardware

Monitoring IC

-Temperature and voltage monitoring

-Four (4) 4-pin CPU fan header with

tachometer monitoring and smart FAN

control

-Two (2) 3-pin system fan header with

tachometer monitoring

Hyper Transport™ Connectors

-Two PCI Express x16 slots with

TYAN private signal definition

which uses the Hyper Transport

to connect two HT cards to the

S4881. (CPU Board specifically

Form Factor

-12”x13” dimension with special

architecture

-EPS12V power connectors

24pin+8pin+8pin+2X2pin(ATX

12V)+1X4pin(5V)

Regulatory

-FCC Class B (Declaration of

Conformity)

-European Community CE

*Not validated at the time of print, subject

to change.

http://www.TYAN.com

Chapter 2: Board Installation

Precaution: The QUAD CPU Card supports EPS12V power supplies (24-pin/8-pin) and

will not operate with any other types.

DO NOT USE ATX 2.x, ATX12V or ATXGES power supplies as they will damage the

board and void your warranty.

How to install our products right… the first time

The first thing you should do is read this user’s manual. It contains important information

that will make configuration and setup much easier. Here are some precautions you

should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the antistatic

bag. Unplug the power from your computer power supply and then touch a

safely grounded object to release static charge (i.e. power supply case). For the

safest conditions, TYAN recommends wearing a static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the board, or

flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors, memory

modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the antistatic bag

that the board was shipped in.

(5) Inspect the board for damage.

(6) Specially take care of the 2 HT slots on the solder side (bottom) of the

motherboard.

The following pages include details on how to install your motherboard into your chassis,

as well as installing the processor, memory and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED

http://www.TYAN.com

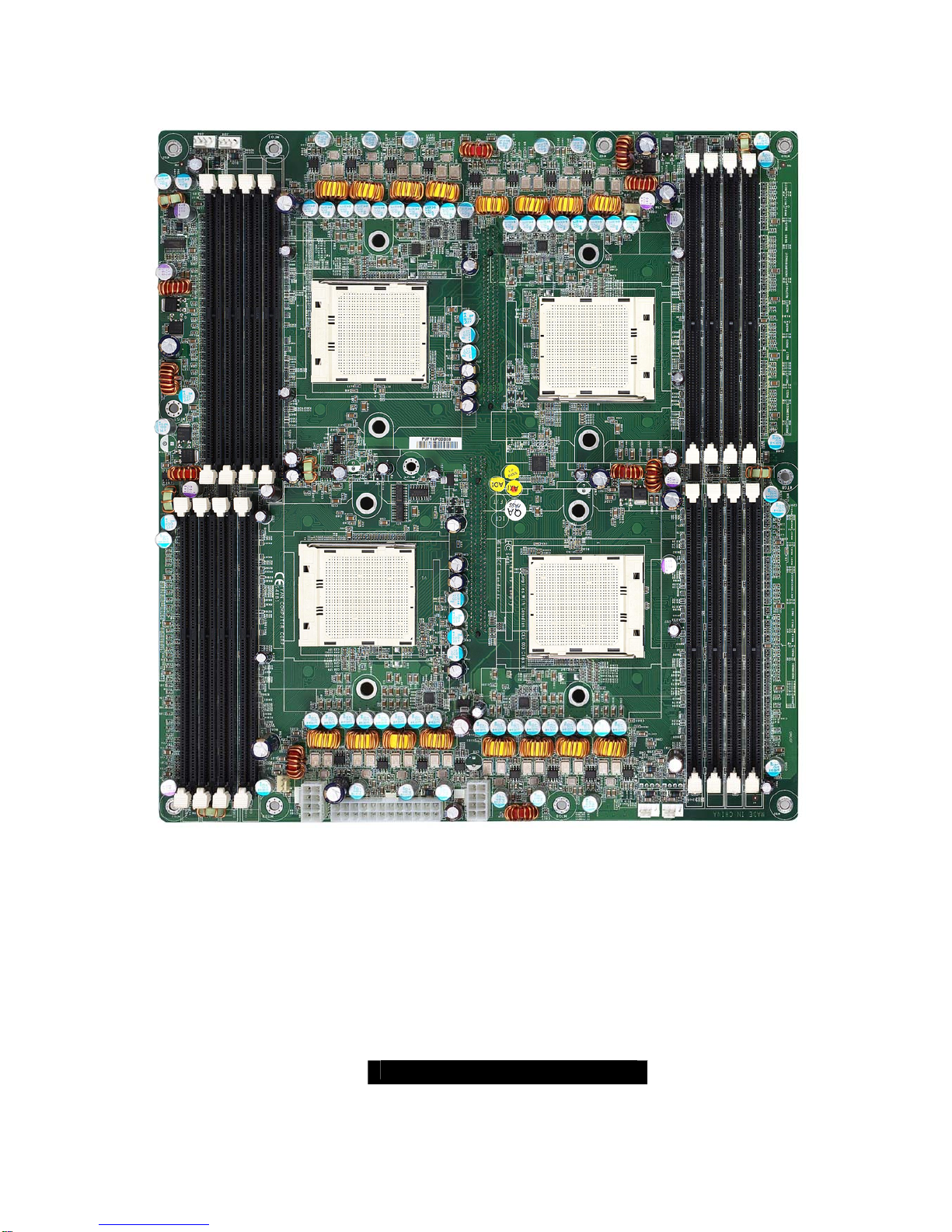

2.00 – Board Image

This picture is representative of the latest board revision available at the time of

publishing. The board you receive may or may not look exactly like the above

picture.

http://www.TYAN.com

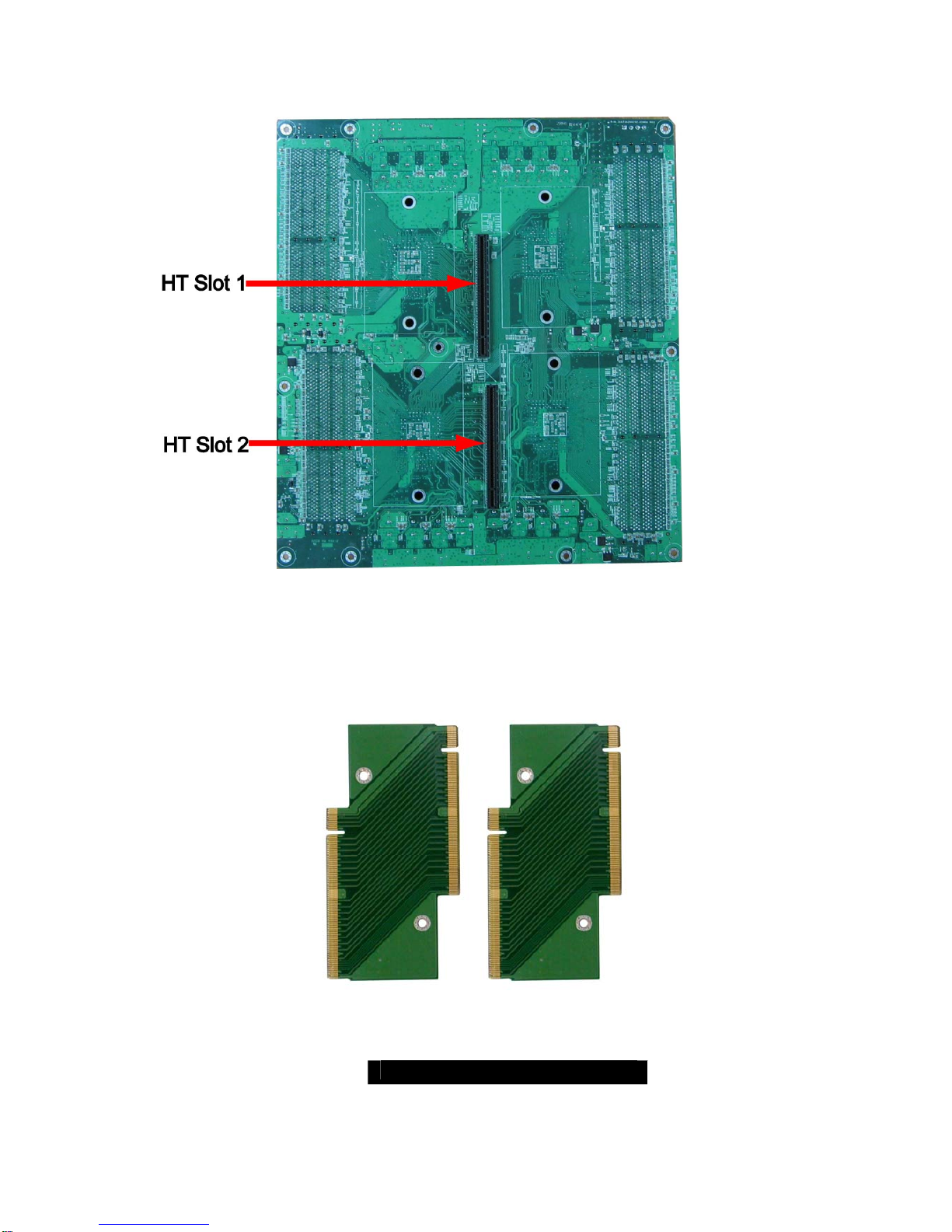

This is the solder side(bottom) of M4881 , and you can see the two HT 4881

slots clearly.

HT4881 Card image

http://www.TYAN.com

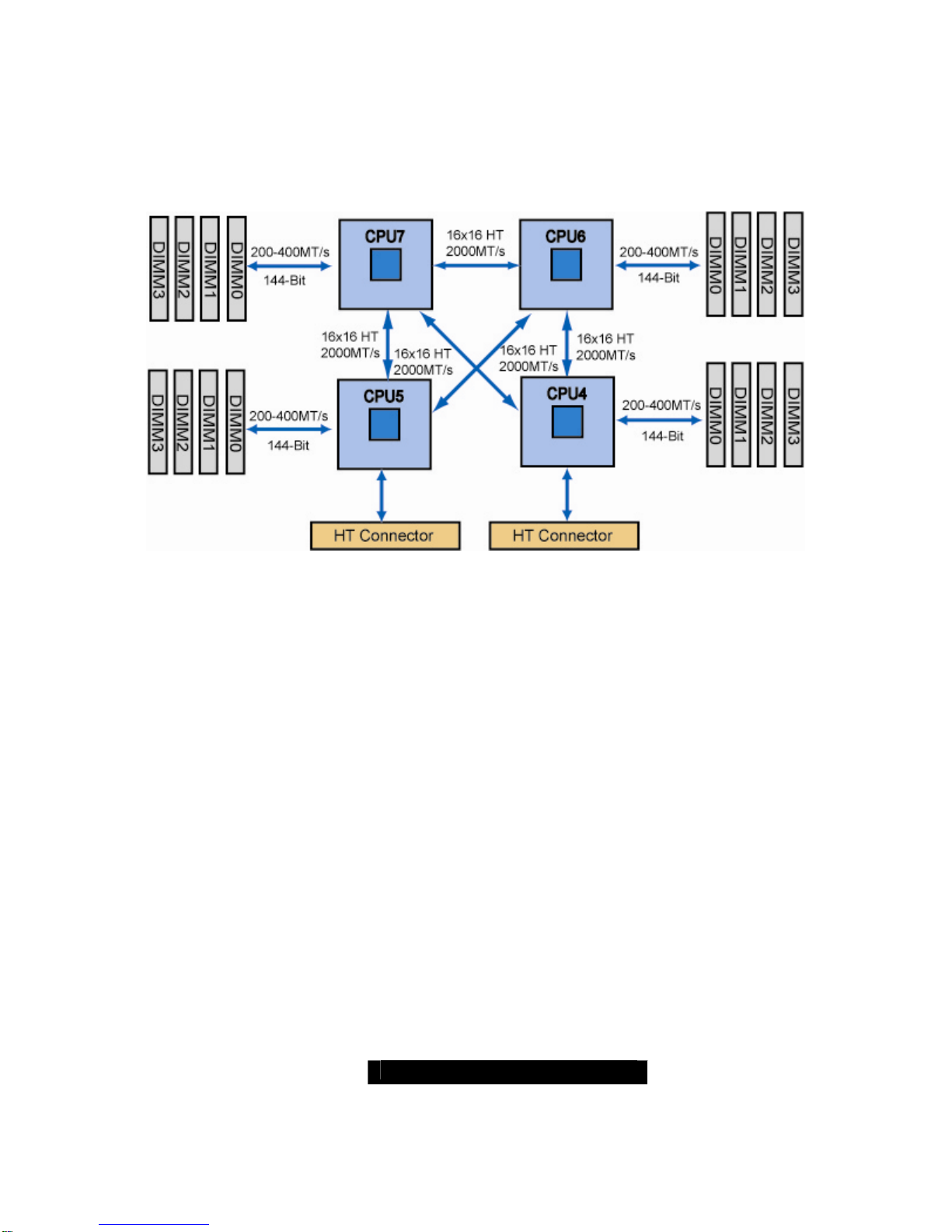

2.01 – Block Diagram

M4881 QUAD CPU Board Block Diagram

Note: The Hyper Transport speed between HT CON & CPU can reach up to 2000MT/S

http://www.TYAN.com

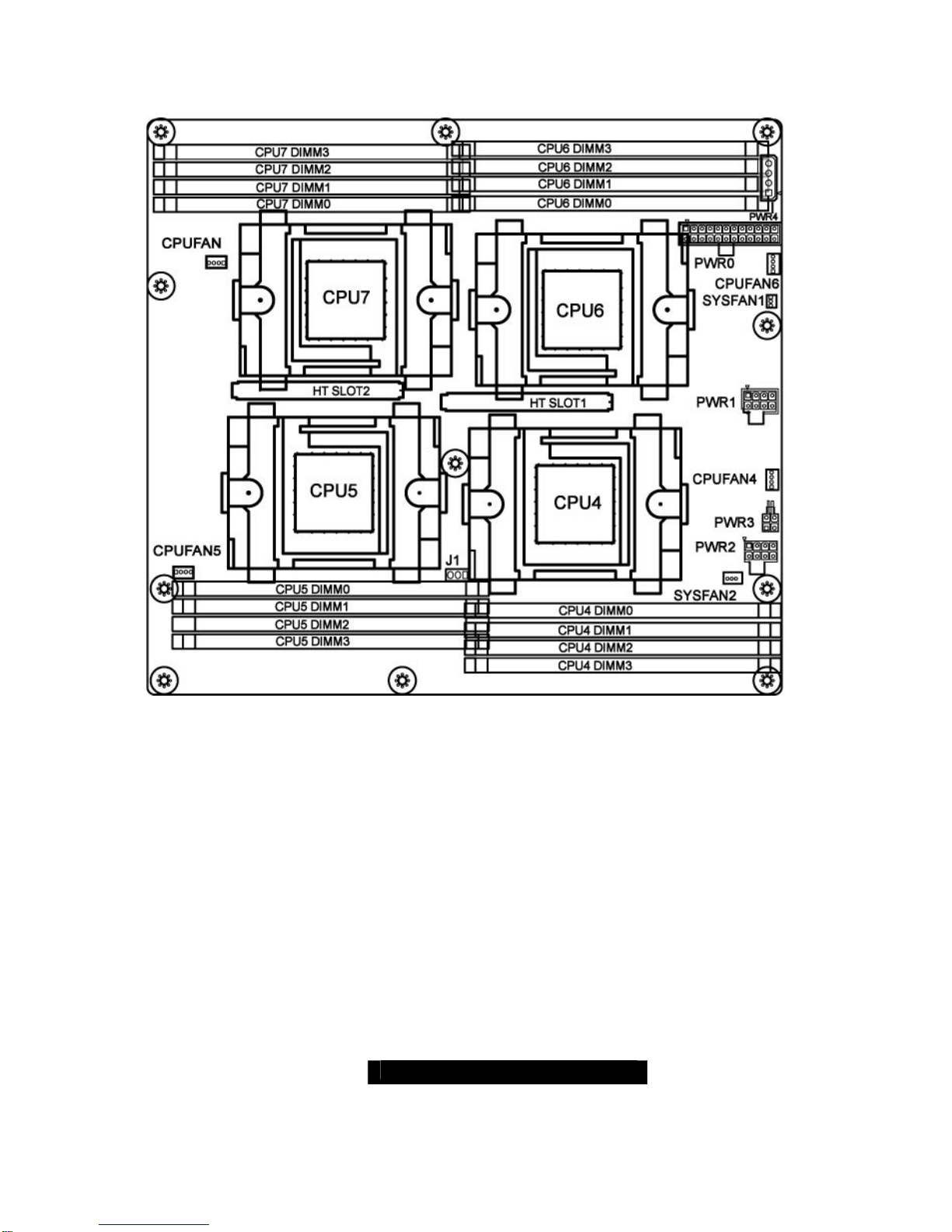

2.02 – Board Parts, Jumpers and Connectors

This diagram is representative of the latest board revision available at the time of

publishing. The board you receive may not look exactly like the above diagram.

http://www.TYAN.com

Function Settings

J1 Power Switch See Section 2.03 for pin out

configuration

J2~J5 CPU Fan Connectors See Section 2.04

PWR CON See Section 2.05, 2.06

J6,J7 System Fan Connectors See Section 2.07, 2.08

Jumper Legend

OPEN - Jumper OFF Without jumper cover

CLOSED - Jumper ON With jumper cover

To indicate the location of pin-1
