TYAN THUNDER K8S Manuale utente

http://www.TYAN.com

Thunder K8S ///

S2880

Revision 1.02

manual may be reproduced or translated without prior written consent from TYAN

Computer Corp.

All registered and unregistered trademarks and company names contained in this manual

are property of their respective owners including, but not limited to the following.

TYAN, Thunder K8S are trademarks of TYAN Computer Corporation.

AMD, Opteron, and combinations thereof are trademarks of AMD Corporation.

AMI, AMIBIOS8 are trademarks of American Megatrends Inc.

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE,is a trademark of SuSE AG.

Linux is a trademark of Linus Torvalds

IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.

Winbond is a trademark of Winbond Electronics Corporation.

Broadcom®is a trademark of Broadcom Corporation and/or its subsidiaries

ATI and Rage XL are trademarks of ATI Corporation

LSI Logic, Fusion MPTTM, and LSI are trademarks of LSI Logic Corportation

Information contained in this document is furnished by TYAN Computer Corporation and

has been reviewed for accuracy and reliability prior to printing. TYAN assumes no liability

whatsoever, and disclaims any express or implied warranty, relating to sale and/or use of

TYAN products including liability or warranties relating to fitness for a particular purpose

or merchantability. TYAN retains the right to make changes to product descriptions and/or

specifications at any time, without notice. In no event will TYAN be held liable for any

direct or indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this document.

http://www.TYAN.com

Table of Contents

Before you begin… Page 4

Chapter 1: Introduction

Congratulations Page 5

Hardware Specifications Page 5

Software Specifications Page 6

Chapter 2: Board Installation

2.00 Board Image Page 8

2.01 Block Diagram Page 9

2.02 Board Map & Jumper Summary Page 10

2.03 SM Bus Connector (J4) Page 12

2.04 SATA Enable/Disable (J5) Page 12

2.05 CPU_2 Fan Connector (J9) Page 13

2.06 FAN 5 (J10) Page 13

2.07 Keylock header (J13) Page 14

2.08 Speaker Header (J14) Page 14

2.09 USB Connector Header (J25) Page 15

2.10 Clear CMOS Jumper (J34) Page 15

2.11 FAN 2 Connector (J36) Page 16

2.12 CPU_1 Fan Connector (J37) Page 16

2.13 FAN 4 Connector (J38) Page 17

2.14 PCI-X Bridge A force PCI Mode (J39) Page 17

2.15 COM2 Header (J42) Page 18

2.16 FAN 1 Connector (J47) Page 18

2.17 PCI-X Bridge B Speed Select (J53) Page 19

2.18 Gigabit LAN_1/LAN_2 Front LED (J73/J75) Page 19

2.19 Chassis Intrusion Connector (J77) Page 20

2.20 SCSI Enable/Disable Jumper (J79) Page 20

2.21 VGA Enable/Disable Jumper (J85) Page 21

2.22 Front Panel Connector (J86) Page 21

2.23 Gigabit LAN Enable/Disable Jumper (J87) Page 22

2.24 FAN3 Connector (J88) Page 22

2.25 PCI-X BridgeA Speed Select Jumper (J92) Page 23

2.26 SCSI Zero Channel RAID PCI-X Slot Page 23

2.27 OEM Reserved Connectors and Jumpers Page 23

2.28 Installing the Processors Page 24

2.29 Heatsink Retention Frame Installation Page 24

2.30 Thermal Interface Material Page 25

2.31 Heatsink Installation Procedures Page 26

2.32 Finishing Installing the Heatsink Page 27

2.33 Installing Motherboard in Chassis Page 28

2.34 Installing Memory Page 29

2.35 Attaching Drive Cables Page 31

2.36 Installing Add-In Cards Page 33

2.37 PCI Riser Cards Page 34

2.38 Connecting External Devices Page 35

2.39 Installing the Power Supply Page 35

2.40 Finishing Up Page 35

http://www.TYAN.com

Chapter 3: BIOS

3.00 BIOS Setup Utility Page 36

3.01 BIOS Menu Bar Page 36

3.02 BIOS Legend Bar Page 36

3.03 BIOS Main Menu Page 38

3.04 BIOS Advanced Menu Page 39

3.05 BIOS PCI/PnP Menu Page 48

3.06 BIOS Boot Menu Page 50

3.07 BIOS Security Menu Page 42

3.08 BIOS Chipset Setting Menu Page 53

3.09 BIOS Power Menu Page 59

3.10 BIOS Exit Menu Page 63

Chapter 4: Diagnostics Page 64

Appendix: Glossary Page 65

http://www.TYAN.com

Before you begin…

Check the box contents!

The retail motherboard package should contain the following:

1x Thunder K8S motherboard

1x 34-Pin floppy drive cable

1x LVD SCSI cable (if optional SCSI included)

2x SATA cable

1x SATA Drive Power Adapter

1x Ultra-DMA-100/66 IDE cable

1x Cable set: 9-pin Serial and 25-pin Parallel

1x Thunder K8 user’s manual

1x Thunder K8 Quick Reference guide

1x TYAN driver CD

1x LSI SCSI driver diskette (if optional SCSI included)

1x Promise SATA driver disk

1x I/O shield with 2 LAN ports

If any of these items are missing, please contact your vendor/dealer for replacement

before continuing with the installation process.

http://www.TYAN.com

Chapter 1: Introduction

Congratulations

You are now the owner of the ideal solution for rackmount servers, large computer

clusters, or pedestal server needs. The Tyan Thunder K8S features support for Dual

AMD Opteron processor(s), dual channel Gigabit Ethernet, Serial ATA (SATA), and

dual U320 SCSI (optional).

Remember to visit TYAN’s Website at http://www.TYAN.com. There you can find

information on all of TYAN’s products with FAQs, online manuals and BIOS upgrades.

Hardware Specifications

Processor

Dual µPGA 940-pin ZIF sockets

Supports up to two AMD Opteron™

processors

Two onboard 3-phase VRMs

128-bit DDR dual-channel memory

controller integrated in CPU

Chipset

AMD-8131™ HyperTransport™PCI-X

Tunnel

AMD-8111™HyperTransport™I/O Hub

Winbond W83627HF Super I/O chip

Analog Devices ADM1027 Hardware

Monitoring IC

Memory

128-bit DDR dual-channel memory

bus

Total six 184-pin 2.5-Volt DDR DIMM

sockets supports up to 12GB (four

controlled by CPU1 and two on

CPU2)

Supports ECC type memory modules

Supports PC2700, PC2100, &

PC1600 Registered DDR

Expansion Slots

2 Independent PCI-X buses from

AMD-8131

−Two 64-bit 133/100/66/33 MHz

3.3v PCI-X slots (Bridge B)

−Two 64-bit 100/66/33 MHz 3.3v

PCI-X slots bridge A

−One legacy 32-bit 33MHz PCI slot

(5v)from AMD-8111

Total of five usable slots

Integrated Enhanced IDE

Controller

Provides two IDE dual-drive ports

for up to four EIDE devices

Supports up to ATA-133 IDE

devices

Integrated I/O

One floppy, Two serial (one header

and one connector),and one

parallel header

PS/2 kb/mouse connectors

Total four USB connections (2 I/O

panel, rear connectors and 2 USB

headers)

System Management

Total seven 3-pin fan headers with

tachometer monitoring

Five fan headers with PWM control

2-pin Chassis Intrusion header

Temperature, voltage and fan

monitoring

Integrated PCI Graphics

ATI Rage XL 8MB PCI graphics

Integrated LAN Controllers

Broadcom®BCM5704C dual-

channel Gigabit Ethernet controller

Two RJ-45 LAN connectors with

LEDs

Connected to PCI-X Bridge A

Two Front Panel LED headers

http://www.TYAN.com

Integrated Dual Channel SCSI (Mfg.

option)

LSI®53C1030 U320 SCSI controller

Dual-channel U320 SCSI

Connects to PCI-X Bridge A

Integrated ZCR support

Integrated SATA Controller (Mfg.

option)

Promise®PDC20378 SATA/SATA

RAID

Two SATA 1.0 and One Parallel ATA-

133/100 channels

Up to two SATA and two ATA-133

HDD

IDE RAID 0, 1, 0+1 (option)

48-bit LBA for drives larger than

128GB

Connected to legacy AMD-8111

Intelligent Platform Management

Interface Header

Tyan Server Management Daughter

cards (optional); supports features

listed below via IPMI header

QLogic™ Zircon Baseboard

Management Controller (BMC) based

on powerful ARM7 technology

Tailored for IPMI highest 1.5 Spec.

Supports KCS and BT styles

Flexible Windows or Linux

Management Solution

Supports RMCP and SNMP protocols

Supports ASF standard and EMP

I2C serial multi-master controllers and

UARTs

Built-in IPMB connector

Remote power on/off and reset

support (IPMI-over-LAN)

BIOS

AMIBIOS8®on 4Mbit LPC Flash

ROM

Supports ACPI 1.0b & 2.0

Supports UCR (Serial Console

Redirect)

48-bit LBA Support

Supports PXE via Ethernet

Supports device boot

Form Factor

Extended ATX footprint (13” x

12” 330.2 x 304.8 mm)

EPS12V (24pin + 8pin) power

connectors

Serial (one) and VGA (one)

connectors

Stacked USB 1.1 (two)

connectors

Stacked PS/2 keyboard and

mouse connectors

Two RJ-45 side-by-side LAN

connectors with LEDs

Regulatory

FCC Class B (Declaration of

Conformity)

European Community CE

(Declaration of Conformity)

Software Specifications

OS (Operating System) Support

Microsoft Windows NT 4 Service Pack 6A

Microsoft Windows 2000

Microsoft Windows XP

Microsoft Windows Server 2003

SuSE Server 8.0 for AMD-64

Red Hat 7.3, 8.0, and 9.0

Other distributions of Linux pending validation

TYAN reserves the right to add support or discontinue support for any OS with or without

notice.

http://www.TYAN.com

Chapter 2: Board Installation

Precaution: The Thunder K8S supports EPS12V power supplies (24-pin/8-pin) and will

not operate with any other types.

DO NOT USE ATX 2.x, ATX12V or ATXGES power supplies as they will damage the

board and void your warranty.

How to install our products right… the first time

The first thing you should do is read this user’s manual. It contains important information

that will make configuration and setup much easier. Here are some precautions you

should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the antistatic

bag. Unplug the power from your computer power supply and then touch a

safely grounded object to release static charge (i.e. power supply case). For the

safest conditions, TYAN recommends wearing a static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the board, or

flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors, memory

modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the antistatic bag

that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your chassis,

as well as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED

http://www.TYAN.com

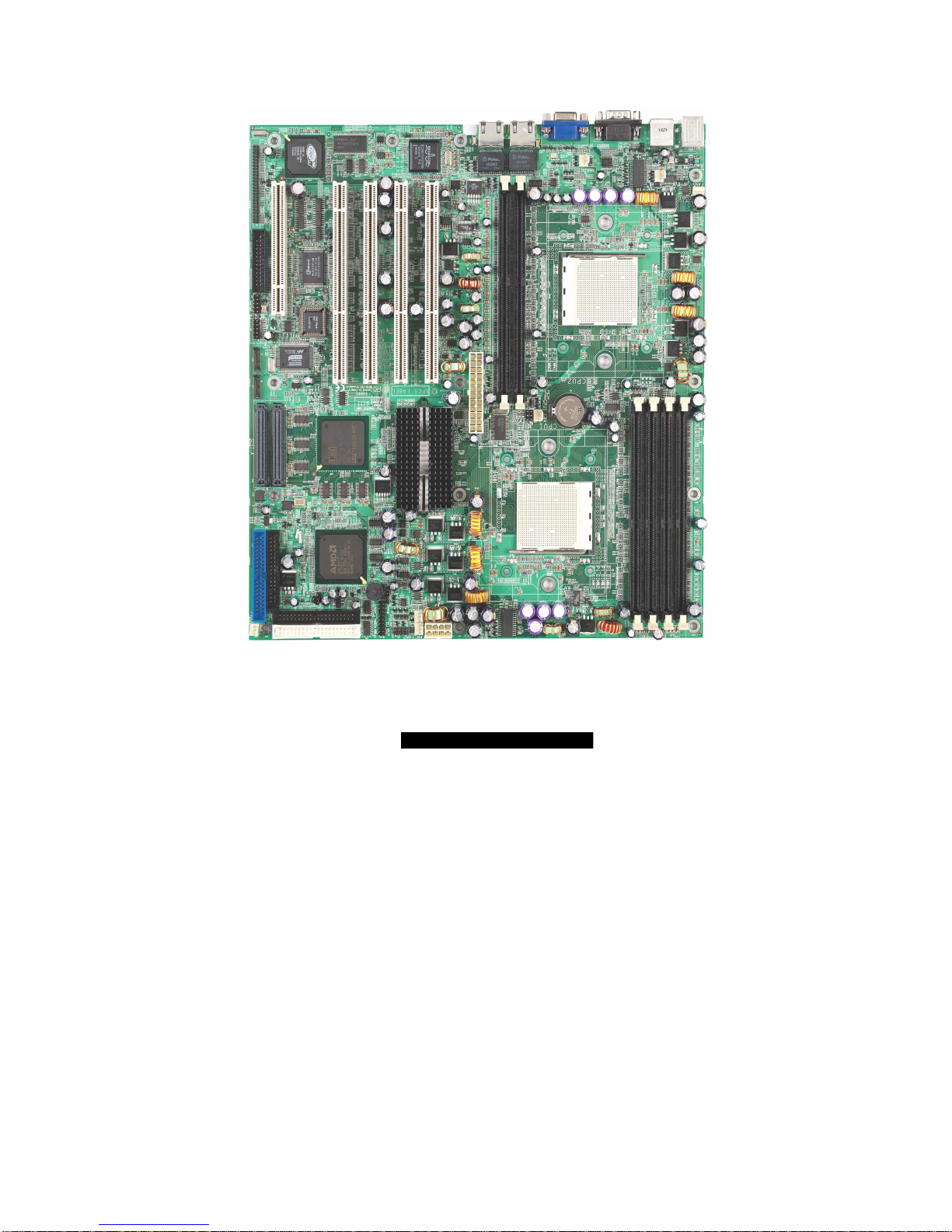

2.00 –Board Image

This picture is representative of the latest board revision available at the time of

publishing. The board you receive may or may not look exactly like the above

picture.

The following page includes details on the vital components of this motherboard.

http://www.TYAN.com

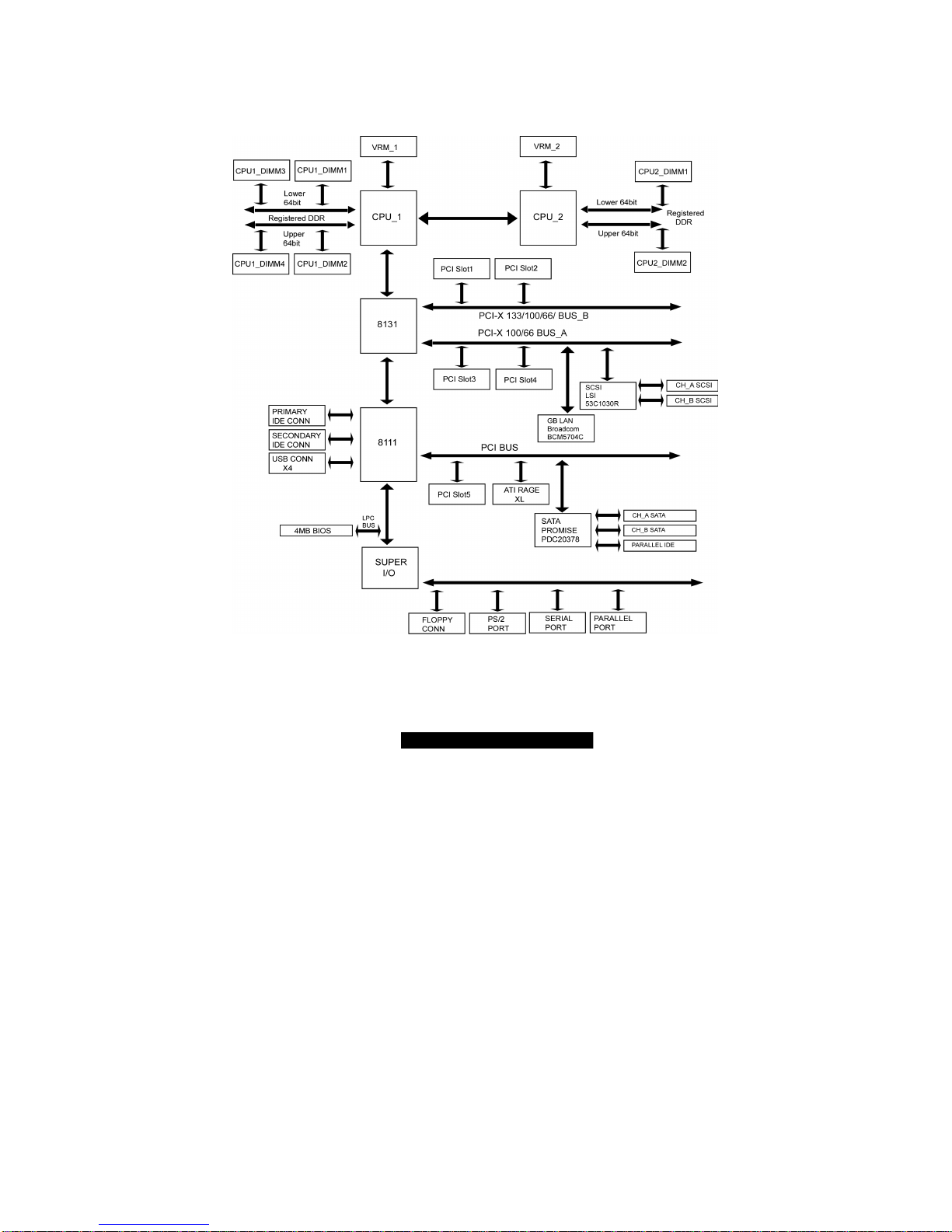

2.01 –Block Diagram

S2880 Thunder K8S Block Diagram

http://www.TYAN.com

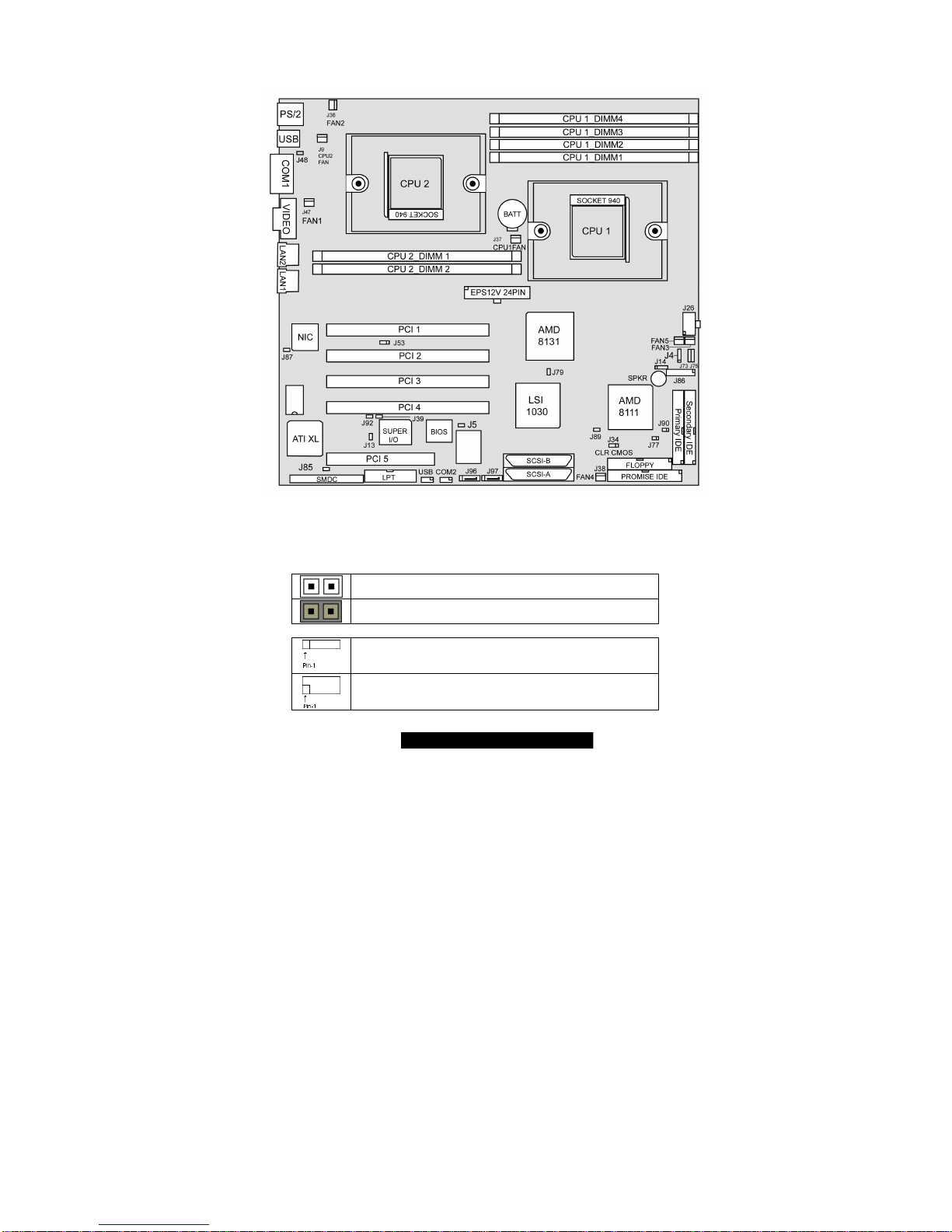

2.02–Board Parts, Jumpers and Connectors

This diagram is representative of the latest board revision available at the time of

publishing. The board you receive may not look exactly like the above diagram.

Jumper Legend

OPEN -Jumper OFF without jumper cover

CLOSED -Jumper ON with jumper cover

To indicate the location of pin-1

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali TYAN Scheda madre

TYAN

TYAN THUNDER I7500 Manuale utente

TYAN

TYAN TITAN-PRO AT Manuale utente

TYAN

TYAN TEMPEST I5000XT Manuale utente

TYAN

TYAN S8032 Manuale utente

TYAN

TYAN S5530 Manuale utente

TYAN

TYAN TOMCAT I7230W Manuale utente

TYAN

TYAN Triumph i7520 (S6623) Manuale utente

TYAN

TYAN Tomcat i925X S5130 Manuale utente

TYAN

TYAN TOMCAT K8E-SLI Manuale utente

TYAN

TYAN TOMCAT I7210 Manuale utente

TYAN

TYAN S7010 Manuale utente

TYAN

TYAN S8225 Manuale utente

TYAN

TYAN THUNDER I7500 Manuale utente

TYAN

TYAN Tempest i5100X Manuale utente

TYAN

TYAN THUNDER I7505 Manuale utente

TYAN

TYAN S7120 Manuale utente

TYAN

TYAN THUNDER N6650W Manuale utente

TYAN

TYAN TEMPEST I5000PT Manuale utente

TYAN

TYAN TOMCAT I810 Manuale utente

TYAN

TYAN S8020 Manuale utente

TYAN

TYAN TOLEDO I3010W Manuale utente

TYAN

TYAN Tiger MP S2460 Manuale utente

TYAN

TYAN THUNDER K7 Manuale utente

TYAN

TYAN Toledo i3100 S5207 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
