Ubiquiti USW-24 Manuale utente

12/11/2020 USW-24 Quick Start Guide

https://dl.ubnt.com/qsg/USW-24/USW-24_EN.html 1/13

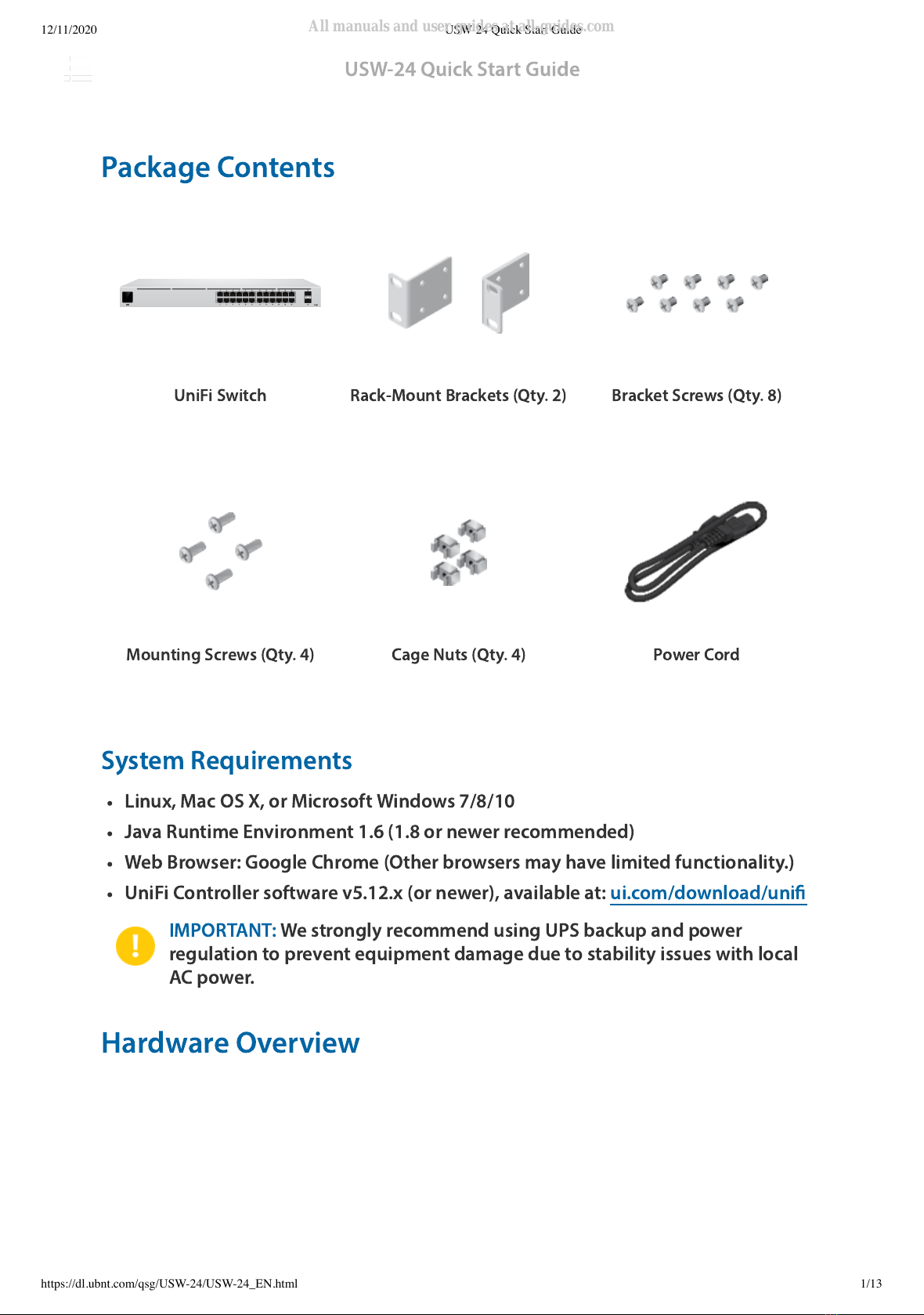

UniFi Switch Rack-Mount Brackets (Qty. 2) Bracket Screws (Qty. 8)

Mounting Screws (Qty. 4) Cage Nuts (Qty. 4) Power Cord

Package Contents

System Requirements

Linux, Mac OS X, or Microsoft Windows 7/8/10

Java Runtime Environment 1.6 (1.8 or newer recommended)

Web Browser: Google Chrome (Other browsers may have limited functionality.)

UniFi Controller software v5.12.x (or newer), available at: ui.com/download/uni

IMPORTANT: We strongly recommend using UPS backup and power

regulation to prevent equipment damage due to stability issues with local

AC power.

Hardware Overview

USW-24 Quick Start Guide

All manuals and user guides at all-guides.com

12/11/2020 USW-24 Quick Start Guide

https://dl.ubnt.com/qsg/USW-24/USW-24_EN.html 2/13

Touchscreen Display

RJ45 Speed/Link/Activity LED (Ports 1 - 24)

SFP Link/Activity LED (Ports 25 - 26)

RJ45 (Ports 1 - 24)

Bootup Animation Initializing.

Steady White Factory defaults, waiting for adoption.

Steady Blue Successfully adopted by a network and working

properly.

Location Animation This indicates that you clicked Locate in the UniFi

Controller software. The software will also display

the location of the device on the map.

Oﬀ No Link

Amber Link Established at 10/100 Mbps

Flashing Indicates Activity

Green Link Established at 1000 Mbps

Flashing Indicates Activity

Oﬀ No Link

Green Link Established at 1 Gbps

Flashing Indicates Activity

USW-24 Quick Start Guide

All manuals and user guides at all-guides.com

12/11/2020 USW-24 Quick Start Guide

https://dl.ubnt.com/qsg/USW-24/USW-24_EN.html 3/13

SFP (Ports 25 - 26)

Reset Button

Power Port

RJ45 ports support 10/100/1000 Ethernet connections.

Hot-swappable SFP ports support 1 Gbps connections.

This button serves two functions for the UniFi Switch:

Restart Press and release the Reset button quickly.

Restore to Factory Default Settings Press and hold the Reset button for more

than ve seconds.

Connect the included Power Cord to the Power port.

Installation Requirements

Phillips screwdriver

Standard-sized, 19" wide rack with a minimum of 1U height available

For indoor applications, use Category 5 (or above) UTP cabling approved for

indoor use.

For outdoor applications, shielded Category 5 (or above) cabling should be used

for all wired Ethernet connections and should be grounded through the AC

ground of the power supply.

We recommend that you protect your networks from harmful outdoor

environments and destructive ESD events with industrial-grade, shielded

Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable

Note: Although the cabling can be located outdoors, the UniFi Switch

itself should be housed inside a protective enclosure.

Hardware Installation

USW-24 Quick Start Guide

All manuals and user guides at all-guides.com

12/11/2020 USW-24 Quick Start Guide

https://dl.ubnt.com/qsg/USW-24/USW-24_EN.html 4/13

USW-24 Quick Start Guide

All manuals and user guides at all-guides.com

12/11/2020 USW-24 Quick Start Guide

https://dl.ubnt.com/qsg/USW-24/USW-24_EN.html 5/13

Connecting Power

USW-24 Quick Start Guide

All manuals and user guides at all-guides.com

12/11/2020 USW-24 Quick Start Guide

https://dl.ubnt.com/qsg/USW-24/USW-24_EN.html 6/13

Connecting Ethernet

Connecting SFP

USW-24 Quick Start Guide

All manuals and user guides at all-guides.com

12/11/2020 USW-24 Quick Start Guide

https://dl.ubnt.com/qsg/USW-24/USW-24_EN.html 7/13

USW-24 Quick Start Guide

All manuals and user guides at all-guides.com

12/11/2020 USW-24 Quick Start Guide

https://dl.ubnt.com/qsg/USW-24/USW-24_EN.html 8/13

For information about compatible ber SFP modules, visit:

ubnt.link/UniFi_SFP_DAC_Compatibility

Software Installation

Download and install the latest version of the UniFi Controller software at

ui.com/download/uni and follow the on-screen instructions.

Note: If you already have UniFi Controller v5.12.x or newer installed, skip to

“Adopting the UniFi Switch”.

After you have installed the software and run the UniFi Installation Wizard, a login

screen will appear for the UniFi Controller management interface. Enter the admin

name and password that you created and click Sign In.

USW-24 Quick Start Guide

All manuals and user guides at all-guides.com

12/11/2020 USW-24 Quick Start Guide

https://dl.ubnt.com/qsg/USW-24/USW-24_EN.html 9/13

You can manage your network and view network statistics using the UniFi Controller

management interface.

To adopt the UniFi Switch, proceed to “Adopting the UniFi Switch”.

For information on conguring and using the UniFi Controller software, refer to the

User Guide on the website: ui.com/download/uni

Adopting the UniFi Switch

1. From the UniFi Controller dashboard, click Devices in the left menu bar.

2. On the Devices screen, locate the UniFi Switch in the list of devices under the

Model column. To adopt the UniFi Switch, click Adopt.

USW-24 Quick Start Guide

All manuals and user guides at all-guides.com

12/11/2020 USW-24 Quick Start Guide

https://dl.ubnt.com/qsg/USW-24/USW-24_EN.html 10/13

3. The display will turn blue to conrm that the UniFi Switch has been successfully

adopted.

Specications

USW-24

Dimensions 442.4 x 200 x 43.7 mm

(17.42 x 7.87 x 1.72")

Weight 2.70 kg (5.95 lb)

With Rackmount Brackets 2.79 kg (6.15 lb)

Interfaces

Networking (24) 10/100/1000 RJ45 Ports

(2) 1G SFP Ethernet Ports

Management Ethernet In-Band

Power Method 100-240VAC, 50/60 Hz, Universal Input

Power Supply AC/DC, Internal, 36W

Supported Voltage Range 100 to 240VAC

Max. Power Consumption 25W

LEDs

RJ45 Data Ports Speed/Link/Activity

SFP Data Ports Link/Activity

ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV

Shock and Vibration ETSI300-019-1.4 Standard

Operating Temperature -5 to 45° C (23 to 113° F)

Operating Humidity 10 to 90% Noncondensing

USW-24 Quick Start Guide

All manuals and user guides at all-guides.com
