Vinotemp VT-BD Manuale utente

17631 South Susana Rd., Rancho Dominguez, CA 90221 U.S.A.

Toll Free: 800.777.8466 FAX: 310.886.3310 info@vinotemp.com

www.Vinotemp.com

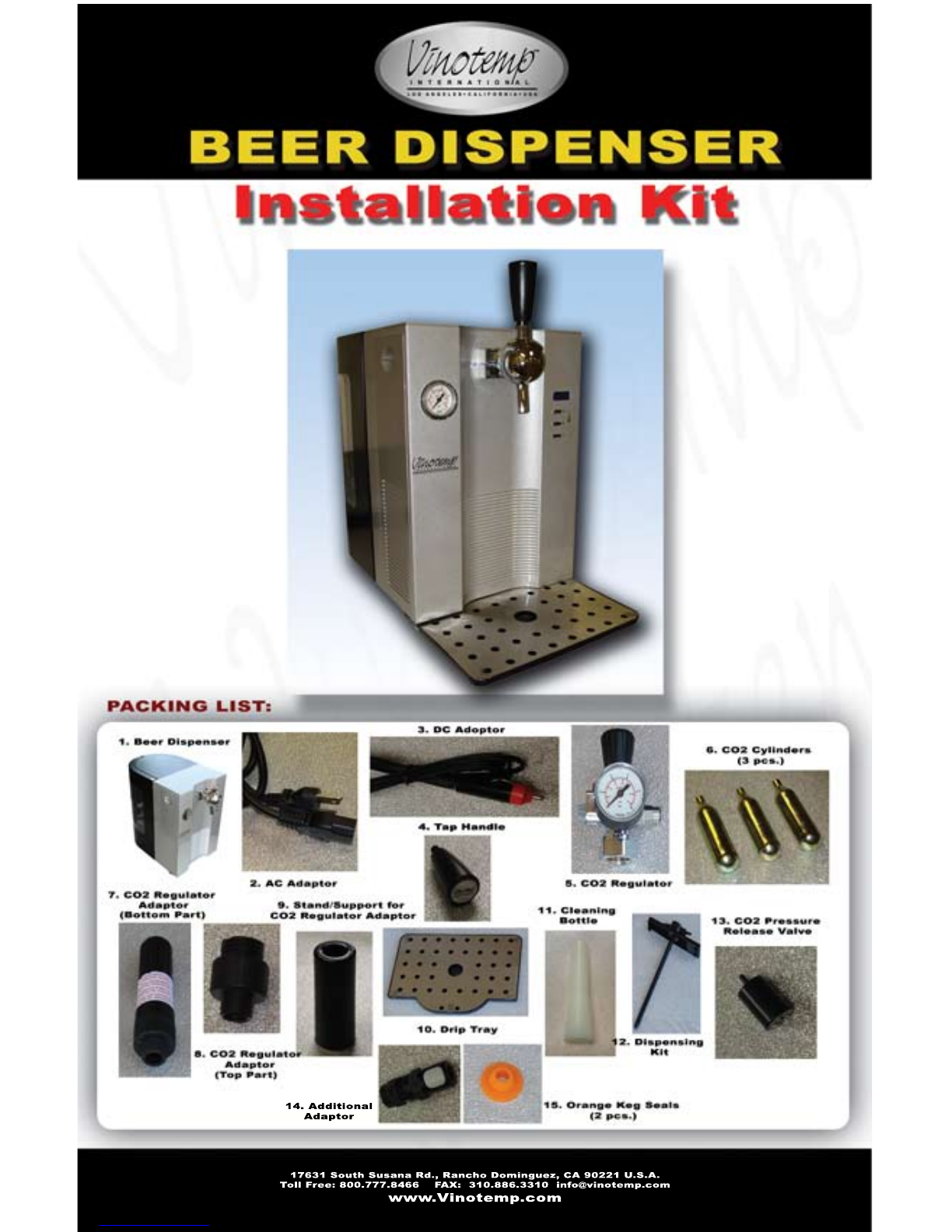

14. Additional

Adaptor

17631 South Susana Rd., Rancho Dominguez, CA 90221 U.S.A.

Toll Free: 800.777.8466 FAX: 310.886.3310 info@vinotemp.com

www.Vinotemp.com

Remove the original keg seal

Install the Dispensing Kit

Connect the beer line

to the CO2 Supply line

Place mini-keg into the unit

and close the door

Replace it with one of the

Orange Keg Seals provided

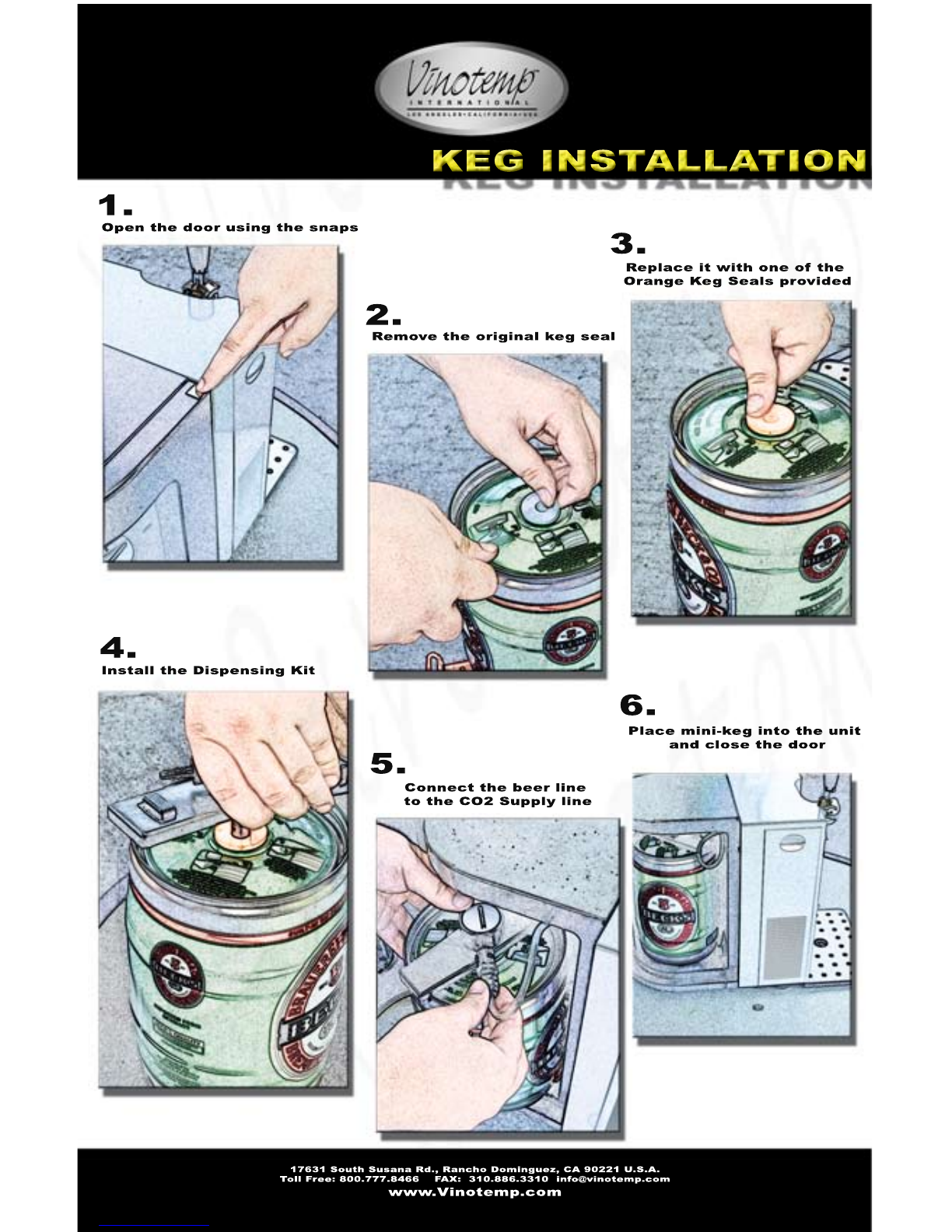

KEG INSTALLATION

Open the door using the snaps

17631 South Susana Rd., Rancho Dominguez, CA 90221 U.S.A.

Toll Free: 800.777.8466 FAX: 310.886.3310 info@vinotemp.com

www.Vinotemp.com

Connect the CO2 Supply

Line to the Regulator

by pushing it into the

side hole. To remove

it later on - simply

push in the ring.

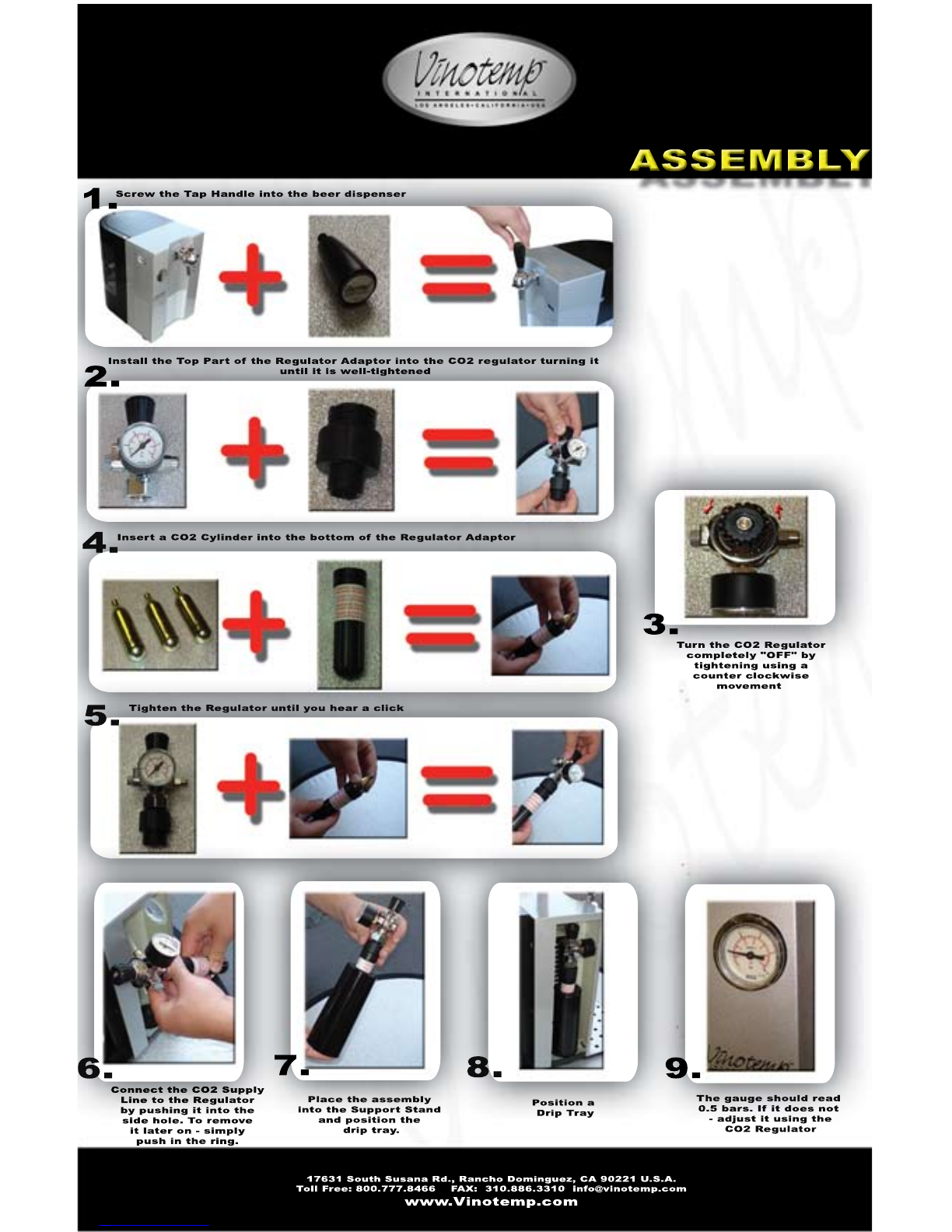

ASSEMBLY

Screw the Tap Handle into the beer dispenser

Install the Top Part of the Regulator Adaptor into the CO2 regulator turning it

until it is well-tightened

Insert a CO2 Cylinder into the bottom of the Regulator Adaptor

Tighten the Regulator until you hear a click

Place the assembly

into the Support Stand

and position the

drip tray.

Turn the CO2 Regulator

completely "OFF" by

tightening using a

counter clockwise

movement

7. 9.

Position a

Drip Tray

The gauge should read

0.5 bars. If it does not

- adjust it using the

CO2 Regulator

17631 South Susana Rd., Rancho Dominguez, CA 90221 U.S.A.

Toll Free: 800.777.8466 FAX: 310.886.3310 info@vinotemp.com

www.Vinotemp.com

Attach the Additional

adaptor

to the green cover

Lift up the green tab

and put the keg

into the unit

Close the door

Fill the Cleaning Bottle

to the half way point

with warm water

Attach the beer

supply hose

Connect the Supply Lines,

Open the beer tap and

put the water through it

Install the Dispensing Kit

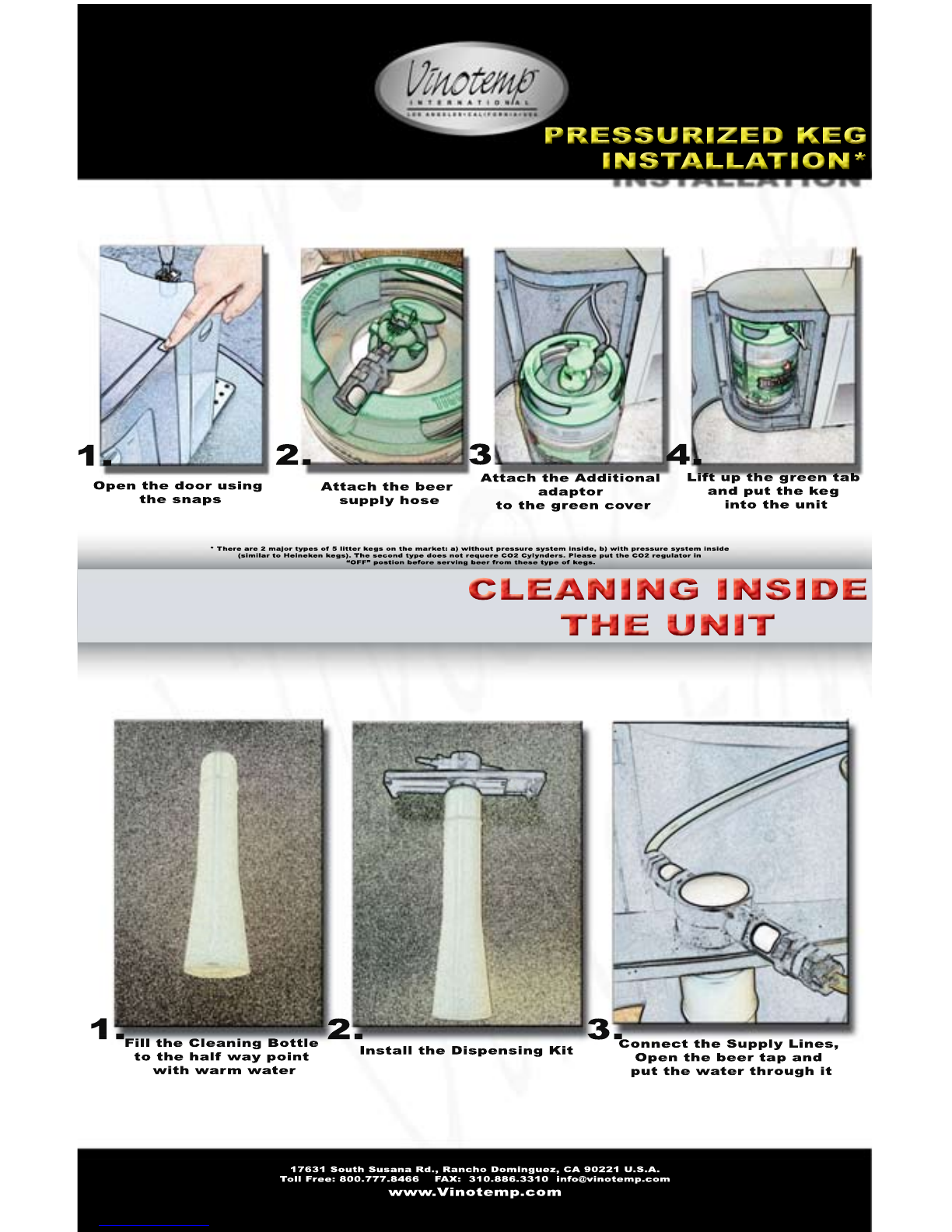

INSTALLATION*

* There are 2 major types of 5 litter kegs on the market: a) without pressure system inside, b) with pressure system inside

(similar to Heineken kegs). The second type does not requere CO2 Cylynders. Please put the CO2 regulator in

“OFF” postion before serving beer from these type of kegs.

CLEANING INSIDE

THE UNIT

PRESSURIZED KEG

Open the door using

the snaps

1. 3.2.

2. 4.
