Whirlpool ACM 394 N Manuale utente
SERVICE Whirlpool Europe
Consumer Services ACM 394 N
Service Manual
Electric cooker
ACM 394 N
Model ACM 394 N
Version 8576 394 32000
Service Nr. 0000 000 00000
Spare parts list 0000 000 00000
Exploded view 0000 000 00000
Spare parts list 0000 000 00000
Exploded view 0000 000 00000
Electric diagram 0000 000 00000
Electric diagram 0000 000 00000
Technical features 0000 000 00000
This documentation is only intended for qualified technicians who are aware of the respective safety
regulations.
Date: 15.01.2001 cod. C6N0WH011W cat. 18.C1891
Document-No.: 0000 000 00000 Subject to modification
Register No.:

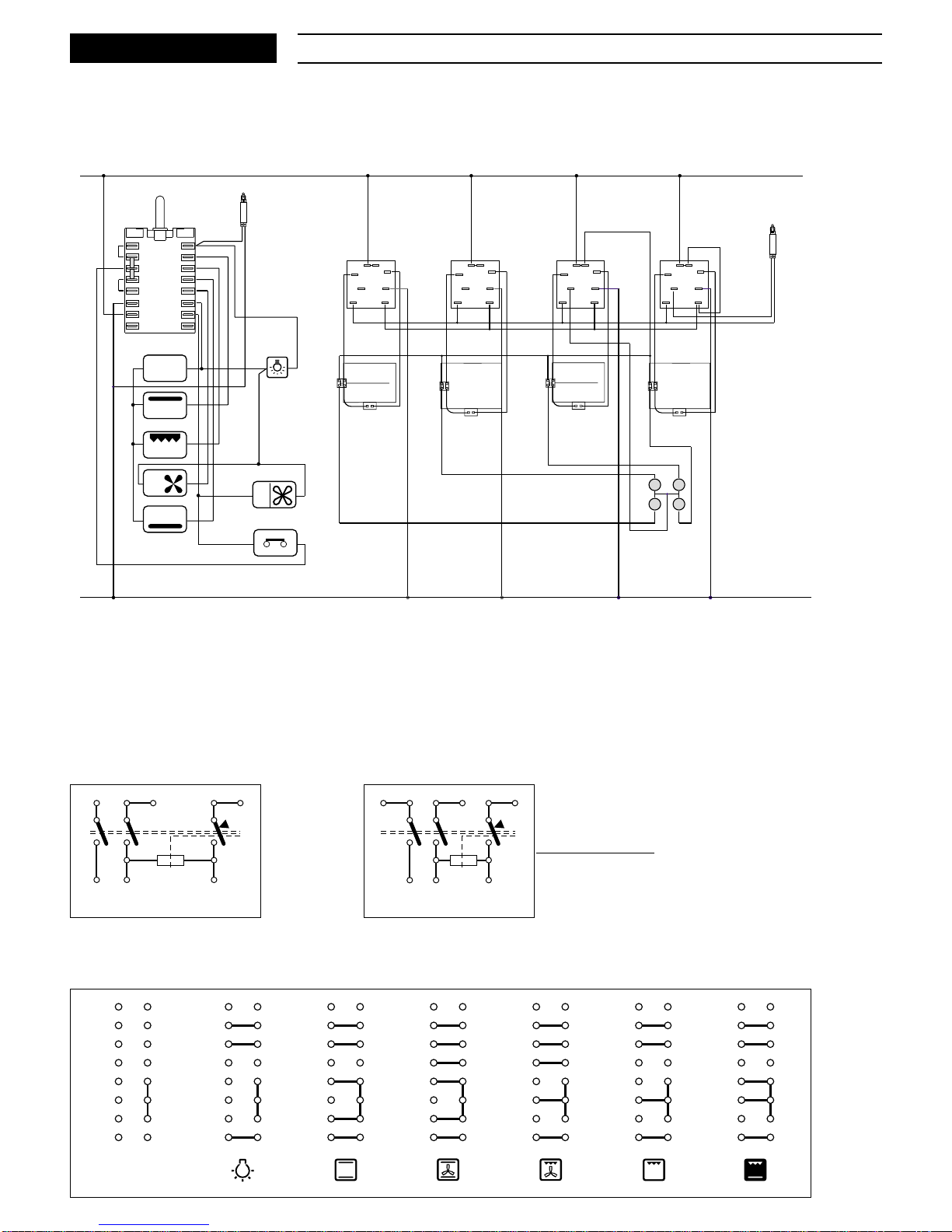

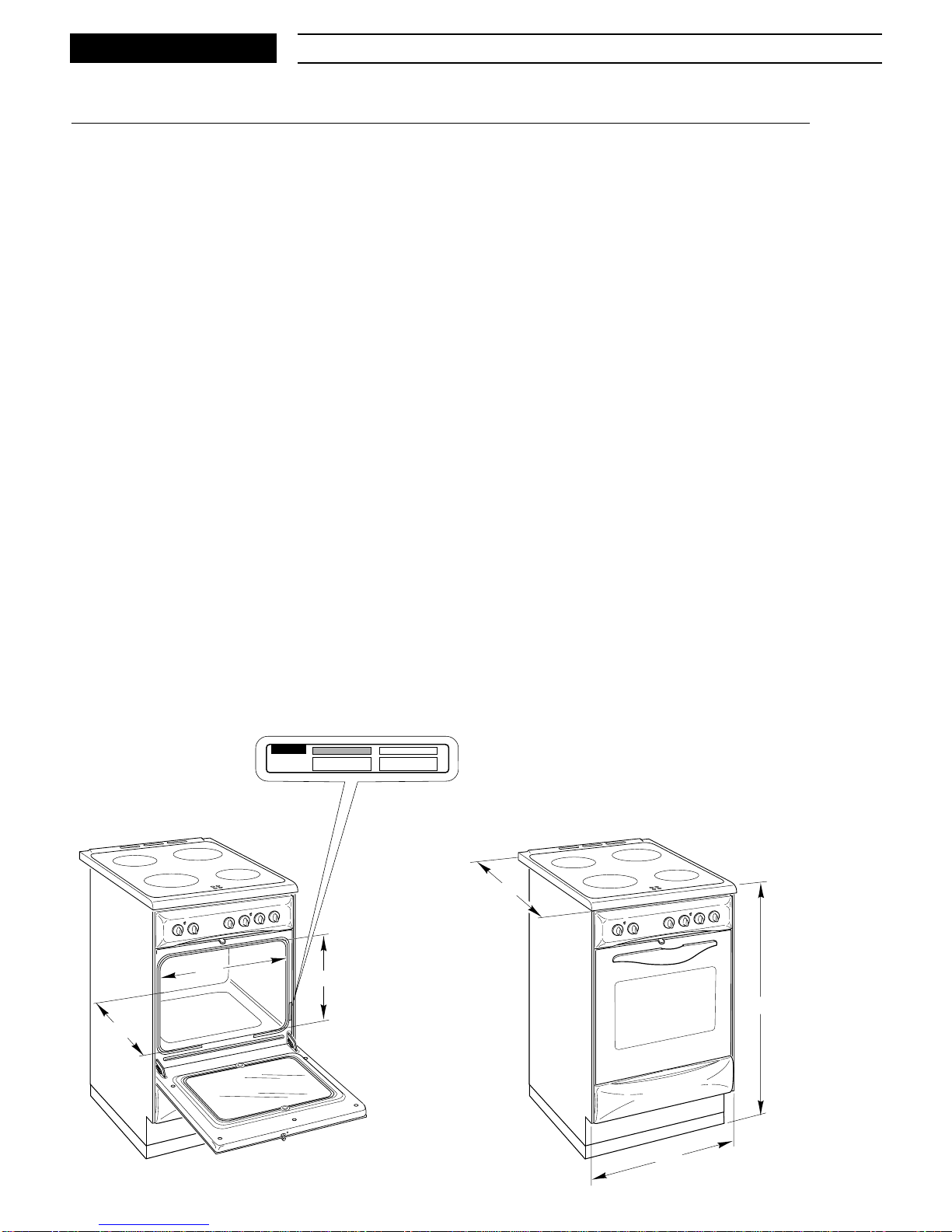

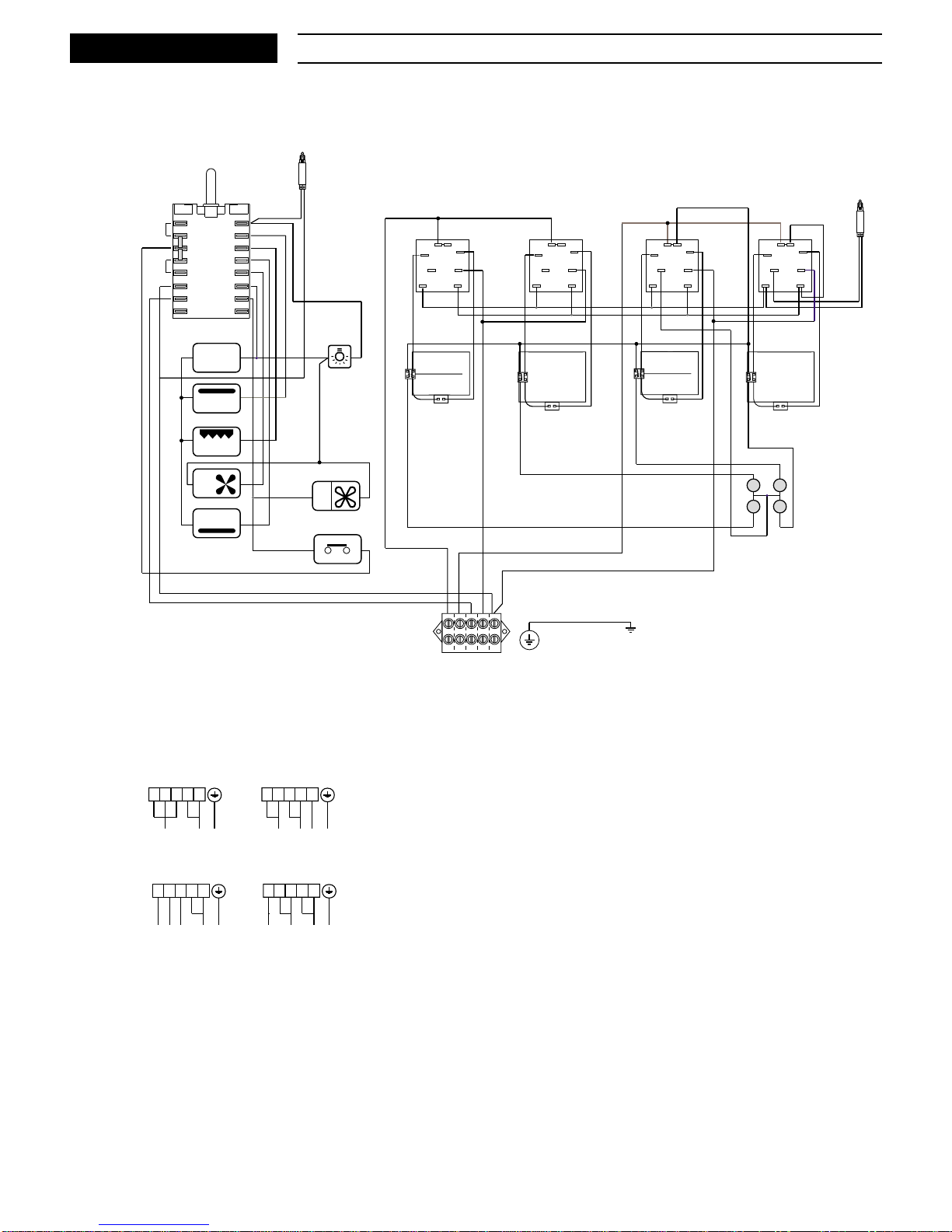

SERVICE Whirlpool Europe
Consumer Services

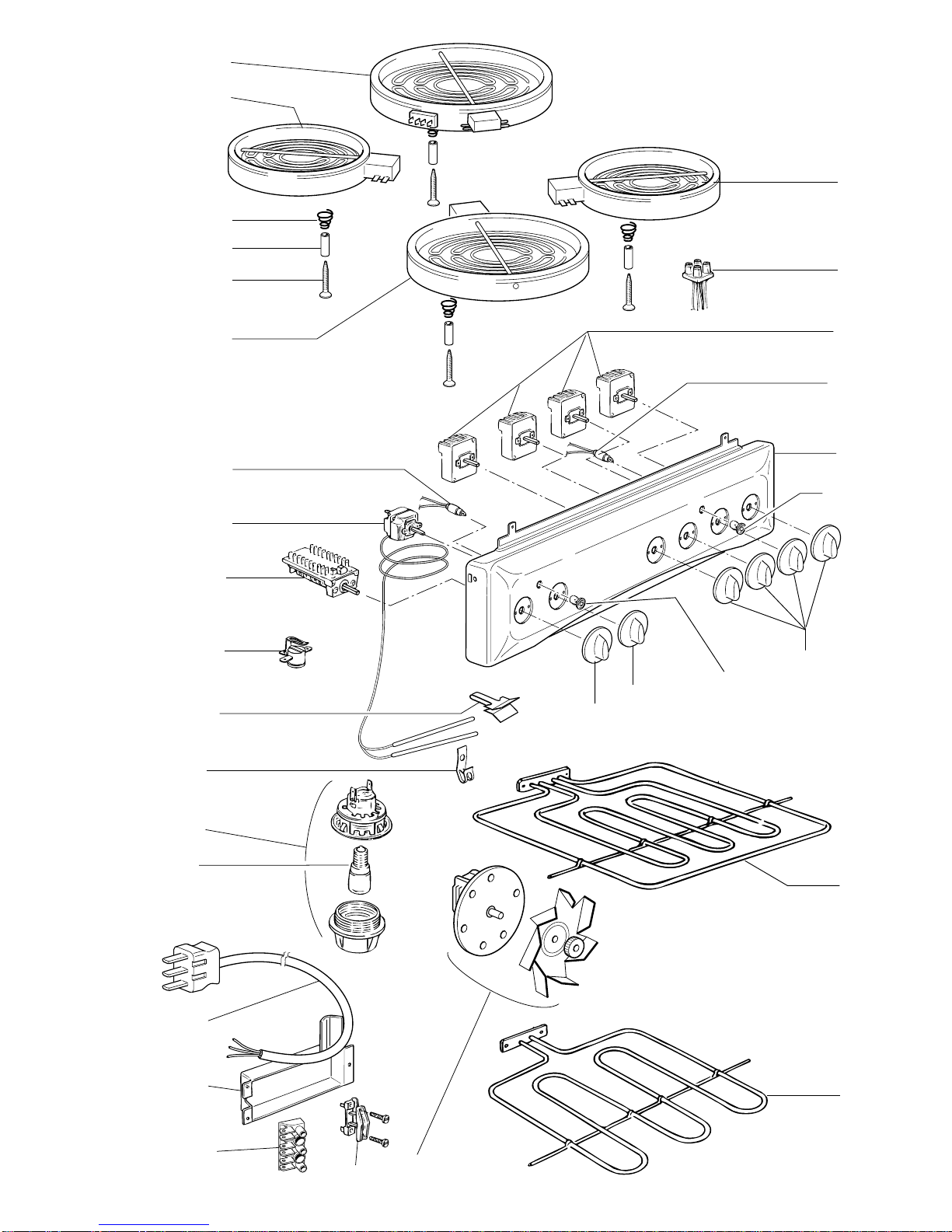

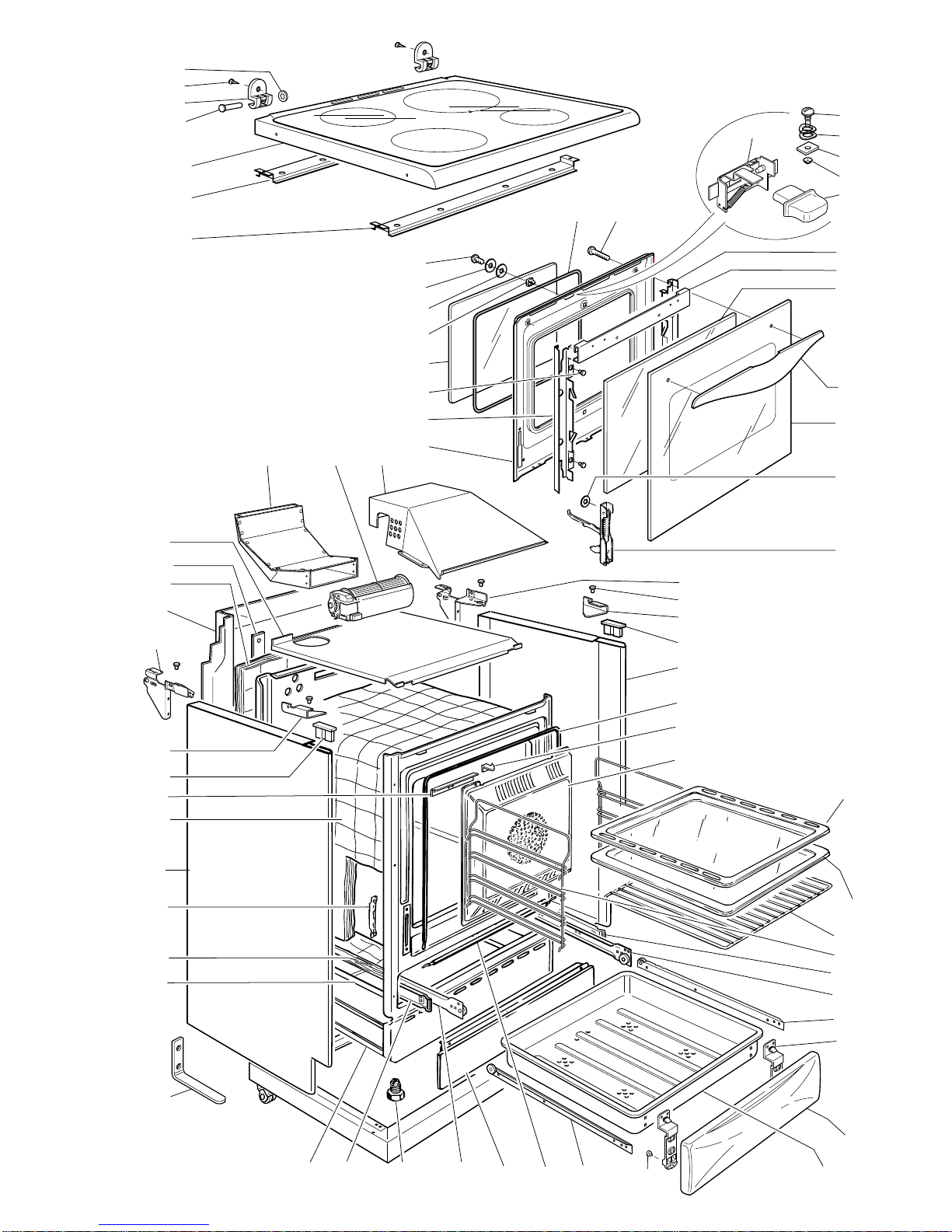

Date 15.01.2001 Spare part list
for Electric Cooker
Model ACM 394 N
Version 8576 394 32000
Service Nr. 00/0000-00 00
Pos. No. Spare Part No. Denomination
2.1 355VC6120 Glass with frame
2.3 001138 Screw
2.6 51B6113 Hotplates support
2.13 103572 Rear spacing
2.14 211022 Pivot
2.15 003060 Snap ring
4.1 4506N1SV11 Oven body
4.4 030082.1 Oven insulation
4.5 030081.1 Rear insulation
4.6 094354DX Rear right coupler
4.7 094354SX Rear left coupler
4.8 4116108 Rear panel
4.9 4216107Z Upper shelter
4.10 103028 Shim
4.11 040011 Buffer
4.13 053039 Seal
4.14 094333DX Front right coupler
4.15 094333SX Front left coupler
4.18 103160035 Base panel
4.20 081074 Buffer
4.22 094371 Drawer fixing bracket
4.23 39E6N013 Drawer front panel
4.24 39K6103Y Drawer
4.25 36C6ND13 Right side panel
4.26 36C6NS13 Left side panel
4.32 4219604Z Rear insulation support
4.34 103338DX/E Right rail
4.35 103338SX/E Left rail
4.36 103338DX/I Right drawer rail
4.37 103338SX/I Left drawer rail
4.38 081083035 Right front trim plug
4.39 081084035 Left front trim plug
4.43 51B6107 Rail drawer support
4.44 053074 Top/bottom seal
4.45 079017 Tangential fan
4.46 46A6N03Z Air conveyor
4.47 46A6N02Z Funnel
4.48 68061005 Plinth
4.52 094325 Stainless steel child lock hook
4.53 094153 Anti-tilt bracket
5.1 032612046 Door glass
5.3 037207035 Door handle
5.4 4116111 Handle bar
5.6 001183 Screw
5.8 063096 Door hinge (male)
5.9 063066 Door hinge (female)
5.10 373FF713K Door panel
5.11 053084 Gasket
5.12 0311000.1T Inner glass (Thermovit)
5.14 214021 Nut
5.15 001214 Screw
5.16 003035 Washer
5.17 103205.1 Washer
5.21 003041 Washer
5.23 51B5616 Inner glass support
5.25 040056 Third glass rubber
5.26 0312039 Third glass
5.27 103418035 Child lock knob
5.29 68061002 Child lock
5.30 001209 Screw
5.31 035093 Spring
5.32 003052 Ring
5.33 214054 Nut M5
7.1 217436 Shelf support
7.3 48B6101K Oven tray
7.4 217220 Oven shelf
7.13 48EF702K Pastry plate
8.19 030083.1 Bottom element insulation
8.20 4216102Z Bottom element support
8.23 47AN601K Fan diffuser
8.42 51BF702 Thermostat bulb protection
4.10 4.37
4.36
4.35
4.43
4.15
4.39
4.7
4.8
4.5
4.32
4.4
4.18
4.1
4.26
4.53
5.9
8.19
8.20
4.38
4.13
4.25
4.44
4.34
4.43
4.23
4.22
4.24
4.20
8.42
4.47 4.46
4.9
4.11
4.14
4.6
4.45
7.4
7.13
7.3
4.52
8.23
7.1
Model
Version
Service Nr.
ACM 394 N
8576 396 32000
5.25
5.15
5.17
5.16
5.14
5.12
5.23
5.10
5.26
5.3
5.1
5.11 5.6
5.23
5.27
5.32
5.33
5.31
5.30
5.29
5.4
5.21
5.8
2.1
2.6
2.6
2.13
2.3
2.14
2.15
SERVICE Whirlpool Europe
Consumer Services
Date 15.01.2001 Spare part list
for Electric Cooker
Model ACM 394 N
Version 8576 394 32000
Service Nr. 00/0000-00 00
Pos. No. Spare Part No. Denomination
2.2 04732230 Radiant hotplate Ø 180 - 1800W
2.3 04711230 Radiant hotplate Ø 145 - 1200W
2.4 04743230 Radiant hotplate Ø 210 - 2100W
2.5 073045 Control lamp
2.8 035075 Spring
2.9 085043 Spacer
2.10 001111 Screw
2.11 218I176316 Energy regulator knob
2.16 050019004 Energy regulator
3.2 35C6N071WH Control panel
8.1 218I456316 Oven thermostat knob
8.2 218I426316 Oven switch knob
8.15 050057 Oven switch
8.16 066131 Oven thermostat
8.17 062080004 Top + grill tilting element
8.18 062066004 Bottom element
8.24 079008001F Complete oven fan
8.40 213023 Clips
8.41 213026 Clips
11.1 072003 Complete lamp holder
11.2 073013001 Lamp
11.3 052008 Wire fastener
11.10 054074 Cord
11.11 103230.1A Terminal block protection
11.25 051025 Terminal block
11.30 066057 Cut-off thermostat
11.33A 07306202.2 Control lamp cover - Red
11.33B 07306201.2 Control lamp cover - Orange
11.34 073039.2 Control lamp - L = 230 mm
– 1131261 Wiring
– 1101748 Instruction booklet
ACM 394 N
8576 394 32000
Model
Version
Service Nr.
8.18
8.24
2.8
2.2
2.3
2.9
2.10
2.4
2.5
2.3
11.30
8.17
11.10
11.11
11.25
11.3
11.33A
11.33B
10.1
8.2 8.1
8.15
8.16
11.34
10.4
3.2
11.34
8.40
8.41
11.1
11.2
SERVICE Whirlpool Europe
Consumer Services
Cooker mod. ACM 394 N
1
6
4
3
8
2
7
5
P1
P6
P4
P3
P8
P2
P7
P5
°C
TM
C
G
S
LF
VCF
TL
S1
F1
1131261
S2
F2
P1
F4
P3
F3
P2
F5
P4
CR
L
N
S1
S2
4P1 P2
PILOT
2
S1
S2
4P1 P2
PILOT
2
S1
S2
4P1 P2
PILOT
2
S1
S2
4P1 P2
PILOT
2
S4 2
SP2 P1
0 ÷ 12
P1
42
0 ÷12
P2 PILOTS1
S2
DIAGRAM FOR ELECTRIC PLATE ENERGY REGULATOR
Reciprocation
0
1P1
2
3
4
5
P2
P3
P4
P5
6P6
7P7
8P8
DIAGRAM FOR OVEN SELECTOR SWITCH (F1)
SERVICE Whirlpool Europe
Consumer Services
Cooker mod. ACM 394 N
1
6
4
3
8
2
7
5
P1
P6
P4
P3
P8
P2
P7
P5
°C
TM
C
G
S
LF
VCF
TL
S1
F1
1131261
5
4321
M
S2
T
F2
P1
F4
P3
F3
P2
F5
P4
CR
S1
S2
4P1 P2
PILOT
2
S1
S2
4P1 P2
PILOT
2
S1
S2
4P1 P2
PILOT
2
S1
S2
4P1 P2
PILOT
2
THIS APPLIANCE MUST BE EARTHED
PEN
L1 L2 L3 L2
L1 NPE
400V 3N
123 5412354
L1 NPE
230V
400V 2N
L3
L1 L2 PE
230V-V3
123 54123 54
ELECTRIC DIAGRAM KEY
F1 Oven commutator
F2/5 Radiant heater commutators
LF Oven lamp
TM Oven thermostat
TL Oven thermolimitator
C Top element
G Grill element
S Bottom element
V Fan
S1 Thermostat pilot lamp
S2 Electric plate pilot lamp
P1/P4 Radiant heaters
CR Residual heat lamps
CF Cooling fan
M Terminal block
T Earth plant
SERVICE Whirlpool Europe
Consumer Services
Cooker mod. ACM 394 N
Technical Data No. 0000 000 00000
Electricity
Voltage 230/400 V ~ 50 Hz
Power
Cooktop power
Front left hotplate Ø 210 mm 2100 W
Rear left hotplate Ø 145 mm 1200 W
Rear right hotplate Ø 180 mm 1800 W
Front right hotplate Ø 145 mm 1200 W
Oven power
Upper heating element 1000 W
Lower heating element 1400 W
Grill heating element 2000 W
Oven light 15 W
Fan motor 25 W
Cooling fan motor 25 W
Total power usable simultaneously 9740 W
Oven cavity dimensions
see figure
Oven volume
Cavity 59 dm3
Cooker dimensions
see figure
900
600
600
460
440
335
