Freestanding Wine Cooler Instruction Manual

A. IMPORTANT SAFETY INFORMATION

The appliance which you have purchased is a wine cooler – a professional appliance

intended exclusively for keeping wines. This manual contains important information

regarding safety, the use and maintenance of your appliance. Read the manual and

keep it in an easily accessible place for future consultation.

BEFORE USING YOUR WINE CELLAR

•Remove the exterior and interior packing.

•After unpacking the appliance, make sure that the door closes. Inform your

retailer of any damage within 24 hours.

•Wait for at least two hours before switching the appliance on, so that the cooling

circuit has time to reach full efficiency.

•Clean the interior surface with warm water using a soft cloth.

•Make sure that the installation and electrical connection are carried out by a

qualified engineer according to the manufacturer’s instructions and the local rules

in force.

•When disposing your appliance, please choose an authorized disposal site.

GENERAL PRECAUTIONS AND SUGGESTIONS

•Use the wine cellar for storing wines only. Do not put any other type of food into

it.

•Be careful not to cover or obstruct the appliance’s ventilation openings.

•Do not allow children to play or hide inside the appliance to avoid the risk of

suffocation or being trapped. Children should be supervised to ensure that they

do not play with the appliance.

•Before any maintenance or cleaning, unplug the plug from the power socket or

switch off the electrical power.

•Only an authorized person can replace the power supply cable.

•Do not keep explosive substances in the appliance or clean appliance parts with

flammable fluids. The fumes can create a fire hazard or explosion.

•Be careful when moving the appliance in order not to damage flooring (e.g.

parquet).

•Do not use extensions or multiple adapters.

•The appliance is not intended for use by young children or unsupervised infirm

people.

•Do not damage the cooling fluid circuit.

•Do not use electrical appliances inside the wine cooler, if they are not of the type

recommended by the manufacturer.

•Locate the wine cooler away from direct sunlight and sources of heat (stove,

heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat

sources may increase electrical consumption. Extreme cold ambient temperatures

may also cause the unit not to perform properly. Operate the wine cooler in

ambient temperatures specified by its temperature class marked on the rating

plate.

Class Symbol Ambient Temperatures range (℃)

Extended

Temperature

SN 10 to 32

Temperature N 16 to 32

Subtropical ST 16 to 38

Tropical T 16 to 43

•Avoid locating the wine cooler in moist areas.

•If large amounts of wine are put in the appliance, it may take several days for it to

reach a constant temperature.

•The storage temperature must never drop below +5℃.

•Store wine in sealed bottles.

•Do not overload the cabinet.

•Do not open the door unless necessary.

•Do not cover shelves with aluminum foil or any other shelf material which may

prevent air circulation.

•If the wine cooler is to be stored without use for long periods, it is suggested, after

a careful cleaning, to leave the door ajar to allow air to circulate inside the cabinet

in order to avoid possible formations of condensation, mold or odors.

zTo prevent damaging the door gasket, make sure to have the door all the way

opened when pulling shelves out of the rail compartment.

zIf the supply cord is damaged, it must be replaced by manufacturer of its service

agent or a similarly qualified person in order to avoid a hazard.

zThis wine cooler is for household use only, not for commercial use.

zWhen the appliance is working, drops of dew or frost may form on the inner

liner wall. This depends on the operation. There is no need to scrape the frost off

or dry off the dew. The back wall defrosts automatically. The defrost water is

automatically conveyed to a drain hole, and then collected in a container where it

evaporates.

zCondensation formed on glass door is normal, especially when humidity level is

high or when there is huge temperature difference.

REMEMBER WHEN ARRANGING

zPlace the bottles in a central position on the rack.

zWhen closing the door make sure that the bottles do not touch the glass door.

zHighly concentrated alcohol must be kept hermetically closed and in a vertical

position.

zAlways store bottled wines individually and not in cases or cardboard boxes.

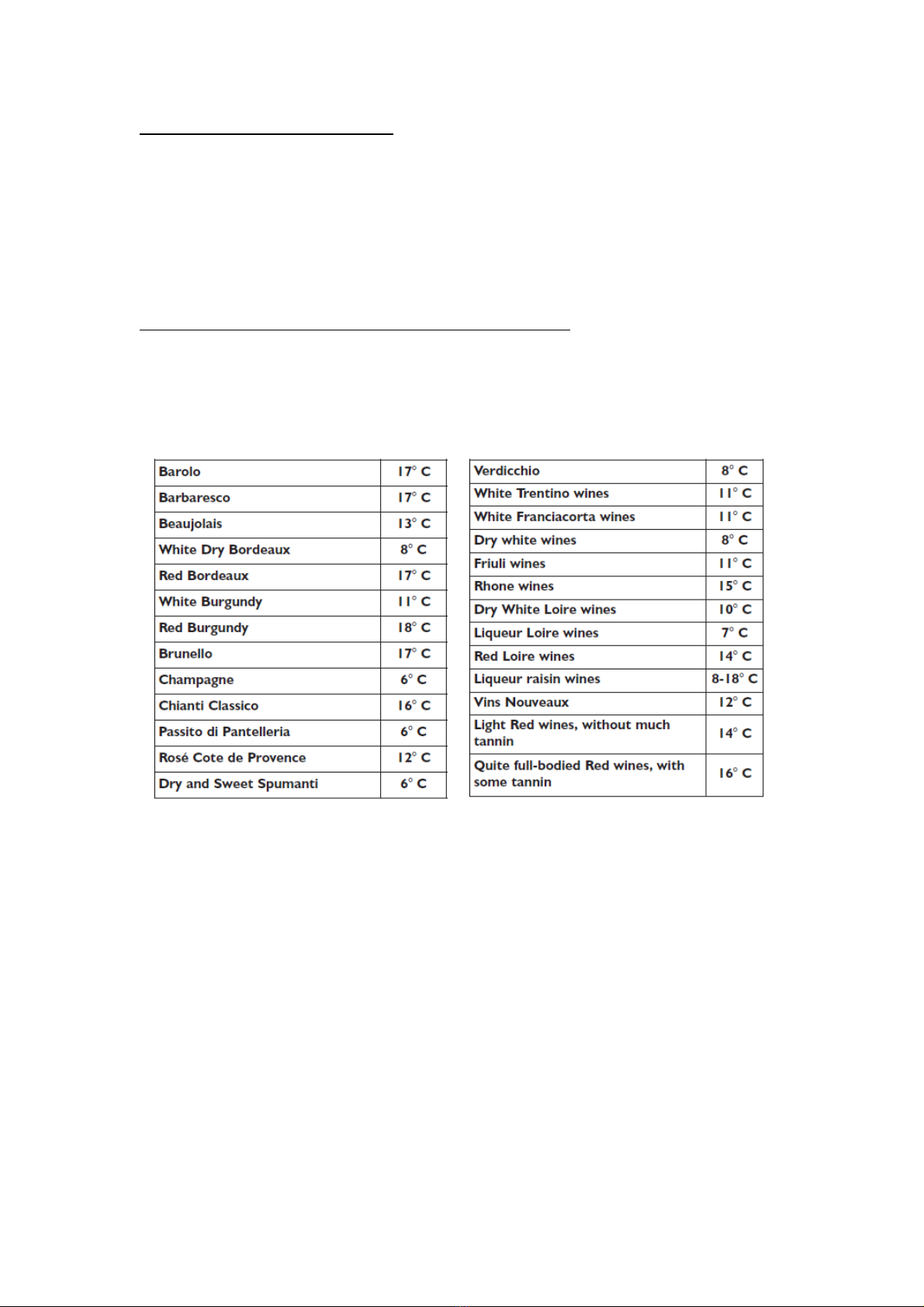

TABLE OF THE BEST SERVING TEMPERATURES FOR WINES

The table below gives the indicative temperatures at which the wine should be

served. If the wine must be served at a higher temperature than that set inside the

cooler, it should be left out for as long as is necessary.

B. OPERATING INSTRUCTIONS

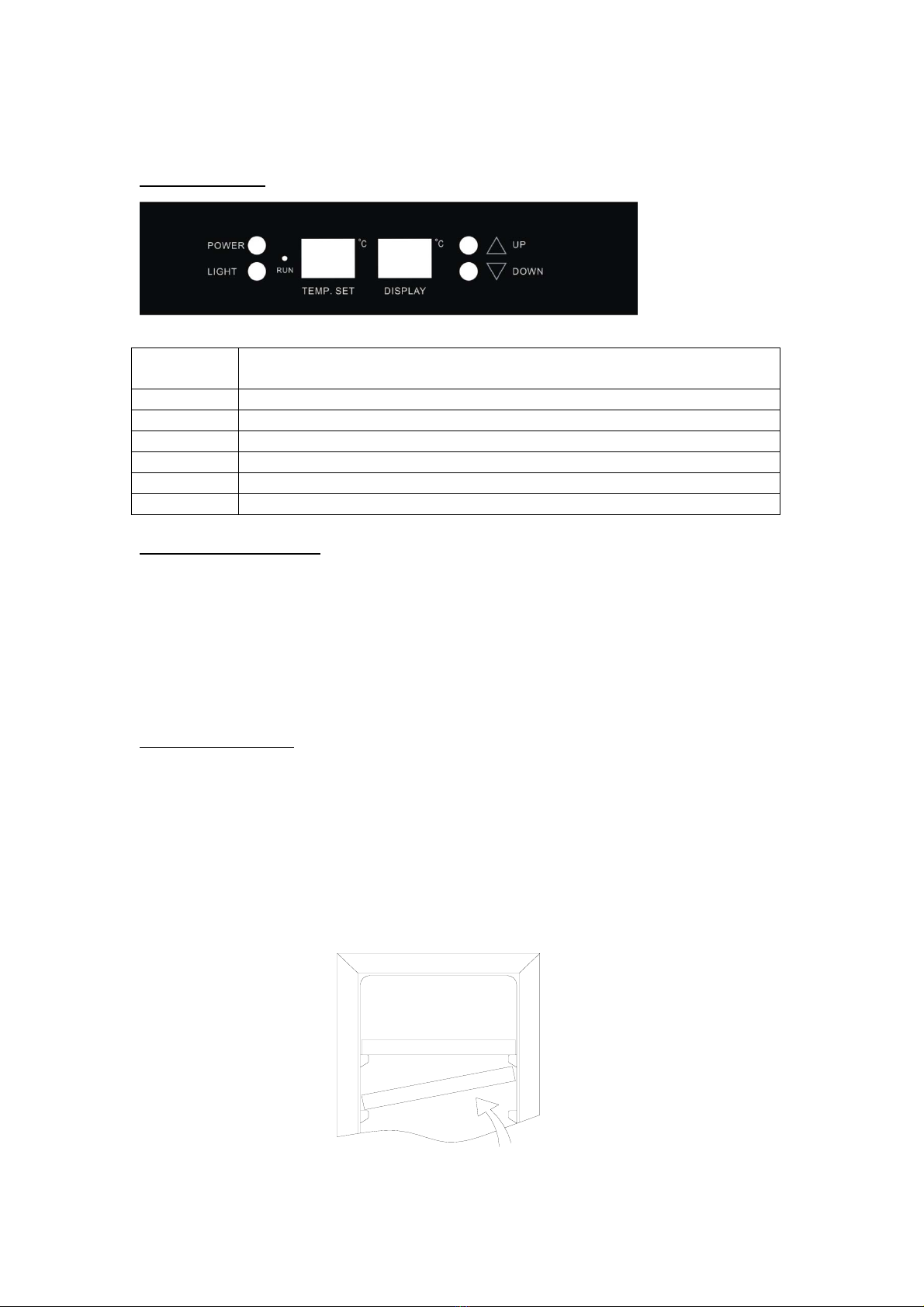

CONTROL PANEL

RUN Indicator light illuminates to signify the cooling mode is currently in

operation

LIGHT To turn on/ of

the inner light

POWER To switch on/ of

the appliance

UP To raise the temperature by 1℃

DOWN To lower the temperature by 1℃

DISPLAY To indicate the temperature o

the internal cabinet

TEMP. SET To indicate the setting temperature

TEMPERATURE SETTING

•Connect the power cord to a properly grounded outlet. In the event o

apower

interruption, all previous temperature settings will be automatically erased and it

will default to a preset temperature setting o

12℃.

•Set the desired cooling temperature by pressing the “UP/DOWN” buttons. The

temperature selected will flash in the LED display for approximately 5 seconds,

then revert back to display the temperature o

the internal cabinet

•The temperature setting can be adjusted from 5℃to 18℃.

REMOVING SHELVES

Attention:

zTo prevent damaging the door gasket, make sure to have the door all the way

opened when pulling shelves out o

the rail compartment.

zFor easy access to the storage content, you must pull the shelves approximately

1/3 out o

the rail compartment, however this unit was designed with a notch on

each sides o

the shelf tracks to prevent bottles from falling.

To fit or remove the shelf, tilt the shelf as below diagram and simply pull out or push

into the shelf until it sits on the support brackets securely.

REVERSING THE DOOR

The appliance delivered to you has the door opening from the left side. Should you

desire to reverse the opening direction, please follow the below instructions.

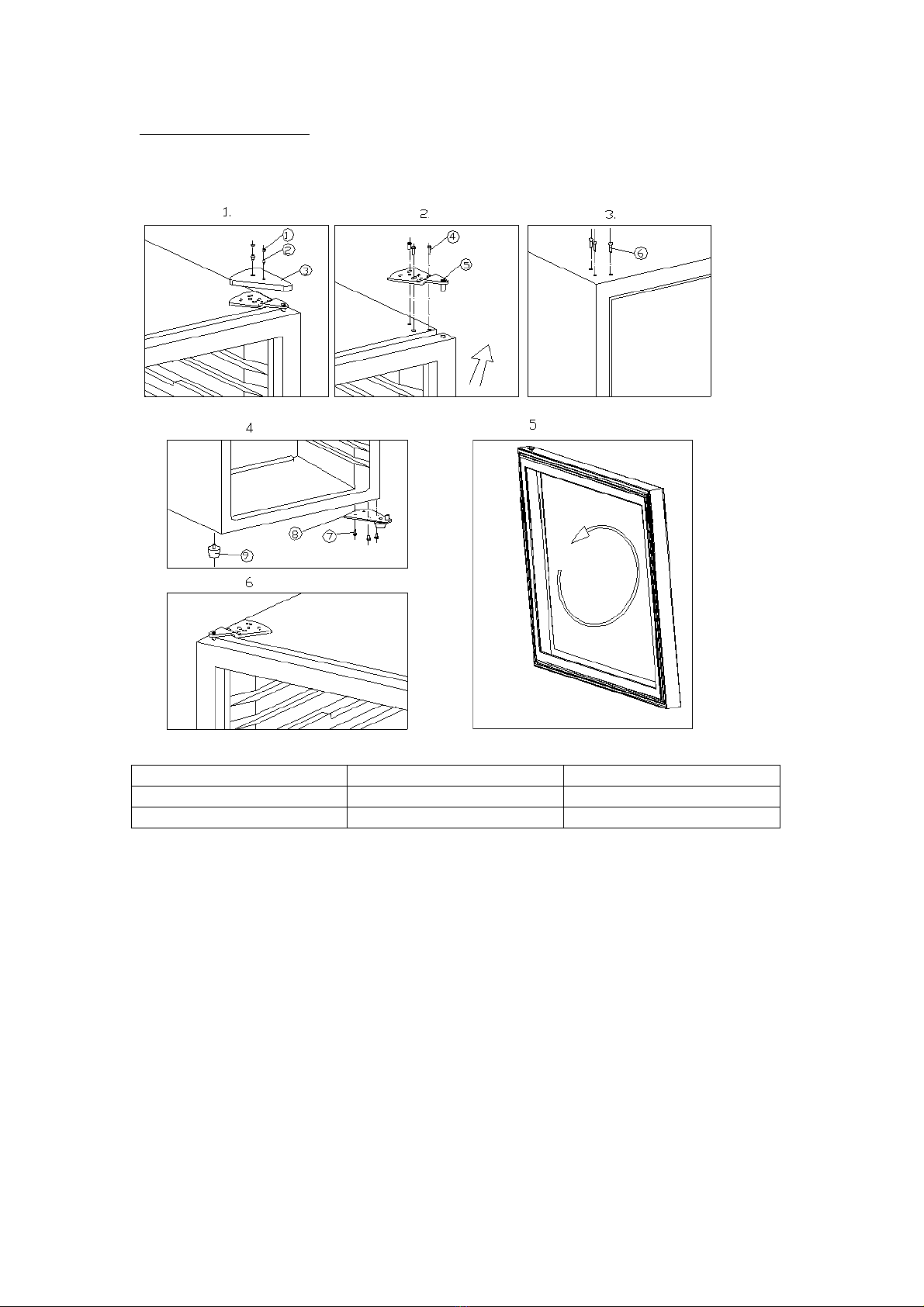

1. Rubber cover 2. Screws 3. Decorative cover

4. Screws 5. Top hinge 6. Decorative nail

7. Screws 8. Lower hinge 9. Cabinet leg

1. Close the door and take out the rubber cover (1), unscrew the two screws (2) and

remove the decorative cover (3). (Fig.1)

2. Unscrew the screws (4) and take out the top hinge (5), then remove the door and

put door aside safety. (Fig. 2)

3. Pull out decorative nail (6) from left top of cabinet. (Fig.3)

4. Unscrew the 3 screws (7) from the right bottom of cabinet and remove the lower

hinge (8). (Fig.4)

5. Pull out cabinet leg (9) from the left bottom of the cabinet and fix it onto the

right bottom of the cabinet. (Fig.4)

6. Fix the lower hinge (8) onto the left bottom of the cabinet with screws (7). (Fig. 4)

7. Revolve the door 180 degrees, install the door onto the lower hinge (8), then

close the door carefully. (Fig.5)

8. Fix the top hinge (5) onto the left top of cabinet with screws (4), adjust door and

install the decorative cover (3) and the rubber cover (1). (Fig.6)

9. Block the 3 screw holes at the top right of the cabinet with the spare decorative

nail.

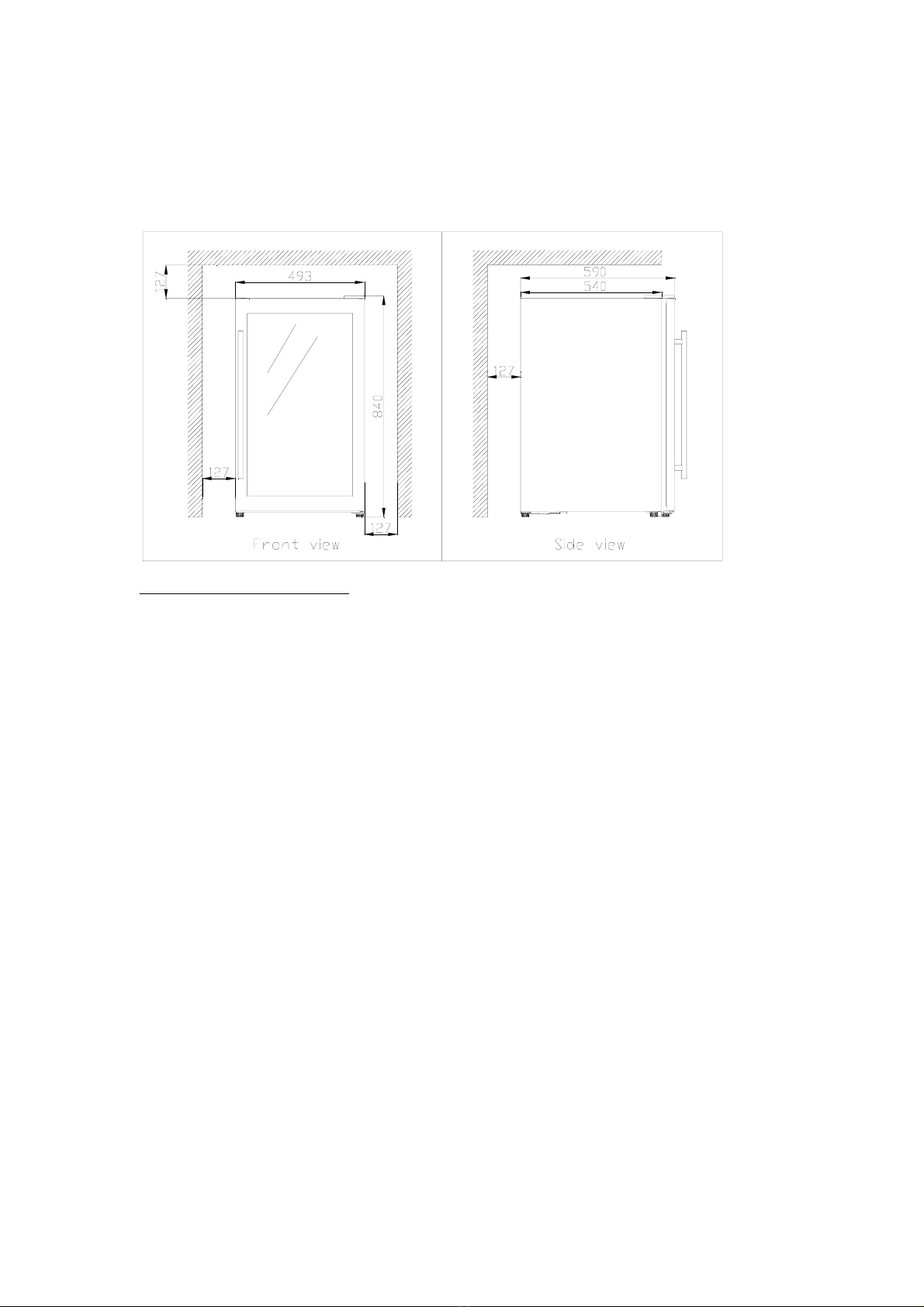

C. INSTALLATION

This model is free standing only. Any built in voids the warranty.

INSTALLATION PRECAUTION

•Place the wine cooler on a floor that is strong enough to support it when it is fully

loaded. To level your wine cooler, adjust the front leveling leg at the bottom of the

wine cooler.

•Do not move your wine cooler while loaded with wine. The wine cooler should be

installed in a suitable place in order to avoid touching the compressor with hand.

D. CARE & MAINTENANCE

CLEANING OF THE WINE COOLER

zSwitch of

the power, unplug the appliance and remove all items including

shelves and rack.

zWash the inside surfaces with warm water and mild solution.

zWash the shelves with mild detergent solution.

zWipe excess water with a sponge or cloth when cleaning area o

the control or

any electrical parts.

zWash the outside cabinet with warm water and mild liquid detergent. Rinse well

and wipe dry with a clean soft cloth.

POWER FAILURE

zMost power failures are corrected within a few hours and should not affect the

temperature of your appliance if you minimize the number of times the door is

opened. If the power is going to be off for a long period of time, you need to

take the proper steps to protect your contents.

ACATION TIME

zShort vacations: Leave the wine cooler operating during vacations o

less than

three weeks.

the appliance will not be used for several months, remove all items and turn

the appliance. Clean and dry the interior thoroughly. To prevent odor and

mold growth, leave the door slightly open.

MOVING THE WINE COOLER

zRemove all items.

zTake out the loose items inside the wine cooler (such as shelf) or fix the loose

items with foam.

zTurn the adjustable leg up to the base to avoid damage.

zTape the door shut.

zBe sure the appliance stays secure in an upright position during transportation.

Also protect the outside o

appliance with a blanket or similar items.

ENERGY SAVING TIPS

zThe wine cooler should be located in the coolest area of the room, away from

producing appliances and out of the direct sunlight.

E. TROUBLESHOOTING GUIDE

Problem Possible Cause

Wine Cooler does not

operate

‐The plug is not plugged into the socket properly.

‐The appliance is switched off.

‐There is a power cut.

Wine Cooler is not cold

enough

‐Temperature control setting is not set properly.

‐The door is opened too often.

‐The door is not closed completely.

‐The door gasket does not seal properly.

‐The appliance has been installed near a heat source.

Compressor turns on and

off frequently

‐The room temperature is hotter than normal.

‐The cabinet is overloaded.

‐The door is opened too often.

‐The door is not closed completely.

‐Temperature control setting is not set correctly.

‐The door gasket does not seal properly.

The light does not work ‐The plug is not plugged into the socket properly.

‐There is a power cut.

‐The bulb has burned out.

‐The light button is “OFF”

Vibrations ‐The wine cooler is not installed on a level surface.

Too much noise ‐The rattling noise may come from the flow of the

refrigerant, which is normal.

‐As each cycle ends, you may hear gurgling sounds caused

by the flow of the refrigerant.

‐The wine cooler is not correctly installed.

‐The wine cooler is not installed on a level surface.

The door will not close

properly

‐The wine cooler is not installed on a level surface.

‐The door is reversed and not properly installed.

‐The gasket is dirty.

‐The shelves are out of position.

Indice

Altri manuali Whirlpool Elettrodomestico da cucina

Whirlpool

Whirlpool PRCM 111 Manuale utente

Whirlpool

Whirlpool WUB50X24HZSS Manuale utente

Whirlpool

Whirlpool ACM 224 Manuale utente

Whirlpool

Whirlpool WHB45S Manuale utente

Whirlpool

Whirlpool HOO B00 Guida

Whirlpool

Whirlpool WHW45S Manuale utente

Whirlpool

Whirlpool AMW423/IX Manuale di installazione e funzionamento

Whirlpool

Whirlpool WUW35X15DS Manuale utente

Whirlpool

Whirlpool WUB35X24HZ Manuale utente

Whirlpool

Whirlpool WMBN5 R1 PT Manuale di installazione e funzionamento

Whirlpool

Whirlpool AKT 905 Manuale utente

Whirlpool

Whirlpool ACM 394 N Manuale utente

Whirlpool

Whirlpool WS5V8CHW/N Manuale utente

Whirlpool

Whirlpool WMBN5 R3 PT Manuale di installazione e funzionamento

Whirlpool

Whirlpool AKT 780 Manuale utente

Whirlpool

Whirlpool WHB36S Manuale utente

Whirlpool

Whirlpool ACE 600 IX Manuale utente

Whirlpool

Whirlpool ACMK 6110/WH/1 Manuale utente

Whirlpool

Whirlpool WUB50X24HZ Manuale utente

Whirlpool

Whirlpool WHW16BKMSW Manuale utente

Whirlpool

Whirlpool WUB50X24HV Manuale utente

Whirlpool

Whirlpool WML55011HW Manuale utente

Whirlpool

Whirlpool ADN 631 Manuale utente

Whirlpool

Whirlpool RM973BXS Manuale utente

Manuali Elettrodomestico da cucina popolari di altre marche

Tayama

Tayama TYG-35AF Manuale utente

AEG

AEG 43172V-MN Manuale utente

REBER

REBER Professional 40 Guida utente

North American

North American BB12482G / TR-F-04-B-NCT-1 Manuale utente

Presto

Presto fountain popper Manuale utente

Westmark

Westmark 1035 2260 Manuale utente

Zanussi

Zanussi ZCG64396XA Manuale utente

HOFFEN

HOFFEN SM-9302M Manuale utente

Philips

Philips HD3133 Manuale utente

Ronco

Ronco Beef Jerky Manuale utente

Hendi

Hendi 470411 Manuale utente

Livoo

Livoo MEN386 Manuale utente

Vogue

Vogue D446 Manuale utente

croydon

croydon WR-10313-700 Manuale utente

ADE

ADE AUTOMATIC-L Manuale utente

Chefman

Chefman RJ43-SQ Series Manuale utente

Vacmaster

Vacmaster VP680 Manuale utente

Jetmaster

Jetmaster 900HG Manuale utente
