Berkel X13 Manuale utente

X13 Exploded Views May 2007

1) SHARPENER

Sharpener, Comp 4675-01133 12 Nut 2175-00388

1 E-Clip 2275-00594 13 Bushing 2275-00595

2 Washer 2275-00441 14 E-Clip 2275-00583

3 Magnet 2775-00733 15 Shaft 3375-01380

4 Frame, Sharpener 3875-00231 16 Skirt 3875-00232

5 Shaft 3375-01381 17 Washer 2275-00587

6 Bushing 2275-00596 18 Nut 2175-00388

7 Spring 3275-00230 19 Stone, Deburr. 3675-00281

8 Shaft 3375-01379 20 Spring 3275-00232

9 Skirt 3875-00232 21 Frame, Deburr. 3875-00230

10 Stone, Sharpening 3675-00283 22 Spring 3275-00231

11 Washer 2275-00587 23 E-Clip 2275-00594

X13 Exploded Views May 2007

2) PRODUCT TABLE

Complete Table 4675-01134 6 Screw 2175-00509

Complete Table 4675-01152 JM 7 Knob 2275-00063

1 Pusher 3875-00177 8 Sleeve 3375-01386

2 Arm, Pusher 4375-00236 9 Screw 2175-00505

2A Arm, Pusher 3775-00500 JM 10 Handle 3875-00175

3 Handle, Pusher 4875-01032 10A Sleeve 3375-01398 JM

3A Shaft, Pusher 3375-01400 JM 11 Screw 2175-02949

3B Knob 2275-00042 JM 11A Bolt 2175-03277 JM

4 Guide Rail 3375-01387 12 Product Table 4975-00476

Arm Kit (Items 2, 4) 4975-00471 12A Product Table 3875-00254 JM

5 Product Fence 4675-01135

JM = Jersey Mike

X13 Exploded Views May 2007

3) RING GUARD & CENTER PLATE

1 Post Stud 3375-01391 8 Ring Guard 3775-00497

2 Flat Head Screw 2175-00529 Knife Bolt 2175-00468

3 Retaining Ring 2275-00608 9Knife Washer 2275-00524

4 Knob 3375-01392 Foot 3875-00239

Center Plate 3775-00499 10 Foot, Suction 3875-00249

Center Plate Assy 4675-01144 11 Washer 2275-005865 Center Plate Kit 4975-00472 12 Screw (Ring Guard) 2175-02867

6 Shoulder Stud 3375-01388 13 Knife 3675-00277

Shim 1.0mm 3275-00237

7Shim 0.5mm 3275-00238

X13 Exploded Views May 2007

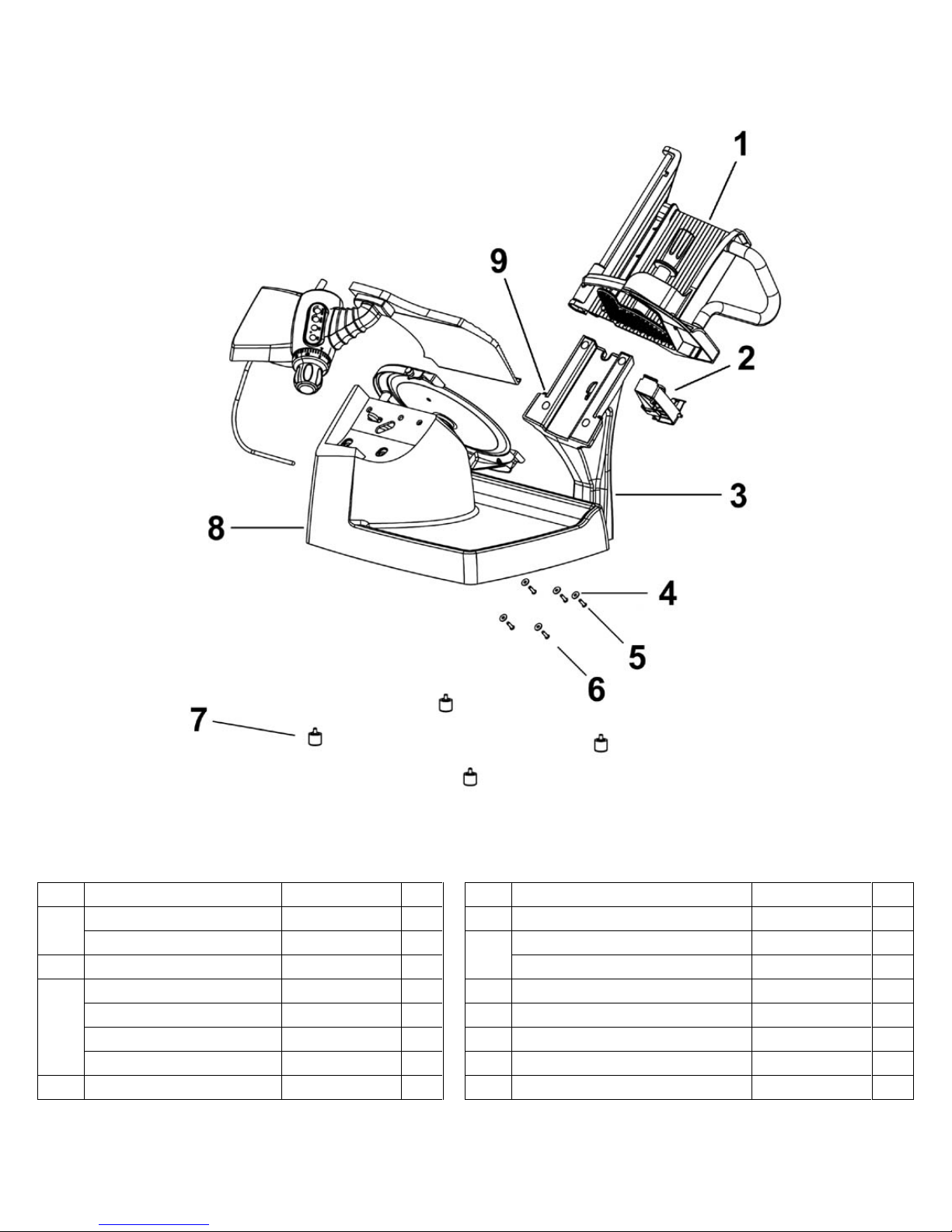

4) TOP VIEW

NS Thread lock 10ml 1875-00108 5 Screw (Clam Shell) 2175-02744

Table Assy 4675-01134 6 Screw Long (Clam Shell) 2175-02749

1Table Assy 4675-01152 JM Foot 3875-00239

2 Sharpener 4675-01133 7Foot, Suction 3875-00249

Arm Assy, Manual 4675-01141 8 Base 3875-00171

Arm Assy, Manual, E 4675-01149 9 Screw, Table Adjust. 2175-00524

Arm Assy, Auto, A 4675-01142 NS Pin, Return Spring 3375-01399 JM

Arm Assy, Auto, AE 4675-01150 NS Spring, Return 3275-00240 JM

4 Washer 2275-00586 NS Hook, Foot Post 3275-00059 JM

JM = Jersey Mike

X13 Exploded Views May 2007

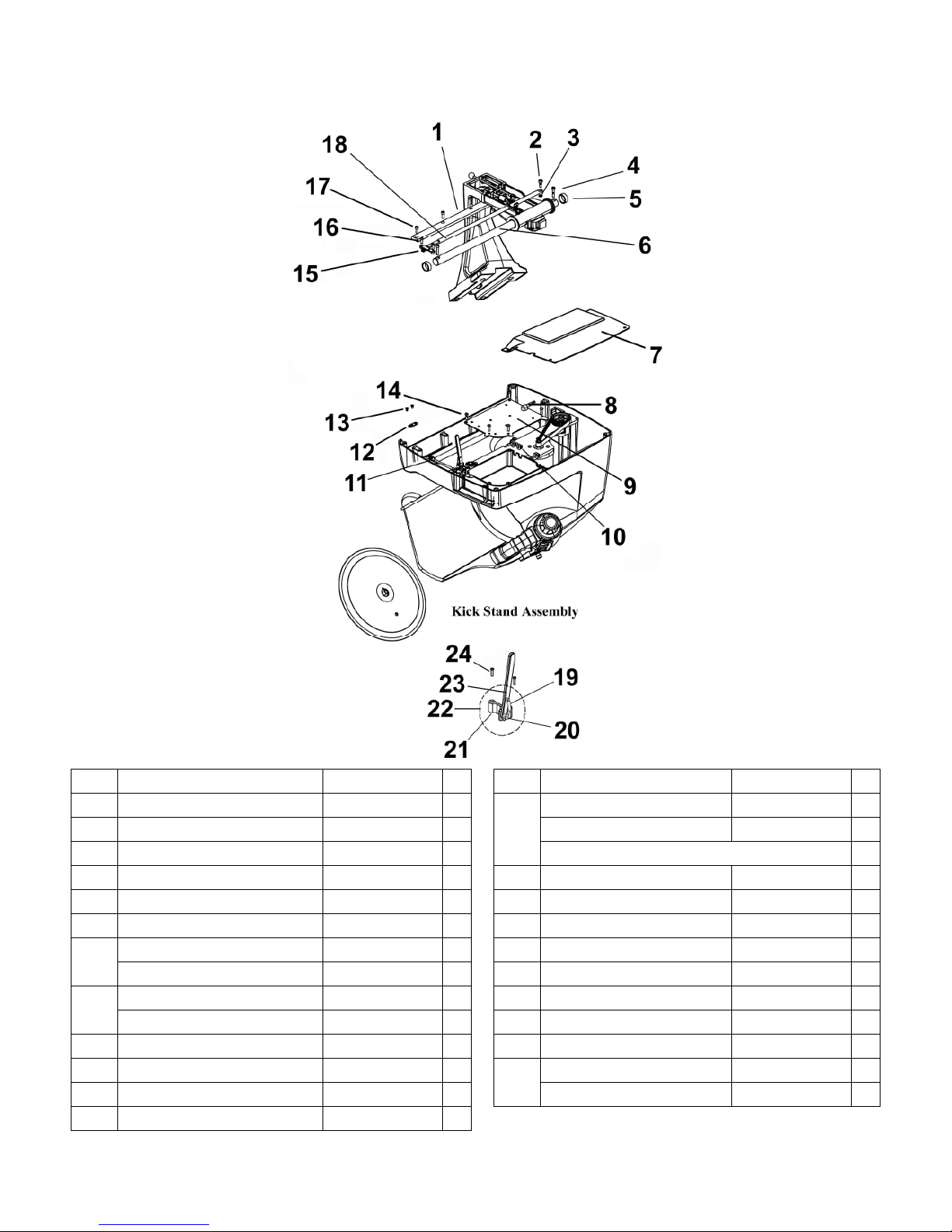

5) BOTTOM VIEW

1 Square Rail 3375-01278 14 Screw 2175-02854

2 Bolt 2175-00503 Slide Bar Guide 3875-00183

3 Washer 2275-00588 Screw for Switch 2175-00518 A

4 Screw 2175-02861 15 Switch (see Autodrive Assy) A

5 Bumper 3275-00233 16 Screw 2175-02866

6 Round Rail 3375-01306 17 Screw 2175-02743

7 Bottom cover 3875-00238 A 18 Slide Bar 3375-01275

Power Cord 4175-00719 19 Extension Spring 3275-00234

8Bushing, Strain Relief 2675-00562 20 Shoulder Bolt 2175-00525

PCB Assy, Manual 4875-00047 21 Bracket Assy 4375-00234

9PCB Assy, Auto 4875-00046 A 22 Kick Stand Assy 4675-01139

10 Grommet 3875-00234 23 Leg Assembly 4375-00235

11 Clevis 2375-00184 Bolt, Manual 2175-02869

12 Clamp 3375-01286 24 Bolt, Auto 2175-00527 A

13 Screw 2175-02934

A = X13A

X13 Exploded Views May 2007

6) KNIFE, MOTOR & BEARING ASSEMBLY

1 Knife 3675-00277 8 Mount 3475-00963

2 Bolt 2175-00468 9 Belt 2375-00176

3 Washer 2275-00524 10 Screw 2175-02746

4 Knife Bearing Assy 4675-01140 11 O-Ring 2275-00554

5 Nut 2175-00469 12 O-Ring 2275-00530

6 Screw 2175-02744 13 Mount 3375-01269

7 Motor 4175-00686

X13 Exploded Views May 2007

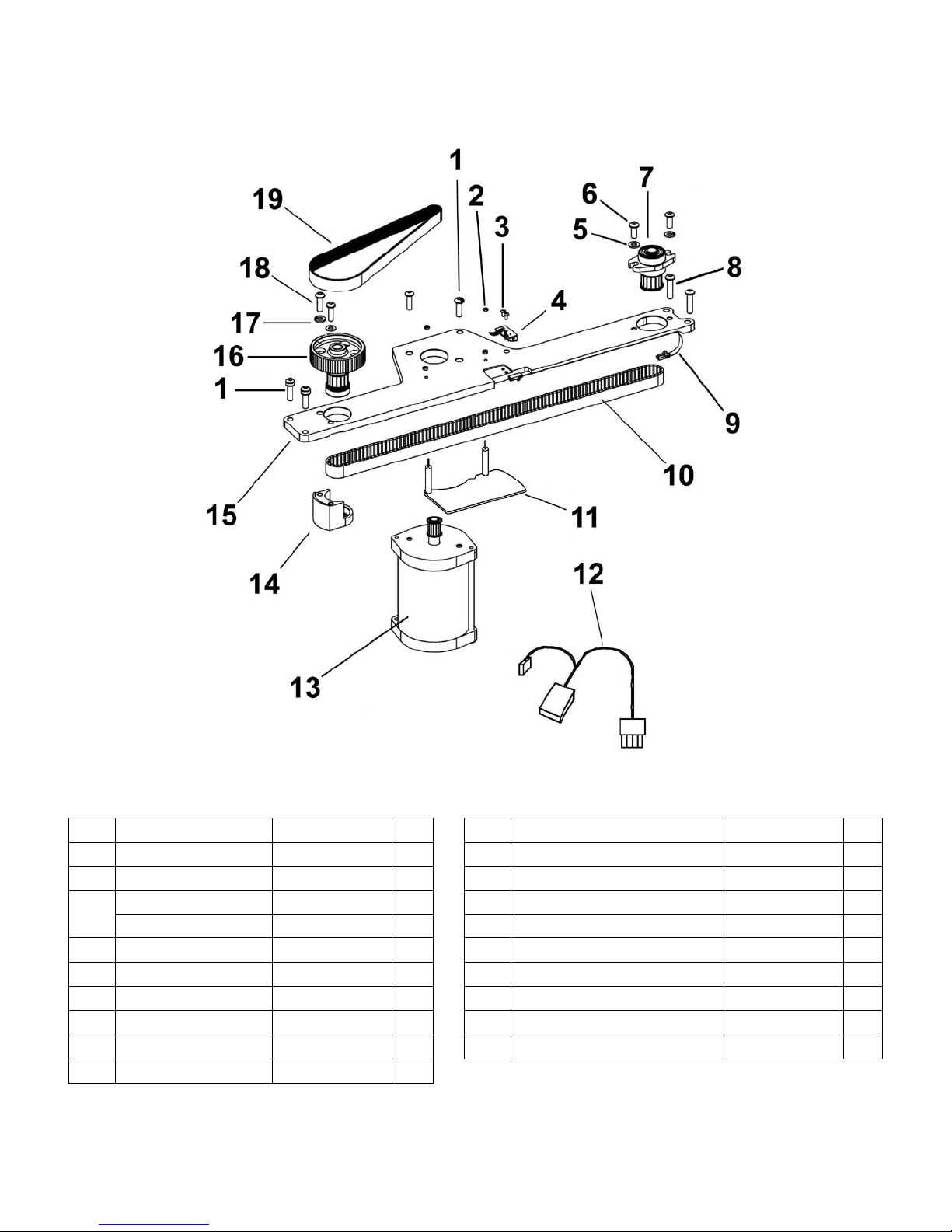

7) AUTODRIVE ASSEMBLY

1 Screw 2175-02868 A 11 Guide Assy, Flex Cable 4675-01151 A

2 Nut 2175-00522 A 12 J9 Cable 4175-00716 A

3 Screw 2175-02831 A 13 Motor Assy 4175-00725 A

J4 Cable 4175-00717 A 14 Housing 3775-00495 A

4J4 Cable 4175-00732 AE 15 Plate 3575-00426 A

5 Washer 2275-00587 A 16 Transmission 4375-00225 A

6 Screw 2175-02866 A 17 Nylon Washer 2275-00603 A

7 Tensioner Assy 4375-00224 A 18 Screw 2175-02868 A

8 Screw 2175-00527 A 19 Belt 2375-00172 A

9 Flex Cable Assy 4175-00714 A NS Wire, Timer Reset 4175-00730

10 Belt 2375-00171 A

A = X13A / AE = X13AE

X13 Exploded Views May 2007

8) GAUGE PLATE ASSEMBLY

1 Upper Mount 3875-00237 15 Cam Assy (Items 11-16) 4375-00232

2 Screw 2175-00528 16 Cam (not sold separately)

Overlay, Manual 3175-00945 17 Screw 2175-00500

3Overlay, Auto 3175-00941 A 18 Cylindrical Nut 3375-01276

4 Screw 2175-02756 19 Adjustment Block 3275-00219

5 Screw 2175-00517 20 Boot 3875-00236

6 Clamp 3375-01286 Cable 2375-00175

Gauge Plate 3775-00458 Grommet 2275-00609 E

7Gauge Plate 3775-00501 JM 21 Stop Pin, Index Knob 3375-01393 E

8 Lower Housing 3875-00207 22 Cap 2275-00414

Screw (Upper/Lower Housing) 2175-02744 23 Nut 2175-00504

Screw, Short (Housing to Base) 2175-02744 Index Knob 3875-00173

Screw, Long (Housing to Base) 2175-02749 24 Index Knob 3875-00255 CB

Washer (Clam Shell to Base) 2275-00586 Nut 2175-00077

10 Screw 2175-02779 25 Lock washer 3275-00013

11 Dowel Pin 2275-00581 26 Upper Wire Harness 4175-00715

12 Flange Bushing 2275-00526 Upper PCB, Manual 2675-00921

13 Slider Arm 3875-00182 27 Upper PCB, Auto 2675-00918 A

14 Shoulder Bolt 2175-00501 28 Upper Housing 3875-00208

JM = Jersey Mike / CB = Cracker Barrel / A = X13A / E = X13E

X13 Exploded Views May 2007

9) ARM ASSEMBLY – TOP VIEW

Top Plate Assy (Interlock) 4675-01127 9 Washer 2275-00589

Top Plate Assy 3875-00250 E 10 Arm with Bushings 4375-002261 Top Plate Assy (E Conv.) 4975-00474 E 11 PCB Assembly 2675-00920 A

2 Screw 2175-02862 A 12 Screw 2175-02831 A

3 Cam 3475-01021 A 13 Clip Assembly 4575-01033 A

4 Shaft 3375-01376 A 14 Plate 3475-01023 A

5 Disc Spring 2275-00592 A 15 Screw 2175-02923 A

6 Knob 2275-00580 A 16 Screw 2175-02864

7 Rod 3375-01373 A 17 Plug 3875-00235

8 Screw 2175-00520 18 Screw, Table Adjust 2175-00524

A = X13A / E = X13E

X13 Exploded Views May 2007

10) ARM ASSEMBLY – BOTTOM VIEW

1 Rod 3375-01373 A 12 Bushing 2275-00521

2 Screw 2175-02862 A 13 Spacer 3375-01378

3 Clevis 2375-00184 A 14 Bolt 2175-00502

4 Crank 3475-01022 A 15 Roller 2375-00167

5 Shoulder 3875-00499 NE 16 Mount 3375-01280

6 Spring 3275-00236 NE 17 Screw 2175-02746

7 Cup 3875-00498 NE 18 Screw 2175-00510

8 Clevis 2375-00184 NE 19 Cable 2375-00168 NE

9 Slider 3875-00195 NE 20 Clamp 3375-01286 NE

10 Washer 2275-00587 21 Screw 2175-02934 NE

11 Screw 2175-02745 22 Knob 2275-00580 A

A = X13A / NE = Not on X13E
