Fein ABLK 1.3E/TSE Guida all'installazione
FRT: ABLK 1.3 TE/CSE, 1.6 E
Repair instructions
C-SC_CSSM 2012.07
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. 2/33
Contents
1. Models described
2. Technical data
3. Provisions
4. Tools required
5. Lubricants and auxiliary substances required
6. Disassembly
7. Assembly
8. Connection diagram
FRT: ABLK 1.3 TE/CSE, 1.6 E
Repair instructions
C-SC_CSSM 2012.07
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. 3/33
1. Models described
Model Order no.
ABLK 1.3 TE 713203
ABLK 1.3 CSE 713202
ABLK 1.6 E 713201
These instructions describe how to repair the following models:
FRT: ABLK 1.3 TE/CSE, 1.6 E
Repair instructions
C-SC_CSSM 2012.07
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. 4/33
2. Technical data
Technical data
The complete technical data can be found in the operating instructions for the model.
Test data
Up-to-date test data for all models can be found on the FEIN Extranet (Customer Service → Repair Guides).
Lubricants
Lubricants and container sizes available from FEIN can be found on the FEIN Extranet (Customer Service →
Repair Guides).
Lists of spare parts
Lists of spare parts and exploded views are available online at www.fein.com
FRT: ABLK 1.3 TE/CSE, 1.6 E
Repair instructions
C-SC_CSSM 2012.07
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. 5/33
3 Provisions
Provisions
Please note that power tools may only be repaired, maintained and checked by a trained
electrician, as improper repair can result in serious risks to the user.
The provisions set out in DIN VDE 0701-0702 should be observed after repairs.
Only use original FEIN spare parts!
The relevant accident prevention regulations of the employers’ liability insurance associations are
to be observed when commissioning.
The German Equipment and Product SafetyAct applies for correct use.
Outside Germany, the regulations applicable in the relevant country must be observed!
FRT: ABLK 1.3 TE/CSE, 1.6 E
Repair instructions
C-SC_CSSM 2012.07
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. 6/33
4. Tools required
Standard tools
Open-ended spanner WAF 30
Plastic hammer
Slotted screwdriver, Torx 15
Flat nose pliers
Long-nosed pliers
Circlip pliers
Punch
Arbor press
Cable hooks
Slide gauge
Feeler gauge
Hot air gun
Special tools
Drawing-off socket cap 6 41 04 150 00 8
Chuck cone 26 mm 6 41 07 026 00 0
Extractor tool 6 41 14 033 00 0
Press-in fixture 6 41 22 108 00 0
FRT: ABLK 1.3 TE/CSE, 1.6 E
Repair instructions
C-SC_CSSM 2012.07
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. 7/33
5. Lubricants and auxiliary substances required
Lubricants
Grease 0 40 108 0400 8 15 g Gearbox, needle bearing, ball bearing
Grease 0 40 119 0500 7 Sliding surfaces of plunger, con rod, punch
Auxiliary substances
Loctite 574 Between gearbox head and intermediate bearing
FRT: ABLK 1.3 TE/CSE, 1.6 E
Repair instructions
C-SC_CSSM 2012.07
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. 8/33
6. Disassembly - Preparation
1. Press releasing button and pull out battery.
FRT: ABLK 1.3 TE/CSE, 1.6 E
Repair instructions
C-SC_CSSM 2012.07
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. 9/33

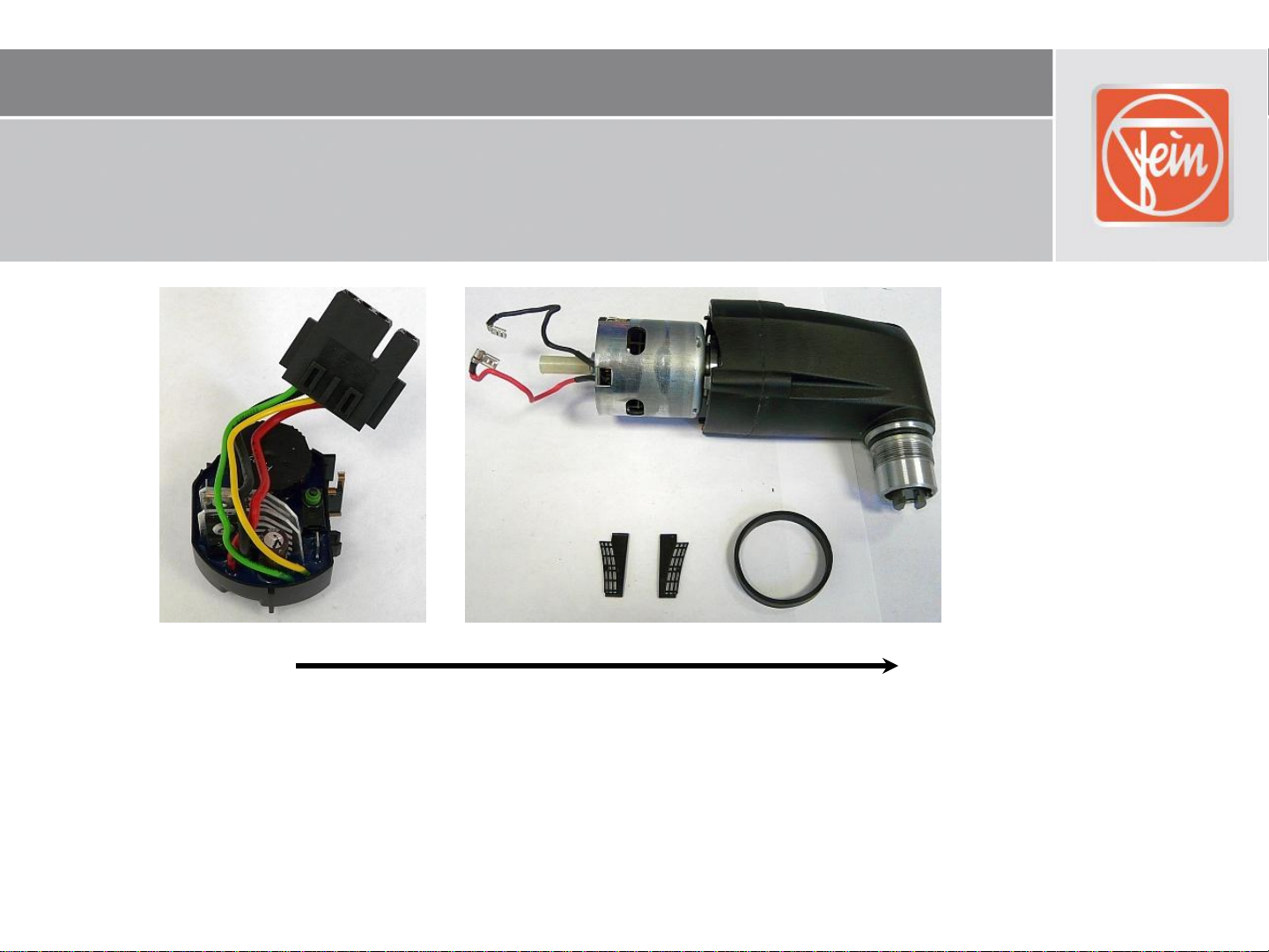

6.1. Disassembly - Motor
1. Remove screws from gearbox head.
2. Remove screws from motor housing.
3. Remove upper section of housing.
4. Remove control rod.
5. Remove electronics from lower section of housing together with motor and gearbox head.
Tool:
- Screwdriver
Torx 15
FRT: ABLK 1.3 TE/CSE, 1.6 E
Repair instructions
C-SC_CSSM 2012.07
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. 10/33
6.1. Disassembly - Motor
1. Pull off motor plug on electronics.
2. Take off rubber ring.
3. Remove protective grille.
