Excalibur Hot Wand
Model No. 2018, 2018EX
Excalibur Hot Wand Model No. 2018, 2018EX
Page 2
gmpopcorn.com
SAFETY PRECAUTIONS
Excalibur Hot Wand Model No. 2018, 2018EX
Page 3
gmpopcorn.com
INSTALLATION INSTRUCTIONS
Inspection of Shipment
After unpacking, check thoroughly for any damage which may have occurred in transit. Claims
should be filed immediately with the transportation company. The warranty does not cover
damage that occurs in transit, or damage caused by abuse, or consequential damage due to the
operation of this machine, since it is beyond our control.
Setup
Remove all packing material and tape before starting operation.
Electrical Requirements
The following power supply must be provided:
2018: 20Volts, 400 Watts
2018EX: 240Volts, 400 Watts
DANGER
Machine must be properly grounded to prevent electrical
shock to personnel. Failure to do so could result in serious
injury, or death.
Do NOT immerse any part of this equipment in water.
Do NOT use excessive water when cleaning.
Keep cord and plug off the ground and away from
moisture.
Always unplug the equipment before cleaning or servicing.
Your electrician must furnish sufficient power for proper machine operation. We recommend
this equipment be on a dedicated and protected circuit. Failure to wire properly will void the
warranty and may result in damage to the machine. It is Gold Medal Products Company’s
recommendation that this machine be plugged directly into a wall outlet. The use of extension
cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced
performance.
Before You Plug In Machine
. Make sure all machine switches are in the OFF position before plugging the equipment
into the receptacle.
2. Make sure the wall outlet can accept the grounded plugs (where applicable) on the
power supply cord.
3. The wall outlet must have the proper polarity. If in doubt, have a competent
electrician inspect the outlet and correct if necessary.
4. DO NOT use a grounded to un-grounded receptacle adapter.
5. Install the unit in a level position.
Excalibur Hot Wand Model No. 2018, 2018EX
Page 4
gmpopcorn.com
OPERATING INSTRUCTIONS
. The Excalibur Hot Wand has been designed to melt coconut popping oil in a 50lb pail.
To use, carefully remove lid from metal oil pail.
2. Plug hot wand into an appropriate outlet, as described above under electrical
requirements.
3. Gently push hot wand into the congealed oil by pushing down on the wooden handles.
4. When oil has melted unplug hot wand from outlet, and remove from the oil pail.
5. Carefully place the hot wand on a stainless steel surface and allow it to cool.
WARNING
To avoid serious burns, DO NOT touch the hot wand when
it is plugged in.
Excalibur Hot Wand Model No. 2018, 2018EX
Page 5
gmpopcorn.com
CARE AND CLEANING
. Unplug the machine and allow it to cool before cleaning
2. Wipe the stainless steel down with a warm, soapy cloth.
3. Make sure to clean the wooden handles in order to sanitize them before each use.
DANGER
Machine must be properly grounded to prevent electrical
shock to personnel.
DO NOT immerse in water.
Always unplug the equipment before cleaning or servicing.
Good sanitation practice demands that all food preparation equipment be cleaned regularly. A
clean looking, well-kept machine is one of the best ways of advertising your product.
Excalibur Hot Wand Model No. 2018, 2018EX
Page 6
gmpopcorn.com
MAINTENANCE INSTRUCTIONS
DANGER
Improper installation, adjustment, alteration, service, or
maintenance can cause property damage, injury or death.
Read the installation, Operating, and Maintenance
Instructions thoroughly before installing or servicing this
equipment.
DANGER
Do Not immerse the equipment in water. Unplug your
machine before servicing.
WARNING
Adequate eye protection must be used when servicing this
equipment to prevent eye injury.
CAUTION
THE FOLLOWING SECTIONS OF THIS MANUAL ARE
INTENDED ONLY FOR QUALIFIED SERVICE
PERSONNEL WHO ARE FAMILIAR WITH ELECTRICAL
EQUIPMENT. THESE ARE NOT INTENDED FOR THE
OPERATOR.
Excalibur Hot Wand Model No. 2018, 2018EX
Page 7
gmpopcorn.com
ORDERING SPARE PARTS
. Identify the needed part by checking it against the photos, illustrations, and/or
parts list.
2. When ordering, please include part number, part name, and quantity needed.
3. Please include your model number, serial number, and date of manufacture (located
on the machine nameplate) with your order.
4. Address all parts orders to:
Parts Department
Gold Medal Products Co.
0700 Medallion Drive
Cincinnati, Ohio 4524 -4807
Or, place orders by phone or online:
Phone: (800) 543-0862
(5 3) 769-7676
Fax: (800) 542- 496
(5 3) 769-8500
E-mail: [email protected]
Web Page: www.gmpopcorn.com
Excalibur Hot Wand Model No. 2018, 2018EX
Page 8
gmpopcorn.com
Wand Breakdown
2018
2018EX
HOT WAND 79056 79088
2 WOOD HANDLE 2 50 0 50 0
3 LEAD-IN CORD 87085 42369
4 STRAIN RELIEF T&B #3302 89045 89045
5 JUNCTION BOX COVER 79057 79057
6 8-32 X /2 SLOTTED H W H 4 49379 49379
7 HIGH LIMIT THERMOSTAT 79058 79058
8 HANDLE BAR 79059 79059
Qty.Part DescriptionItem Part Number
1
3
2
5, 6
7
8
Excalibur Hot Wand Model No. 2018, 2018EX
Page 9
gmpopcorn.com

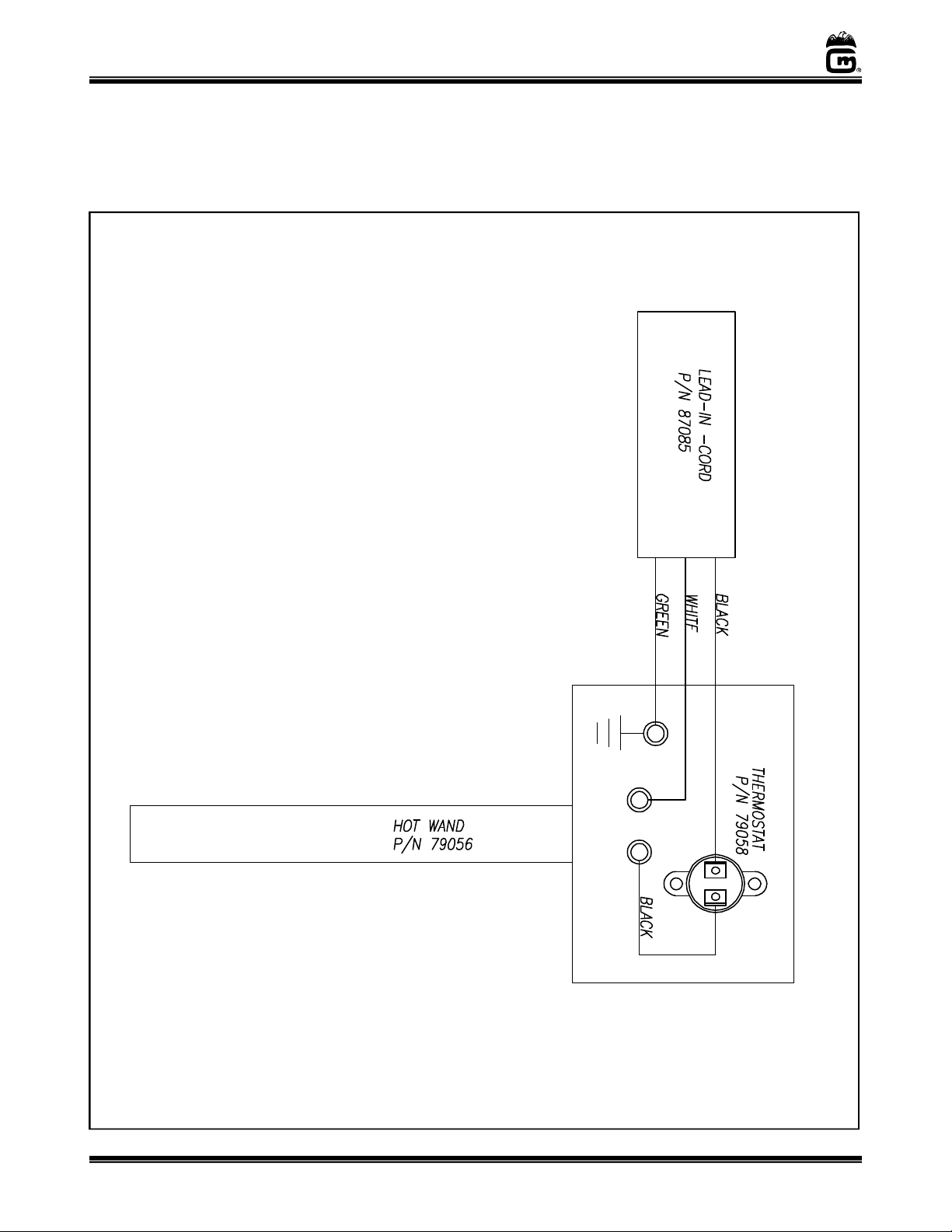

WIRING DIAGRAMS
Model No. 2018
Excalibur Hot Wand Model No. 2018, 2018EX
Page 10
gmpopcorn.com
Model No. 2018EX
