ICP DAS USA PM-3133i Manuale utente

ICP DAS Co., LTD PM-3133i Quick Start V1.00 Page 1

PM-3133i Quick Start

1. Shipping Package

This shipping package contains the following items

1 x PM-3133i module 1 x Quick Start Screw Driver x 1 Cable ties x 3

1.1.Caution & Warning

The meter contains hazardous voltages, and should

never be disassembled. Failing to follow this practice will

result in serious injury or death. Any work on or near energized meters,

meter sockets, or other metering equipment could induce a danger of

electrical shock. It is strongly recommended that all work should be

performed only by qualified industrial electricians and metering

specialist. ICP DAS assumes no responsibility if your electrical installer

does not follow the appropriate national and local electrical codes.

ICP DAS assumes no liability for any damage resulting from the use of

this product. ICP DAS reserves the right to change this manual at any

time without notice. The information furnished by ICP DAS is believed

to be accurate and reliable. However, no responsibility is assumed by

ICP DAS for its use, not for any infringements of patents or other rights

of third parties resulting from its use.

ICP DAS Co., LTD PM-3133i Quick Start V1.00 Page 2

1.2.Product Warranty & Customer Support

ICP DAS warrants all products free from defects in material and

workmanship for a period of one year from the date of shipping. During

the warranty period, we will, at our position, either repair or replace any

product that proves to be defective. To report any defect, please

contact ：+886-3- 597-3366 or servic[email protected].

Documentation & Utility:

http://ftp.icpdas.com/pub/cd/powermeter/pm-3133i/

1.2.1. Limitation of Warranty

This warranty does not apply to defects resulting from unauthorized

modification, misuse, or use for reason other than electrical power

monitoring. The supplied meter is not a user-serviceable product.

2. Installation

2.1.

Products come with external split type clip-on CT’s. Disconnect the

CT’s or use other CT’s is highly prohibited.

Please read this operation manual carefully before using.

Please re-confirm the measure position.

Reconfirm the RST (ABC) phase sequence of the power system.

Meter auxiliary power for PM-3133i series is DC +12V ~+48V.

ICP DAS Co., LTD PM-3133i Quick Start V1.00 Page 3

2.2.Voltage Input

1. PM-3133i series: Input Voltage up to 600V.

For any higher Input Voltage large than 600V, please add the PT

(power transformer), and Change PT RATIO setup.

2. Confirm the RST (ABC) phase sequence.

2.3.Current Input

1. The external CT’s are fragile, please handle with care.

2. The CT input of PM-3133i-xxxP series is in mV range.

Only the ex-factory attached CT’s can be used. The other CT’s, for

example, from panel will damage the instrument due to its large

current (around 5A or mA).

3. When more than one smart meter (PM-3133i series) are installed,

please do not disconnect the CT with its original meter and mix use

with each other. Since each set of smart meter (PM-3133i series)

and its attached split type clip-on CT are calibrated set by set. The

mix use may cause wrong measurements.

4. To install CT’s correctly, please ensure the CT lines sequences is

right before clip the CT’s onto the power cable of the monitoring

equipment. (Detail will be found in next section)

ICP DAS Co., LTD PM-3133i Quick Start V1.00 Page 4

5. When measuring the current, the secondary circuit of a CT

should never be opened when a load is passing through its

primary. Make sure you always open the CT clip to detach the

CT before removing the terminal lines. Otherwise, it will cause

severe injury.

6. Please handle with extra care, especially when the operation space

of CT’s is limited.

7. The current direction must follow K-L marked on CT’s.

8. Please select the right size CT’s for different size of monitoring

equipment cables:

power cable diameter ＜Φ10 use 60A CT，Φ10～Φ16 use 100A

CT，Φ16～Φ24 use 200A CT

，Φ24～Φ36 use 300A or 400A CT。

9. The maximum current value cannot exceed the CT rating.

ICP DAS Co., LTD PM-3133i Quick Start V1.00 Page 5

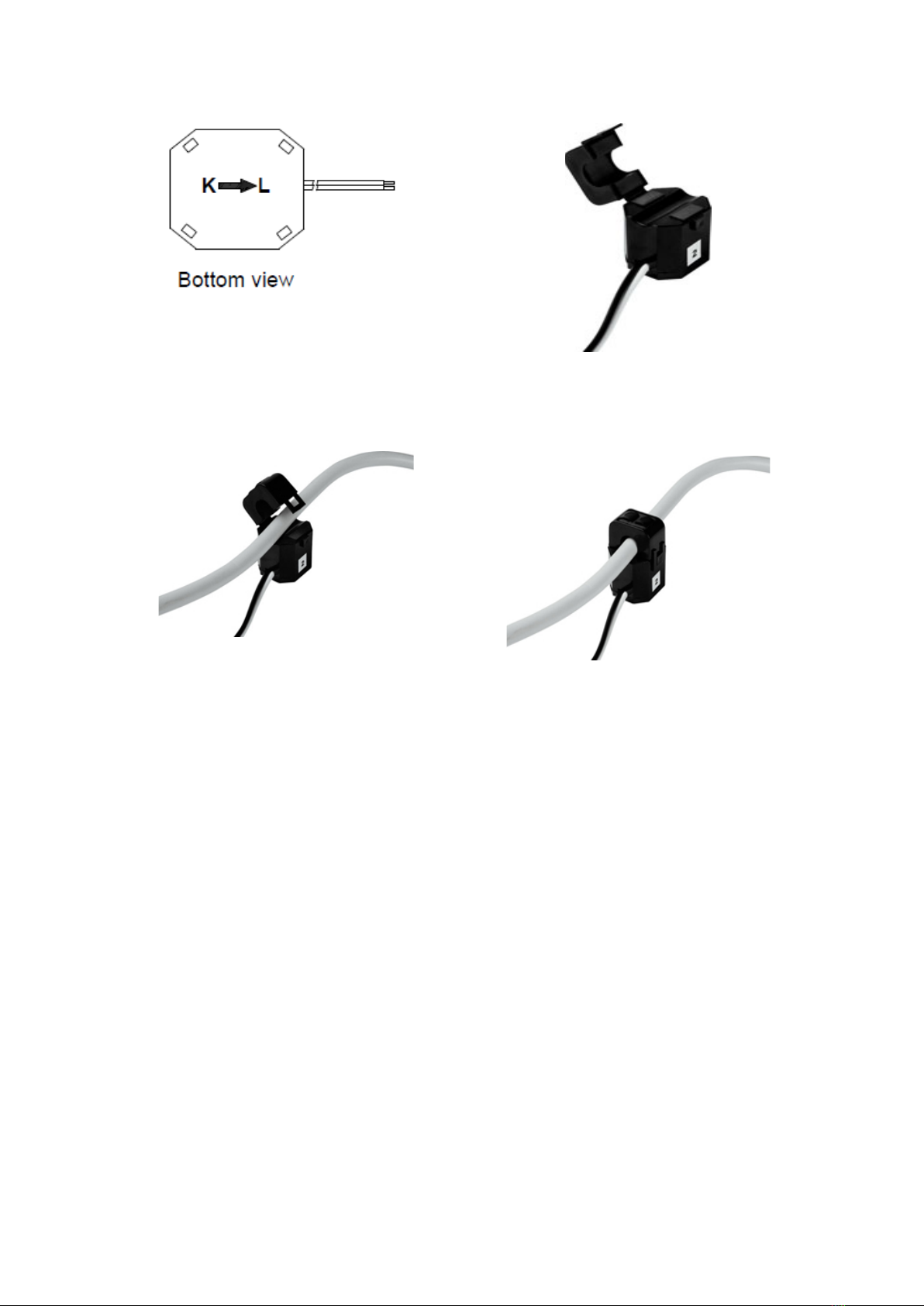

2.4. CT’s installation steps

At the bottom of the CT,

there is a “K→L” mark.

Open the CT clip.

Make sure the power current

direction follow the “K→L”

mark on the CT and then

close the CT clip.

Installation steps finished.

ICP DAS Co., LTD PM-3133i Quick Start V1.00 Page 6

2.5.Wiring

1P2W-1CT(PM-3133i)

1P3W-2CT(PM-3133i)

ICP DAS Co., LTD PM-3133i Quick Start V1.00 Page 7

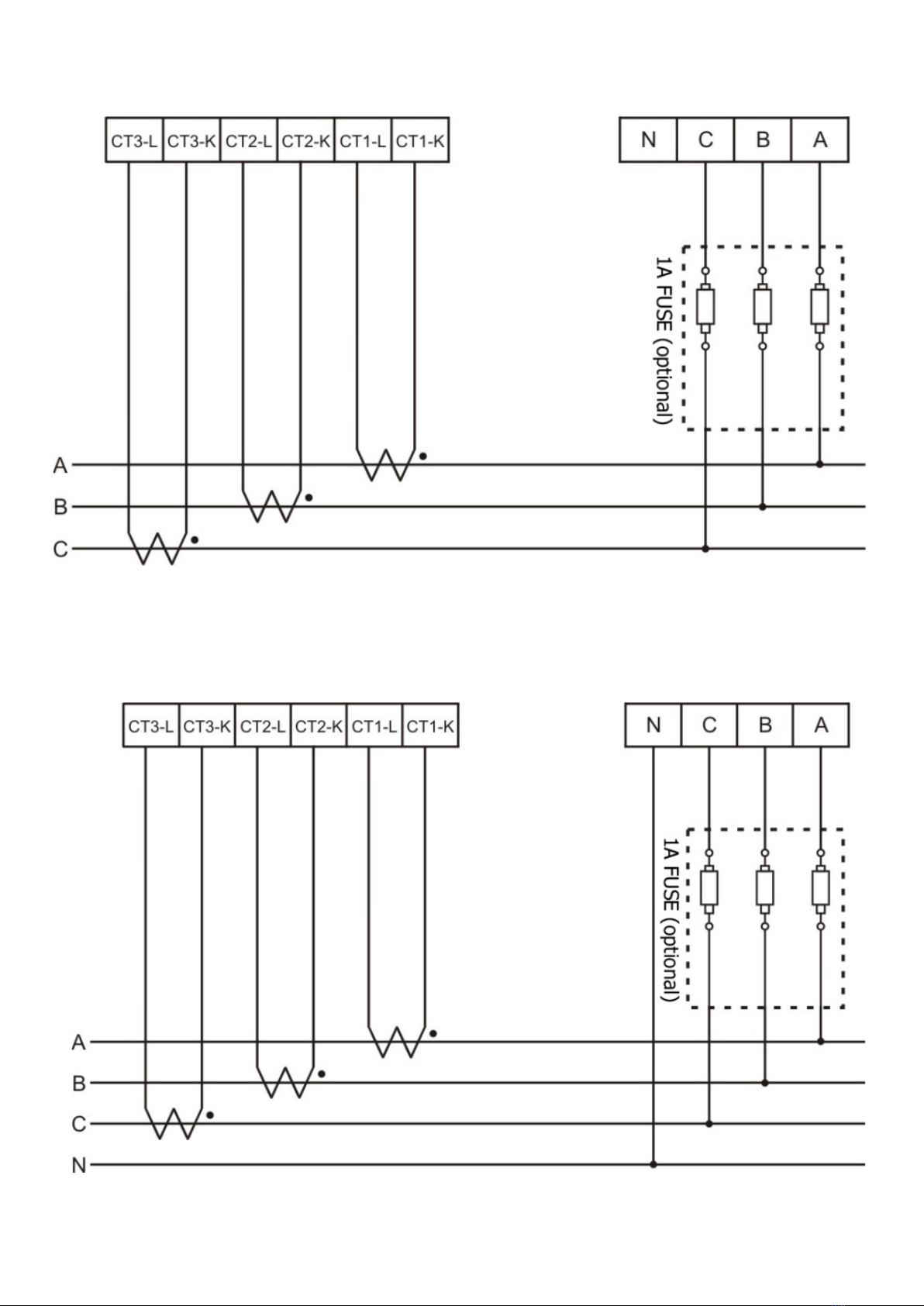

3P3W-3CT(PM-3133i)

3P4W-3CT(PM-3133i)

ICP DAS Co., LTD PM-3133i Quick Start V1.00 Page 8

3. Communication

3.1.RS-485 & CAN setting

Default setting for RS-485: 19200, n, 8, 1 ,for CAN:125K bps

DIP switch (SW1-SW6) is used for Modbus address(or

CANopen Node ID) setting, default is 1, i.e. all OFF

For example: Modbus address(or CANopen Node ID) is 10，

find the table of DIP switch 1-6 is ON, OFF, OFF, ON, OFF, OFF

SW1－SW6 setting

Setting Modbus-RTU address for communication (1-64)

Modbus Address

SW 1

SW 2

SW 3

SW 4

SW 5

SW 6

OFF

SW7－SW8 For Baud Rate Setting

RS-485

CAN

SW 7

SW8

9600 bps

125k(Default)

OFF

19200 (Default)

250k bps

OFF

38400 bps

500k bps

OFF

115200 bps

1M bps

PM-3133i：Select the different wiring mode

(Please select the Software setting, if 1P2W-1CT or 1P3W-2CT is used)

Models PM-3133iPM-3133i-MTCP

Wiring SW 9 SW 10 SW 1 SW 2

Software setting

OFF

3P3W-2CT

OFF

3P3W-3CT

OFF

3P4W-3CT

3.2.Add the Bias Resistor on RS-485 Network for stable signal

The RS-485 master is required to provide the bias for PM-31xx series.

Otherwise, the tM-SG4 or SG-785 should be added to provide the bias. All

ICP DAS controllers and converters provide the bias.
