KOBE Brand Range Hood

Model No. RA9436SQF

RA9436SQB

RA-094 SERIES

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

Important Safety Instructions................................................................................................. 1

Components of Package....................................................................................................... 3

Installation............................................................................................................................. 4

Operation Instructions........................................................................................................... 8

Maintenance ......................................................................................................................... 9

Specifications...................................................................................................................... 10

Measurements & Diagrams................................................................................................. 11

Parts List............................................................................................................................. 12

Circuit Diagram................................................................................................................... 14

Disclaimer........................................................................................................................... 15

Warranty............................................................................................................................. 16

Product Registration............................................................................................................ 18

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN

ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES.

kv.071505

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,

OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean fan, baffles/filters and grease laden surfaces frequently. To reduce the risk of fire and to

disperse air properly; make sure to vent air outside. DO NOT vent exhaust air into wall spaces,

attics, crawl spaces or garages.

NOTE - This warranty is invalid without an authorized agent’s

receipt or if unit is damaged due to misuse, poor

installation, improper use, mistreatment, negligence or any

other circumstances beyond the control of KOBE RANGE

HOODS authorized agents. Any repair carried out without

the supervision of KOBE RANGE HOODS authorized agents

will automatically void the warranty.

- KOBE RANGE HOODS will not be held responsible for any

damages to personal property or real estate or any bodily

injuries whether caused directly or indirectly by the range

hood.

WARNING – TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:

1) Keep fan, baffle/filter, if any, and grease-laden surfaces clean.

2) Always turn hood ON when cooking at high heat.

3) Use high settings on cooking range ONLY when necessary.

4) Do not leave cooking range unattended when cooking.

5) Always use cookware and utensils appropriate for the type and amount of food prepared.

6) Use this unit only in the manner intended by the manufacturer.

7) Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

8) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan and

baffles/filters.

What to Do In The Event Of a Range Top Grease Fire

SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, and then turn off the

burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the

flames do not go out immediately, EVACUATE THE AREAAND CALL THE FIRE DEPARTMENT

or 911.

NEVER PICK UP A BURNING PAN – You May Get Burned.

DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

Extinguish any open flame.

Do not try to turn on the lights or any type of appliance.

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company

and Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and

vapors.

2) To reduce the risk of fire, use only metal ductwork.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities. Activating

any switch on may cause ignition or an explosion.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.

Disconnect appliance from electric power before servicing.

If equipped, the fluorescent light bulb contains small amounts of mercury,

which must be recycled or disposed of according to Local, State, and

Federal Codes.

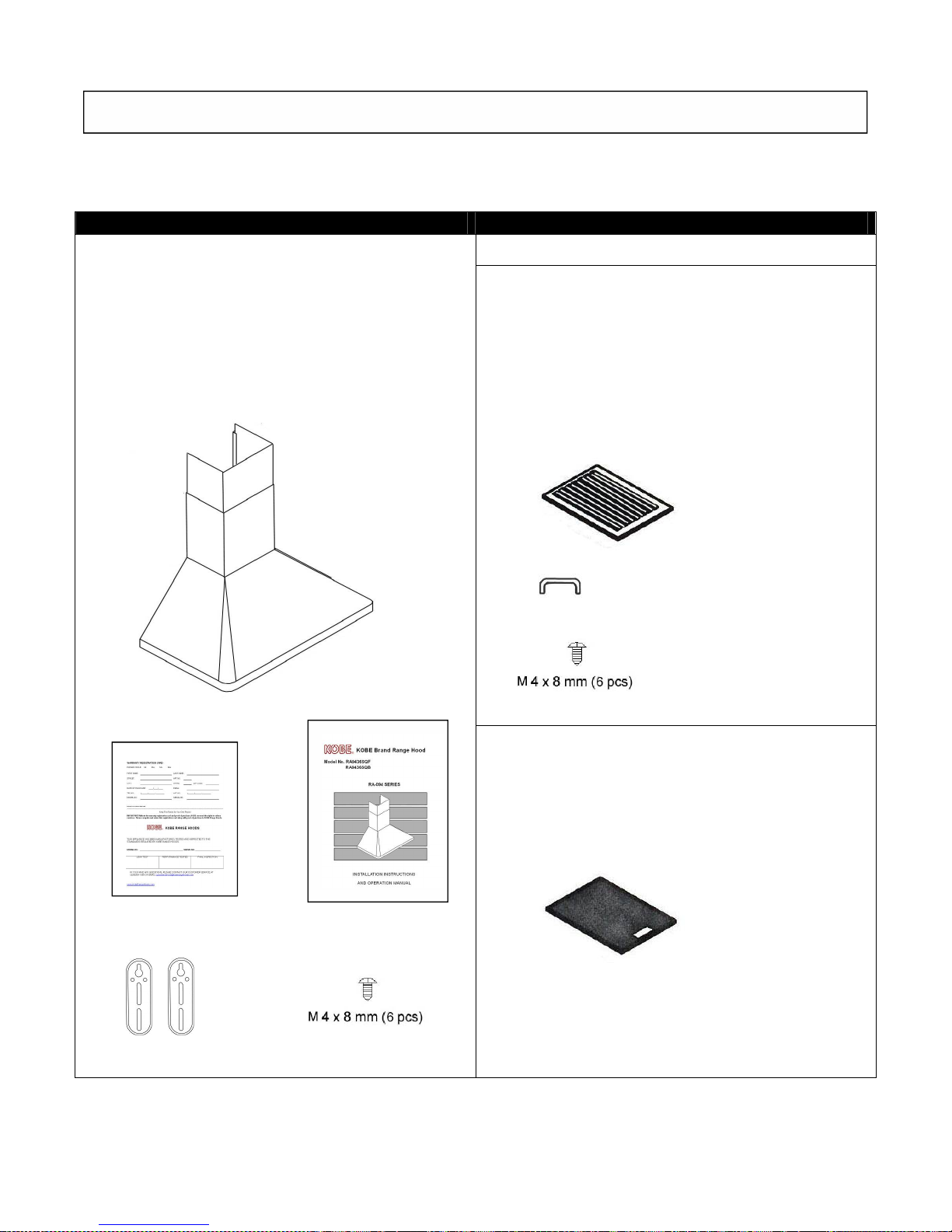

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

BOX 1 OF 2 BOX 2 OF 2

REQUIRED ONE OF THESE ITEM:

Item No. BF-9436 (Model No. RA9436SQB)

Baffle Filter – 3

Baffle Handle – 3

Screws Package – 1







Item No. RA-9436

KOBE Range Hood – 1

Warranty Registration Card – 1

Instructions Manual – 1

Hood-Mounting Bracket – 2

Screws Package – 1







*Attached to Hood

Item No. AF-9436 (Model No. RA9436SQF)

Aluminum Filter – 3



INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before Installation

To calculate the length of the installation, please refer to Table 1. (All calculations are

measured in inches.)

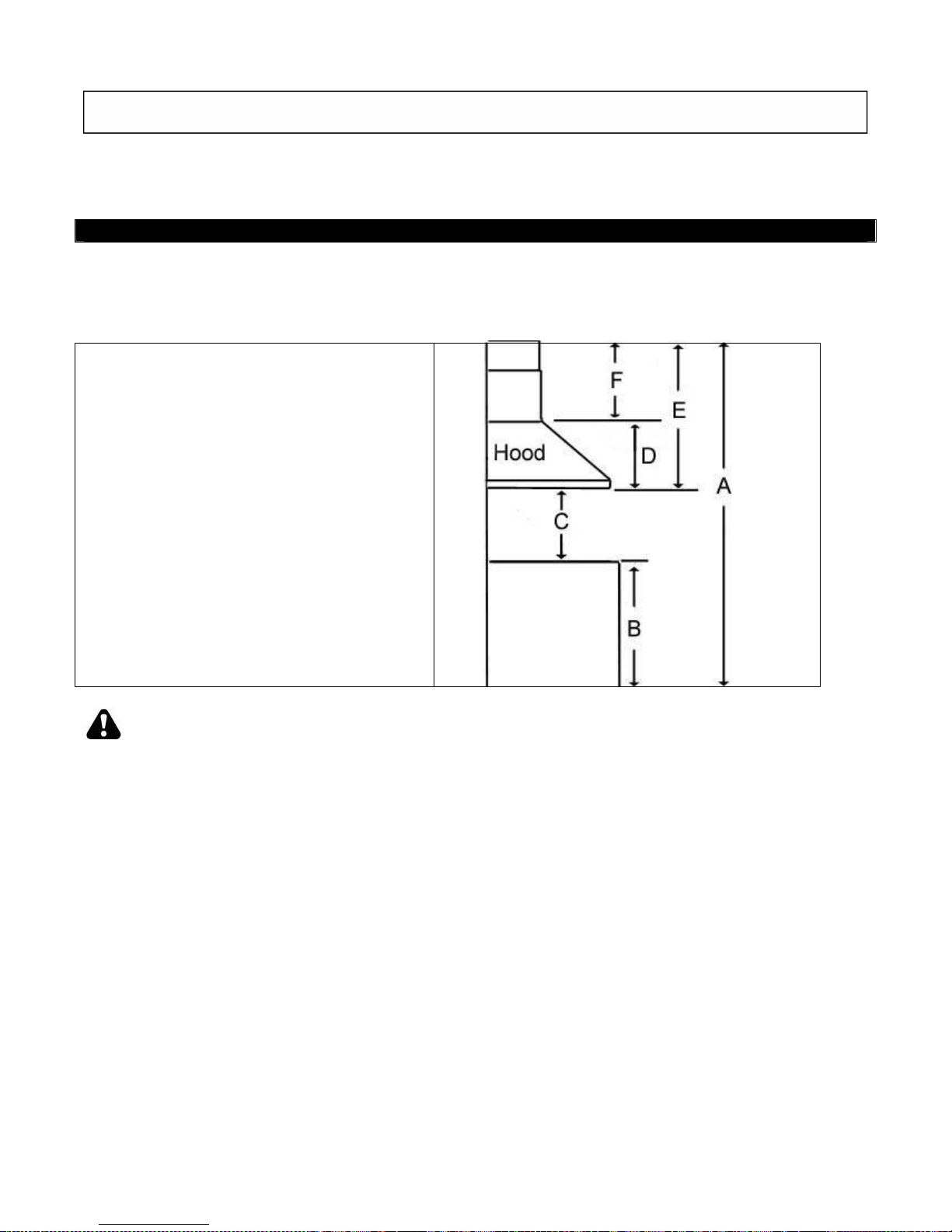

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top

to Hood Bottom (Recommended

27” to 30”)

D = Height of Hood

E = Height of the Hood Installation

[A – (B+C)]

F = Height of Duct Cover

[E – D]

SAFETY W ARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT IS

NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD

MAY OCCUR.

Preparation before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD,

PREVENT DEBRIS FROM ENTERING

THE VENT OPENING.

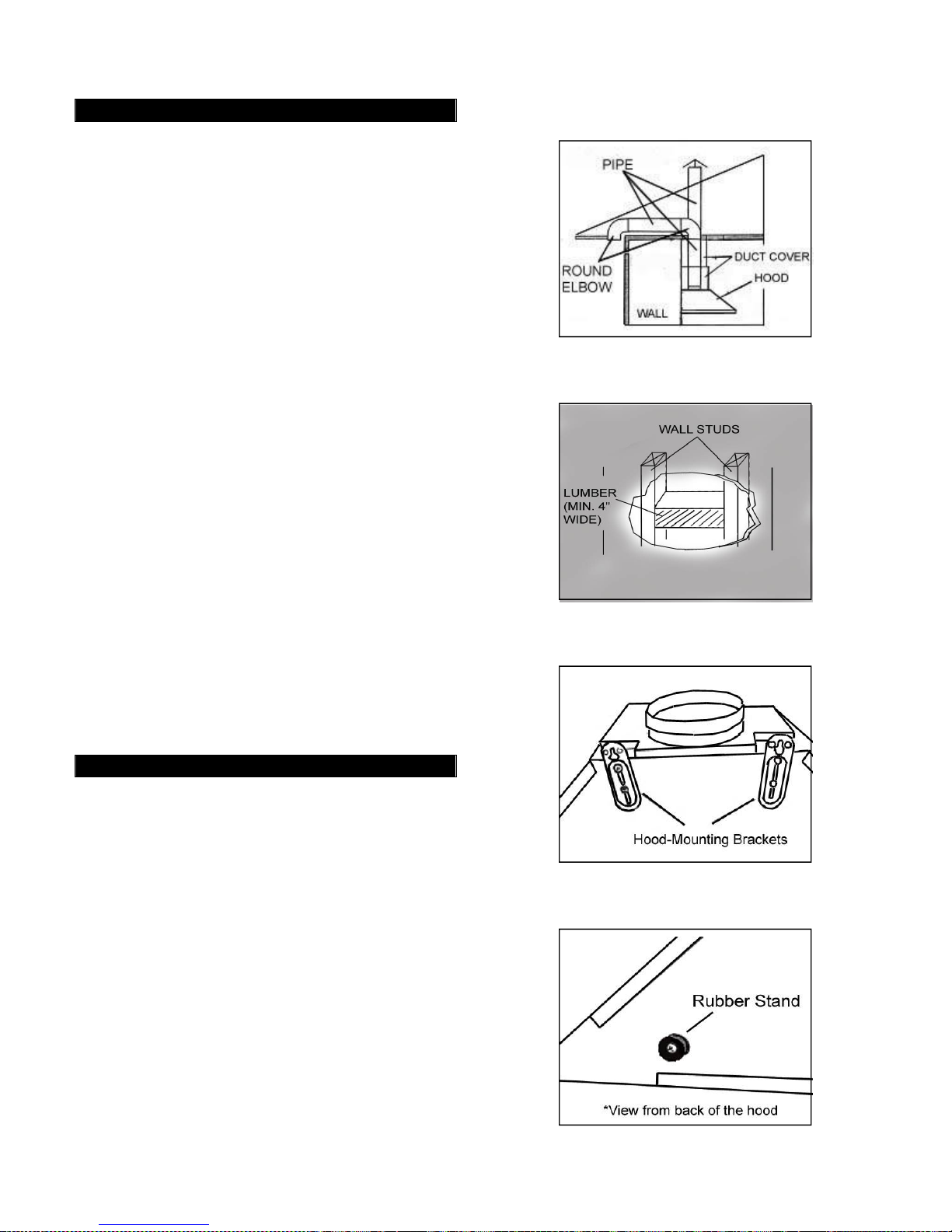

Decide the location of the venting pipe

from the hood to the outside. (Figure 1)

A straight, short venting run will allow

the hood to perform more efficiently.

Try to avoid as many transitions,

elbows, and long run as possible. This

may reduce the performance of the

hood.

Temporarily wire the hood to test for

proper operation before installing. Refer

to step 8 & 9 and figure 8 on page 6.

Important: Peel any protective film

off the hood.

Use duct tape to seal the joints between

pipe sections.

If necessary, prepare back wall frame

with cross framing lumber for secure

installation. Refer to Table 1 and

measurements on Page 11 to decide

the level of the lumber. (Figure 2)

Loosen hood-mounting brackets at the

back of the hood, adjust brackets and

tighten screws as shown in Figure 3.

If necessary, remove the rubber stand

on the back of the hood and discard.

(Figure 4)

Hood Installation

CAUTION: If it is necessary to move the

cooking range to install the hood, be sure to

turn off the power on an electric range at the

main electrical box. SHUT OFF THE GAS

BEFORE MOVING A GAS RANGE.

1. Using references in Table 1 and

measurements on Page 11, mark the

leveling locations point for hood-mounting

bracket on the wall.

2. Secure two mounting screws (not

provided) to the wall, leaving an 1/8”

space from the wall. (Figure 5)

3. Align the hood-mounting bracket to the

mounting screws on the wall and hang

hood into place.

Figure 1

Figure 2

Figure 3

Figure 4

4. Secure and tighten the mounting screws.

CAUTION: MAKE SURE THE HOOD IS

SECURE BEFORE RELEASING.

Ductwork Installation

5. Using Reference Efrom Table 1 and

measurements on Page 11, mark the

leveling point for duct cover-mounting

bracket.

6. Secure the duct cover-mounting bracket

to the wall with two screws (not provided).

(Figure 6) Make sure all screws are

tightened. NOTE: Inner duct cover will

cover the duct cover-mounting bracket.

7. Use aluminum or steel pipe (not provided)

to connect the plastic exhaust on the hood

to the ductwork above. Use duct tape to

ensure all joints are secure and air tight as

shown in Figure 7.

Wiring to Power Supply

SAFETY W ARNING

RISK OF ELECTRICAL SHOCK. THIS

RANGE HOOD MUST BE PROPERLY

GROUNDED. MAKE SURE THIS IS DONE

BY A SPECIALIZED ELECTRICIAN IN

ACCORDANCE WITH ALL APPLICABLE

NATIONAL AND LOCAL ELECTRICAL

CODES. BEFORE CONNECTING WIRES,

SWITCH POWER OFF AT SERVICE PANEL

AND LOCK SERVICE PANEL TO PREVENT

POWER FROM BEING SWITCHED ON

ACCIDENTALLY.

8. Connect three wires (black, white and

green) to house wires and cap with wire

connectors. Connect according to color:

black to black, white to white, and green

to green as shown in Figure 8

9. Test the operation of the hood before

performing the next step. Make sure

power is supplied to the hood.

Duct Cover Installation

10. Slide inner duct cover up 2 inches before

sliding entire duct cover onto the hood.

(Figure 9)

11. Align the inner duct cover to the duct

cover-mounting bracket. Secure

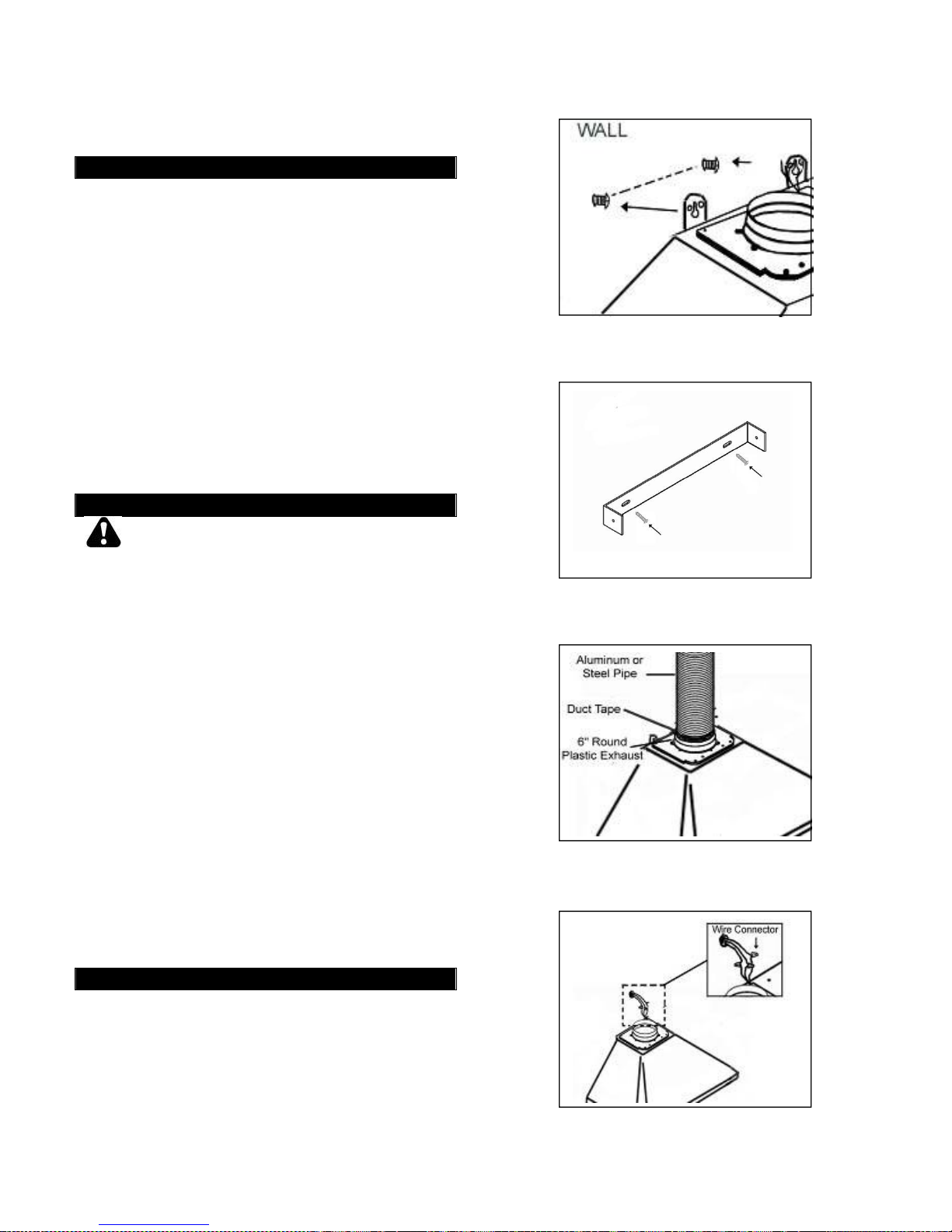

Figure 5

Figure 6

Figure 7

Figure 8

inner duct cover with two (4x8 mm)

screws (provided).

12. Fasten outer duct cover to plastic plate on

the hood with four (4x8 mm) screws

(provided).

Install Accessories

13. Place aluminum/baffle filters underneath

the hood. Refer to Figure 10.

Final Assembly

14. Turn power ON in control panel. Check

all lights and fan operation.

15. Leave this Installation Instructions and

Operation Manual for the homeowner.

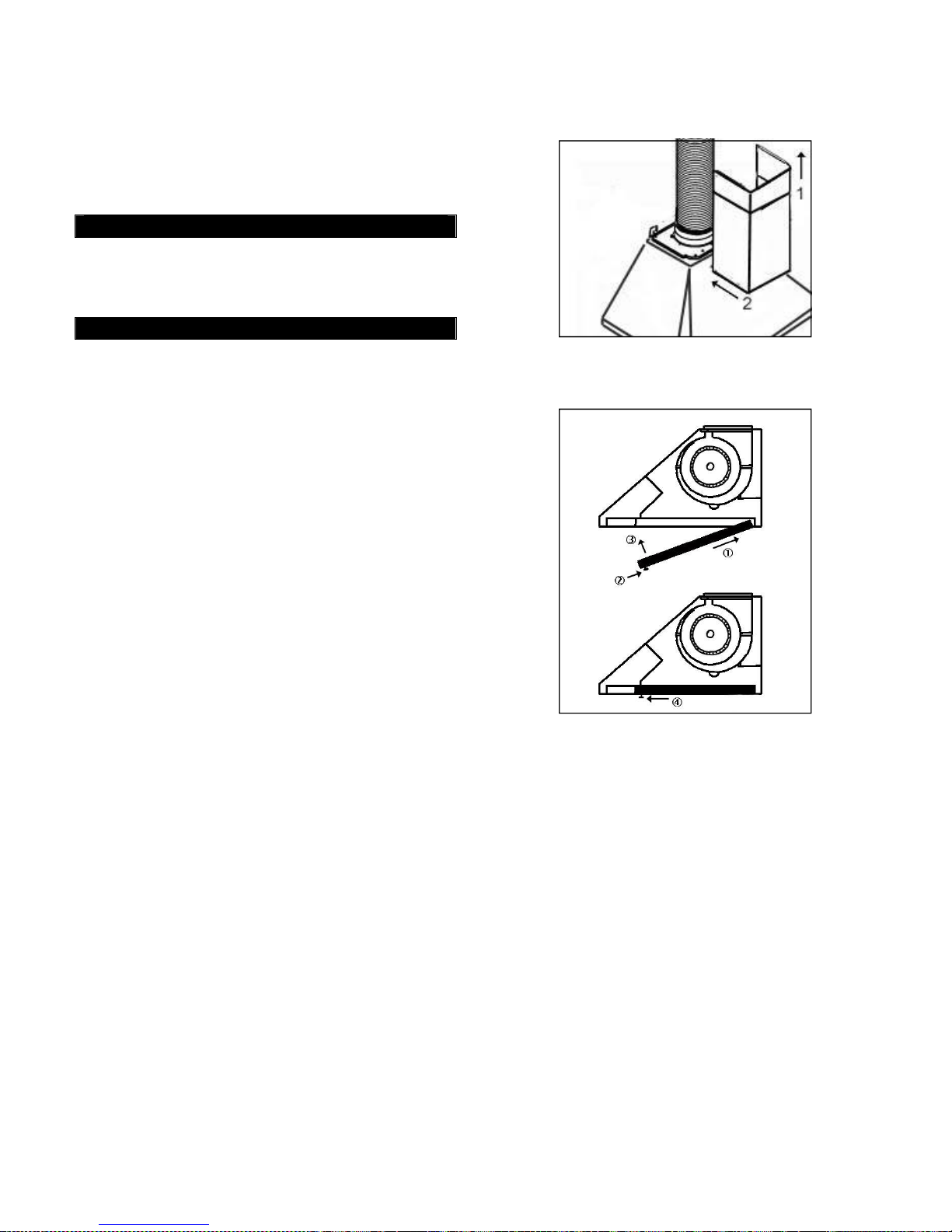

Figure 9

Figure 10

OPERATION INSTRUCTIONS

This KOBE hood is equipped with four electronic controls with a 10-second standby startup & 30-

second delay shutoff, one powerful centrifugal squirrel with baffle or aluminum filters, and two bright 12-

volt 20-watt halogen lights.

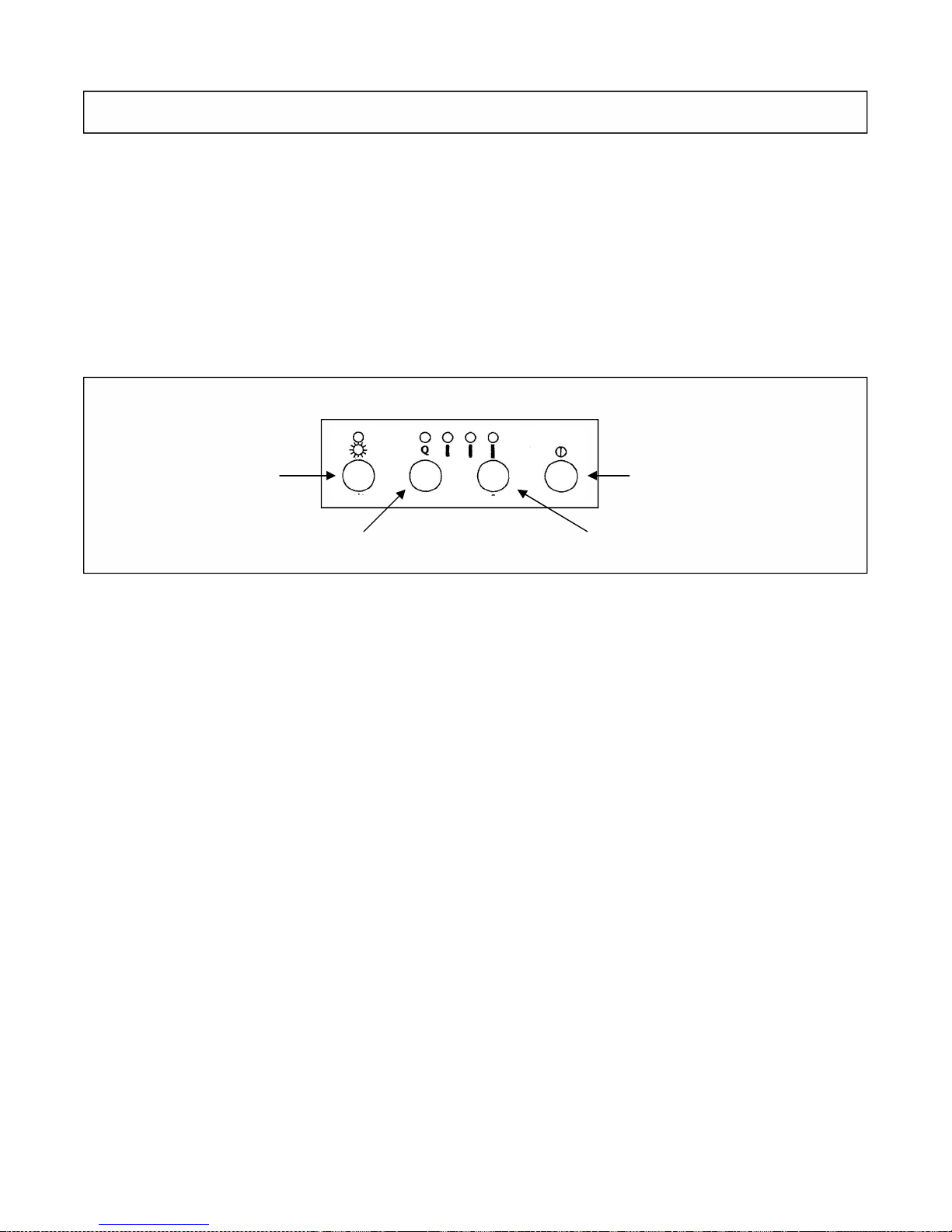

The four electronic controls are Light Control, Speed Control A, Speed Control B and the Power Control

(On/Off). Refer to Figure 11.

Figure 11

TURN ON:

Press Power Control (On/Off) button once.

(Note: If any control button is not pressed within 10 seconds, power will be automatically

turned off).

The KOBE hood will start on Low speed. Each press of the Speed Control button will

cycle through the various speeds.

Press Speed Control A button to cycle from Low, Medium, High, or QuietMode.

Press Speed Control B button to cycle from Low, QuietMode, High or Medium.

(Note: Speed Control A or B will operate both fans.)

Press Light Control button to turn on halogen light.

TURN OFF:

Press Power Control (On/Off) button once, panel lights will flash and power will be

completely shut off after 30 seconds.

Press Power Control (On/Off) button twice, and all power will be completely shut off

immediately.

If only the lights are on, pressing Power Control (On/Off) button once will turn power

off after 30 seconds.

Speed ControlA

Power Control

Speed

Control B

Light Control

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali KOBE Cappa di ventilazione

KOBE

KOBE CH8136SQB Guida alla risoluzione dei problemi

KOBE

KOBE IN2730SF Guida alla risoluzione dei problemi

KOBE

KOBE IN28 SQP Series Guida alla risoluzione dei problemi

KOBE

KOBE IN26 SQB-1100-5 Series Guida alla risoluzione dei problemi

KOBE

KOBE IN2630SQB-700-1 Guida alla risoluzione dei problemi

KOBE

KOBE RA9236SQ Guida alla risoluzione dei problemi

KOBE

KOBE Brillia CHX2224SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE Brillia UB4130W Manuale utente

KOBE

KOBE RA3830S Guida alla risoluzione dei problemi

KOBE

KOBE Brillia CHX81 SQB-2 Series Guida alla risoluzione dei problemi

KOBE

KOBE IN2636SQB-700 Guida alla risoluzione dei problemi

KOBE

KOBE RA3830SQ Guida alla risoluzione dei problemi

KOBE

KOBE CH-178 Guida alla risoluzione dei problemi

KOBE

KOBE RA9230SQB-DC30-1 Guida alla risoluzione dei problemi

KOBE

KOBE IN2636SQB-1200 Guida alla risoluzione dei problemi

KOBE

KOBE PREMIUM IN26 Series Guida alla risoluzione dei problemi

KOBE

KOBE IN2642SQB-1200-1 Guida alla risoluzione dei problemi

KOBE

KOBE SQB-650-5A Series Guida alla risoluzione dei problemi

KOBE

KOBE BRILLIA INX26 Series Guida alla risoluzione dei problemi

KOBE

KOBE RA92 SQB-1 Manuale utente

KOBE

KOBE INX2730SQB-700-1Brillia Series Guida alla risoluzione dei problemi

KOBE

KOBE CH0036SQB Manuale utente

KOBE

KOBE CH9730SQB Guida alla risoluzione dei problemi

KOBE

KOBE CH0330SQB Guida alla risoluzione dei problemi

Manuali Cappa di ventilazione popolari di altre marche

emmeti

emmeti RECUPA MED A-140 Guida

Nibe

Nibe F135 Manuale utente

Kuppersberg

Kuppersberg INTRO 60 Istruzioni di installazione e manutenzione

Zephyr

Zephyr Spruce AK9834BS Guida all'installazione

Hisense

Hisense MH6INBG Manuale utente

Miele

Miele DA 1255 Manuale utente

Broan

Broan 46000 Manuale utente

GE Profile PV977 Istruzioni originali

FALMEC

FALMEC FFRIA24W5FS Manuale utente

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuale utente

Küppersbusch

Küppersbusch DX ISLA Manuale utente

ETNA

ETNA AV360RVS Manuale utente

JUNO

JUNO JDF603E6 Manuale utente

Miele

Miele DA 6708 D Manuale utente

Tricity Bendix

Tricity Bendix LE 150 Manuale

AEG

AEG X68163BV1 Manuale utente

AEG

AEG 125 D Manuale utente

Smeg

Smeg KSEV97X Manuale utente
