LS193

Gloss Meter

User Manual V2.1

Please read this manual carefully before using and reserve it for reference.

Shenzhen Linshang Technology Co., Ltd.

5-25-2021 Page 2 of 7

I. Product Introduction

The instrument is a hand-held gloss meter with small aperture, professionally used to measure the gloss

of curved or ultra-small objects. The instrument is easy to use, put and measure, no need to press

button. In addition to normal model, QC mode can be set for QC detection. It is also equipped with a

powerful PC software to be connected to a computer to measure and generate reports.

It conforms to the following standards: ISO2813, ISO7668, ASTM D523, ASTM D2457, DIN 67530,

GB/T9754, GB/T13891, GB/T7706, GB/T8807. All indexes meet the requirements of JJG 696-2015

Verification Regulation of “Specular Gloss Meters and Gloss Plates” as the grade 1 working meters.

II. Parameters

Measuring Angle 60°

Measuring Aperture 1.5mm*3mm

Minimum Test Material Size 3mm*6mm

Measuring Range 0-1000GU

Resolution 0.1GU

Repeatability 0-100GU:±0.2GU;

100-1000GU:±0.2%reading

Reproducibility 0-100GU:±0.5GU;

100-1000GU:±0.5%reading

Zero Error 0.1GU

Indication Error 0-100GU:±1.5GU;

100-1000GU:±1.5%reading

Weight About 300g

Power Supply Lithium rechargeable battery 3.7V@1000mAh

Display 192×64 Dot Matrix

Language Simplified Chinese, English

Charge Port USB(Type-C)

Data Transmission USB

Shenzhen Linshang Technology Co., Ltd.

5-25-2021 Page 3 of 7

Working Temperature 10~45℃,0~85%RH (no condensation)

Storage Temperature -10~60℃,0~85%RH (no condensation)

III. Features

1. The measuring aperture is 1.5mm*3mm, which is suitable for measuring the gloss of curved surfaces

and ultra-small objects.

2. Provide real time measurement and put-and-measure services without pressing button.

3. Detect samples quickly with QC judging function.

4. The environmental temperature compensation function guarantees long-term calibration stability.

5. Support USB transmission and provide PC operating software, it can be on-line operated with PC to

generate test report.

6. Equipped with aviation aluminum housing and calibration holder, it’s small and easy to carry.

7. Built in rechargeable lithium battery, with ultra-low power consumption, it can work continuously for

more than 48 hours under full charge.

IV. Operation

1. Turn on/off

Turn On: In power-off state, short press the power button to turn on the instrument.

Turn Off: Long press the power button to turn off the instrument; the instrument will automatically power

off with no operation over 30 minutes.

2. Parameter Setting

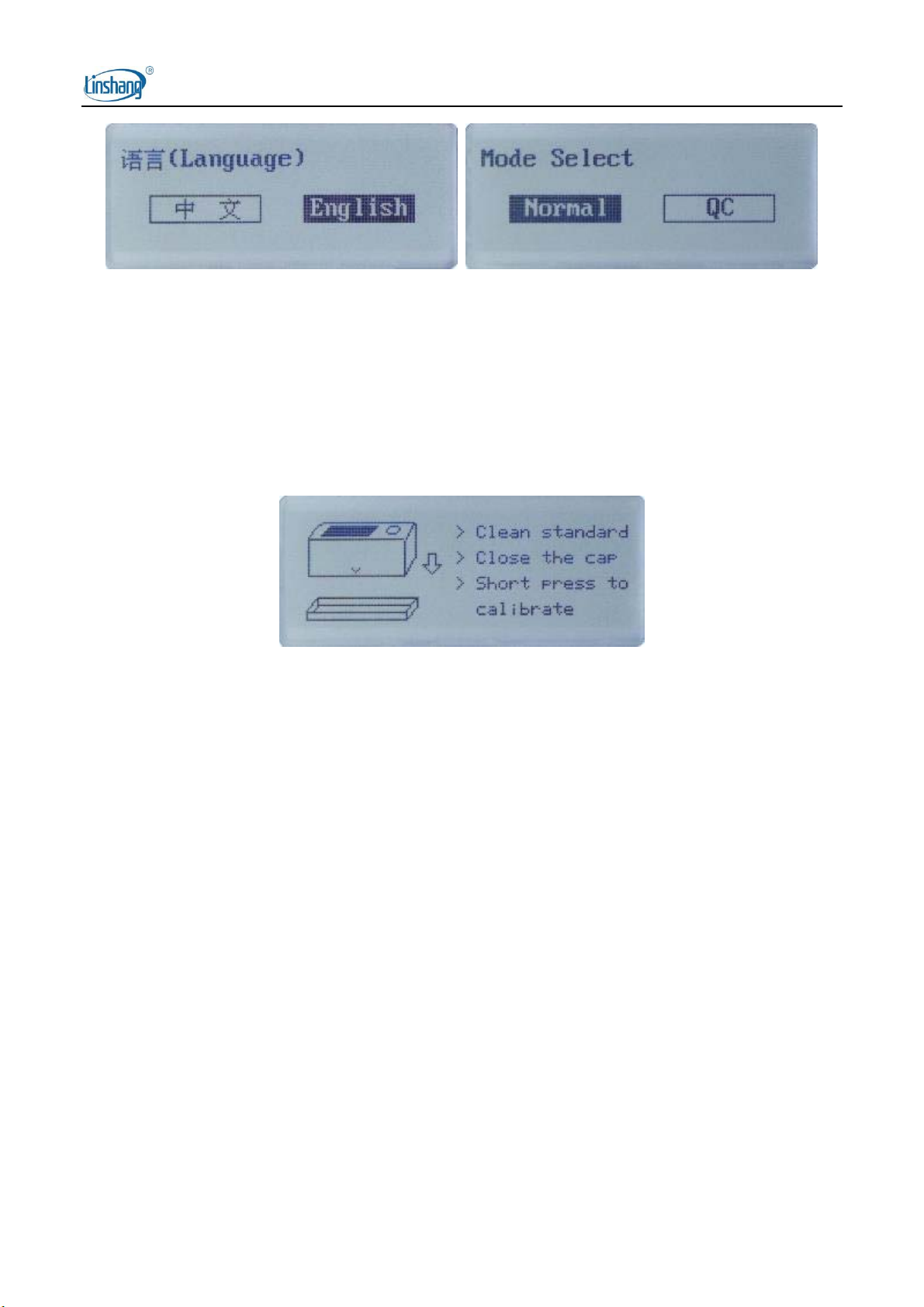

In power-off state, long press the button for 3s to enter the parameter setting mode:

Language

Short press the button to select Chinese or English, long press the button for 3s to complete the setting,

and enter the next setting item.

Mode Selection

Short press the button to select normal mode or QC mode, long press the button for 3s to complete the

setting, exit the setting and enter the calibration interface.

Shenzhen Linshang Technology Co., Ltd.

5-25-2021 Page 4 of 7

3. Calibration

If the meter gets powered on in calibration holder, it will enter the calibration interface. The user can

perform the calibration operation according to the prompts, the instrument will enter measurement interface

after the calibration. If it is not powered on in the calibration holder, it will skip the calibration and enter the

measurement interface directly.

If it prompts that the calibration failed, the reasons may include:

 If the standard is not clean, please clean the standard with special lens cloth before placing the meter

into calibration holder.

 If the meter is not clung to the calibration holder, please re-place into calibration holder.

 If there is a significant change in the ambient temperature, restart the device for measurement after

the temperature of the instrument is close to the ambient temperature and it is confirmed that there is

no condensation on the lens in the test port and the standard of the base

 If the light source cannot work normally due to attenuation, the device needs to be sent back to the

factory for inspection and maintenance

When the instrument prompts "Calibration failed”, long press the button can skip the calibration.

4. Measurement

(1) Normal Mode

If the instrument is set to normal mode, remove the calibration holder after calibration, place the measuring

port on the surface of the object to measure, the instrument will display the measured value instantly. Short

press the button, the lower left corner of the interface displays the "HOLD" symbol, and the measurement

Shenzhen Linshang Technology Co., Ltd.

5-25-2021 Page 5 of 7

data is held on the display. To measure again, press the button to cancel the "HOLD" state and return to

the "Measuring" state.

(2) QC Mode

If the instrument is set to QC mode, remove the calibration holder after calibration, place the measuring

port of the instrument on the surface of the object to measure, short press the button to measure, the

instrument will judge whether the measured value is qualified. The upper and lower limits could be set by

PC software. For specific operations, please refer to the "Gloss Meter Software Operation Manual".

V. PC Software

Connect the instrument to PC software via USB cable to perform functions of online measurement, change

calibration values, parameter setting, test report generation and printing. For specific operations, please

refer to "Gloss Meter Software Operation Manual".

Shenzhen Linshang Technology Co., Ltd.

5-25-2021 Page 6 of 7

VI. Precautions

1. The temperature compensation function guarantees long-term calibration stability, it is recommended

to calibrate once a week. If the environmental temperature changes significantly, please recalibrate

it.

2. The measuring port of the instrument shall be attached to the surface of the object to avoid leakage

of external light.

3. Please save the calibration holder in a clean place after the meter is removed, so as to prevent the

standard from contamination.

4. Do not insert any object into the instrument for any reason, as it will damage it and influence the

measuring accuracy as well as operation safety.

5. The instrument and calibration standard should be cleaned before storage and usage, and please

use clean special lens cloth to remove contaminants. As the surface of the standard is very precise,

make sure there are no fine particles on the lens cloth to avoid damage of the standard.

6. If there are multiple meters, put the meter on the calibration holder corresponding to the serial

number of the meter for calibration.

7. When the battery of the instrument is out of power, it should be charged in time.

Shenzhen Linshang Technology Co., Ltd.

5-25-2021 Page 7 of 7

8. If the meter is not used over half a year, please charge it to avoid the battery from being excessively

discharged and damaged.

9. The recommended calibration period is once a year and the factory provides calibration services.

VII. Packing List

No. Description Quantity Unit

1 Gloss Meter 1 Set

2 USB Data Cable 1 pc

3 USB Disk (software) 1 pc

4 Special Lens Cloth 1 pc

5 User Manual 1 pc

6 Certificate / Warranty Card 1 pc

VIII. Service

1. The instrument has one-year warranty. If it works abnormally, please send the whole instrument to

our company for maintenance.

2. Provide users with spare parts and lifelong maintenance services.

3. Provide the users with the gauge calibration service.

4. Provide long-term free technical support.

Manufacturer: Shenzhen Linshang Technology Co., Ltd.

Website: www.linshangtech.com

Service hotline: +86-755-86263411

Email: sales21@linshangtech.com
