Multitech ProxyServer MTPSR1-100 Manuale utente

Model MTPSR1-100

Installation Manual

Regulatory Information

Note: This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15 of the

FCC rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is

operated in a residential installation. This equipment generates,

uses and can radiate radio frequency energy, and if not installed

and used in accordance with the installation manual, may cause

harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installa-

tion. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for

help.

This device complies with Part 15 of the FCC rules. Operation is

subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference that may cause

undesired operation.

WARNING: Changes or modifications to this unit not expressly

approved by the party responsible for compliance could void the

user’s authority to operate the equipment.

Model MTPSR1-100

Installation Manual

82083800 Revision A

ProxyServer (Model No. MTPSR1-100)

This publication may not be reproduced, in whole or in part, without

prior expressed written permission from Multi-Tech Systems, Inc.All

rights reserved.

Multi-Tech Systems, Inc. makes no representations or warranties

with respect to the contents hereof and specifically disclaims any

implied warranties of merchantability or fitness for any particular

purpose. Furthermore, Multi-Tech Systems, Inc. reserves the right

to revise this publication and to make changes from time to time in

the content hereof without obligation of Multi-Tech Systems, Inc. to

notify any person or organization of such revisions or changes.

Record of Revisions

Revision Description

AManual released. All pages at rev A.

(6/1/98) Patents

This Product is covered by one or more of the following U.S.

Patent Numbers:

5.301.274; 5.309.562

;

5.355.365; 5.355.653;

5.452.289; 5.453.986

. Other Patents Pending.

TRADEMARK

Trademark of Multi-Tech Systems, Inc. is the Multi-Tech logo.

Windows is a registered trademark of Microsoft.

Multi-Tech Systems, Inc.

2205 Woodale Drive

Mounds View, Minnesota 55112

(612) 785-3500 or (800) 328-9717

Fax 612-785-9874

Tech Support (800) 972-2439

BBS (612) 785-3702 or (800) 392-2432

Internet Address: http://www.multitech.com

Fax-Back (612) 717-5888

Contents

Introduction.................................................................................... 1

ProxyServer .................................................................................. 1

Client PC ....................................................................................... 1

Unpacking Your ProxyServer......................................................... 2

ProxyServer Features ................................................................... 3

ProxyServer Installation................................................................. 4

ProxyServer Configuration ............................................................ 4

ProxyServer Utilities ...................................................................... 5

Installing the ProxyServer Utilities ................................................. 5

Configuring Your ProxyServer ....................................................... 6

Setting Up Your ProxyServer Clients ............................................. 6

Using Your ProxyServer ................................................................ 6

ProxyServer Specifications............................................................ 7

How to Get a Copy of Your User Guide ......................................... 8

ProxyServer Installation Manual

Features

Introduction

Welcome to one of Multi-Tech's family of ProxyServers. The

information provided in this Installation Manual enables you to

unpack, install, and configure your ProxyServer. A list of specifica-

tions is included, and you are referred to the ProxyServer User

Guide for step-by-step procedures for setting up your LAN clients

for surfing the Internet.

ProxyServer

The ProxyServer acts as a central dial-out Internet access point

for all your network clients. It enables all your network clients to

simultaneously share one modem or ISDN TA, a regular dial-up

account from your ISP, and a single IP address that can be either

dynamic or static.

Client PC

To configure the ProxyServer, one of your Windows 95 or Win-

dows NT client PCs on the LAN must have a CD ROM drive for

installing the ProxyServer Utilities that are necessary for configur-

ing and operating your ProxyServer.

ProxyServer Installation Manual

Unpacking Your ProxyServer

The shipping box contains one each of the following components:

ProxyServer

PowerAdapter

ProxyServer Installation Manual (this manual)

ProxyServer Utilities CD ROM

(Includes electronic version of ProxyServer User Guide)

Inspect the contents for signs of any shipping damage. If damage

is observed, do not power up the unit; contact Multi-Tech’s Techni-

cal Support for advice (refer to Warranty section in the ProxySer-

ver User Guide on CD ROM). If no damage is observed, proceed

with setting up your ProxyServer for operation.

Features

ProxyServer Features

WAN Port

Fastener

(1 of 2)

LEDs

LAN Port

Power Input Jack Setup Switch

(for Remote + Terminal

Configuration Only)

Power Input Jack

Used to apply power from the power adapter (supplied).

LAN Port

This port connects to your LAN through an RJ-45 (10BaseT)

cable.

PWR Indicator

Ared LED indicates that power is applied to the ProxyServer.

NET Indicator

A blinking yellow LED indicates activity on the LAN port.

Fasteners

The fasteners are used to secure the WAN port to the modem or

ISDN TA.

WAN Port

The WAN port connects directly to the modem or ISDN TA.

Switches

Two setup switches (inside the case) enable the ProxyServer to be

configured using a terminal, a remote terminal, or a remote PC

executing a terminal emulation program. These switches are set to

NORMAL (i.e., both down against the printed circuit board, the

default) for configuration using the ProxyServer software.

ProxyServer Installation Manual

ProxyServer Installation

Note: Before starting installation, if the serial connector of your

modem or ISDN TA has only 9 pins, obtain an appropriate serial

adapter or short cable to connect it to the 25-pin WAN connector

on your ProxyServer.

1. Attach the ProxyServer WAN port to the serial port on the back

of your modem or ISDN TA. Tighten both fasteners until the

ProxyServer is secure.

2. Connect a 10BaseT (RJ-45) cable from the ProxyServer LAN

port to your LAN hub.

3. Connect the power adapter to the power input jack on the back

of the ProxyServer, then connect the power adapter to a

grounded wall socket; note that the red (power) LED lights.

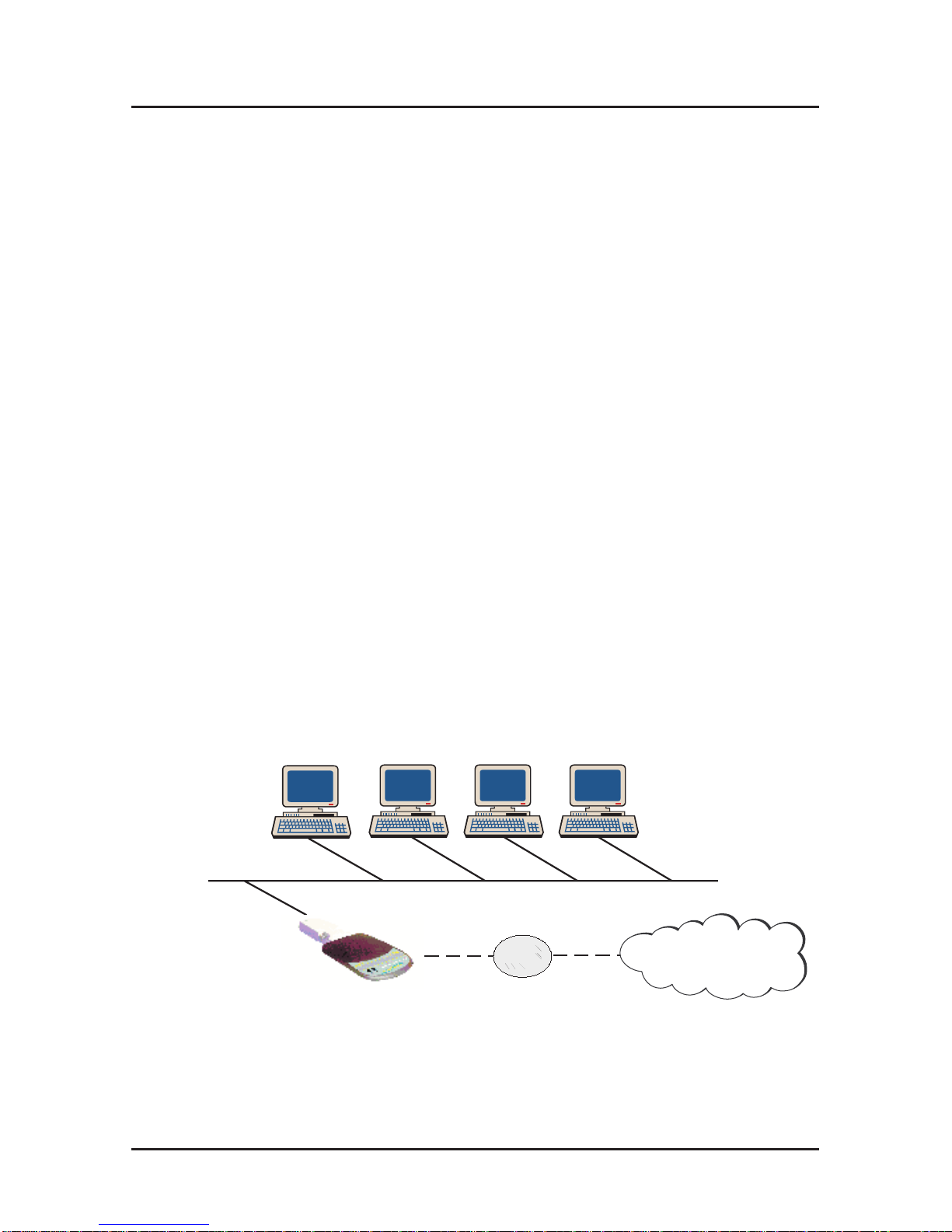

ProxyServer Configuration

Your ProxyServer can be configured very easily using the Proxy-

Server Utilities supplied on CD ROM. The ProxyServer utilities can

be installed on any Windows 95 or Windows NT client on the same

network as your ProxyServer. In the example shown below, the

ProxyServer can be configured from any of the four computers on

the LAN.

LAN

Win 95 Win 95 Win 95 Win NT

ProxyServer

Modem or

ISDN TA

ISP

Internet
