Multitech ProxyServer MTPSR1-202ST Manuale utente

Model MTPSR1-202ST

Quick Start Guide

ISDN ProxyServer

The CE mark is affixed to the enclosed MultiTech product to

confirm compliance with the following European Community

Directives:

Council Directive 89/336/EEC of 3 May 1989 on the approximation

of the laws of Member States relating to electromagnetic compat-

ibility;

and

Council Directive 73/23/EEC of 19 February 1973 on the harmoni-

zation of the laws of Member States relating to electrical equip-

ment designed for use within certain voltage limits;

both amended by

Council Directive 93/68/EEC of 22 July 1993 on the harmonization

of CE marking requirements.

Quick Start Guide

82076801 Revision B

ISDN ProxyServer (Model No MTPSR1-202ST)

This publication may not be reproduced, in whole or in part, without

prior expressed written permission from Multi-Tech Systems, Inc.All

rights reserved.

Multi-Tech Systems, Inc. makes no representations or warranties

with respect to the contents hereof and specifically disclaims any

implied warranties of merchantability or fitness for any particular

purpose. Furthermore, Multi-Tech Systems, Inc. reserves the right

to revise this publication and to make changes from time to time in

the content hereof without obligation of Multi-Tech Systems, Inc. to

notify any person or organization of such revisions or changes.

Record of Revisions

Revision Description

AManual released. All pages at revisionA.

(1/12/98)

B Manual revised to include version 2.01 software.

(7/7/98) Patents

This Product is covered by one or more of the following U.S.

Patent Numbers:

5.301.274; 5.309.562

;

5.355.365; 5.355.653;

5.452.289; 5.453.986

. Other Patents Pending.

TRADEMARK

Trademark of Multi-Tech Systems, Inc. are the Multi-Tech logo.

Windows is a registered trademark of Microsoft.

Multi-Tech Systems, Inc.

2205 Woodale Drive

Mounds View, Minnesota 55112

(612) 785-3500 or (800) 328-9717

Fax 612-785-9874

Tech Support (800) 972-2439

Internet Address: http://www.multitech.com

Fax-Back (612) 717-5888

Contents

Introduction ...........................................................................7

Related Documentation.........................................................8

Safety Warnings ....................................................................9

Unpacking your ProxyServer ................................................9

Cabling your ProxyServer ...................................................10

Before You Start Loading your Software .............................12

Network Configuration...................................................12

Call Control Parameters ................................................13

Data Control ..................................................................14

Loading your Software .......................................................16

IP Port Configuration .....................................................19

Limited Warranty .................................................................24

Service ..........................................................................24

ISDN ProxyServer Quick Start Guide

Introduction

Welcome to Multi-Tech's new ISDN ProxyServer model number

MTPSR1-202ST, a single, secure gateway that provides multiple

LAN users with high performance Internet access. The ISDN

ProxyServer functions as a TCP/IP proxyserver that resides on the

outer edge of your firewall and provides Basic Rate ISDN Service

using its internal 2B+D terminal adapter. The ISDN ProxyServer

features a 10BaseT port for local LAN connection, Command Port

for configuration, and an internal 2B+D ISDN terminal adapter for

64K bps per channel or 128K bps effective bandwidth when

software BONDing (Bandwidth ON Demand) is employed. System

management is provided through the command port using bundled

Windows® software which provides easy-to-use configuration

menus.

Figure 1. ISDN ProxyServer

ISDN ProxyServer Quick Start Guide

Related Documentation

The ISDN ProxyServer Quick Start Guide is intended to be used

by qualified systems administrators and network managers. This

quick start guide provides the necessary information for a qualified

person to unpack, cable, load software, and configure the unit for

proper operation.

A detailed User Guide is also provided with your ISDN ProxySer-

ver. This user guide provides in-depth information on the features

and functionality of Multi-Tech’s Proxy Server. The User Guide is

provided in diskette form and is also available from our Web site.

A ProxyServer Client Setup User Guide is provided to enable LAN

users to configure their Windows 95 PCs to access the Internet

through a ProxyServer. This User Guide is also provided on the

Manuals diskette and at Multi-Tech’s Web site.

The diskette media is produced usingAdobeAcrobat for viewing

and printing the user guide. To view or print your copy of a user

guide, loadAdobeAcrobat Reader on your system.AdobeAcrobat

Reader can be downloaded fromAdobe’s Web site at:

http://www.adobe.com/prodindex/acrobat/roadstep.html

Launch the Reader and select the .pdf file from the diskette.

Viewing and printing a user guide from The Web also requires that

you have theAdobe Acrobat Reader loaded on your system. The

ISDN ProxyServer User Guide is also available on Multi-Tech’s

Web site at:

http://www.multitech.com

From the MTS home page, click Support | Manuals | ProxySer-

ver and choose the User Guide for your Model MTPSR1-202ST

which will download the .pdf file.

Safety

Safety Warnings

1. Never install telephone wiring during a lightning storm.

2. Never install telephone jacks in wet locations unless

the jack is specifically designed for wet locations.

3. Never touch uninsulated telephone wires or terminals

unless the telephone line has been disconnected at the

network interface.

4. Use caution when installing or modifying telephone

lines.

5. Avoid using a telephone (other than a cordless type)

during an electrical storm. There may be a remote risk

of electrical shock from lightning.

6. Do not use the telephone to report a gas leak in the

vicinity of the leak.

Unpacking your ProxyServer

Remove all items from the box.

Quick Start Guide

MultiExpress

Figure 2. Unpacking

ISDN ProxyServer Quick Start Guide

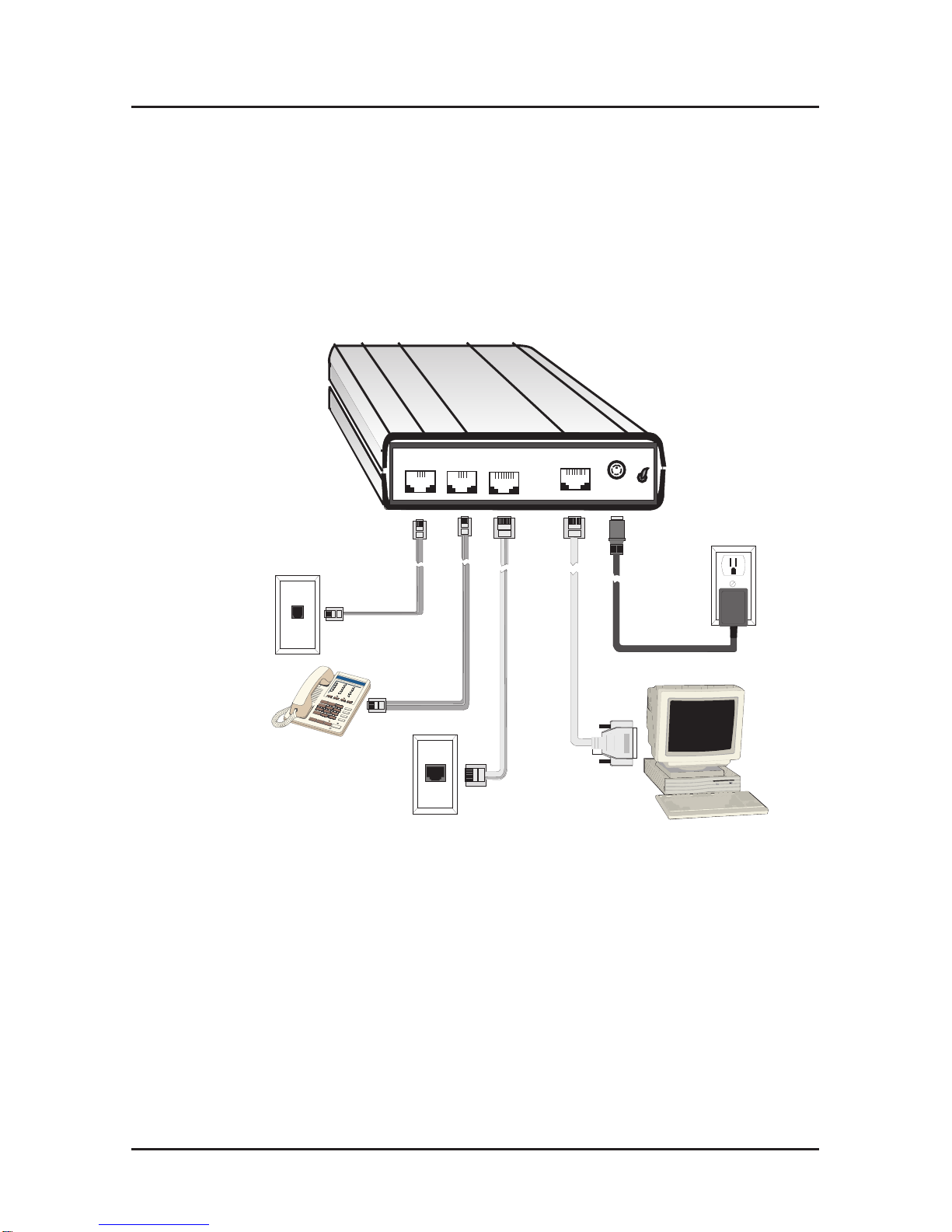

Cabling your ProxyServer

Cabling your ProxyServer involves making the proper Power,

Command Port, Ethernet, and WAN connections. Figure 3 shows

the back panel connectors and the associated cable connections.

Table 1 details the procedures for connecting the cables to your

ProxyServer.

EthernetEthernet

ConnectionConnection

TTelcoelco

ConnectionConnection

PCPC

ConnectionConnection

PowerPower

ConnectionConnection

10BASE T ON

OFF

POWER

COMMAND PORT

ISDN PHONE

Figure 3. Cable Connections
