Neilsen CT1056 Manuale utente

AUTO RETRACTABLE AIR HOSE REEL 3/8” x 30FT

CT1056

ORIGINAL INSTRUCTIONS

SAVE THESE INSTRUCTIONS AND PRECAUTIONS.

READ ALL PRECAUTONS AND INSTRUCTIONS BEFORE USE.

Cannon Tools Limited

Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.

EC DECLARATION OF CONFORMITY

We CANNON TOOLS LTD

20 Station road, Rowley Regis, West Midlands,B65 0JU.U.K.

Declare that the following machine complies with the appropriate basic safety

and health requirements of the EC Directive based on its design and type, as

brought into circulation by us.

In case of alteration of the machine, not agreed upon by us, this declaration

will lose its validity.

Product description: AUTO RETRACTABLE AIR HOSE REEL

Model: CT1056

Applicable EC Directives:

EC Machinery Directive 2006/42/EC

Harmonized standards

EN ISO 12100:2010

20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.

Mr. Gurcharan Tony Singh Sanghera

Managing Director

CANNON TOOLS LTD

2020-12-17

1. SPECIFICATION

Model: CT1056

Air hose size: 3/8” x 30ft

Air adaptor: 3/8”

Max. Working pressure: 300PSI

2. IMPORTANT SAFETY INFORMATION

WARNING - When using tools, basic precautions should always be followed,

including the following:

To reduce the risks of electric shock, fire, and injury to persons, read all the

instructions before using the tool.

Work Area

1. Keep the work area clean and well lighted. Cluttered benches and dark areas

increase the risks of electric shock, fire, and injury to persons.

2. Keep bystanders, children, and visitors away while operating the tool.

Distractions are able to result in the loss of control of the tool.

Personal Safety

1. Stay alert. Watch what you are doing and use common sense when operating

the tool. Do not use the tool while tired or under the influence of drugs, alcohol, or

medication. A moment of inattention while operating the tool increases the risk of

injury to persons.

2. Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep

hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long

hair increases the risk of injury to persons as a result of being caught in moving

parts.

3. Do not overreach. Keep proper footing and balance at all times. Proper

footing and balance enables better control of the tool in unexpected situations.

4. Use safety equipment.

5. Always wear eye protection.

Tool Use and Care

1.Do not force the tool. Use the correct tool for the application. The correct tool

will do the job better and safer at the rate for which the tool is designed.

2.Disconnect the tool from the air source before making any adjustments,

changing accessories, or storing the tool. Such preventive safety measures

reduce the risk of starting the tool unintentionally.

3. DO NOT EXCEED 300PSl incoming air pressure (from compressor).

4. Do not release hose when rewinding. Hold hose end and allow nose to rewind

slowly.

5. Never allow children to use hose reel. Keep children clear of work area at all

times.

6. Store the tool when it is idle out of reach of children and other untrained

persons. A tool is dangerous in the hands of untrained users.

7.Check for misalignment or binding of moving parts, breakage of parts, and any

other condition that affects the tool’s operation. If damaged, have the tool

serviced before using. Many accidents are caused by poorly maintained tools.

There is a risk of bursting if the tool is damaged.

8. Use only accessories that are identified by the manufacturer for the specific

tool model. Use of an accessory not intended for use with the specific tool model,

increases the risk of injury to persons.

3. TECHNICAL DESCRIPTION

4. UNPACKING AND CHECKING

Carefully remove the product from the packaging and examine it for any sign of

damage that may have happened during shipping. Lay the contents out and

check them against the parts shown below. If any part is damaged or missing;

please contact the seller and do not attempt to use the product.

5. TYPICAL COMPRESSED AIR SYSTEM

6. OPERATING AIR HOSE REEL

BEFORE MOUNTING AIR HOSE REEL, please take a few minutes to

understand how the reel works. Practice operating the hose reel a few times,

pulling hose out and retracting it back onto reel. This will familiarize you with

basic functions and can help you understand where best to mount the air hose

reel.

Note: Mounting hardware is not included and must be purchased separately.

Decide first where reel will be mounted before purchasing hardware.

Different mounting positions require different types of hardware.

REPOSITIONING BRACKET

1.Remove the Bolts on the Support Post and reposition to move the guide rollers,

if needed, for the desired mounting location (wall, floor or ceiling).

2.Replace the Bolts and tighten.

MOUNTING HOSE REEL

Choosing a Location

DO NOT MOUNT HOSE REEL OUTDOORS OR ON VEHICLE.

This hose reel is not designed to resist constant exposure to

weather or continuous vibration. Mount under cover in an area not

directly exposed to weather.

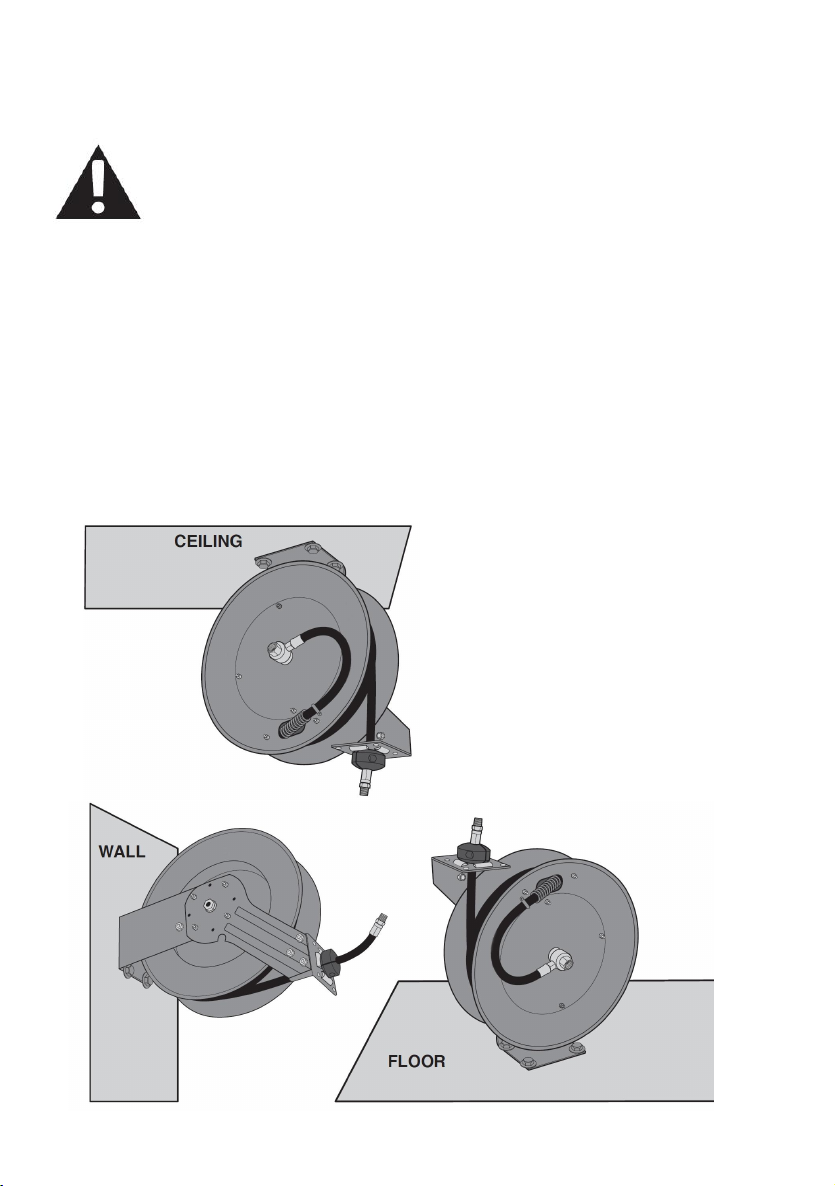

Reel can be mounted on the floor, ceiling, or wall, wherever it is convenient.

When choosing a location,remember that you can only mount reel to a

load-bearing structural member capable of supporting combined weight of reel,

hose, and forces caused by pulling or manuevering hose. Mounting reel near air

compressor may be desirable since you can connect the two with a shorter, less

expensive length of hose. Also, air compressor controls will be conveniently

nearby.

ADJUSTING THE GUIDE ARM

1. Pull out 3-4 feet of hose and

lock reel in position.

3. Rotate guide arm in 90oincrements to desired position. Replace four bolts and

tighten.

Continue by choosing proper mounting hardware. Mount reel using four 1/2"

bolts secured through four slots in mounting base. Use washers on mounting

bolts to help bear weight of reel.

ADJUSTING HOSE STOPPER POSITION

The hose stopper determines the length of hose that remains outside of reel. To

adjust stopper position, first pull hose out past the desired position of hose

stopper. Lock reel in position. Loosen (but do not remove) both stopper bolts just

enough so stopper can slide along hose. Move stopper to desired position.

Tighten stopper bolts until hose stopper cannot slide. Do not overtighten bolts.

2. Remove the four bolts connecting

guide arm to base.

GENERAL OPERATING INSTRUCTIONS

1. Slowly pull hose from reel to desired length. A ratcheting mechanism inside

reel makes a short series of clicking sounds every half revolution of reel.

2. To lock reel in position, listen for clicking sounds as hose is slowly pulled from

reel.When reel clicks,stop pulling hose. Decrease tension on hose and reel

should lock in position.

3. To retract hose onto reel, slowly pull out hose until series of clicking sounds

stops (1/8 revolution).

DO NOT LET GO OF HOSE! Allow hose to retract slowly until hose stopper rests

against hose guide.

4. Periodically check the hose for excessive wear and hose connections for air

leaks.

5. Attach a coupler (sold separately) to your air compressor hose and apply

thread seal tape to the Inlet fitting on the Reel. Connect the coupler to the Inlet

fitting.

6. Connect your air tool to the other end of the Hose using another coupler and

thread seal tape.

7. Follow all instructions from the air tool and compressor for set up and use.

8. When finished using the Hose, disconnect the air tool and retract the hose.

Wipe the Hose Reel clean with a dry cloth.

7. MAINTENANCE

CLEANING, MAINTENANCE, AND LUBRICATION

1. BEFORE EACH USE, inspect the general condition of the tool. Check for:

•loose hardware or housing,

•misalignment or binding of moving parts,

•cracked or broken parts, and any other condition that may affect its safe

operation.

2.AFTER EACH USE, re-wind the hose onto the reel and wipe the Hose Reel

clean with a dry cloth.

HOSE REPLACEMENT

1.Remove the Hose Stopper from the hose and set aside.

2.Pull out the old Hose and securely lock the Hose Reel.

3.Disconnect the old hose from the swivel joint and remove the hose.

4.Run the new hose through the Guide Roller and through the opening in the

drum flange.

5.Use thread seal tape on the hose fitting threads and screw the fitting onto the

swivel and tighten.

6.Attach the Hose Stopper on the end of the Hose near the Outlet fitting.

7.Carefully release the Drum Latch and allow the Hose to wind onto the reel,

evenly distributing the Hose across the Reel.

WARNING

•To prevent serious injury：

Detach air supply from this product before performing any inspection,

maintenance, or cleaning procedures.

•To prevent serious injury from tool failure:

Do not use damaged equipment. If abnormal noise, vibration, or leaking air

occurs, have the problem corrected before further use.

NOTICE

•These procedures are in addition to the regular checks and maintenance

explained as part of the regular operation of the Hose Reel.

WARNING

•Internal spring is not user serviceable or user-replaceable.
