Optika Italy B-190TB Series Manuale utente
Model
B-190 Series (B-191 / B-191S / B-192 / B-192S / B-193)
B-190TB series (B-190TB)
B-190 Series
INSTRUCTION MANUAL
Ver. 7.3 2020
Page 2
1. Warning 3
2. Symbols and conventions 3
3. Safety Information 3
4. Intended use 3
5. Instrument description 4
5.1 B-191 / B-191S / B-192 / B-192S / B-193 4
5.2 B-190TB 5
6. Unpacking 6
7. Assembling 6
7.1 B-191S / B-191 / B-192S / B-192 / B-193 6
7.2 B-190TB 7
7.3 Assembling the microscope 8
7.3.1 B-190 Series 8
7.4 Polarizing set (optional) 11
8. Use of the microscope 12
8.1 Switching on the microscope 12
8.2 Light intensity adjustment 12
8.3 Coarse focus tension adjustment 12
8.4 Stage 12
8.5 Adjust the interpupillary distance 13
8.6 Diopter adjustment 13
8.7 Use of oil immersion objective 13
8.8 Aperture diaphragm 14
8.9 Use of the polarizer (optional) 14
9. Microphotography 15
9.1 Cameras with projection lens 15
9.2 Reexcamera 15
10. Use of software and digital head 16
11. Maintenance 17
12. Troubleshooting 18
Equipment disposal 19
Summary
Page 3
1. Warning
This microscope is a scientic precision instrument designed to last for many years with a minimum of
maintenance. It is built to high optical and mechanical standards and to withstand daily use. We remind you
that this manual contains important information on safety and maintenance, and that it must therefore be made
accessible to the instrument users. We decline any responsibility deriving from incorrect instrument use uses
that does not comply with this manual.
2. Symbols and conventions
The following chart is an illustrated glossary of the symbols that are used in this manual.
CAUTION
This symbol indicates a potential risk and alerts you to proceed with caution.
ELECTRICAL SHOCK
This symbol indicates a risk of electrical shock.
3. Safety Information
Avoiding Electrical Shock
Before plugging in the power supply, make sure that the supplying voltage of your region matches with the
operation voltage of the equipment and that the lamp switch is in o position. Users should observe all safety
regulations of the region. The equipment has acquired the CE safety label. However, users have full responsibility
to use this equipment safely. Please follow the guidelines below, and read this manual in its entirety to ensure
safe operation of the unit.
4. Intended use
Standard models
For research and teaching use only. Not intended for any animal or human therapeutic or diagnostic use.
IVD Models
Also for diagnostic use, aimed at obtaining information on the physiological or pathological situation of the
subject.
Page 4
FINE FOCUS
KNOB
PHOTO TUBE
(ONLY B-193)
INTENSITY ADJUSTMENT
DIAL
STAGE
OBJECTIVES
COARSE FOCUS
KNOB
CONDENSER X/Y MOVEMENT
KNOBS
SLIDE HOLDER
APERTURE DIAPHRAGM
OBSERVATION HEAD
-) MONOCULAR (B-191 / B-191S)
-) BINOCULAR (B-192 / B-192S)
-) TRINOCULAR (B-193)
EYEPIECES
TENSION ADJUSTMENT
RING
5. Instrument description
5.1 B-191 / B-191S / B-192 / B-192S / B-193
Page 5
INTENSITY
ADJUSTMENT
DIAL
FINE FOCUS
KNOB
COARSE FOCUS
KNOB
STAGE
X/Y MOVEMENT
KNOBS
SLIDE HOLDER
OBJECTIVES
DIGITAL HEAD
TABLET PC
EYEPIECES
TENSION ADJUSTMENT
RING
APERTURE DIAPHRAGM
5.2 B-190TB
HEADPHONE
MICRO HDMI
USB-C 2.0
(CHARGE / DATA)
USB-C 3.0
(DATA)
MICRO SD
CARD SLOT
Page 6
6. Unpacking
The microscope is housed in a moulded Styrofoam container. Remove the tape from the edge of the container
and lift the top half of the container. Take some care to avoid that the optical items (objectives and eyepieces)
fall out and get damaged. Using both hands (one around the arm and one around the base), lift the microscope
from the container and put it on a stable desk.
Do not touch with bare hands optical surfaces such as lenses, lters or glasses. Traces of grease or other
residuals may deteriorate the nal image quality and corrode the optics surface in a short time.
7. Assembling
Once opened the box, the microscope parts are the following:
7.1 B-191S / B-191 / B-192S / B-192 / B-193
① Frame
② Observationhead
monocular(B-191/B-191S)
binocular(B-192/B-192S)
trinocular(B-193)
③ Phototube(onlyB-193)
④ Eyepieces
⑤ Objectives
4X/10X/40X/100X(B-191/B-192/B-193)
4X/10X/40X/60X(B-191S/B-192S)
⑥ Dustcover
⑦ Greenlter
⑧ Powersupply
⑨ Immersionoil(B-191/B-192/B-193)
⑩Tensionadjustmenttool
③
④
⑤
⑥
⑦
⑧
①
②
⑨⑩
Page 7
① Frame
② Digitalobservationhead
③ Eyepieces
④ Objectives(4X/10X/40X/100X)
⑤ Dustcover
⑥ Greenlter
⑦ Immersionoil
⑧ Powersupply
⑨ Tensionadjustmenttool
⑩ TabletPCpowersupply
⑪ OTGcable
⑫USBcable
⑬ TouchpenforTabletPC
⑭ TabletPC
③
④
⑤
⑥
⑦
①
⑨
⑩
⑪
⑫
⑬
⑭
②
⑧
7.2 B-190TB
Page 8
FFig. 1ig. 1
FFig. 2ig. 2
FFig. 3ig. 3
FFig. 4ig. 4
7.3 Assembling the microscope
7.3.1 B-190 Series
1. Remove the dust cap from the microscope frame and
from the bottom of the observation head.
2. Insert the optical head above the stand and tighten the
screw. (Fig. 1)
• Hold the head with one hand during the locking in
order to avoid that the head falls.
3. Insert both eyepieces into the tubes of the optical head.
(Fig. 2)
4. Insert the power supply jack in the socket placed at the
rear side of the microscope. (Fig. 3)
Only for B-193
5. Unscrew the protection cap mounted on the photo port
and screw the photo tube. (Fig. 4)
Page 9
FFig. 5ig. 5
FFig. 6ig. 6
FFig. 7ig. 7
FFig. 8ig. 8
①
7.3.2 B-190TB
1. Remove the dust cap from the microscope frame and
from the bottom of the observation head.
2. Insert the optical head above the stand and tighten the
screw. (Fig. 5)
• Hold the head with one hand during the locking in
order to avoid that the head falls.
3. Insert both eyepieces into the tubes of the optical head.
(Fig. 6)
4. Insert the power supply jack in the socket placed at the
rear side of the microscope. (Fig. 3)
5. Fix the rotating part of the junction using the black wing-
nut ①. (Fig. 7)
6. Then hook the Tablet PC onto the 4 screws of the junc-
tion and pull toward down to rmly lock the Tablet PC in
the holder. (Fig. 8)
• To unlock the Tablet PC proceed with the opposite op-
eration: push toward up and remove it from the holder.
Page 10
FFig. 9ig. 9
②

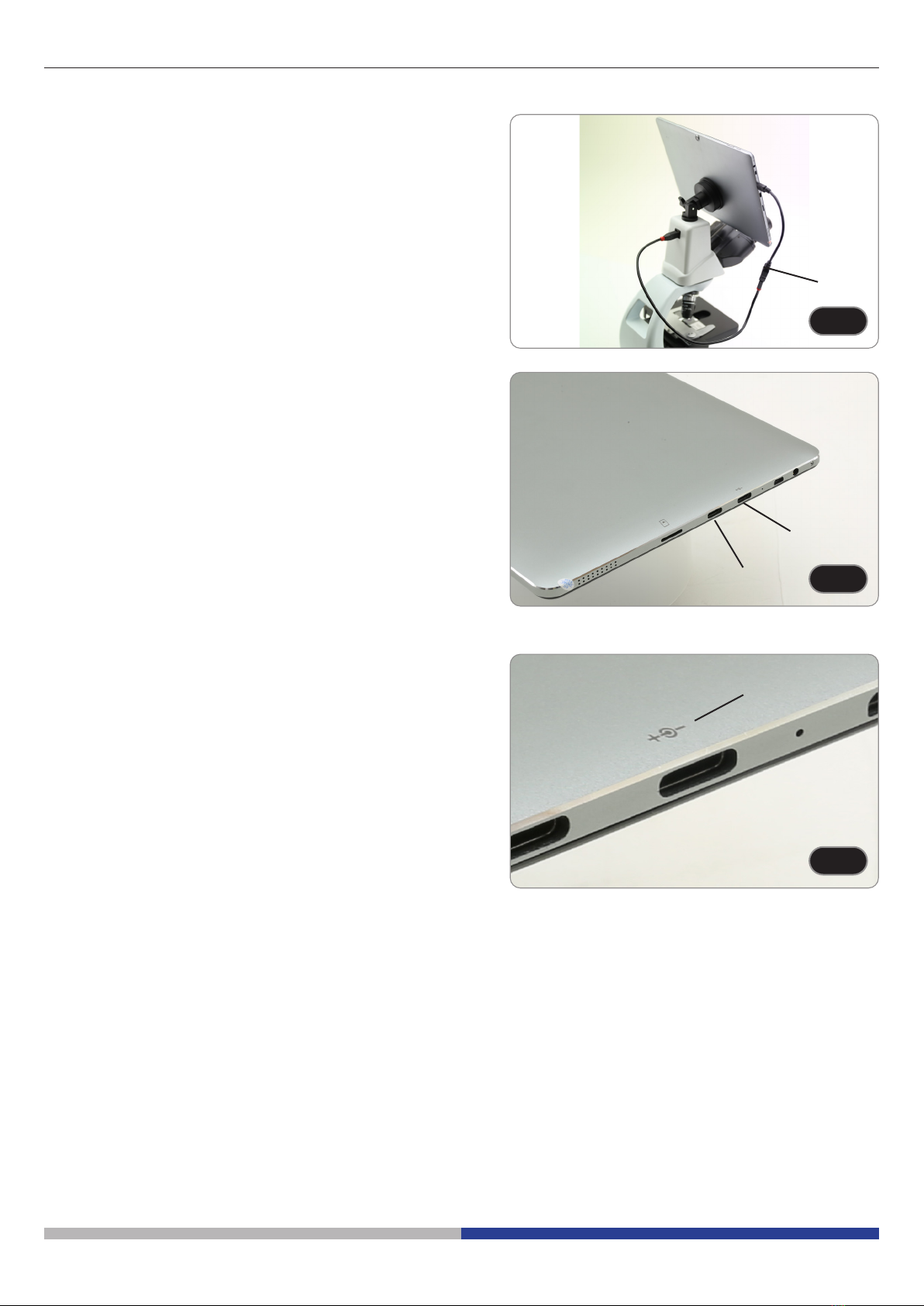

7. Plug one side of the cable named CAMERA CONNEC-
TION (USB + OTG) ②to the digital head and the oth-
er side to the Tablet PC using the connector ③. (Fig.
9-10).
8. Plug the cable named POWER SUPPLY CONNEC-
TION to the Tablet PC for battery recharge using the
connector ④. (Fig. 10)
• The connector ④has a label on the back side of the
Tablet PC ⑤(Fig. 11). This connector is used for
battery recharge and for camera connection.
• The connector ③is used ONLY for the camera
connection.
• DO NOT use the connector ③for battery recharge.
This could cause malfunctions / damages.
• The Tablet has been set with the Rotation function dis-
abled: this prevents any ipping of the Live View in or-
der to get a continuous and as large as possible view
of your slide also when the Tablet is removed from the
holder.
• To enable this function again: you can activate the Ro-
tation by swiping the screen on his bottom right side
and selecting Settings + Screen. Anyway, it’s not sug-
gested to activate the function when the camera is in
Live View mode as it may give troubles when the cam-
era runs at high resolutions.
FFig. 10ig. 10
FFig. 11ig. 11
③
④
⑤
