Optika Italy SLX Series Manuale utente

Ver. 2.0 2019

Model

SLX-1

SLX-2

SLX-3

SLX-4

SLX-5

SLX Series

INSTRUCTION MANUAL

Page 2

Table of Contents

1. Warning 3

2. Symbols and conventions 3

3. Safety Information 3

4. Intended use 3

5. Overview 4

5.1 SLX-1 4

5.2 SLX-2 / SLX-3 5

5.3 SLX-4 / SLX-5 6

6. Unpacking 7

7. Assembly 7

7.1 SLX-1 7

7.2 SLX-2 8

7.3 SLX-3 8

7.4 SLX-4 / SLX-5 9

7.5 Assembling procedure 10

7.5.1 SLX-1 / SLX-2 / SLX-3 10

7.5.2 SLX-4 / SLX-5 11

8. Use of the microscope 14

8.1 Adjust interpupillary distance 14

8.2 Focus 14

8.3 Adjusting the tension of the focus knob 14

8.4 Dioptric compensation 15

8.5 Magnification 15

8.6 Use of additional lens 16

8.6.1 Use of 0.5X additional lens (ST-085.1) 16

8.6.2 Use of 1.5X additional lens (ST-086.1) 17

8.7 Use of illumination 17

8.8 Use with rechargeable batteries 17

8.9 Use of eye shields 17

8.10 Use of overhanging stand 18

9. Microphotography 20

9.1 Use of C-mount adapter 20

9.2 Use of Reflex cameras 20

10. Maintenance 21

11. Troubleshooting 22

Equipment disposal 23

Page 3

1. Warning

This microscope is a scientic precision instrument designed to last for many years with a minimum of mainte-

nance. It is built to high optical and mechanical standards and to withstand daily use. We remind you that this

manual contains important information on safety and maintenance, and that it must therefore be made acces-

sible to the instrument users. We decline any responsibility deriving from incorrect instrument use uses that does

not comply with this manual.

2. Symbols and conventions

The following chart is an illustrated glossary of the symbols that are used in this manual.

CAUTION

This symbol indicates a potential risk and alerts you to proceed with caution.

ELECTRICAL SHOCK

This symbol indicates a risk of electrical shock.

3. Safety Information

Avoiding Electrical Shock

Before plugging in the power supply, make sure that the supplying voltage of your region matches with the

operation voltage of the equipment and that the lamp switch is in o󰀨 position. Users should observe all safety

regulations of the region. The equipment has acquired the CE safety label. However, users have full responsibil-

ity to use this equipment safely. Please follow the guidelines below, and read this manual in its entirety to ensure

safe operation of the unit.

4. Intended use

Standard models

For research and teaching use only. Not intended for any animal or human therapeutic or diagnostic use.

IVD Models

Also for diagnostic use, aimed at obtaining information on the physiological or pathological situation of the

subject.

Page 4

5. Overview

MAGNIFICATION

CHANGER

STAGE CLIPS

TRANSPORTATION

HANDLE

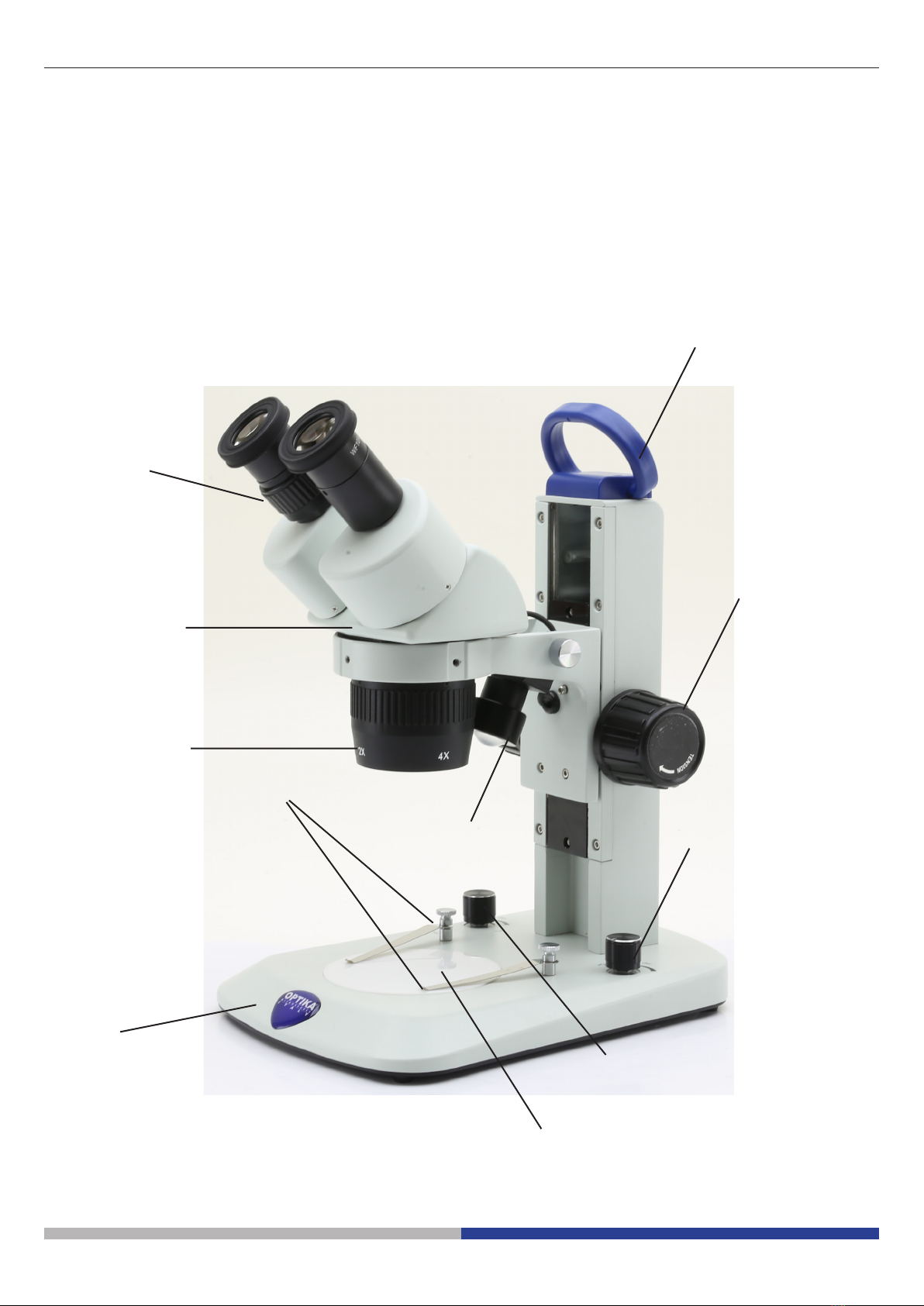

5.1 SLX-1

FOCUS KNOB

STAND

EYEPIECES

TRANSMITTED LIGHT

ON/OFF AND

INTENSITY CONTROL

INCIDENT LIGHT

ON/OFF AND

INTENSITY CONTROL

MICROSCOPE

BODY

TRANSLUCENT DISC

(TRANSMITTED LIGHT)

INCIDENT LIGHT

ILLUMINATOR

Page 5

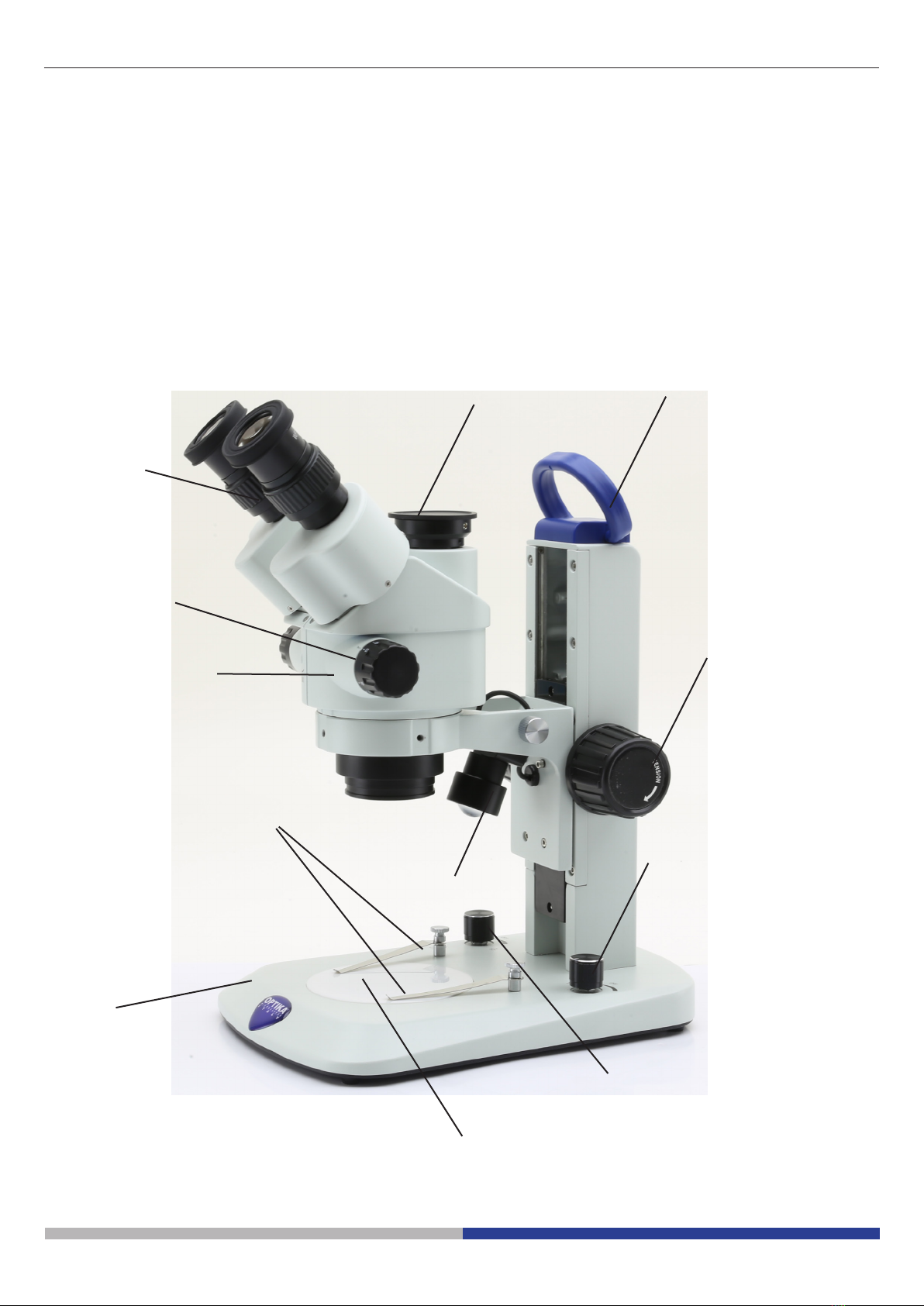

5.2 SLX-2 / SLX-3

TRANSPORTATION

HANDLE

MICROSCOPE BODY

-) SLX-2: BINOCULAR

-) SLX-3: TRINOCULAR

INCIDENT LIGHT

ON/OFF AND

INTENSITY CONTROL

TRANSMITTED LIGHT

ON/OFF AND

INTENSITY CONTROL

FOCUS KNOB

INCIDENT LIGHT

ILLUMINATOR

STAGE CLIPS

STAND

TRANSLUCENT DISC

(TRANSMITTED LIGHT)

EYEPIECES

ZOOM KNOB

PHOTO/TV PORT

(ONLY SLX-3)

Page 6

5.3 SLX-4 / SLX-5

MICROSCOPE BODY

-) SLX-4: BINOCULAR

-) SLX-5: TRINOCULAR

EYEPIECES

ZOOM KNOB

PHOTO/TV PORT

(ONLY SLX-5)

BASE

MANOPOLA DI

MESSA A FUOCO

PILLAR

DROP

PREVENTION

RING

VERTICAL ARM

FIXING KNOB

HORIZONTAL ARM

FIXING KNOBS

FIXING KNOB

Page 7

6. Unpacking

The microscope is housed in a moulded Styrofoam container. Remove the tape from the edge of the container

and lift the top half of the container. Take some care to avoid that the optical items (objectives and eyepieces)

fall out and get damaged. Using both hands (one around the arm and one around the base), lift the microscope

from the container and put it on a stable desk.

Do not touch with bare hands optical surfaces such as lenses, lters or glasses. Traces of grease or other

Residuals may deteriorate the nal image quality and corrode the optics surface in a short time.

7. Assembly

Once opened the microscope box, the microscope parts are the following:

7.1 SLX-1

① Microscope body

② Eyepieces

③ Microscope stand

④ Stage clips (one pair)

⑤ Dust cover

⑥ Power supply

①

③

④

⑤

⑥ ②

Page 8

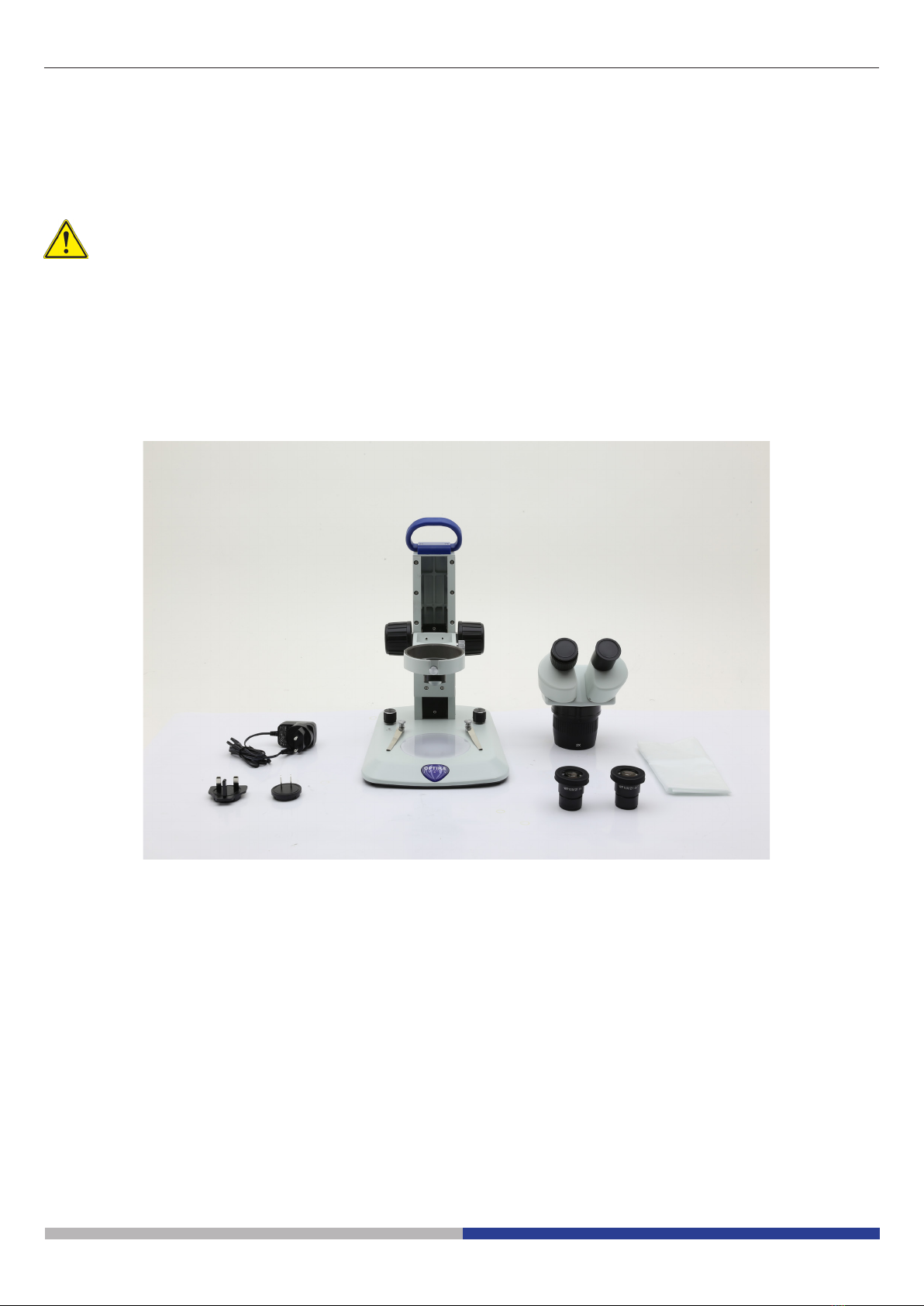

7.2 SLX-2

① Microscope body

② Eyepieces

③ Microscope stand

④ Stage clips (one pair)

⑤ Dust Cover

⑥ Power supply

⑦ Allen Wrench

①

③

④

⑤

⑥ ⑦

②

7.3 SLX-3

① Microscope body

② Eyepieces

③ Microscope stand

④ Stage clips (one pair)

⑤ Dust Cover

⑥ Power supply

⑦ Allen Wrench (2 pcs)

①

③

④

⑤

⑥⑦

②

Page 9

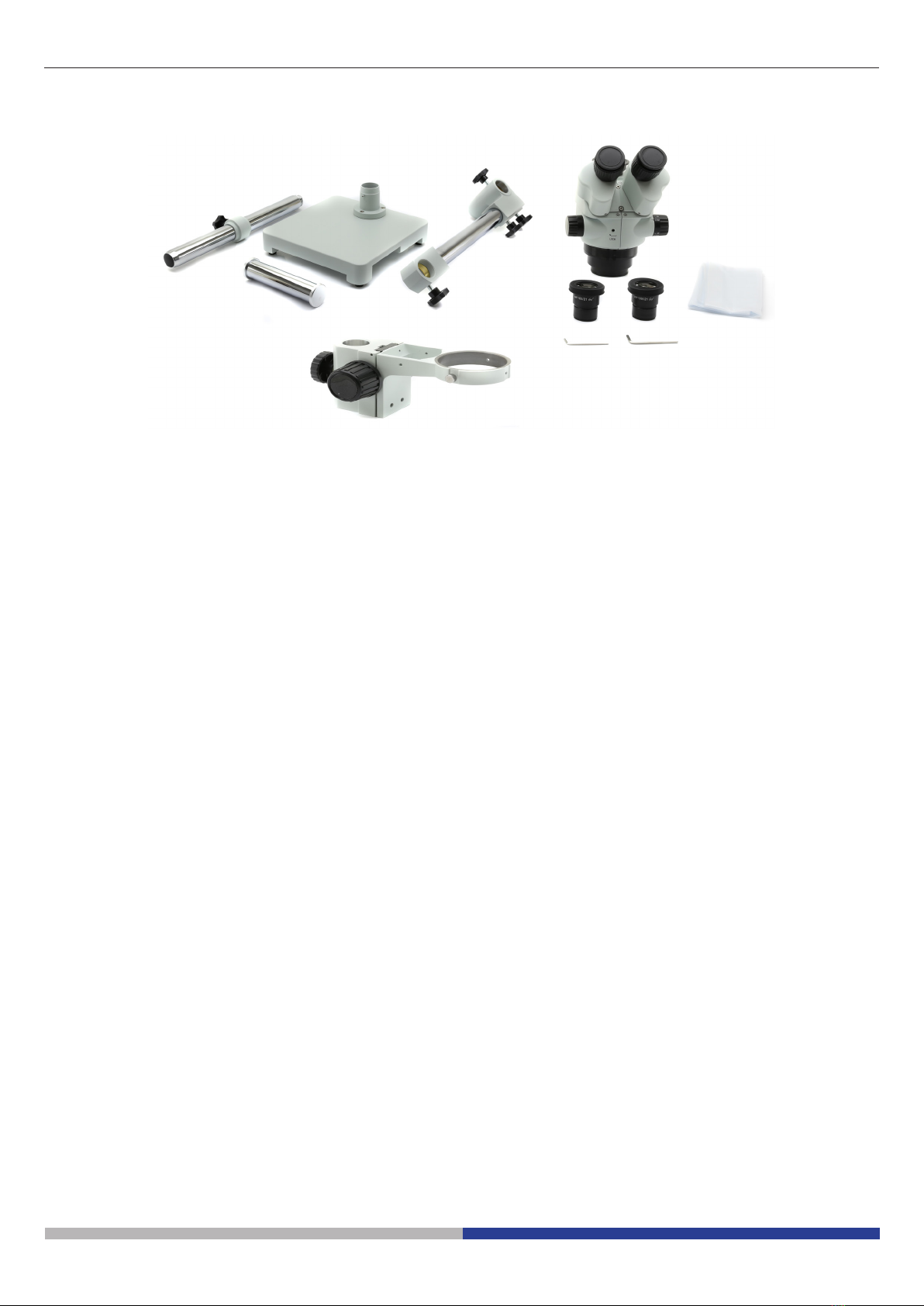

7.4 SLX-4 / SLX-5

① Microscope body

② Eyepieces

③ Overhanging stand

④ Focus

⑤ Dust cover

⑥ Allen wrench

①

③

④

⑤

⑥

②

Page 10

7.5 Assembling procedure

7.5.1 SLX-1 / SLX-2 / SLX-3

• The microscope is shipped from the factory

with the batteries already installed. However,

in some cases it is necessary to ship the mi-

croscope with the batteries disconnected.

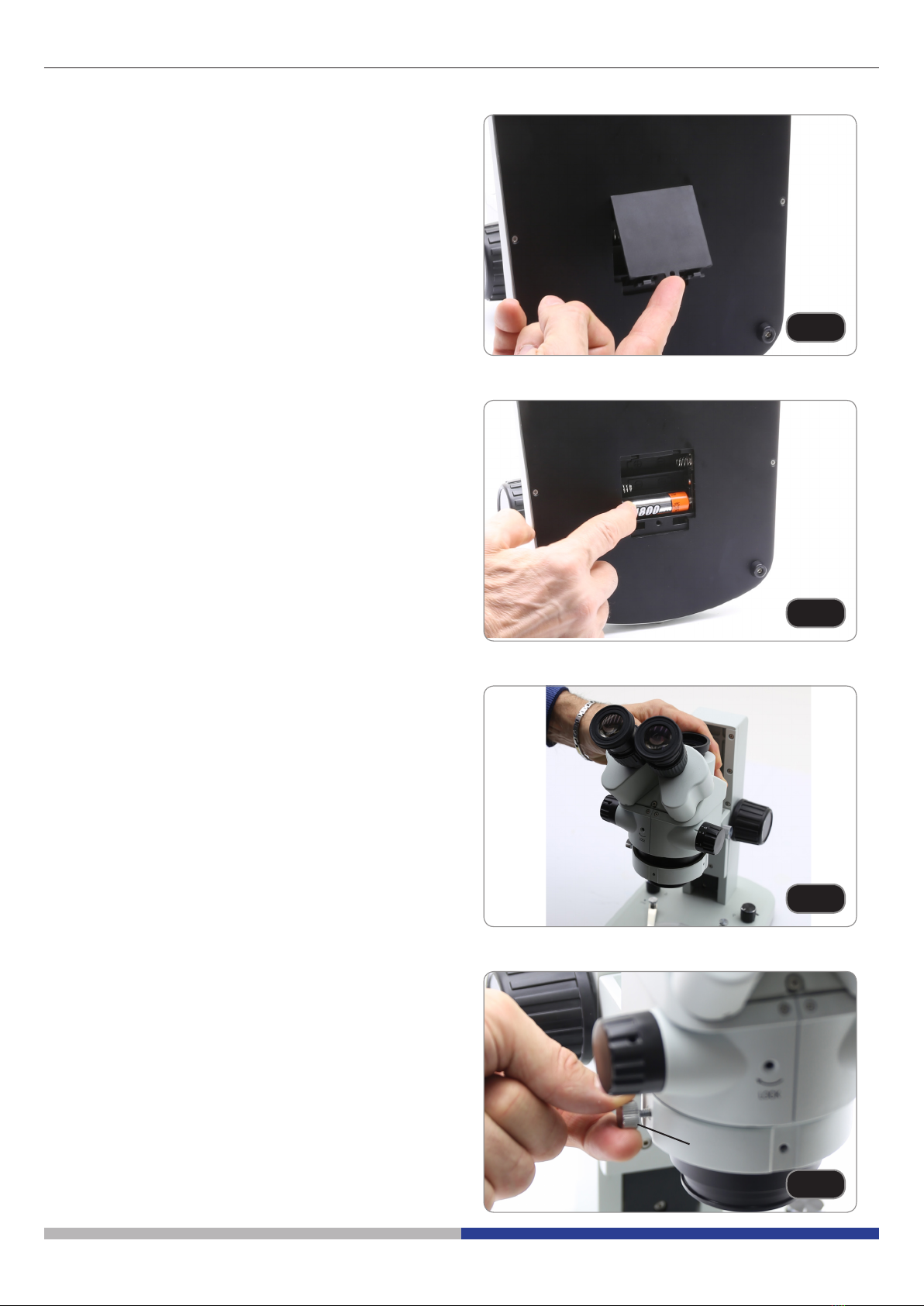

1. Open the lid of the battery compartment. (Fig. 1)

2. Insert the provided rechargeable batteries (re-

specting the polarity of each battery). (Fig. 2)

3. Close the lid.

4. Insert the microscope body in the holder. (Fig. 3)

5. Lock the xing knob ①. (Fig. 4)

Fig. 1

Fig. 2

Fig. 3

Fig. 4

①
