SENSIT Technologies Trak-It IIIa Manuale di programmazione

Quick-Start Instructions

HINT: Using the Bar Hole feature greatly

speeds locating underground leaks. The

pump runs at a much higher ow during this

function.

IMPORTANT: Always use external lter at

intake to protect pump.

WARNINGS:

To prevent the risk of ignition of ammable

atmospheres, batteries must only be changed in

an area known to be non-hazardous.

To prevent ignition of ammable or combustible

atmospheres, disconnect power before servicing.

Do not mix batteries of different age or type.

Substitution of components may impair intrinsic

safety.

Not for use in atmosphere of oxygen greater

than 21%

To maintain intrinsic safety, service must be

performed by factory authorized technicians

with approved replacement parts only.

CAUTION: Lithium backup cell may explode

if mistreated. Do not recharge, disassemble or

dispose of in re.

This is not a substitute for the

instruction manual. It is for

reference only.

Read and understand the

instruction manual before use.

MADE IN THE USA

WITH GLOBALLY SOURCED COMPONENTS

Distributed by:

851 Transport Drive

Valparaiso, IN 46383-8432

Phone: 219 465 2700

Web: www.gasleaksensors.com

Innovative Detection Solutions

1. Install the batteries by removing the

instrument from the pouch and removing

the battery cover from the bottom of the

instrument.

2. IMPORTANT: CAREFULLY OBSERVE

POLARITY WHEN CHANGING BATTERIES.

Improperly installed batteries will cause the

instrument not to operate.

3. Locate button “A” – push & hold until the

unit powers up, then release the power button.

4. Allow unit to go through the warm up

sequence in clean air. At the end of warm

up, the unit will auto zero and enter the

working display. This requires from 40 up

to180 seconds.

5. If FAIL is displayed for any of the sensor

readings, make sure the instrument is in

clean air; push and hold the “C” button until

AUTO ZERO is displayed. If this process

does not clear the fail on the display, this

could indicate a problem with the instrument

or sensor.

6. Look at the display – Up to four (4) gases

are shown: O2, LEL, H2S (or HCN) and CO.

7. The combustible gas scale will automatically

range from %LEL to %Volume if so equipped

with the 100%v/v (TC) sensor.

8. Be certain the lter assembly is attached to

the sample inlet.

9. Place your nger over the inlet and wait ~5

seconds for “FLOW BLOCKED” to appear on

the display. If the instrument does not show

“FLOW BLOCKED” service is required.

10. You are now ready to use the instrument.

You can now enter the area and detect gases.

12. Any “NSC” readings indicate a

combustible gas sensed other than the one

the instrument is calibrated to measure.

Any “NSR” readings indicate a non-

combustible gas sensed the instrument is not

calibrated to measure. (found on instruments

with 100%v/v (TC) scale only

12. Press and hold the “C” button to zero the

instrument. (only in a gas free area).

13. When your investigation is complete

push button “A” and hold for 5 seconds until

the instrument displays “POWER OFF” then

release to shut off.

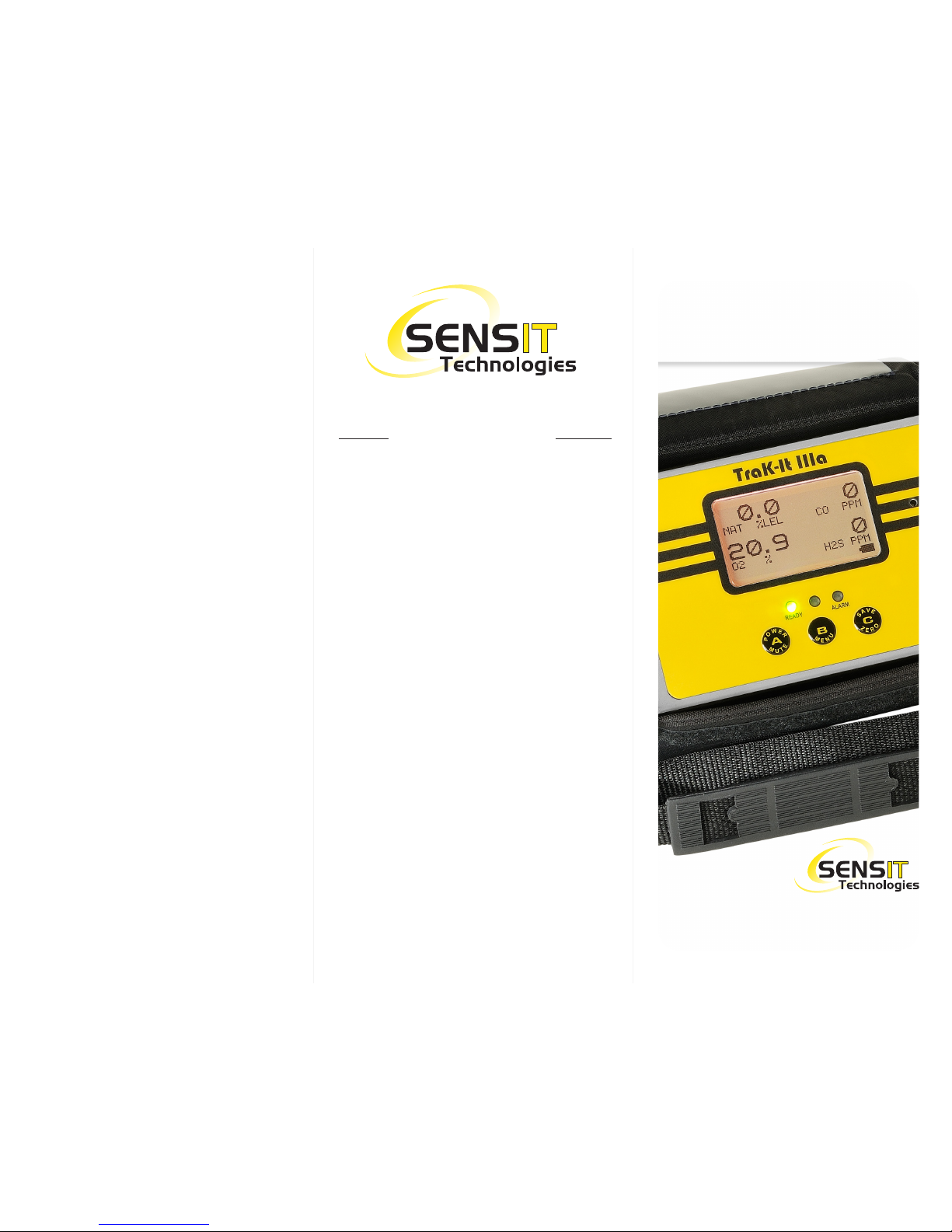

SENSIT®Trak-It IIIa

QUICK-START INSTRUCTIONS
