SEWOO LK-P12 Nota di rilascio

LK-P12

SEWOO TECH 1 Rev. 1.00

Mobile Printer

Rev. 1.00

Windows CE Printer Driver Manual

LK

-

P

1

2

LK-P12

SEWOO TECH 2 Rev. 1.00

TABLE of CONTENTS

1. Instruction.

2. Supported processor family.

3. How to install the Windows CE Printer Dri er.

4. How to setup the Windows CE Printer Dri er.

5. How to setup the printing dialog box with Windows CE Printer Dri er.

6. How to print with Windows CE Printer Dri er.

LK-P12

SEWOO TECH 3 Rev. 1.00

1. Instrution.

This Windows CE Printer Driver Manual explains how to install, how to setup and

how to use mobile printer driver on OS like Microsoft Windows CE.

The installation manual is written based on the LK-P11.

The installation program is different. But, the installation procedure is

same.

Please note.

2. Supported processor family.

ARM, MIPS, SH, x86

LK-P12

SEWOO TECH 4 Rev. 1.00

3. How to install the Windows CE Printer Dri er.

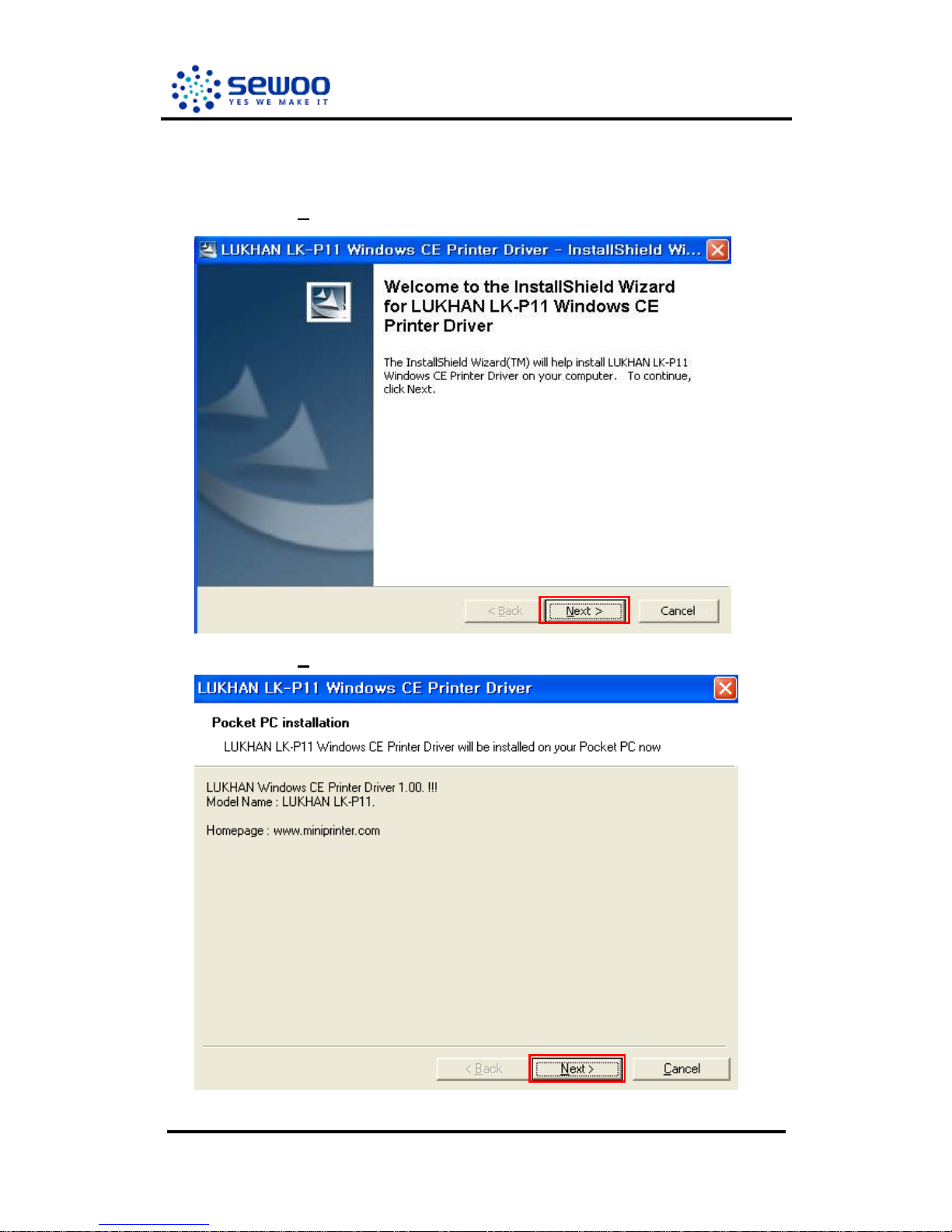

2.1. Double-click the Dri er installation file (LUKHANLK-P11WindowsCEPrinterDri er-xxx.exe).

2.2. Click the “Next>” button.

2.3. Click the “Next>” button.

LK-P12

SEWOO TECH 5 Rev. 1.00

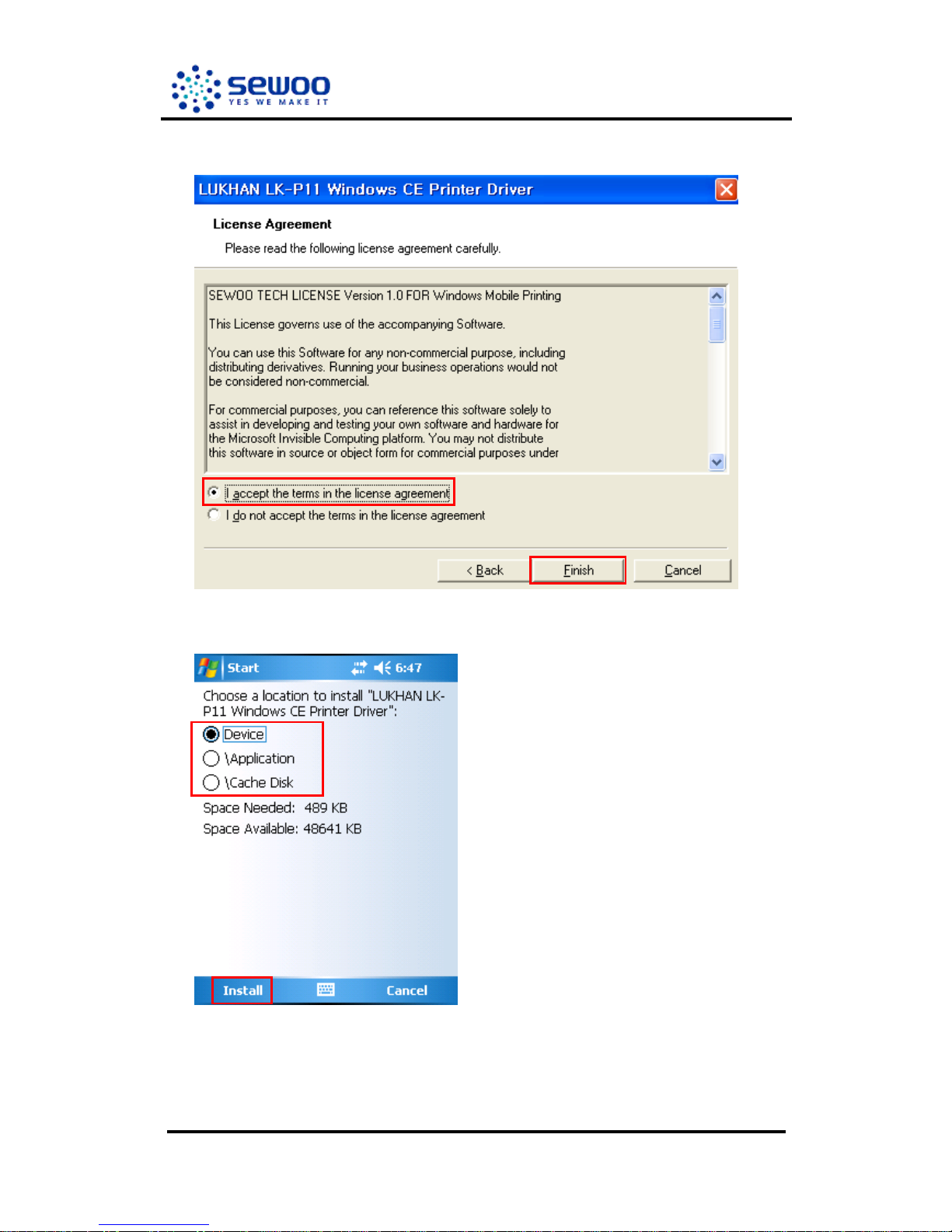

2.4. After confirming the license click the “Finish” button.

2.5. Choose the location to install and click the “Install” button.

LK-P12

SEWOO TECH 6 Rev. 1.00

2.6. You can see the progress of driver installation in PDA.

2.7. You can see the below message on PDA when the driver is successfully installed

on your device. After seeing this message click the “ok” button.

LK-P12

SEWOO TECH 7 Rev. 1.00

4. How to setup the Windows CE Printer Dri er.

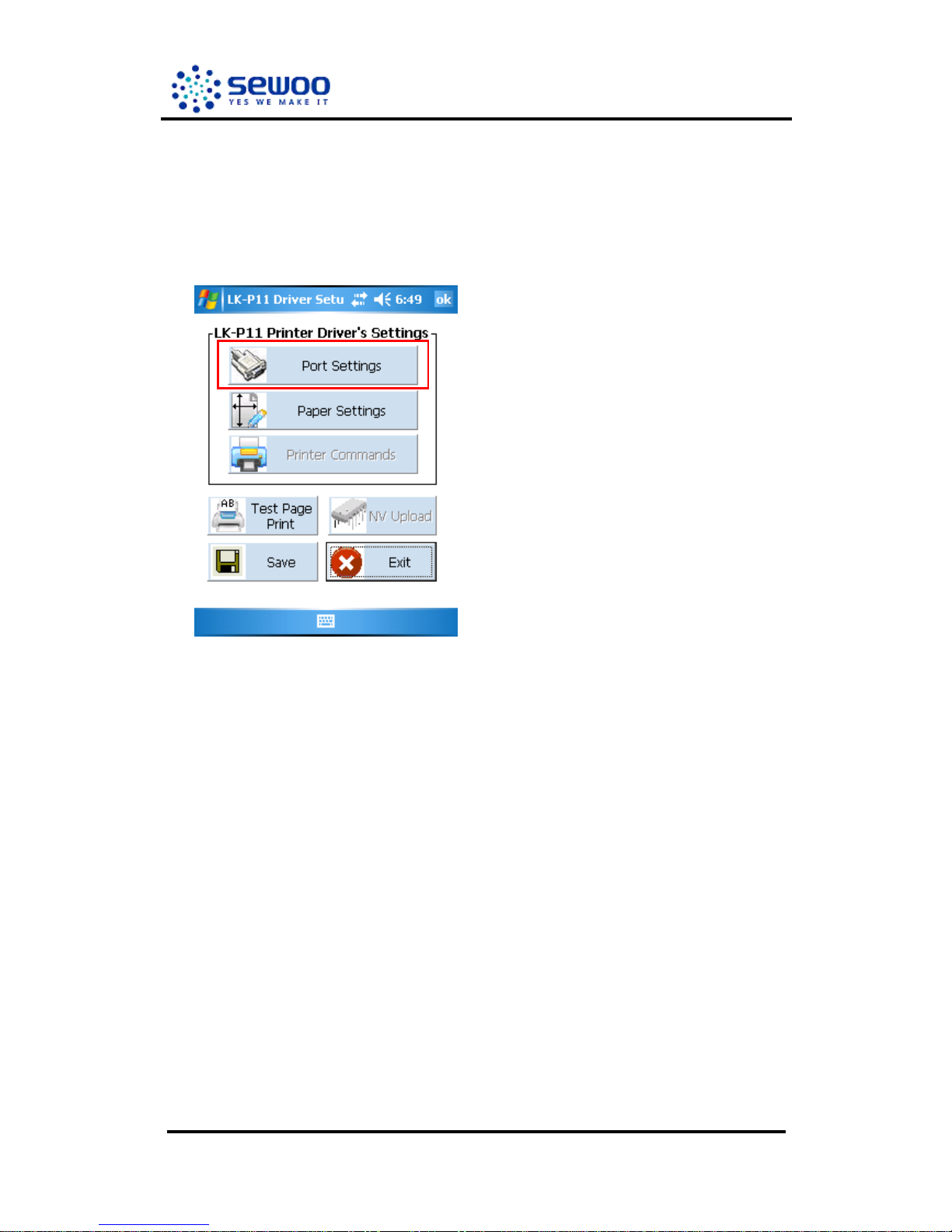

- Start  Program  Execute LK-P11 ARMV4(i) Setup.exe.

The “Printer Commands” and “NV Upload” button are not available on below

photo, because its basic emulation is CPCL.

Click the “Port Settings” button.

- Input the port name what you want to use.

Port Name : “COM5:” or “COM5:115200” or “LPT1” or “Wi-Fi Address”

“Wi-Fi Address”“192.168.0.193” or “192.168.10.200”, and so on.

(ex) Input COM5:115200.

LK-P12

SEWOO TECH 8 Rev. 1.00

- Click the “Add Port” button.

You can see the added port in “Port Lists in Device”.

- Choose the port and click the “Select Port” button.

COM

5

:115200

LK-P12

SEWOO TECH 9 Rev. 1.00

- Click the “Paper Settings” button at Start Menu.

- Choose the paper you want to use.

When the user does not choose the paper, the default paper set will be selected.

LK-P12

SEWOO TECH 10 Rev. 1.0

0

- Choose the emulation according to your need.

Value Description

ESC/POS Receipt Printing.

CPCL With Gap Label printing with gap.

CPCL With Mark Label printing with Black Mark.

CPCL Continuous Continuous label printing.

- When you choose ESC/POS emulation, you can use additional functions by

clicking “Printer Commands” button.
