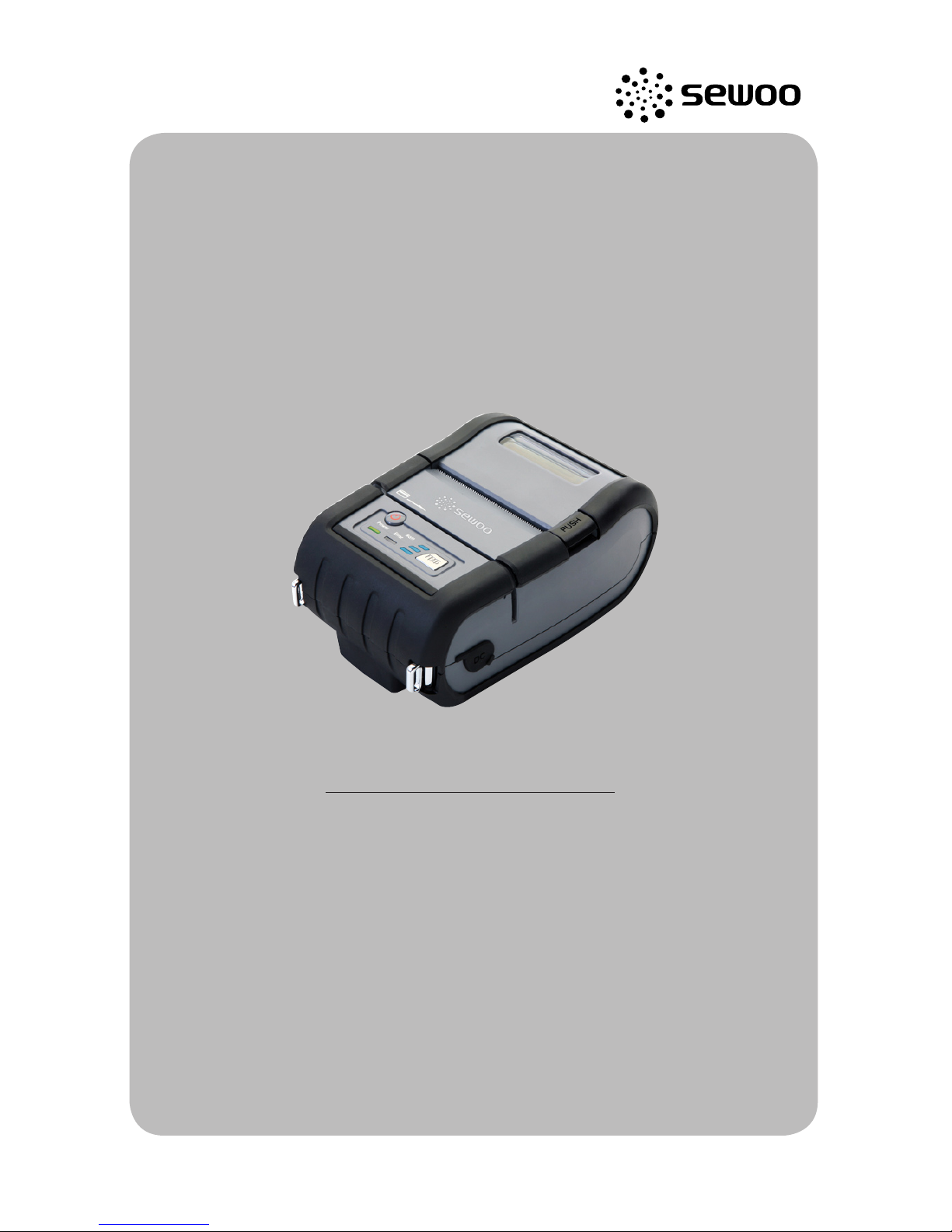

SEWOO LK-P20B Manuale utente

All specifications are subject to change without notice

MOBILE PRINTER

MODEL : LK-P20B

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTION

Table of Contents

Unpacking

2. Product overview 4

3. Usage and Installation 5

3-1. Control panel usage 5

3-2. Battery Installation 6

3-3. Charging battery 7

3-4. Battery charger usage

(Optional)

3-5. Usage of Cigar Jack for charging

(Optional)

3-6. Battery removal 10

3-7. Belt Clip usage 11

3-8. Loading the media. 12

3-9. Loading the media.

(Optional)

3-10. Leather case usage

(Optional)

3-11. Self Test 15

3-12. MSR usage

(Optional)

3-13. IC CARD usage

(Optional)

4. Peripherals Connection 19

4-1. Bluetooth Connection 19

4-2. Interface Cable Connection 20

5. Speciﬁcation 21

6. Setting up the software 23

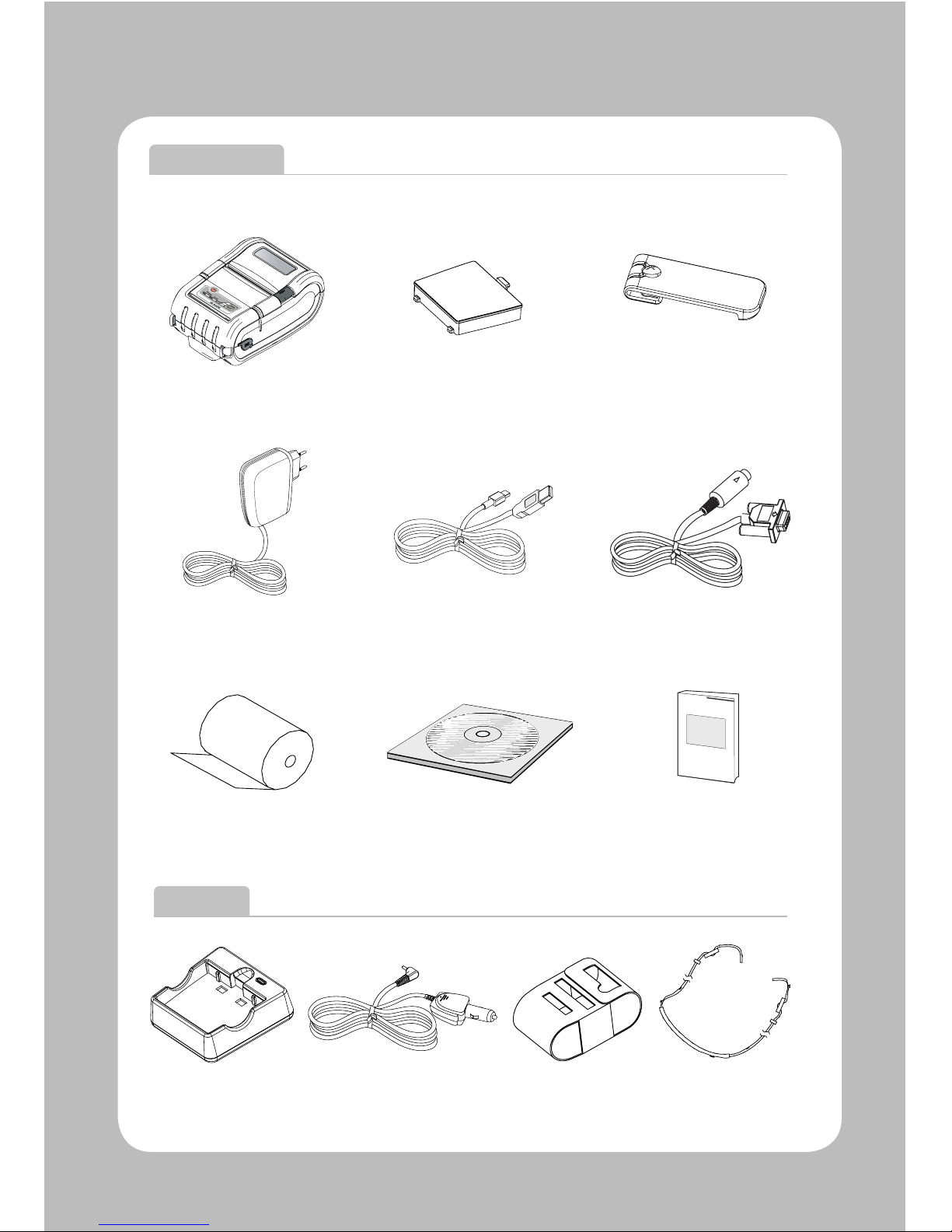

1. Unpacking

Printer Battery

Battery recharger

Serial Cable

Roll paper

Belt Buckle

USB Shelded Cable

Printer case

Charger

Strap

Standard

Option

Quick Manual

Cigar jack charger

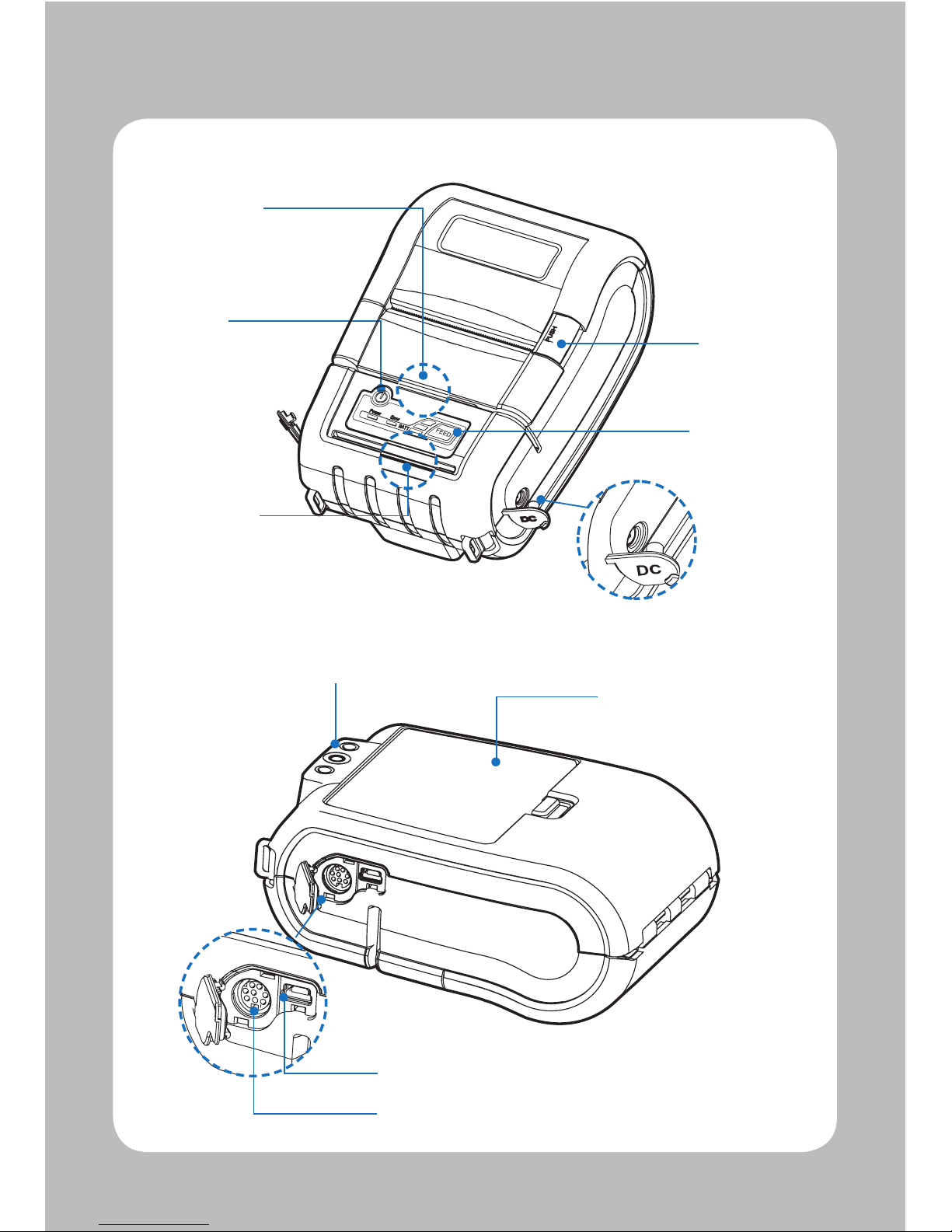

2. Product overview

Power

switch

DC Power

Belt clip hole Battery

Paper feed

button

MSR Slot

(Optional)

IC Card Slot

(Optional)

Open Button

SERIAL

USB

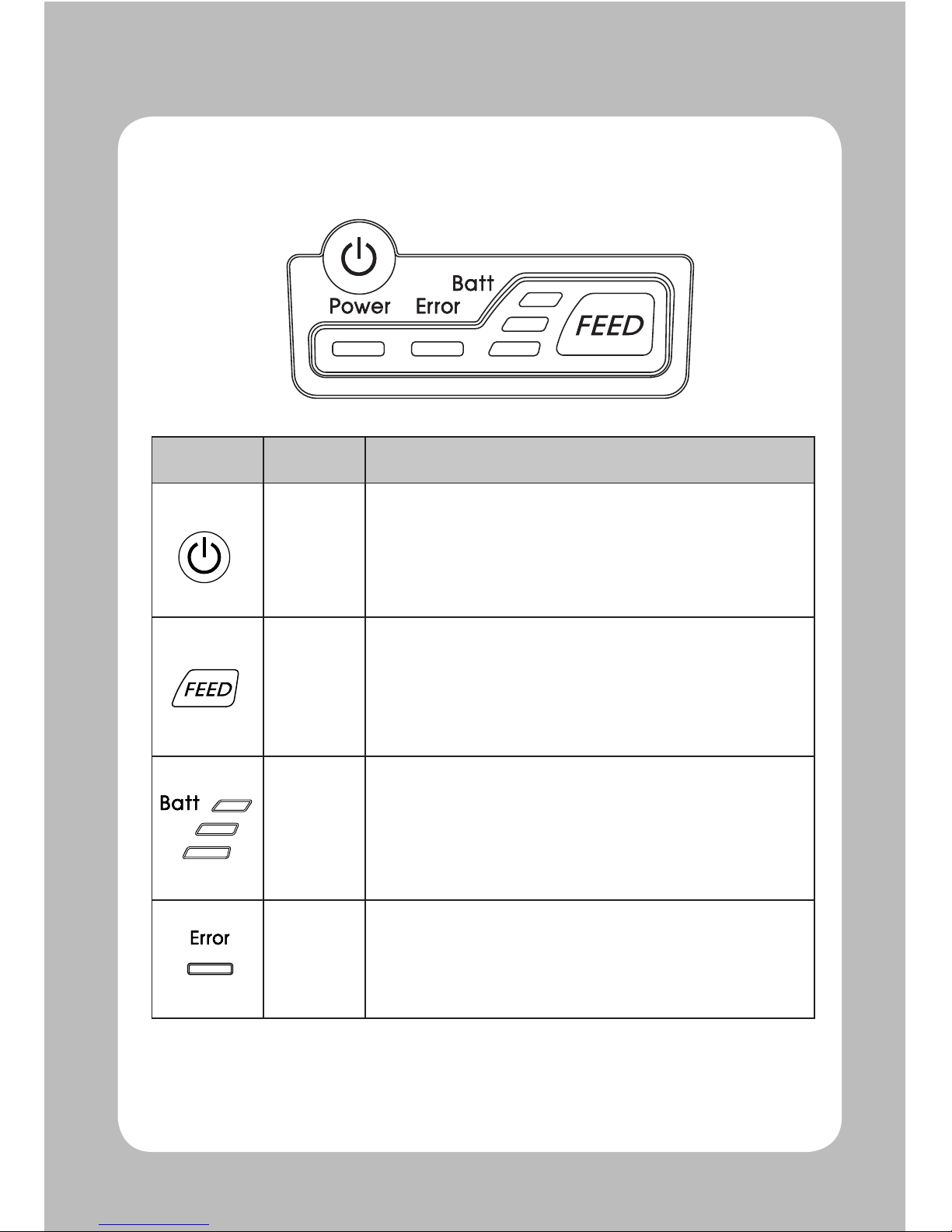

3-1 Control panel usage

Button

Name

function

Power

button

This button is used to turn the printer on and off.

When the printer is off,press this button for approximately 3 seconds

and it will turn on the power.When you press this button in a state

that the printer is on,the printer will turn off.

Paper

Feed

Button

Paper output can be done manually by pressing this button.

Additionally, self-testing and Hexadecimal Dumping can be

processed..

1. Refer to“3-10”for self test information.

2.Refer to the service manual regarding Hexadecimal Dumping.

Battery

Status

Lamp

1. If the Batt,LED are Lit, the battery is fully charged.

2.If you can hear beeping sound and LED light is turned off,it means

that the battery is at the lowest level.

3.If the battery is not charged at all,the printer turns off

automatically.

Error

Lamp

If the red light is turned on,it means there is no paper roll or the

paper cover is open.

3. Usage and Installation

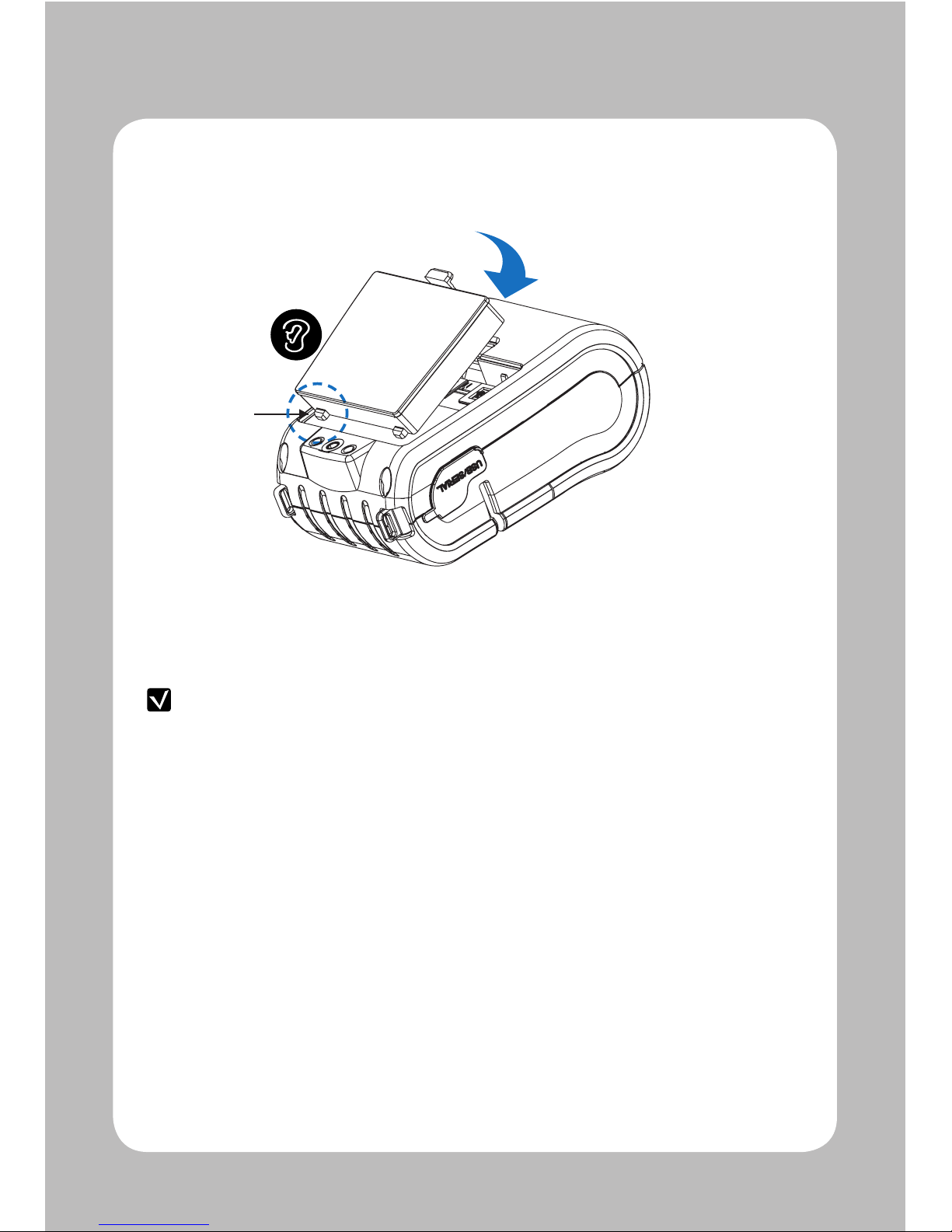

3-2 Battery Installation

1. Align battery hook as shown in the picture

2. Push the battery into the printer until it locks in place.

NOTE

As the battery is not charged at the time of your purchase, charge the

battery prior to using the printer

(Battery charger or Cradle can be used to charge)

Hook

3-3 Charging battery

NOTE

1. Unless the exclusive charger is used provided by the manufacturer, the printer

can be damaged, and the manufacturer is not liable for the consequential damage.

2. Before removing the battery, make sure that power is turned off.

3. Printer does not work in the status of being connected with charger only.

4. The battery should be installed to operate printer.

5. While charging, do not turn on the power.

6. Do not operate the print while charging the battery.

7. Do not connect the charger while the printer is operated.

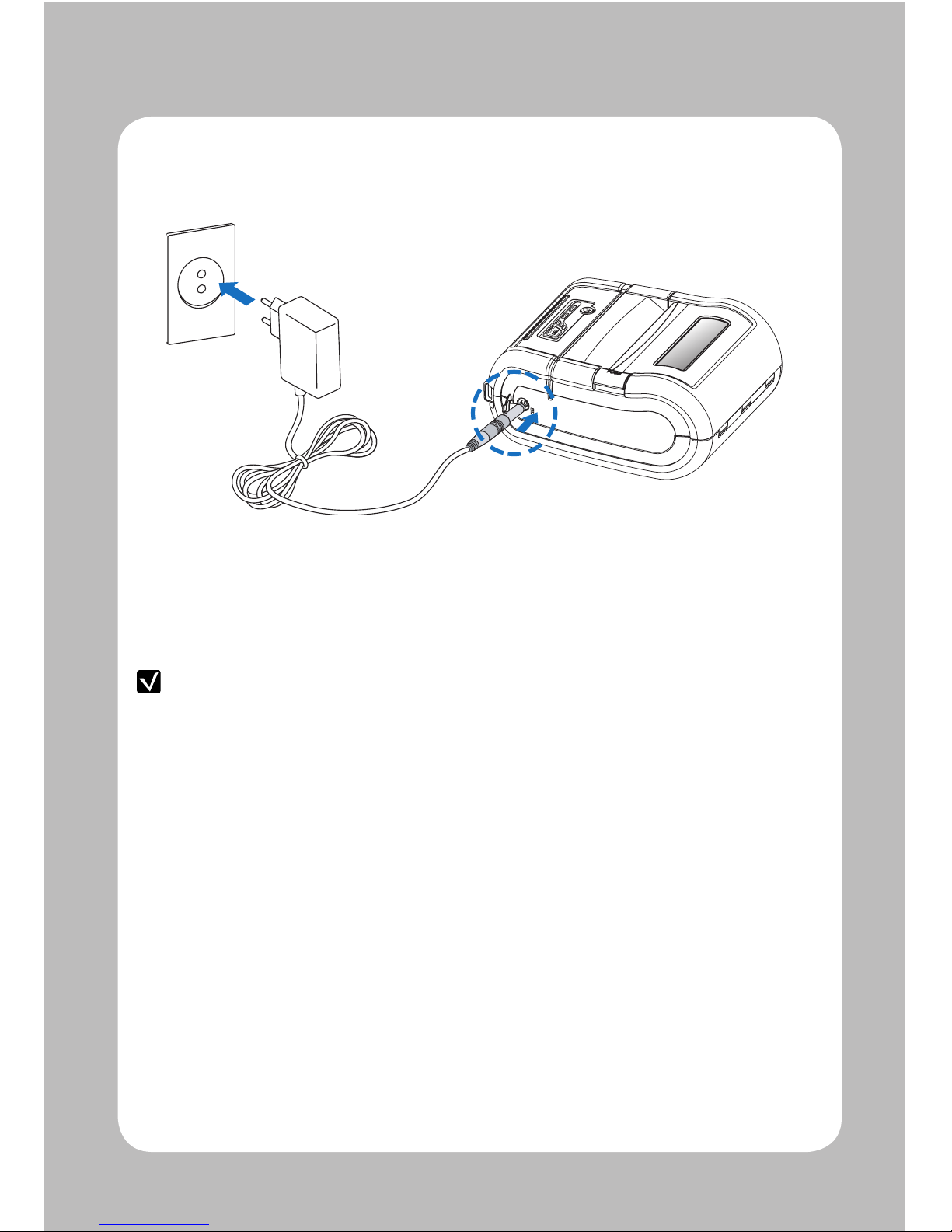

1. Be sure that the printer is turned off

2. After open the DC JACK cover, insert DC JACK into the printer.

3. Plug the power code to electrical outlet.

3-5-1 The status of lamp in charging

Status charging charging complete

Charging Lamp Red

Green

NOTE

In the case the battery is not ﬁxed properly in the holder, the red lamp will be

blinking, Then, extract and reinsert the battery.

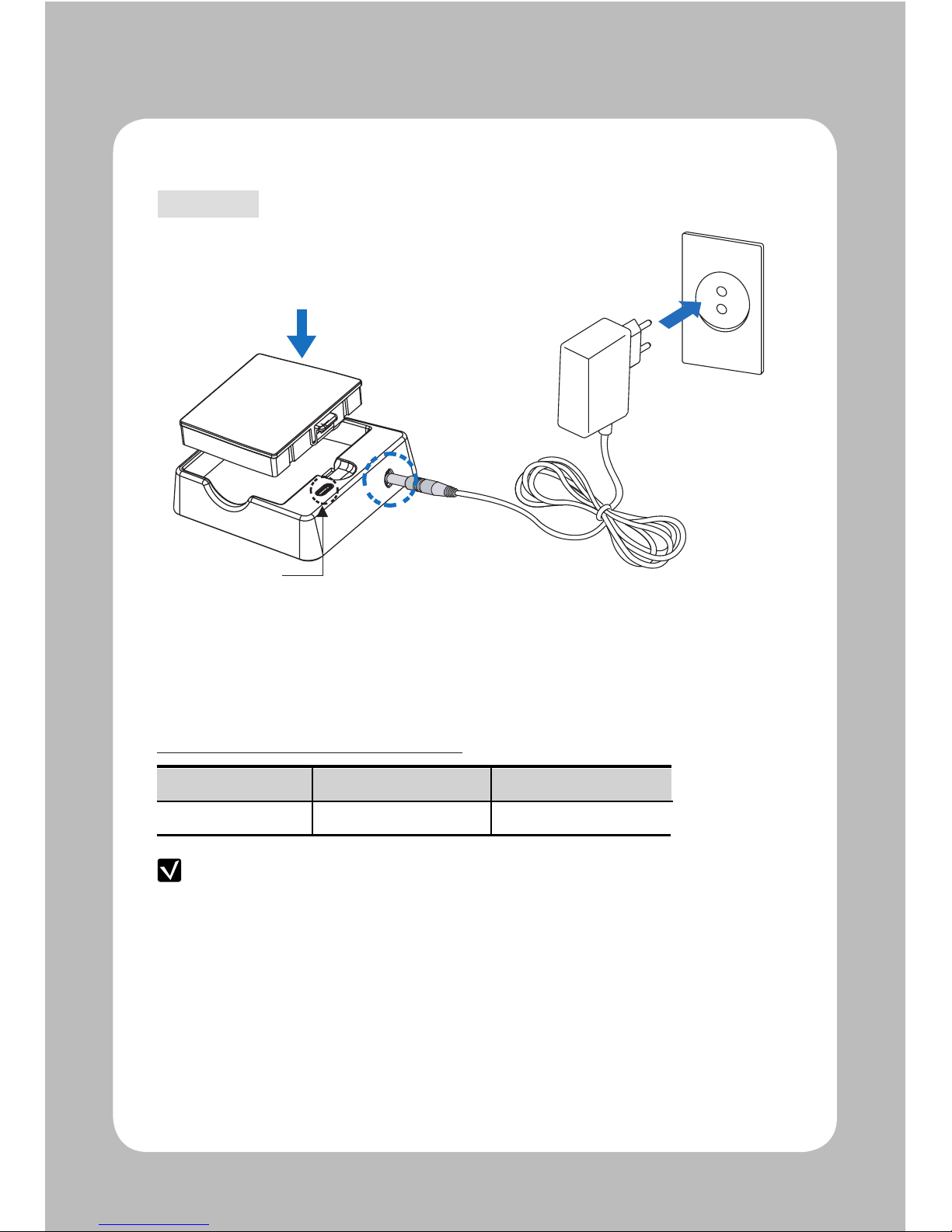

1. Insert the battery into the battery holder as shown above

2. Connect the DC JACK to the power electrical outlet.

3. Once the charging is completed, remove the battery from the holder.

3-4 Battery charger usage

lamp

Optional

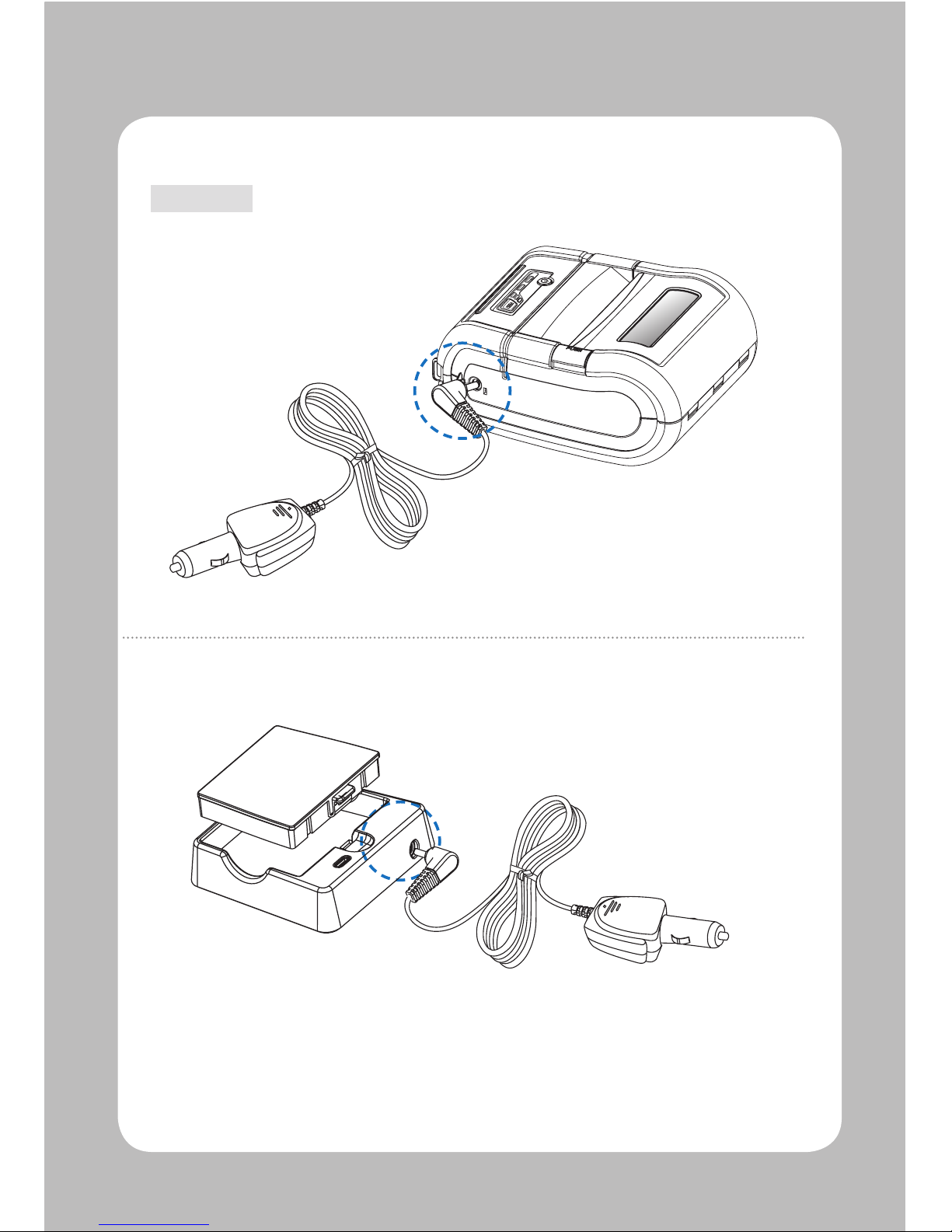

Connect the car cigar JACK charger into the printer or battery holder.

3-5 Usage of Cigar Jack for charging

Printer

Battery holder

Optional
