SEWOO LK-P43 Guida utente
MODEL:LK-P43
Portable Printer
SEWOO TECH CO.,LTD.
374-2, Gajang-dong, Osan-si, Gyeonggi-do, 447-210, Korea
TEL : +82-31-459-8200 FAX : +82-31-459-8880
www.miniprinter.com
P43 Rev. A 05/13
System Administrator Manual
1
Table of Contents
1. INTRODUCTION
4
1-1 Using This Manual 4
1-2 Using the Menu Chart 4
1-3 Using the Display and Buttons 5
1-3-1 Selecting a Menu 6
1-3-2 Exiting a Menu 6
1-3-3 Printing 6
1-4. Selecting a Language 7
2. USING DIAGNOSTICS
8
2-1 Diagnostics 8
2-1-1 Printer 9
2-1-2 Display 15
2-1-3 Buttons 16
2-1-4 RAM 17
2-1-5 Data Dump 18
2-1-6 About 19
3. SETTING UP THE PRINTER
20
3-1 SETUP 20
3-1-1 Stock Power 21
3-1-2 Backlight 22
3-1-3 Contrast 23
3-1-4 Printer 24
3-1-5 Serial Communications 36
3-1-6 Power Management 40
23
4. WI-FI 42
4-1 RF Network 42
4-2 Wi-Fi setting utility instruction 50
4-2-1 Port and Wi-Fi Information Tab 51
4-2-2 Wi-Fi Information Tab 51
4-2-3 WPA Authentication Tab 51
4-3 Using the Web Interface 52
4-3-1 Navigation Bar 53
4-3-2 Status 54
4-3-3 Navigating the Website 55
4-3-4 Conguration 56
4-3-5 Certicates 73
4-3-6 Network 75
4-3-7 Maintenance 76
4-3-8 Updating a Field 79
4-4 Wi-Fi Glossary 80
4-5 Wi-Fi Specications 85
5. BLUETOOTH
86
5-1 Using the Bluetooth Settings Dialog 86
5-1-1 Enabling the Security 86
5-1-2 Change Pin 87
5-1-3 Local Name 87
5-1-4 Local Address 88
5-1-5 Printing Info 88
5-2 Bluetooth Interface 89
5-2-1 Printer Connection Settings 90
5-2-2 Get Bluetooth Information 91
5-2-3 PIN Code Information 91
5-2-4 Discoverable Mode Information 91
5-2-5 Emulation Settings 92
45
1. INTRODUCTION
1-1. Using This Manual

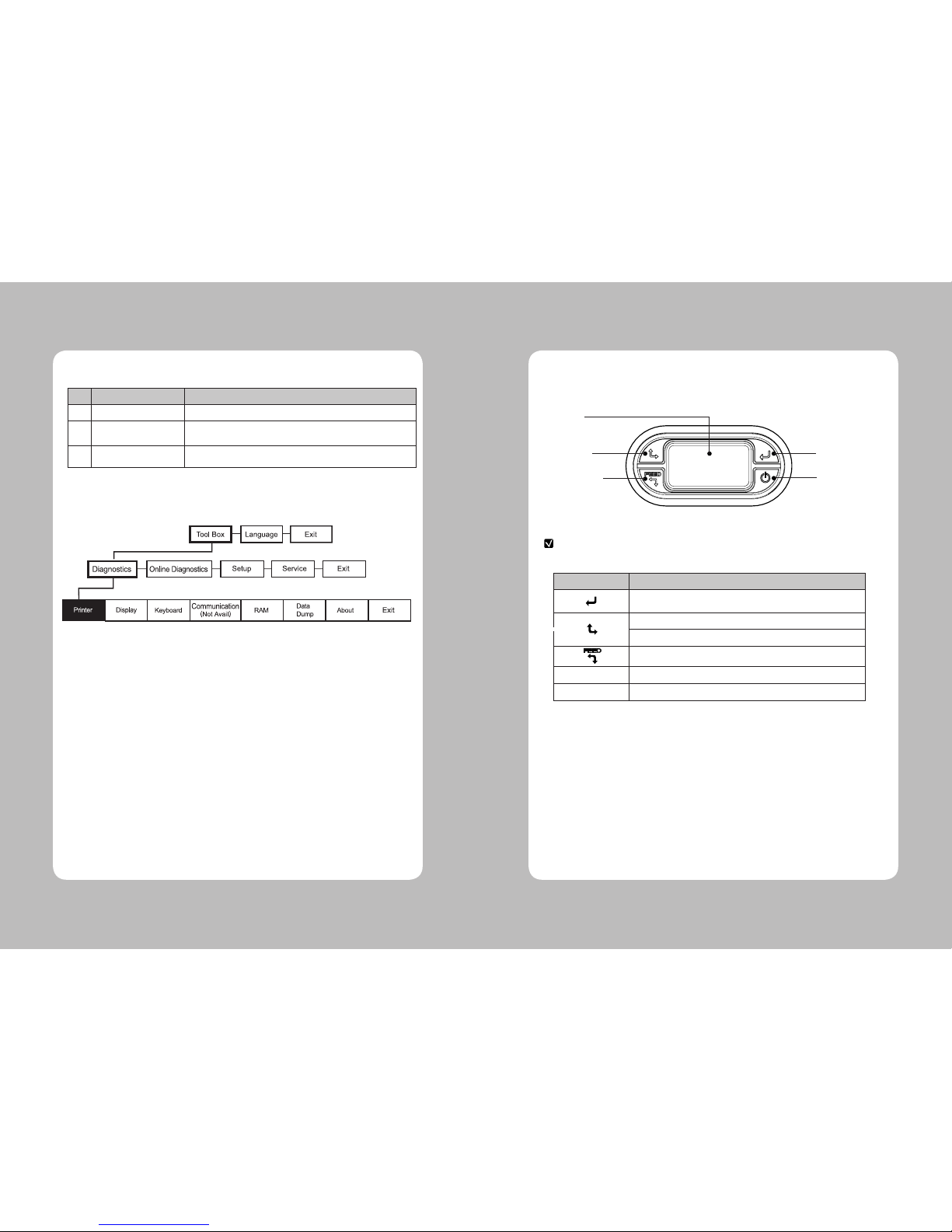

1-2. Using the Menu Chart
Subjects Contents
1Introduction Notes before using printer
2Diagnostics How to print test label, check sensor, check print position, etc.
3Setting Up the Printer How to use the Setting Menu to adjust stock
and printer settings
The black boxes show present position, the boxes with a thick line show how you got there.
1-3. Using the Display and Buttons
NOTE
button operates as feed button in ready condition only.
Screen displays Meaning
Selects the highlighted option.
Moves position of Menu upwards by one step.
Moves the cursor to the position to change.
Moves position of Menu downwards by one step
Increases set value
Decreases set value
Display
Enter button
Power button
Up button
Paper Feed /
Down button
+
-
67
Select Exit Menu or press the power ( )button to return to the previous menu
.
There are three ways to print.
1. When turning on the printer, press and hold the power ( ) button and the Down(▼)
button. The printer prints a batch (if sent) or prints the printer status information.
2. Select a test label from the Diagnostics menu.
3. Send batch data to the printer.

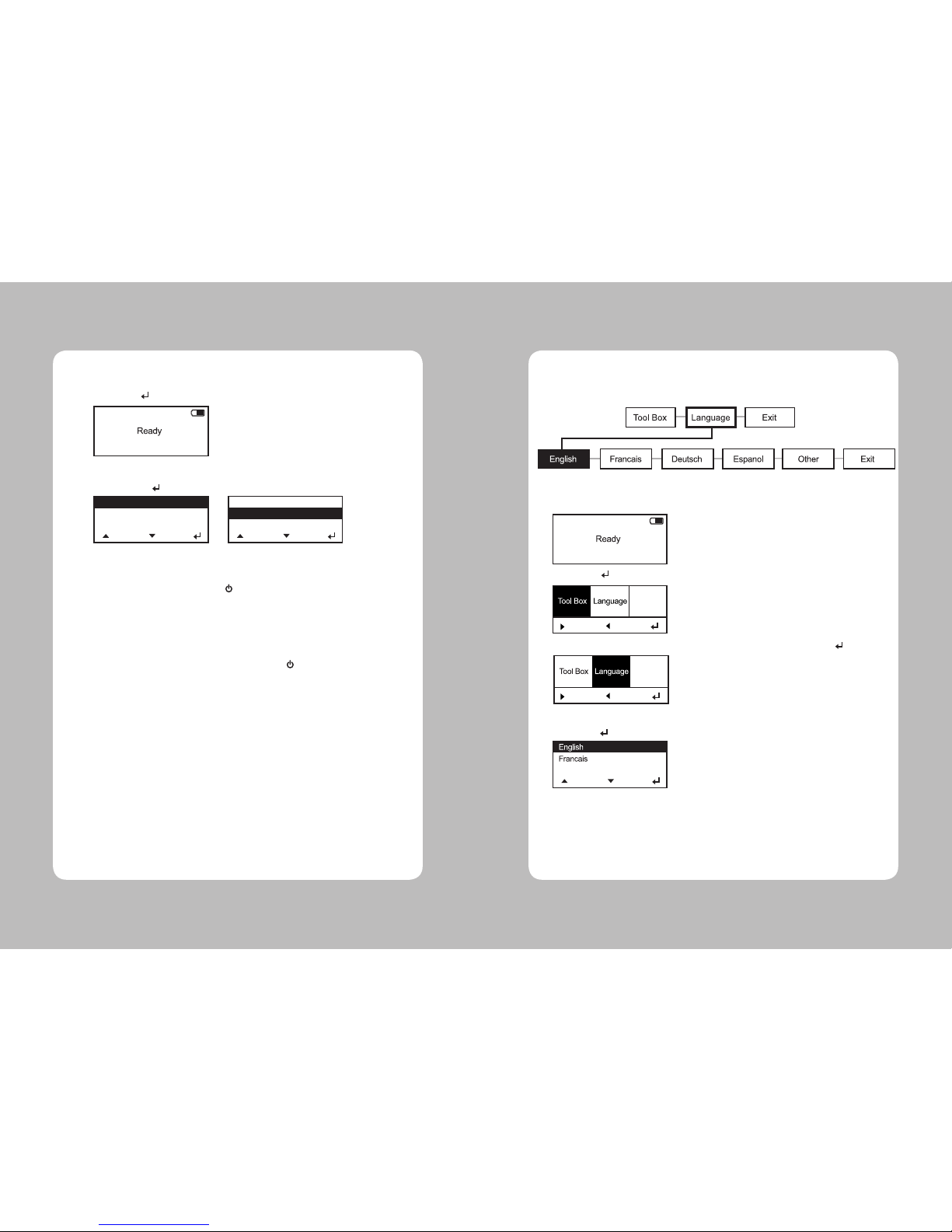

1-3-1. Selecting a Menu
1-3-2. Exiting a Menu
1-3-3. Printing
1. Press Enter( ) button to enter the Menu
2. Move cursor to the menu using Up(▲) / Down(▼) buttons, and select the Menu by
pressing Enter( ) button.
1-4. Selecting a Language
You can read Menu names or messages of the printer in English, French,
Spanish, German.
1. Turn on the printer. The printer name and software version information are displayed.
Then you see
2. Press Enter( ) button.
3. Move cursor to language by pressing Down(▼)button and then press Enter( ) button.
4. Move the cursor to the language you want by pressing Up(▲)/Down(▼) button then
press Enter( ) button.
5. The selected language is displayed on the screen.
6. Select exit to return to the diagnostics menu or press the power button to return to the
ready screen
Communication Communication
Online Diagnostics Online Diagnostics
Diagnostics Diagnostics
Deutsch
Exit
Exit
89

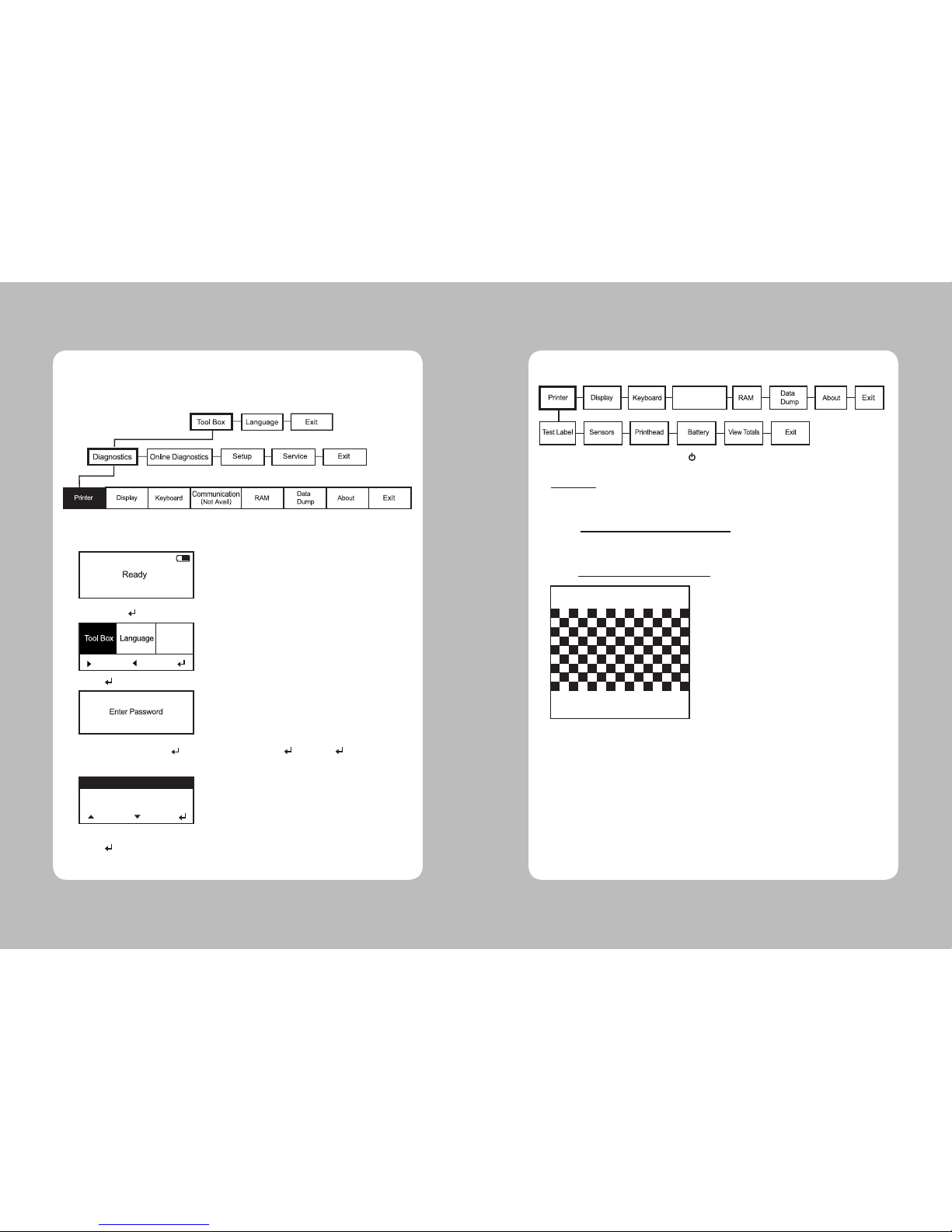

2-1. Diagnostics
This chapter describes how to use Diagnostics in the Tool Box.
You can view test results through this Menu; however, you cannot change the setting.
1. Turn on the printer. The printer name and software version information are displayed.
Then you see
2. Press Enter( ) button and then you see
3. Enter( ) button and you see
5. If correct password is typed in then you see
4. Press Up(▲) and Enter( ) button in the sequence of ,▲, ▲, ▲,
6. Cursor is positioned on the Diagnostics Menu. Enter into Diagnostics Menu by pressing
Enter( ) button.
2. Using Diagnostics
To return to initial screen, press power( )button
Four test labels can be printed: Diagnostic Label, Test Pattern, Gray Scale,
MIF (Monarch Initialization Files) Info
**Test Label
1. Select Printer - Test Label - Diagnostic Label in Diagnostics Menu
2. Select Printer – Test Label– Test Pattern in Diagnostics Menu
Checkerboard pattern is printed
not applicable
2-1-1. Printer
Communication
Online Diagnostics
Setup
Diagnostics
Exit
10 11
Gray Scale printed
not applicable
3. Select Printer - Test Label - Gray Scale in Diagnostics Menu.
4. Select Printer – Test Label – MIF Info in Diagnostics Menu.

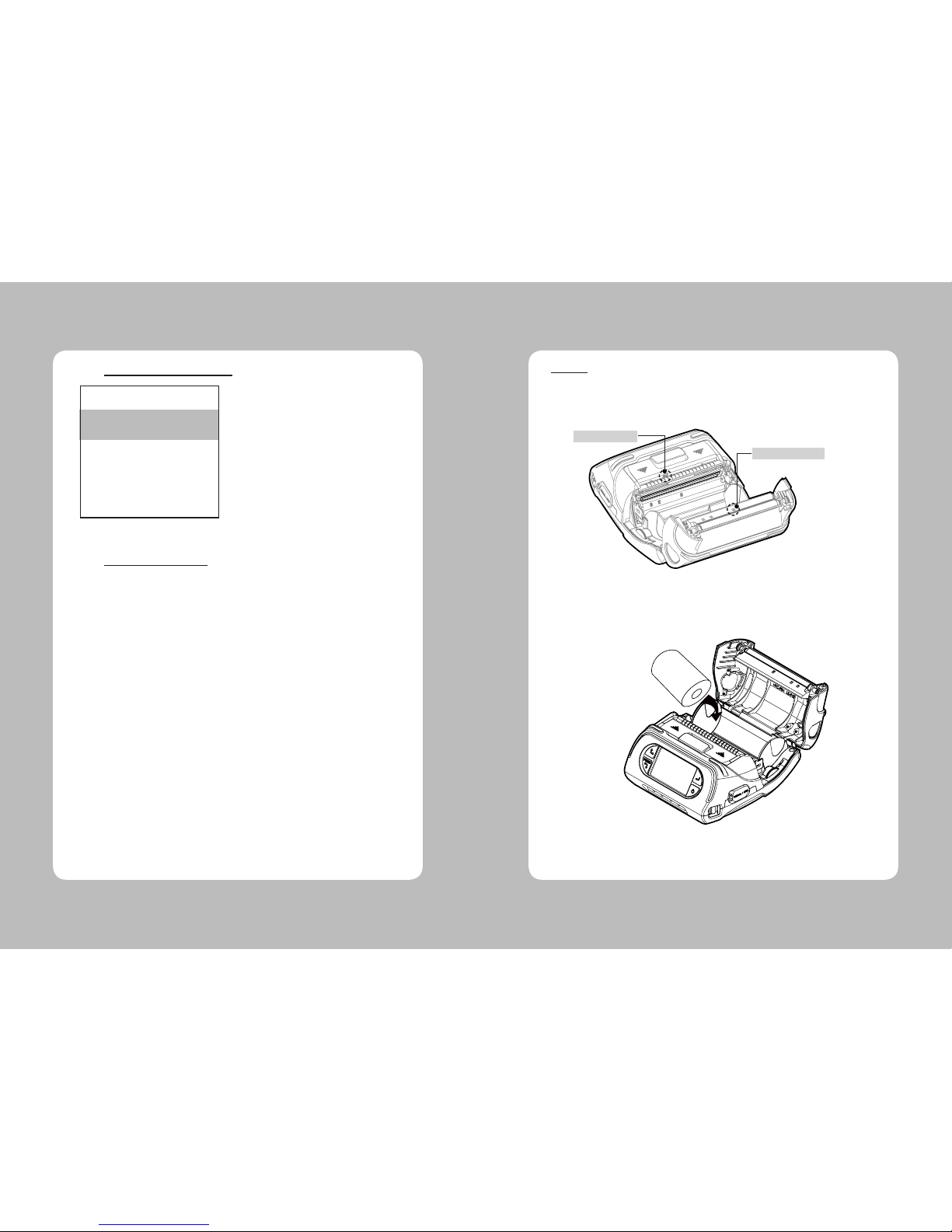

In this Menu, you can read each A/D value of the Black Mark, Gap, or Peeler,
Peel-SW sensors. Position of each sensor is as shown in following picture.
**Sensors
1. Load stock in the printer.
PEELER SENSOR
B/M & GAP SENSOR
12 13

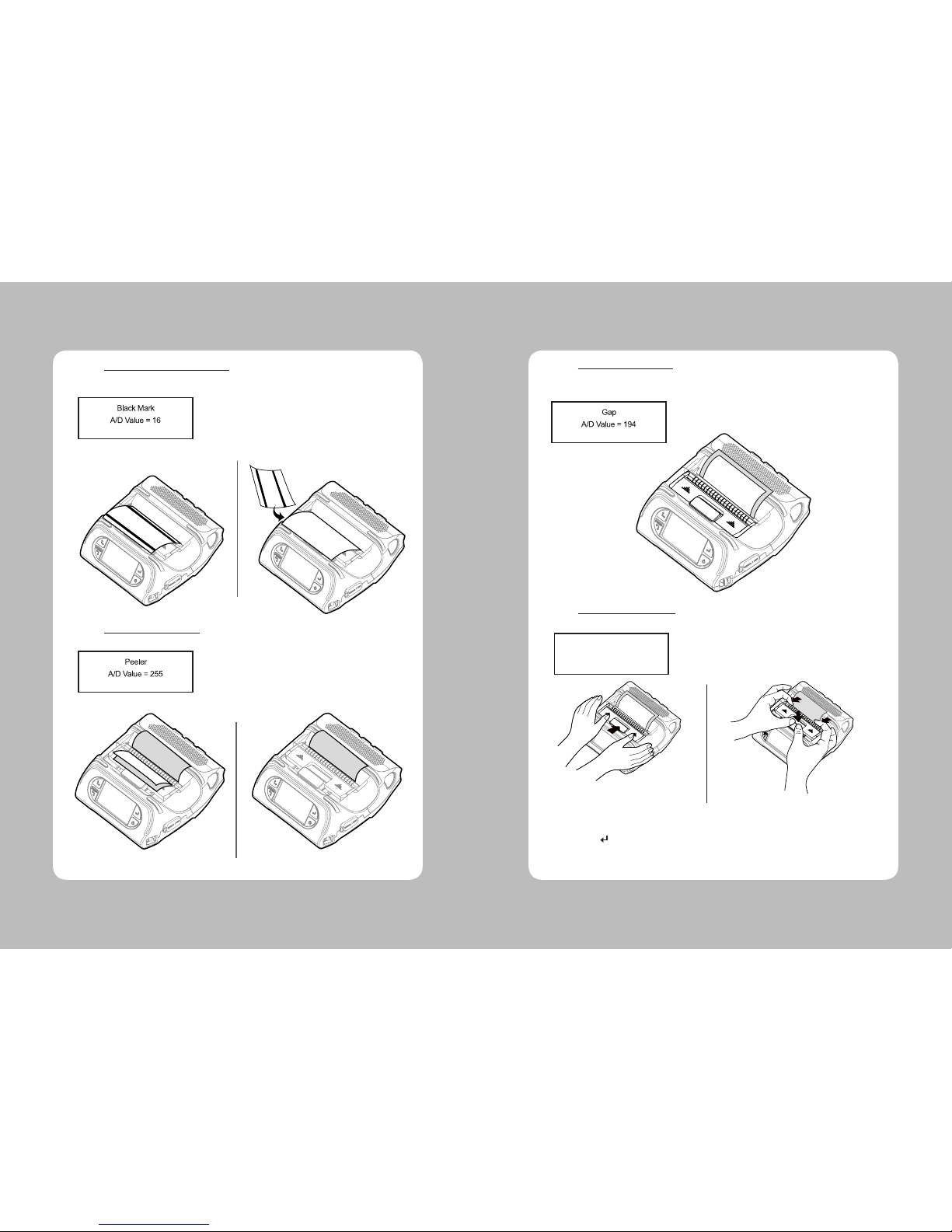

2. Select Printer – Sensors – Black Mark in the Diagnostics Menu.
Check whether A/D value is changing in Black Mark sensor position while feeding
Black Mark stock manually.
3. Select Printer – Sensors – Peel in Diagnostics Menu. Check whether A/D value is
changing by covering the Peeler Sensor with stock
Make sure the stock is loaded in line with upper/lower Black Mark sensor.
4. Select Printer – Sensors – Gap in Diagnostics Menu.
Check whether A/D value is changing in Gap sensor position by feeding Gap stock
manually.
5. Select Printer – Sensors – Gap in Diagnostics Menu.
Check whether A/D value is changing by Peeler S/W position.
Peel-SW
A/D Value = 194
With a roll of stock installed, slide the
peeler body towards the back of the printer.
Lift the peeler wing and slide the peeler body
towards the front of the printer.
6. Press Enter( ) button to return to the previous menu.
Back
14 15

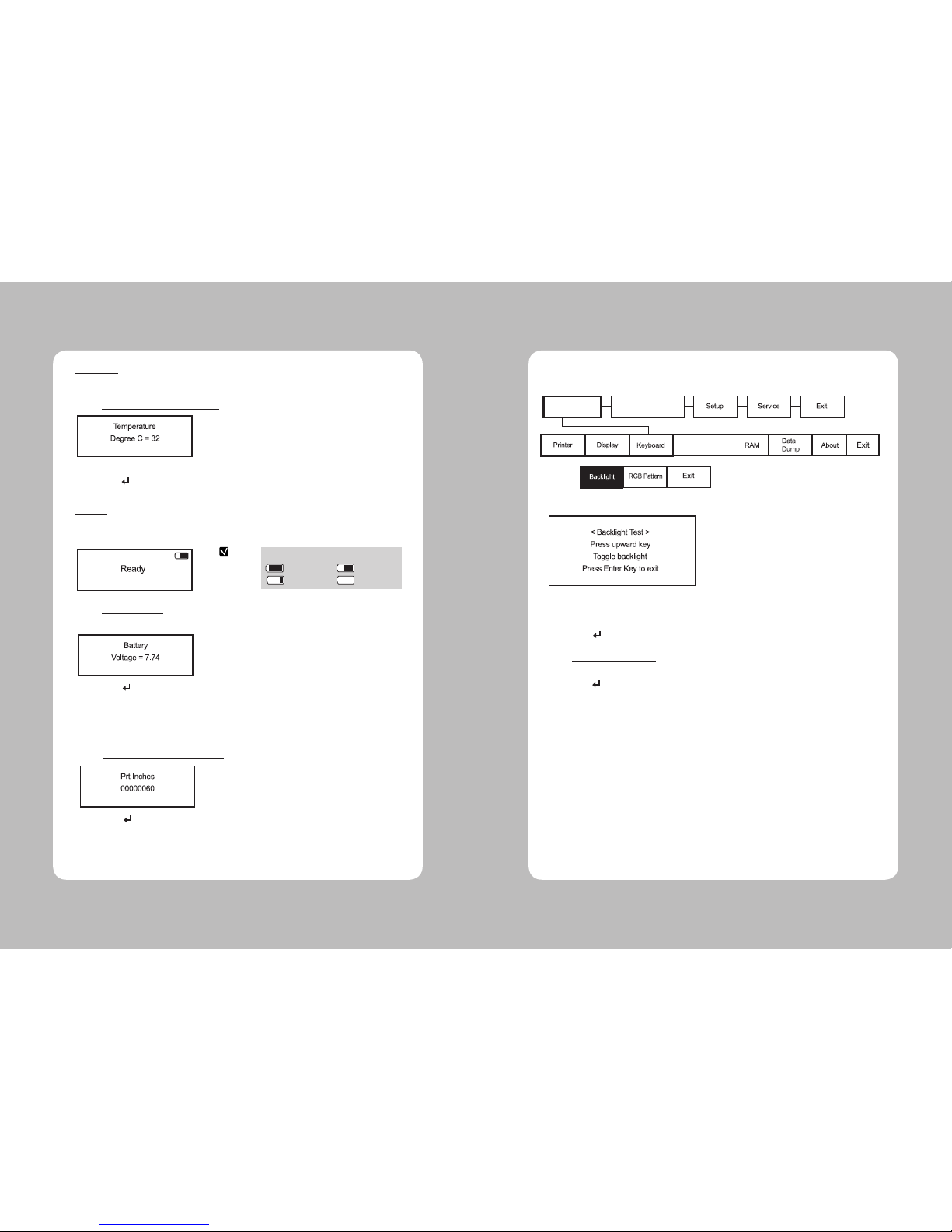

1. Select Printer – Printhead – Temperat in the Diagnostics Menu.
1. You can check it in the battery shape located at upper right side of the ready screen.
In this Menu, You can check Printhead temperature(TPH) in ℃(Centigrade) unit.
The temperature of Printhead must be lower than 60℃to print.
Press Enter( ) button to return to the previous menu.
**Printhead
There are two ways to check the battery level.
2. Select Printer – Battery in the Diagnostics Menu Battery level is displayed in
voltage on the screen
**Battery
NOTE
(7.8v above) (7.5v above)
(7.2v above) (6.8v below)
Press Enter( ) button to return to the previous menu.
1. Select Printer – View Total – Print Inch in Diagnostics Menu.
In this Menu, you can view Total inches printed
**View Total
Press Enter( ) button to return to the previous menu.
Remaining electricity of battery
2-1-2. Display
1. Select Display – Backlight in the Diagnostics Menu
You can check the display in this Menu.
2. Press the Up(▲) button Backlight is turned off, if the same button is pressed once more then it
is turned on.
3. Press Enter( ) button to exit from Backlight Test.
4. Select Display – RGB Pattern in the Diagnostics Menu.
5. Press Enter( ) button to exit from RGB Pattern.
Diagnostics Online Diagnostics
Communication
16 17

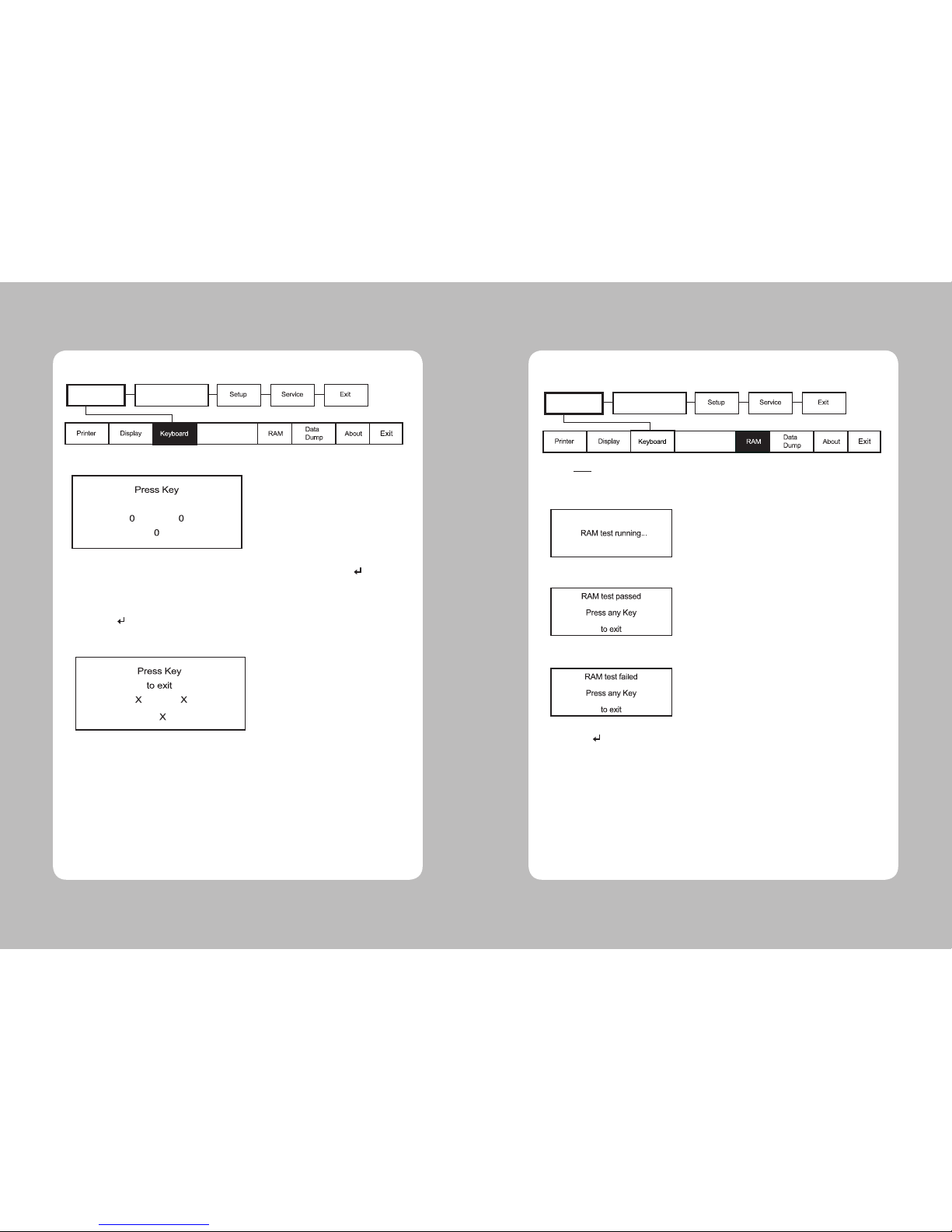

2-1-3. Buttons
1. Select Keyboard in Diagnostics Menu.
2. Press the upper left Up(▲) button, press the Down(▼) button, and press Enter( ) button.
3. Each should change from O shape to X shape when pressed.
4. Press Enter( ) button to from keyboard test.
2-1-4. RAM
Select this Menu and check memory of the printer.
1. Select RAM in Diagnostics Menu.
2. The message of RAM test running is displayed
3. If RAM test result is okay, then you see:
4. If RAM test result is not okay, then you see:
5. Press Enter( ) button to return to the previous menu.
Diagnostics Online Diagnostics
Communication
Diagnostics Online Diagnostics
Communication
