TRENDnet TV-IP410 - Pan/Tilt Internet Camera Server... Manuale utente

TV-IP410

rev: 07.20.2010

FEATURES

•

• 3-year limited warranty

Pan 330º side-to-side and tilt 105º up-and-down from any Internet connection

High quality MJPEG video recording with up to 30 frames per second

Supports TCP/IP networking, SMTP email, HTTP and other Internet protocols

Record streaming video to your computer

Sends image snapshots to FTP and email

Motion detection that triggers email alerts, image snapshot and video recording

Time stamp overlay

Quick Universal Plug and Play (UPnP) installation

Complimentary SecurView™ software: view and record up to 16 cameras simultaneously *

**Monitoring multiple cameras may require a high performance CPU

internet

cameras

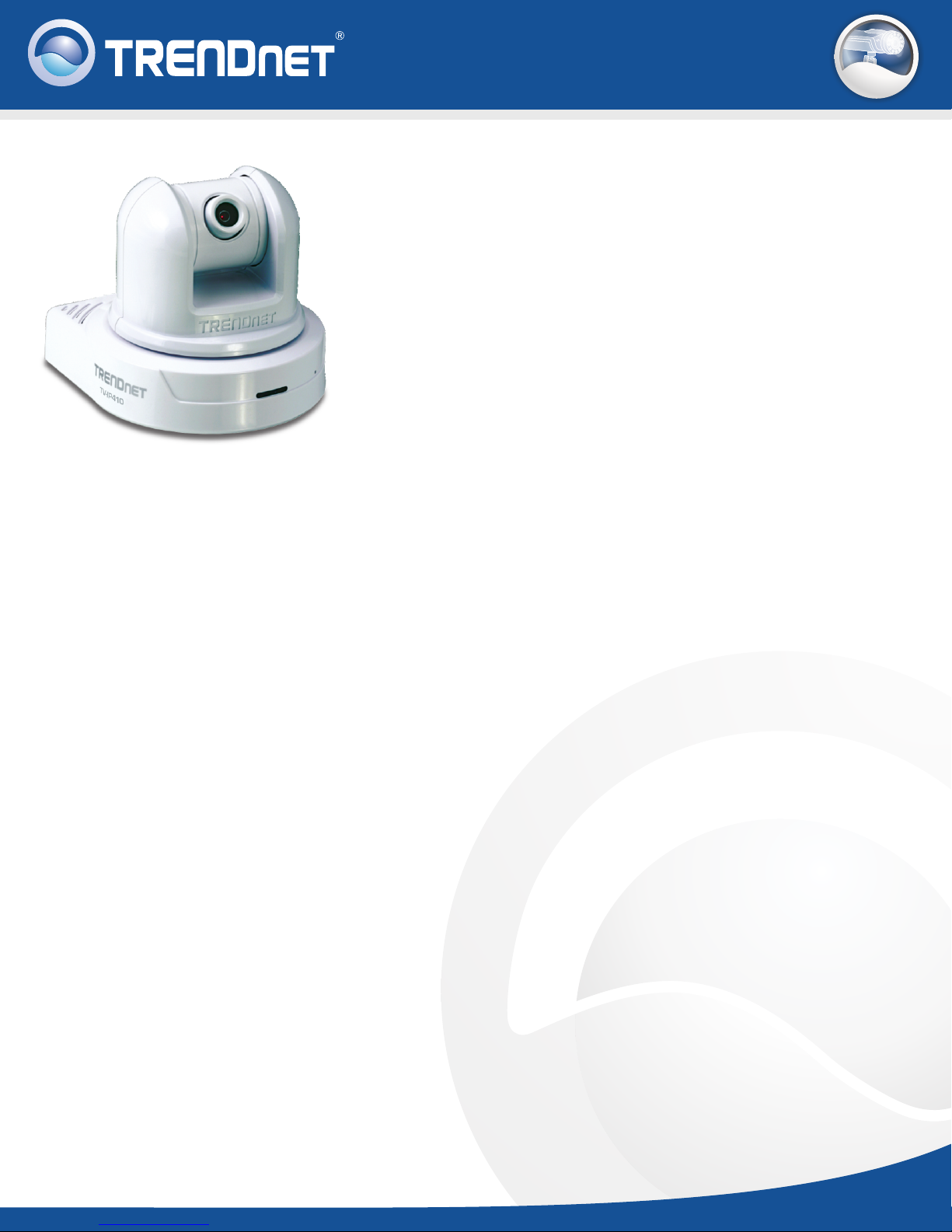

The Pan/Tilt Internet Camera Server (TV-IP410) provides real-time

security surveillance over a large viewing area. Monitor people in your

camera's viewing field and manage the camera from any Internet

connection.

See more with one Internet camera—remotely pan the camera side-to-

side a remarkable 330 degrees and tilt up-and-down 105 degrees.

The TV-IP410 provides high quality video streams over a secure

connection. Advanced intuitive software includes motion detection

recording, email alerts and scheduled recordings. This camera's brilliant

image quality, pan and tilt functionality and low light recording capabilities

make it ideal for home, small office and business use.

TV-IP410 (A1.0R)

Pan/Tilt Internet Camera Server

Resolution

Fixed Lens

Image Setting

Auto-Patrol Positions

Tilt Range

Compression Ration Setting

Control

• ¼” color CMOS sensor

• 640 x 480 pixel

• 3x

• Up, down, left, right, center

• F: 4.0mm, F: 1.8

• 5 levels

• 8 positions

• +90° ~ -15°

Sensor

Camera Specifications

Protocol

CPU

SDRAM

• TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, PPPoE and UPnP

• ARM9 base

• 32Mbyte SDRAM

Hardware Specifications

Minimum Illumination • 0.5 Lux

• Adjustable brightness, contrast, saturation

Resolution • 640 x 480, 320 x 240, 160 x 120

ROM • 4Mbyte nor flash

• +165° ~ -165°

Resolution

Browser

Supported OS

• 800 x 600 or above

• Internet Explorer 6.0 or above

• Windows 2000/XP/Vista

System Requirement (Web Configuration)

Image Sensor

Digital Zoom

Flip Images

Pan Range

• 50Hz, 60Hz or outdoor

• Vertical/ horizontal

Light Frequency

Pan/Tilt

Communication

• Linux

Memory Size • 128MB or above

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet

products and is subject to change at any time, without notice. For the most recent product information please visit

http://www.trendnet.com.

SPECIFICATIONS

Viewing Angle • 64 degree

LAN • 10/100Mbps Auto-MDIX

System

CPU • Pentium III 350MHz or above

TV-IP410 (A1.0R)

Pan/Tilt Internet Camera Server

Image Frame Rate

Frame Rate Setting

• 30fps @VGA, QVGA, QQVGA

• 1 ~ 30fps (frames per second)

Video Format • MJPEG

Video/Image Setting

• Automatic

Exposure Control, White Balance,

Gain Control

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet

products and is subject to change at any time, without notice. For the most recent product information please visit

http://www.trendnet.com.

To Order Please Call:

1-888-326-6061

ORDERING INFORMATION

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web:

Email: [email protected]

www.trendnet.com

NETWORKING SOLUTIONS

Memory Size

Resolution

Supported OS

Weight

Dimension

Power

LEDs

Power Consumption

GPIO

Temperature

• Pentium 4 1GHz or above

• 512MB or above

• 330g (11.6oz.)

• 115 x 110 x 105 mm (4.53 x 4.33 x 4.13 in.)

• Operating:0° C ~45°C (32°F ~113°F)• Storage:-10° C~-60° C(14°F ~ 140°F)

CPU

System Requirement (SecurView™ Software)

SPECIFICATIONS

• 1 input and 1 output

• 12VDC,1.5A external power adapter (3.5mm)

• 1024 X 768 or above

• Windows 2000/XP/Vista

• 9 watts (max)

• Power (orange), link (green), LED enable/ disable support

RELATED PRODUCTS

TV-IP422

TV-IP410W

Advanced Pan/Tilt Day/Night Internet Camera Server

w/ 2-Way Audio

PACKAGE CONTENTS

• TV-IP410

• Quick installation GuideMulti-Language

• CD-ROM (User's Guide and Utility)

• Cat.5 Ethernet (1.8 m/5.9 ft)

Wireless Pan/Tilt Internet Camera Server

Wireless Advanced Pan/Tilt Day/Night Internet Camera

Server w/ 2-Way Audio

TV-IP422W

Physical /Environment

Other

• Power adapter (12VDC, 1.5A)

• Mounting kit

• GPIO adapter

Family Monitoring

(TV-IP410)

Business Monitoring

(TV-IP410W)

Property Monitoring

(TV-IP410W)

Cable/DSL

Modem

Internet

Home Monitoring

(TV-IP410)

Wireless N Gigabit Router

(TEW-633GR)

Wireless 54Mbps 100Mbps

TV-IP410 (A1.0R)

Pan/Tilt Internet Camera Server
