VEVOR HKB1040A Manuale utente

Technical Support and E-Warranty Certificate www.vevor.com/support

TIRE BEAD BREAKER

MODEL: HKB1040A/HKB1040B

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an

estimate of savings you might benefit from buying certain tools with us compared to the major

top brands and doses not necessarily mean to cover all categories of tools offered by us. You

are kindly reminded to verify carefully when you are placing an order with us if you are

actually saving half in comparison with the top major brands.

MODEL:HKB1040A/HKB1040B

Have product questions? Need technical support? Please feel free to

contact us:

CustomerService@vevor.com

NEED HELP? CONTACT US!

This is the original instruction, please read all manual instructions

carefully before operating. VEVOR reserves a clear interpretation of our

user manual. The appearance of the product shall be subject to the

product you received. Please forgive us that we won't inform you again if

there are any technology or software updates on our product.

TIRE BEAD

BREAKER

SPECIFICATIONS

Model

Fit Tire

Diameter

(inch)

Net Weight

(kg)

Gross

Weight

(kg)

Package Size

（mm）

HKB1040A

Less Than 42

5

5.5

290×125×165

HKB1040B

Less Than 42

6

6.5

290×125×165

Safety & Warning

Read and understand this entire manual before assembling, installing,

operating, or servicing this product.Failure to follow these warnings

and instructions can cause death, personal injury or damage to

valuable property.

DO NOT use impact wrench as it will damage the bead breaker.

Before and after each use, check to make sure that all hardware is

tightly secured. Regularly inspect for damage. If fraying or distortion

is found, immediately discontinue use.

Use common sense when working. Stay alert and concentrate when

setting up and using the tire bead breaker. Never work while under the

influence of alcohol, drugs or medications.

While assembling and using the tire bead breaker keep work area

clean and well lighted. Keep spectators and children out of the work

area.

Dress appropriately. Never wear loose fitting clothing or jewelry when

working. Contain long hair, and keep hair, clothing and gloves away

from moving parts.

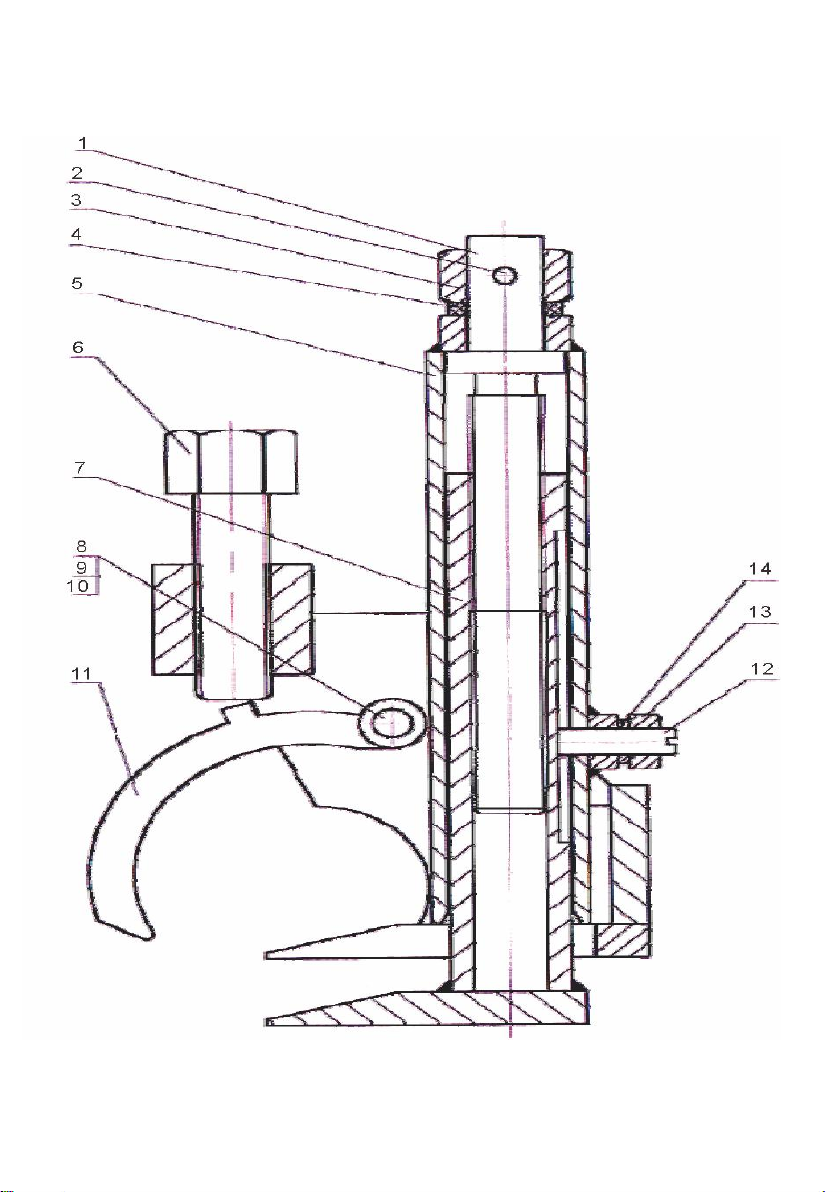

PARTS BREAKDOWN

PARTS LISTING

Item No.

Description

Qty.

Item No.

Description

Qty.

1

Long Screw

1

8

Spindle

1

2

Elastic Pin

1

9

Washer

1

3

Hex Nut

1

10

Cotter Pin

1

4

Washer

1

11

Hook

1

5

Bush Ass'y

1

12

Bolt

1

6

Short Screw

1

13

Hex Nut

1

7

Claw Ass'y

1

14

Elastic Washer

1

OPERATION

Tools required: adjustable wrench, open end wrench, or air ratchet.

* DO NOT use impact wrench as it will damage the bead breaker.

1. Place bead breaker onto the rim with teeth and breaker foot between

rim & tire bead.

2. Tighten rim clamp jaw until “snug”with hand wrench. Make sure bead

breaker teeth and foot are against bead.

3. Continue tightening with wrench until snug. Do NOT over tighten!

4. Using the wrench, begin turning the bead breaker nut clockwise. This

will begin driving the bead breaker foot downward.

5. Continue to turn clockwise until bead is broken loose from rim. If

necessary, Repeat this process in 2 to 3 locations on each side of the

wheel until entire bead is broken.

Address：Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi

Shanghai

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD

NSW 2122 Australia

Imported to USA: VEVOR STORE INC, 9448 RINCHMOND PL #E

RANCHO CUCAMONGA, California, 91730 United States of America

REP

UK

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilions

Preston, United Kingdom

REP

EC

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Linkenheim-Hochstetten, Germany

Made In China

Technical Support and E-Warranty Certificate

www.vevor.com/support

Made In China
