VEVOR XRSS2305 Manuale utente

Technical Support and E-Warranty Certificate www.vevor.com/support

CABINET HARDWARE JIG

MODEL: XRSS2305

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an

estimate of savings you might benefit from buying certain tools with us compared to the major

top brands and does not necessarily mean to cover all categories of tools offered by us. You

are kindly reminded to verify carefully when you are placing an order with us if you are

actually saving half in comparison with the top major brands.

-1-

MODEL: XRSS2305

Have product questions? Need technical support? Please feel free to

contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

NEED HELP? CONTACT US!

This is the original instruction, please read all manual instructions

carefully before operating. VEVOR reserves a clear interpretation of our

user manual. The appearance of the product shall be subject to the

product you received. Please forgive us that we won't inform you again if

there are any technology or software updates on our product.

CABINET HARDWARE JIG

-2-

SAFETY INSTRUCTIONS

1. This product contains small parts. If swallowed, it will pose a choking

hazard. Keep these small parts away from children !

2. Read, understand and follow your power tool manufacturer's instructions

for safety. Always wear safety glasses or eye shields before commencing power

tool operation. Always keep hands, face, hair, loose clothing, and body at a

safe distance from spindles and cutting tools. Always keep a firm grip on tool

handles when in operation. Always disconnect from the power source before

adjusting power tools.

MODEL AND PARAMETERS

Model

XRSS2305

Material

Aluminium Alloy

Longitudinal scale range

0-25cm/0-10inch

Horizontal scale range

0-20cm/0-8inch

STRUCTURE DIAGRAM AND COMPONENTS

1

3

4

6

8

2

5

7

9

Multi-delivery x1

5

10

11

12

13

-3-

No.

Name

Qty

1

Main Ruler with Drill Guide

1

2

Hand Screw 1

6

3

Main Stop

1

4

Adjustable Drill Guide

3

5

Guide Sleeve(Φ4+Φ5)

6

6

Transverse Ruler

1

7

Hand Screw 2

2

8

End Stop

1

9

Bushing Holder/Slide

1

10

Wrench

2

11

Twist Bit(Φ4+Φ5)

2

12

Borehole Positioner

1

13

Storage Bag

1

14

User Manual

1

OPERATION

A: KNOB ON DRAWER FRONT(Center of width and height)

① ② ③

①Measure the width and height of the drawer .

②Set Large Stop at half of the drawer height, and set the sliding end stop at

-4-

half of the drawer width. Finally,drill holes .

（NOTE: Using a center punch for positioning is more convenient .)

③Install the handle and you're done .

B: HANDLE ON DRAWER FRONT(Center of width and height)

① ② ③ ④

①:Measure hole centers of handles,adjust and tighten Sliding Drill Guides .

(Cover unused bushing with tape)

②:Measure the width and height of the drawer .

③:Set Large Stop at half of the drawer height, and set the sliding end stop at

half of the drawer width. Finally,drill holes .

（NOTE: Using a center punch for positioning is more convenient .)

④:Install the handle, and you're done .

C: KNOB ON DOOR INSTALLATION (Off center of width and height)

① ② ③

①:Place the knob to find a position you like and mark it .

②:Measure from the top of the door to mark and set Sliding End Stop to the

measurement .

-5-

③:Measure from side of door to mark and set Large Stop to the measurement .

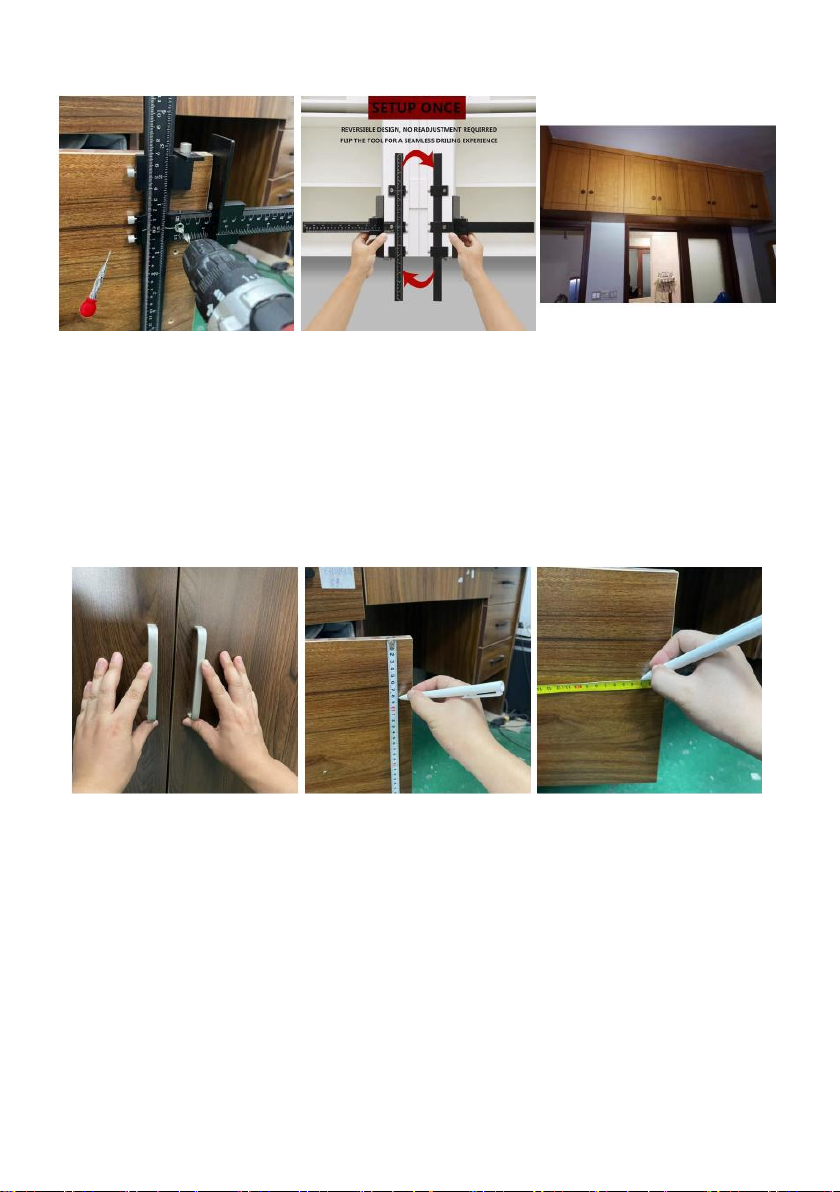

④ ⑤ ⑥

④:Place the tool as picture and drill hole through the drill bushing .

（NOTE: Using a center punch for positioning is more convenient .)

⑤:The flipping tool punches a hole in the other cabinet door .

⑥: Install the handle, and you're done .

D:HANDLE ON DOOR INSTALLATION(Off center of width and height)

① ② ③

①:Place the handle to find position you like and mark the bottom hole

location .

②:Measure from the top of the door to mark and set Sliding End Stop to the

measurement .

③:Measure from the side of the door to mark and set Large Stop to the

measurement .

-6-

④ ⑤ ⑥

④:Place the tool as picture and drill hole through the drill bushing .

（NOTE: Using a center punch for positioning is more convenient .)

⑤:The flipping tool punches a hole in the other cabinet door.

⑥: Install the handle, and you're done .

MAINTENANCE

1. After each use, please install it in time and keep it properly to avoid losing

parts .

2.Clean the surface after each use .

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

EC REP: SHUNSHUN GmbH. Römeräcker 9 Z2021,76351

Linkenheim-Hochstetten, Germany

UK REP：Pooledas Group Ltd. Unit 5 Albert Edward House, The Pavilions Preston,

United Kingdom

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW

2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place,

Rancho Cucamonga, CA 91730

Made In China

TechnicalSupport and E-Warranty Certificate

www.vevor.com/support
