Vulcan-Hart 024C ML-103833 Guida

– 1 –

1024, 1036, 1048 CHEESEMELTER

MODELS

1024C ML-103833

1024W ML-103834

1024P ML-103835

1036C ML-103836

1036W ML-103837

1036P ML-103838

1048C ML-103839

1048W ML-103840

1048P ML-103841

SERVICE &

PARTS MANUAL

FORM 31087 Rev. B (June 2006)

Model 1036W

For additional information on Vulcan-Hart or to locate an authorized parts

and service provider in your area, visit our website at www.vulcanhart.com

VULCAN-HART

DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC

WWW.VULCANHART.COM

P.O. BOX 696, LOUISVILLE, KY 40201-0696

TEL. (800) 814-2028

– 2 –

HEATER (Fig. 1)

1. Push one end of the heater into one socket as far as it will go.

2. Swing the other end of heater up until it lines up with the opposite socket.

3. Release heater and it will snap into place.

4. Grasp the heater and move it back and forth to ensure that it is centered correctly.

5. Rotate the heater clockwise, then counterclockwise, to ensure that it is seated correctly.

COOLING FANS

1. Remove the access panel on the left side of the cheesemelter.

2. Unscrew the four mounting screws.

3. Disconnect the fan leads and lift out the fan.

4. Install new fan.

• Make sure that all wires are enclosed by the nylon wire clamps so that none of the wires

can reach the fan blades.

The cooling fan should blow air into the control compartment. An arrow on the fan housing indicates

the direction of air flow.

PL-53526-E

Fig. 1

WARNING: DISCONNECT THE ELECTRICAL POWER TO THE MACHINE AND

FOLLOW THE LOCKOUT / TAGOUT PROCEDURES.

PARTS REPLACEMENT

– 3 –

COMPONENT REPLACEMENT

1. Remove the access panel on the left side.

2. Remove all screws holding down the cover.

3. Lift cover straight up.

Replacement of the voltage regulator, actuating switch, main terminal block, or the contactor (1048

only) will require removing the component mounting plate.

1. Disconnect the wires from the on pilot light and the switches.

2. Tag or mark the wires to ensure correct replacement.

3. Remove the two mounting screws.

• One is located at the bottom left of the voltage regulator.

• The other is located under the lower part of the cooling fan. This screw can be reached

through the blades of the fan.

4. Remove the component mounting plate and replace the component. Make sure that the screw

that operates the actuating switch is above the switch lever.

– 4 –

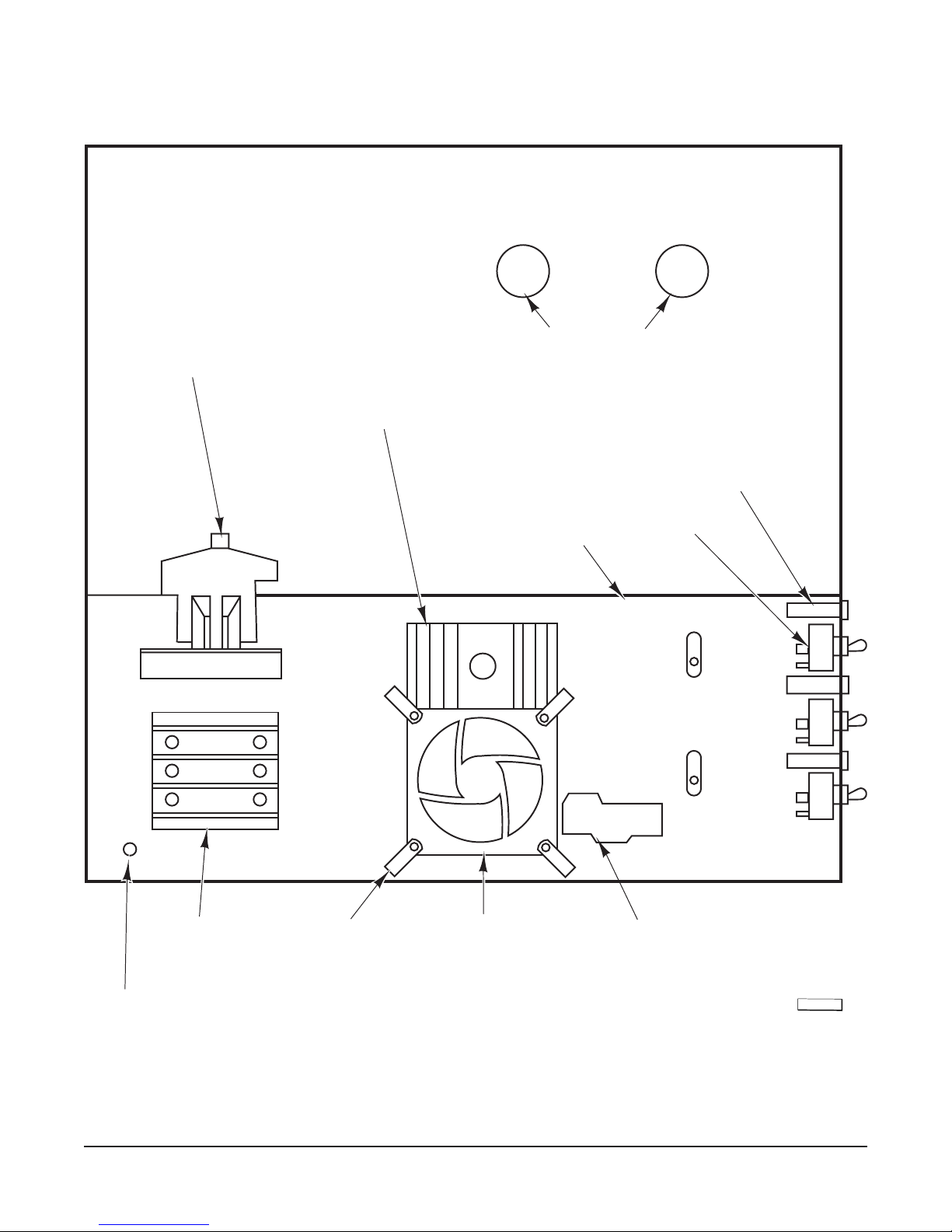

COMPONENT LOCATION DRAWING

COMPONENT LOCATION (VIEW OF LEFT SIDE WITH COVER REMOVED)

PL-53527

SOCKETS

CONTACTOR

(1048)

PILOT

LIGHT

ACTUATING

SWITCH

COOLING

FAN

NYLON

LOOP

TERMINAL

BLOCK

GROUND STUD

VOLTAGE

REGULATOR

SWITCH

COMPONENT

MOUNTING PLATE

– 5 –

TROUBLESHOOTING

(See component location drawing on page 4.)

WARNING: DISCONNECT THE ELECTRICAL POWER TO THE MACHINE AND

FOLLOW THE LOCKOUT / TAGOUT PROCEDURES.

IF THE UNIT BLOWS A FUSE OR TRIPS A CIRCUIT BREAKER

1. Check the capacity of the circuit.

2. Short circuits may be accompanied by sputtering sounds or sparks.

IF THE HEATERS DO NOT LIGHT

1. If the pilot light does not come on, and the cooling fan does not run, check for a blown fuse or

an open circuit breaker.

2. Check for failure of the main switch.

3. On the 1048, check for contactor failure.

4. Check for a loose wiring connection.

5. If the pilot light is lit, and the cooling fan is running, but the heaters do not light, check for loose

wiring connections. When the cheesemelter is operating in standby with no product on the rack,

the heaters may not glow, but will still emit some heat.

6. If one heater is lit, but the other is not, a burnout or a loose connection is the probable cause. Also,

check that the heater is properly seated in its socket.

IF THE COOLING FAN DOES NOT RUN

1. If the pilot light is not lit, and the heaters do not light, check for a blown fuse or open circuit breaker.

2. If the pilot light is lit and the heaters function, the probable cause is a loose connection.

IF THE HEATERS DO NOT COME UP TO FULL HEAT WHEN THE PRODUCT IS PLACED ON THE

RACK

1. Be sure that the product is on the front half of the rack. The rack is balanced to trip the actuating

switch, but the weight must be on the front half of the rack to ensure that it does so.

2. Check that the rack is at the same level on both sides and is correctly inserted.

3. If the rack operates freely, the failure of the actuating switch is the probable cause.

– 6 –

ELECTRICAL SCHEMATIC 1024 & 1036

PL-53528

HEATERS

VOLTAGE

REGULATOR

ACTUATING

SWITCH

MAIN

SWITCH

LIGHT

PILOT

FAN

GROUND

LUG

TERMINAL

BLOCK

– 7 –

ELECTRICAL SCHEMATIC 1048

PL-53529

LEFT SIDE HEATERS RIGHT SIDE HEATERS

VOLTAGE

REGULATOR

RIGHT

SWITCH

LEFT

SWITCH

RIGHT

PILOT

LIGHT

LEFT

PILOT

LIGHT

FAN

LIGHT

MAIN

PILOT

GROUND STUD

CONTACTOR

MAIN SWITCH

TERMINAL

BLOCK

1048

SCHEMATIC

ACTUATING SWITCH

– 8 –

ITEM DESCRIPTION PART NUMBER

NO.

1024 1036 1048

1 Heater (208V) 825536 825331 825300 (1050w)

2 Heater (240V) 825538 825332 825301 (1050w)

3 Heater Socket 825098 825098 825098

4 Pilot Light 825100 825100 825100

5 Main Switch 825100-10 825100-10 825100-10

6 Left/Right Heat Switch — — 825100-10

7 Contactor — — 825126-10

8 Terminal Block 825126-40 825126-40 825126-40

9 Voltage Regulator 825128-90 825128-90 825128-90

10 Cooling Fan 825100-80 825100-80 825100-80

11 Fan Guard 825100-50 825100-50 825100-50

12 Actuating Switch 825150-90 825150-90 825150-90

13 Counter Leg—Thermoplastic 825172-50 825172-50 825172-50

14 Rack 825168-20 825172-10 825168-30

15 Outside Cover Mounting Screws SC-066-21 SC-066-21 SC-066-20

16 Heat Shield/Deflector 825083 825083-10 825083 (2)

17 Ceramic Wire Nuts FE-009-34 FE-009-34 FE-009-34

18 Rack Stop 825072 825072 825072

19 Access/Control Box Cover 825195 825195 825195

20 Access Panel Screws SC-053-38 SC-053-38 SC-053-38

21 LH Pivot (2 Position) 825196 — —

22 RH Pivot (2 Position) 825199 — —

23 LH Pivot (4 Position) 825071 825071 825071

24 RH Pivot (4 Position) 825071-10 825071-10 825071-10

25 Switch - Slide (2 Slots) 825198 825198 825198

26 Switch - Slide (4 Slots) 825073 825073 825073

27 Slide Bracket 825073 825073 825073

28 Nut NS-011-18 NS-011-18 NS-011-18

29 Screw SC-119-65 SC-119-65 SC-119-65

30 Screw SC-119-23 SC119-23 SC-119-23

31 Washer WS-002-25 WS-002-25 WS-002-25

32 Lockwasher WL-014-07 WL-014-07 WL-014-07

33 Lockwasher WL-006-07 WL-006-07 WL-006-07

34 Legs—Metal 804405 804405 804405

– 9 – FORM 31087 Rev. B (06-06)

RECOMMENDED SPARE PARTS LIST

PART

NO. DESCRIPTION AMT.

825536 Heater (208V) 1024 .................................................................................................... 2

825331 Heater (208V) 1036 .................................................................................................... 2

825300 Heater (208V) 1048 .................................................................................................... 2

825538 Heater (240V) 1024 .................................................................................................... 2

825332 Heater (240V) 1036 .................................................................................................... 2

825301 Heater (240V) 1048 .................................................................................................... 2

825098 Heater Socket ............................................................................................................. 2

825100-10 Main Switch ................................................................................................................ 2

825126-10 Contactor, 1048 .......................................................................................................... 2

825128-90 Voltage Regulator ....................................................................................................... 2

825100-80 Cooling Fan ................................................................................................................ 2

825150-90 Actuating Switch ......................................................................................................... 2
