Atdec AD-TVAC-CM Manuale utente

Installation Guide

AD-TVAC-CM

AD-TVAC-CM Page 1 of 6

REQUIRED TOOLS

AV Cart Camera Mount

COMPONENT CHECKLIST

Upright

Bracket

Camera

Shelf

M5x8

Screw

(x2)

M5x10

Screw

(x2)

M6x10

Screw

(x2)

5mm

Hex Key

Flange

Nut

Washer

(x2)

4mm

Hex Key

Spanner

• Phillips Head Screwdriver

0 - 5kg

(0 - 11lbs)

WEIGHT RANGE

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! Please ensure your preferred device is securely fastened to the mount prior to use or movement.

! The manufacturer accepts no responsibility for incorrect installation.

! Failure to assemble this product correctly may cause serious injury/death during or following installation.

! This product should only be installed by professional installers of good mechanical aptitude, who fully understand these

instructions and the consequences of incorrect installation.

! Do not over tighten screws.

! Two person installation is recommended.

! Product not suitable for use outdoors.

! After installation is complete check to verify that AV Cart is secure and safe for use.

! Curved monitors, deep devices (such as all-in-one PCs), VESA mounted accessories (such as mini PC brackets and mounts), and

offset VESA locations exert additional leverage that can exceed the capacity of the mount even though the monitor weight may

be within the stated range. Please contact Atdec if you would like further information.

! WARNING! Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or

toys placed on the cart may encourage a child to climb on the cart and as a result the cart may tip over on to the child.

AD-TVAC-CM Page 2 of 6

COMPATIBILITY

1. Construct the Camera Mount Assembly

A2. Attach the Camera Mount Assembly to the cart

A - FOR AD-TVC-20 CART

AD-TVAC-CM Page 3 of 6

> 4 mm

Attach Camera Shelf Bto Upright Bracket A

with M5 Screws C.

For AD-TVC-70A, loosen the screws on the

pre-installed silver clamp plate using Hex Key D.

Leave a 4mm gap between the clamp plate and

upright bracket.

For AD-TVC-20, AD-TVC-45 and AD-TVC-75,

remove the silver clamp plate completely.

A2.1. Remove the rubber cable management

grommet from the slot on the cart.

A2.2. Determine the two holes needed on

Upright Bracket Ato hold the Camera

Mount Assembly at the desired height.

A2.3. With assistance, hold the Camera Mount

Assembly sideways (as illustrated)

and align the lower of the two holes

with the hole directly above the cable

management slot on the cart.

A2.4. Insert M6 Screw Hwith Washer Jthrough

Upright Bracket A and into the hole on

the cart.

A2.5. Attach M6 Flange Nut Ito M6 Screw H

inside the cart column through the cable

management slot. Tighten using 5mm

Hex Key D.

TIP: Use Spanner Fto support M6 Flange

Nut Iwhilst tightening M6 Screw H.

B - FOR AD-TVC-45 CART

B2. Attach the Camera Mount Assembly to the cart

A3. Secure the Camera Mount Assembly to the cart

AD-TVAC-CM Page 4 of 6

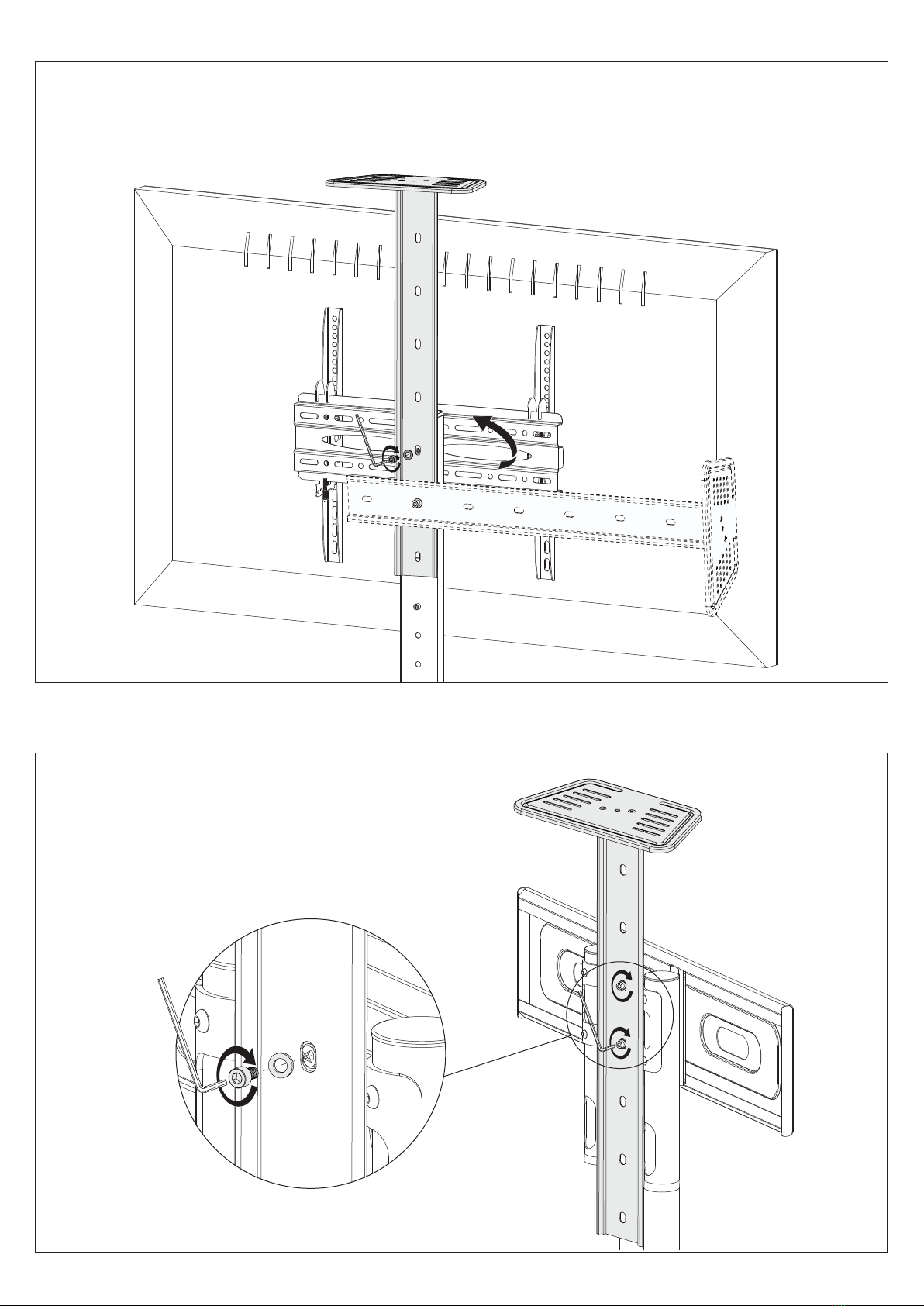

A3.1. Rotate the camera mount assembly to its nal

position and secure it to the top hole on the cart

using M6 Screw H, Washer Jand 5mm Hex Key D.

A3.2. Install your preferred device. Ensure it is secured

using the screw hole on Camera Shelf Bor straps.

B2.1. Fasten the Camera Mount Assembly to the Cart

at the desired height using M5 Screws G, Washers

J and 4mm Hex Key E.

B2.2. Install your preferred device. Ensure it is secured

using the screw hole on Camera Shelf Bor straps.

C3. Attach Camera Mount

C - FOR AD-TVC-70A CART

C2. Remove Top Cap from the cart

AD-TVAC-CM Page 5 of 6

C3.1. Insert the silver clamp plate (attached

to Upright Bracket A) into the top of

the rear mounting channel of the upper

column of the cart.

C3.2. Move the Camera Mount Assembly to the

desired height and secure it by tightening

the screws using 5mm Hex Key D.

C3.3. Install your preferred device. Ensure it is

secured using the screw hole on

Camera Shelf Bor straps.

MAINTENANCE

• Tighten fasteners and check if the cart is secure and safe to use at regular intervals (at least every three months.)

• Please contact your distributor if you have any questions.

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

D - FOR AD-TVC-75 CART

D2. Attach camera mount assembly to cart

C4. Replace Top Cap

AD-TVAC-CM Page 6 of 6

D2.1. Fasten the Camera Mount Assembly

to the Cart at the desired height

using M5 Screws G, Washers J and

4mm Hex Key E.

D2.2. Install your preferred device. Ensure

it is secured using the screw hole on

Camera Shelf Bor straps.
