Avalue Technology EMX-PNV Manuale utente

Part No. E2017XPNV00R

EMX-PNV

Intel® Atom™ PNV-M/ PNV-D Mini ITX Motherboard

with Intel® ICH8-M Chipset

Quick Installation Guide

1st Ed – September 1st 2010

EMX-PNV Quick Installation Guide

2 EMX-PNV Quick Installation Guide

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS

FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST

HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

No part of this document may be reproduced, copied, translated, or transmitted in any form

or by any means, electronic or mechanical, for any purpose, without the prior written

permission of the original manufacturer.

A Message to the Customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments. Whether your new Avalue device is destined for the laboratory or the factory

floor, you can be assured that your product will provide the reliability and ease of operation

for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions, you can

easily find answers in your product documentation. These answers are normally a lot more

EMX-PNV Quick Installation Guide

EMX-PNV Quick Installation Guide 3

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

If you still cannot find the answer, gather all the information or questions that apply to your

problem, and with the product close at hand, call your dealer. Our dealers are well trained

and ready to give you the support you need to get the most from your Avalue’s products. In

fact, most problems reported are minor and are able to be easily solved over the phone.

In addition, free technical support is available from Avalue’s engineers every business day.

We are always ready to give advice on application requirements or specific information on

the installation and operation of any of our products. Please do not hesitate to call or e-mail

us.

Headquarters and Branch

Avalue Technology Inc.

7F, 228, Lian-cheng Road, Chung Ho City, Taipei, Taiwan

Tel: +886-2-8226-2345 Fax: +886-2-8226-2777

Information: [email protected] Service:[email protected]

Avalue USA Avalue Europe

Avalue Technology Inc.

200 Tornillo Way, Suite 210, Tinton Falls,

NJ 07712

Tel: +1-732-578-0200

Fax: +1-732-578-0250

Information: [email protected]

Service: [email protected]

Avalue Europe A/S

Moelledalen 22C, 3140

Aalsgaarde, Denmark

Tel: +45-7025-0310

Fax:+45-4975-5026

Information: [email protected]

Service: [email protected]

BCM Advanced Research Avalue China

BCM Advanced Research

an Avalue Company

7 Marconi, Irvine, CA92618

Tel: +1-949-470-1888

Fax: +1-949-470-0971

Information: BCMSales@bcmcom.com

Web: www.bcmcom.com

Avalue Technology Inc.

Room 805, Building 9,No.99 Tianzhou Rd.,

Caohejing Development Area,

Xuhui District, Shanghai

Tel: +86-21-5169-3609

Fax:+86-21-5445-3266

Information: sales.china@avalue.com.cn

Service: [email protected]

EMX-PNV Quick Installation Guide

4 EMX-PNV Quick Installation Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

Always note that improper disassembling action could cause damage to the

motherboard. We suggest not removing the heatsink without correct

instructions in any circumstance. If you really have to do this, please contact

us for further support.

1.2 Packing List

Before you begin installing your single board, please make sure that the

following materials have been shipped:

z1 x EMX-PNV Mini ITX Main Board

z1 x DVD-ROM contains the followings:

⎯User’s manual in pdf file

⎯Driver

z2 x SATA & power cable

EMX-PNV Quick Installation Guide

EMX-PNV Quick Installation Guide 5

2. Hardware

Configuration

EMX-PNV Quick Installation Guide

6 EMX-PNV Quick Installation Guide

2.1 Product Overview

EMX-PNV Quick Installation Guide

EMX-PNV Quick Installation Guide 7

2.2 Jumper and Connector List

You can configure your board to match the needs of your application by setting jumpers. A

jumper is the simplest kind of electric switch.

It consists of two metal pins and a small metal clip (often protected by a plastic cover) that

slides over the pins to connect them. To “close” a jumper you connect the pins with the clip.

To “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1,

2, and 3. In this case, you would connect either two pins.

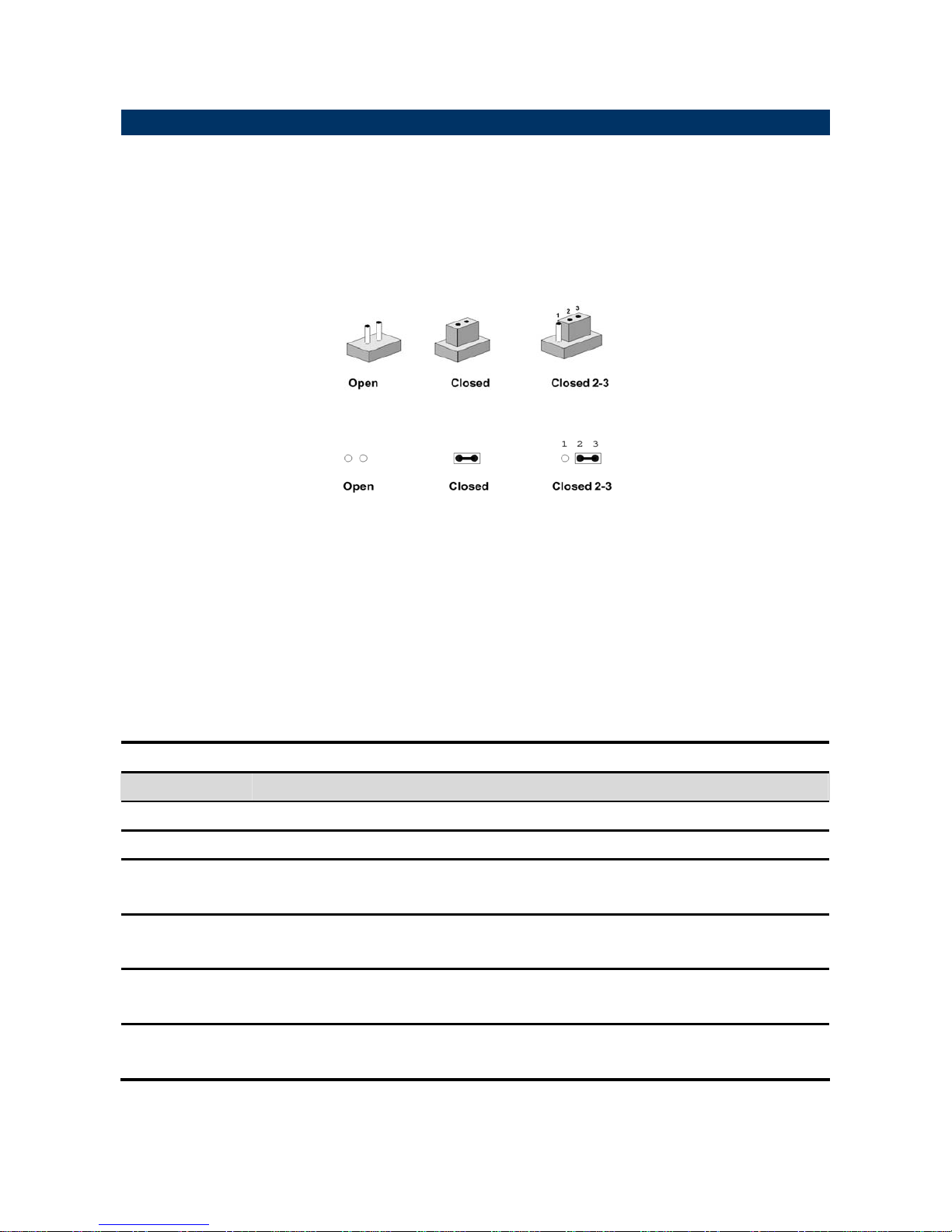

The jumper settings are schematically depicted in this manual as follows:

A pair of needle-nose pliers may be helpful when working with jumpers.

Connectors on the board are linked to external devices such as hard disk drives, a

keyboard, or floppy drives. In addition, the board has a number of jumpers that allow you to

configure your system to suit your application.

If you have any doubts about the best hardware configuration for your application, contact

your local distributor or sales representative before you make any changes.

The following tables list the function of each of the board’s jumpers and connectors.

Jumpers

Label Function Note

JBAT1 Clear CMOS 3 x 1 header, pitch 2.54 mm

JFTP1 Miscellaneous setting connector 8 x 2 header, pitch 2.54 mm

JP1 Serial port 3 pin 9 signal select – Ring,

+5V, +12V power select 3 x 2 header, pitch 2.0 mm

JP2 Serial port 4 pin 9 signal select – Ring,

+5V, +12V power select 3 x 2 header, pitch 2.0 mm

JP3 Serial port 2 pin 9 signal select – Ring,

+5V, +12V power select 3 x 2 header, pitch 2.0 mm

JP4 Serial port 1 pin 9 signal select – Ring,

+5V, +12V power select 3 x 2 header, pitch 2.0 mm

EMX-PNV Quick Installation Guide

8 EMX-PNV Quick Installation Guide

Connectors

Label Function Note

CN1 Speaker out connector 4 x 1 wafer, pitch 2.0mm

CN2 USB connector 4 & 5 5 x 2 header, pitch 2.54 mm

CN3 USB connector 6 & 7 5 x 2 header, pitch 2.54 mm

CN4 SPI connector 3 x 2 header, pitch 2.0 mm

CN5 Serial port 4 connector 5 x 2 header, pitch 2.54 mm

CN6 LCD inverter connector 5 x 1 wafer, pitch 2.0mm

CN7 Serial port 3 connector 5 x 2 header, pitch 2.54 mm

CN8 CD-ROM Audio connector 4 x 1 wafer, pitch 2.0mm

CN9 Front audio connector 5 x 2 header, pitch 2.54 mm

CN10 USB connector 0 & 1 (Co-lay with LAN1)

CN11 USB connector 2 & 3 (Co-lay with LAN2)

CN12 PS/2 keyboard & mouse connector

CN13 Audio connecter

COM1 Serial port 1/ 2 connector D-sub 9-pin, male

DIMM1 DIMM slot

DIO1 General purpose I/O connector 10 x 2 header, pitch 2.54 mm

FAN1 CPU fan connector 3 x 1 wafer, pitch 2.54mm

FAN2 System fan connector 3 x 1 wafer, pitch 2.54mm

JVGA1 VGA power connector 5 x 2 header, pitch 2.0 mm

JVGA2 VGA connector 5 x 2 header, pitch 2.0 mm

LPT1 Print port connector 13 x 2 header, pitch 2.54mm

LVDS1 LVDS connector 20 x 2 header, pitch 1.25mm

PCI1 PCI slot

PCIE1 PCIE slot

PWR1 ATX power connector 10 x 2 wafer, pitch 2.54mm

SATA1 Serial ATA connector 1

SATA2 Serial ATA connector 2

TOUCH1 Touch panel connector 5 x 2 header, pitch 2.54 mm

TSW1 4W/ 5W/ 8W power mode select DIP-SW, 6P

VGA1 VGA connector D-sub 15-pin, female

VR1 LCD backlight brightness adjustment 3 x 1 header, pitch 2.54mm

EMX-PNV Quick Installation Guide

EMX-PNV Quick Installation Guide 9

2.3 Setting Jumpers & Connectors

2.3.1 Clear CMOS (JBAT1)

* Default

Protect*

Clear CMOS

2.3.2 Miscellaneous setting connector (JFTP1)

* Default

Signal PIN PIN Signal

12 SB_LED+

AUX TIN

34 GND

+3.3V 56

HDD_LED 78

BUZZER

910 PWR_LED+

RESET

11 12 GND

13 14

PWRBTN

15 16

Open: AT

Short: ATX

EMX-PNV Quick Installation Guide

10 EMX-PNV Quick Installation Guide

2.3.3 Serial port 3/ 4/ 2/ 1 pin 9 signal select (JP1/ JP2/ JP3/ JP4)

* Default

JP1

Ring*

+5V

+12V

JP2/ 3/ 4

Ring*

+5V

+12V

2.3.4 Speaker out connector (CN1)

Signal PIN

AMP_OUT_LP 1

AMP_OUT_LN 2

AMP_OUT_RN 3

AMP_OUT_RP 4

JP4

JP3

JP1

JP2
