Genie GS-2668 RT Manuale utente

GSTM-2668 RT & GSTM-3268 RT

SELF-PROPELLED SCISSOR LIFTS

08/08 Part No. B109350UK

www.genieindustries.com

Specifications

* The metric equivalent of working height adds 2 m to platform height. U.S. adds 6 ft to platform height.

** Based on RT tyres; deduct 5.8 cm (2 in) for turf and non-marking tyres.

*** Gradeability applies to driving on slopes. Gradeability may vary depending on the weight of options installed on machine. See Operator’s Manual for details regarding slope ratings.

**** Weight varies depending on options and country standards.

MODELS GSTM-2668 RT GSTM-3268 RT

MEASUREMENTS Metric US Metric US

Working height maximum* 9.92 m 32 ft 11.75 m 38 ft

Platform height maximum 7.92 m 26 ft 9.75 m 32 ft

Platform height - stowed 1.19 m 3 ft 10.75 in 1.31 m 4 ft 3.75 in

Platform length - outside 2.51 m 8 ft 3 in 2.51 m 8 ft 3 in

- extended 3.75 m 12 ft 3 in 3.73 m 12 ft 3 in

Slide-out platform extension deck 1.22 m 4 ft 1.22 m 4 ft

Platform width - outside 1.55 m 5 ft 1 in 1.55 m 5 ft 1 in

Toeboard height 15 cm 6 in 15 cm 6 in

Height - stowed** 2.32 m 7 ft 7.5 in 2.45 m 8 ft 5 in

rails lowered 1.70 m 5 ft 7 in 1.83 m 6 ft

Length - stowed 2.67 m 8 ft 9 in 2.67 m 8 ft 9 in

platform extended 4.10 m 13 ft 5.5 in 4.10 m 13 ft 5.5 in

with outriggers 3.38 m 11 ft 3 in 3.38 m 11 ft 3 in

Width 1.73 m 5 ft 8 in 1.73 m 5 ft 8 in

Wheelbase 1.85 m 6 ft 1 in 1.85 m 6 ft 1 in

Ground clearance - centre 19 cm 7.5 in 19 cm 7.5 in

PRODUCTIVITY

Maximum platform occupancy 4/4 4/4 4/2 4/2

(indoor/outdoor)

Lift capacity 567 kg 1,250 lbs 454 kg 1,000 lbs

Drive speed - stowed 6.1 km/h 3.8 mph 6.1 km/h 3.8 mph

Drive speed - raised 0.8 km/h 0.5 mph 0.8 km/h 0.5 mph

Gradeability-stowed*** 35% 35% 30% 30%

Maximum outrigger levelling:

front to back 6.6º 6.6º 6.6º 6.6º

side to side 10.6º 10.6º 10.6º 10.6º

Turning radius - inside 1.52 m 5 ft 1.52 m 5 ft

Turning radius - outside 3.68 m 12 ft 1 in 3.68 m 12 ft 1 in

Raise/lower speed 30/35 sec 30/35 sec 40/37 sec 40/37 sec

Controls proportional proportional proportional proportional

Drive four wheel four wheel four wheel four wheel

Tyres - rough terrain 30 x 60 cm 12 x 23.5 in 30 x 60 cm 12 x 23.5 in

POWER

Power source Kubota diesel 20 hp (15 kW) Kubota diesel 20 hp (15 kW)

Kubota petrol/LPG 23 hp (17 kW) Kubota petrol/LPG 23 hp (17 kW)

Perkins 403C-11 Diesel 26 hp Perkins 403C-11 Diesel 26 hp

Fuel tank capacity 56.8 L 15 gal 56.8 L 15 gal

Hydraulic system capacity 62.5 L 16.5 gal 62.5 L 16.5 gal

WEIGHT****

3,072 kg 6,772 lbs 3,762 kg 8,293 lbs

Weight modifiers for options:

Outriggers add 483 kg 1,064 lbs 483 kg 1,064 lbs

Generator add 48 kg 105 lbs 48 kg 405 lbs

STANDARDS COMPLIANCE CE EN280, PB-10-611-03

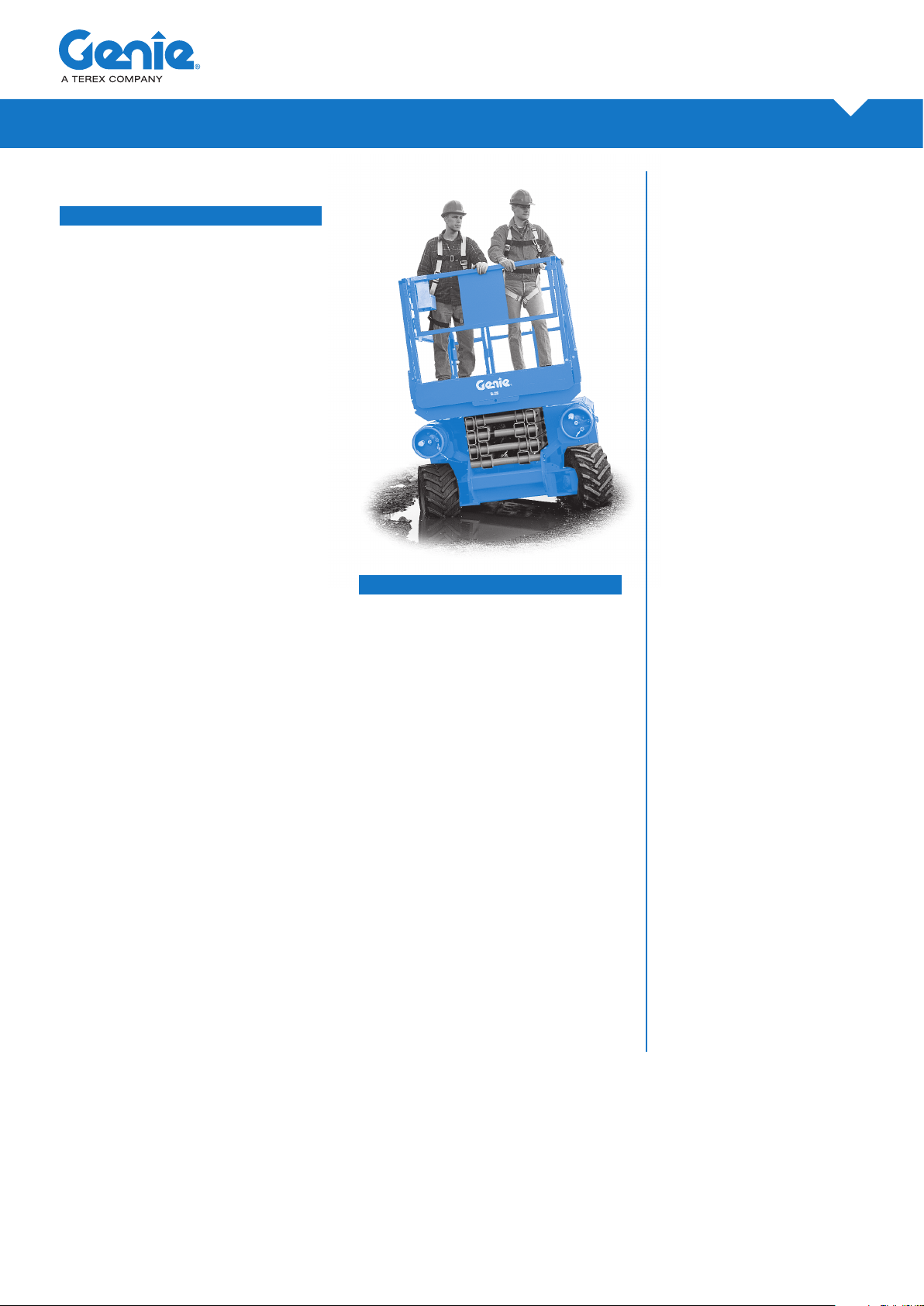

GSTM-2668 RT & GSTM-3268 RT

SELF-PROPELLED SCISSOR LIFTS

08/08 Part No. B109350UK www.genieindustries.com

PRODUCTIVITY

• Automatic levelling hydraulic outriggers

• Air line to platform

• Non-marking rough terrain tyres 30 x 60

cm (12 x 23.5 in)

• Dual flashing beacons

• Motion alarm

• Platform work lights

POWER

• Kubota petrol/LPG 23 hp (17 kW)

• Perkins 403C - 11 Diesel 26 hp

• 2000 watt generator (110 V/60 Hz)

• Cold weather packages for all engines

• Diesel scrubber (Perkins)

• Hydraulic oil cooler

• LPG steel tank only, 15 kg (33.5 lb)

capacity

• Additional LPG tank and carrier

OPTIONS & ACCESSORIES

Features

MEASUREMENTS

GS™-2668RT

• 9.92 m (32 ft) working height

• Up to 567 kg (1,250 Ib) lift capacity

GS™-3268RT

• 11.75 m (38 ft) working height

• Up to 454 kg (1,000 lb) lift capacity

PRODUCTIVITY

• Steel 2.51 x 1.55 m (8 ft 3 in x 5 ft 1 in)

platform

• 1.22 m (4 ft) platform extension deck

• Folding guardrails

• Proportional lift and drive

• Onboard diagnostic system

• AC power to platform

• Full-height swing gate

• 4x4

• Positive traction control

• Four-wheel braking

• Swing-out engine tray

• Foam-filled rough terrain tyres

• Tilt level sensor with audible alarm

• Descent alarm

• Horn

• Hour meter

• Certified load sensor

POWER

• Kubota diesel 20 hp (15 kW)

STANDARD FEATURES
