Stratus SAE-C9P Guida

Model No. SAE-C9P

Two Post Lift，

Manual Release

Lifting Capacity 9000 lbs.

Installation, Operation

and Parts Manual

Important Note

1. This equipment cannot be installed, operated or repaired without reading instructions.

2. Electricity must be hooked up by certified electrician.

3. Do not use this equipment beyond its rated capacity.

Installation, Operation and Parts Manual

SAE-C9P

SAFETY NOTES................................................................................................................................................ 3

1.1 Operation of lifting platforms ................................................................................................................................3

1.2 Checking of the lifting platforms............................................................................................................................3

1.3 Important safety notices ........................................................................................................................................4

1.4 Warning labels .......................................................................................................................................................5

1.5 Potential safety risks ..............................................................................................................................................6

1.6 Noise level..............................................................................................................................................................6

PACKING, STORAGE AND TRANSPORTATION ................................................................................................... 7

2.1 The lift was dismantled into the following 2 parts for transportation ..................................................................7

2.2 Storage ...................................................................................................................................................................7

2.3 Opening the packs .................................................................................................................................................7

PRODUCTS DESCRIPTIONS .............................................................................................................................. 8

3.1 General descriptions ..............................................................................................................................................8

3.2 Construction of the lift...........................................................................................................................................8

3.3 Technical data ........................................................................................................................................................8

3.4 Dimensions.............................................................................................................................................................9

3.5 Safety devices descriptions..................................................................................................................................10

INSTALLATION INSTRUCTIONS ...................................................................................................................... 11

4.1 Preparations before installation ..........................................................................................................................11

4.2 Installation attentions..........................................................................................................................................11

4.3 General installation steps ....................................................................................................................................12

4.4 Items to be checked after installation .................................................................................................................21

OPERATION INSTRUCTIONS .......................................................................................................................... 21

5.1 Precautions ..........................................................................................................................................................21

5.2 Operation instructions .........................................................................................................................................22

TROUBLE SHOOTING .................................................................................................................................... 23

INSPECTION AND MAINTENANCE.................................................................................................................. 24

Annex 1, Floor plan ....................................................................................................................................................26

Annex 2, Electrical schemes and parts list .................................................................................................................27

Annex 3, Hydraulic schemes and parts list ................................................................................................................29

Annex 4, Mechanical exploded drawings and parts list.............................................................................................31

Installation, Operation and Parts Manual

SAE-C9P

SAFETY NOTES

1.1 Operation of lifting platforms

This lift is specially designed for lifting motor vehicles. Users are not allowed to use it for any other purposes. The applicable national

regulations, laws and directives must be observed.

Only users aged 18 or above who have been instructed on how to operate the lifting platform and have proven their ability to do so to the

owner are to be entrusted with unsupervised operation of lifting platforms. The task of operating the lifting platforms must be granted in

writing.

Before loading a vehicle onto the lift, users should study the original operation instructions and familiarize themselves with the operating

procedures in several trial runs.

Lift vehicle within the rated load. Don’t attempt to raise vehicles with excessive weight.

1.2 Checking of the lifting platforms

Checks are to be based on the following directives and regulations:

Basic principles for testing lifting platforms

The basic health and safety requirement

The applicable accident prevention regulations

The checks are to be organized by the user of the lifting platform. The user is responsible for appointing an expert or qualified person to

perform checking. It must be ensure that the person chosen satisfies the requirements.

The user bears special responsibility if employees of the company are appointed as experts or qualified persons.

1.2.1 Scope of checking

Regular checking essentially involves performing a visual inspection and a functional test. This includes checking the condition of the

components and equipment, checking that the safety systems are complete and functioning properly and that the inspection log book is

completely filled in. The scope of exceptional checking depends on the nature and extent of any structural modification or repair work.

1.2.2 Regular checking

After initial commissioning, lifting platforms are to be checked by a qualified person at intervals of not longer than one year.

A qualified person is somebody with the training and experience required to possess sufficient knowledge of lifting platforms and who is

sufficiently familiar with the pertinent national regulations, accident prevention regulations and generally acknowledged rules of

engineering to be able to assess the safe operating condition of lifting platforms.

1.2.3 Exceptional checking

Lifting platforms with a lift height of more than 2 meters and lifting platforms intended for use with people standing under the load bearing

elements of the load are to be checked by an expert prior or reuse following structural modifications and major repairs to load bearing

components.

An expert is somebody with the training and experience required to possess specialist knowledge of lifting platforms and who is sufficiently

familiar with the pertinent national work safety regulations, accident prevention regulations and generally acknowledged rules of

Installation, Operation and Parts Manual

SAE-C9P

engineering to be able to check and give an expert option on lifting platforms.

1.3 Important safety notices

1.3.1 Recommend for indoor use only. DO not expose the lift to rain, snow or excessive moisture.

1.3.2 Only use this lift on a surface that is stable and capable of sustaining the load. Do not install the lift on any asphalt surface.

1.3.3 Read and understand all safety warnings before operating the lift.

1.3.4 Do not leave the controls while the lift is still in motion.

1.3.5 Keep hands and feet away from any moving parts. Keep feet clear of the lift when lowering.

1.3.6 Only these properly trained personnel can operate the lift.

1.3.7 Do not wear unfit clothes such as large clothes with flounces, tires, etc., which could be caught by moving parts of the lift.

1.3.8 To prevent evitable incidents, surrounding areas of the lift must be tidy and with nothing unconcerned.

1.3.9 The lift is simply designed to lift the entire body of vehicles, with its maximum weight within the lifting capacity.

1.3.10 Always insure the safety locks are engaged before any attempt to work near or under the vehicle. Never remove safety related

components from the lift. Do not use if safety related components are damaged or missing.

1.3.11 Do not rock the vehicle while on the lift or remove any heavy component from vehicle that may cause excessive weight shift.

1.3.12 Check at any time the parts of the lift to ensure the agility of moving parts and the performance of synchronization. Ensure regular

maintenance and if anything abnormal occurs, stop using the lift immediately and contact our dealers for help.

1.3.13 Lower the lift to its lowest position and do remember to cut off the power source when service finishes.

1.3.14 Do not modify any parts of the lift without manufacturer’s advice.

1.3.15 If the lift is going to be left unused for a long time, users are required to:

a. Disconnect the power;

b. Empty the oil tank;

c. Lubricate the moving parts with hydraulic oil.

WARNING：The warnings, cautions and instructions discussed in this instruction manual cannot cover all possible conditions and

situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into

this product, but must be supplied by the operator.

Installation, Operation and Parts Manual

SAE-C9P

1.4 Warning labels

All safety warning labels are clearly depicted on the lift to ensure that the operator is aware of and avoid the dangers of using the lift in an

incorrect manner. The labels must be kept clean and they have to be replaced if detached or damaged. Please read carefully the meaning

of each label and memories them for future operation.

Installation, Operation and Parts Manual

SAE-C9P

1.5 Potential safety risks

1.5.1 Mains voltage

Insulation damage and other faults may result in accessible components being live

Safety measures:

Only ever use the power cord provided or a tested power cord.

Replace wires with damaged insulation.

Do not open the operating unit.

1.5.2 Risk of injury, danger of crushing

In the event of excessive vehicle weight, incorrect mounting of the vehicle or on removing heavy object, there is a risk

of the vehicle falling off or tipping up.

Safety measures:

The lift is only ever to be employed for the intended purpose.

Carefully study and heed all the information given in Section 1.4.

Observe the warning notices for operation.

1.6 Noise level

Noise emitted during operating the lift should be less than 70dB (A). For your health consideration, it is suggested to place a noise detector

in your working area.

Installation, Operation and Parts Manual

SAE-C9P

PACKING, STORAGE AND TRANSPORTATION

Packing, lifting, handling, transporting operations must be performed only by experienced personnel with

appropriate knowledge of the lift and after reading this manual.

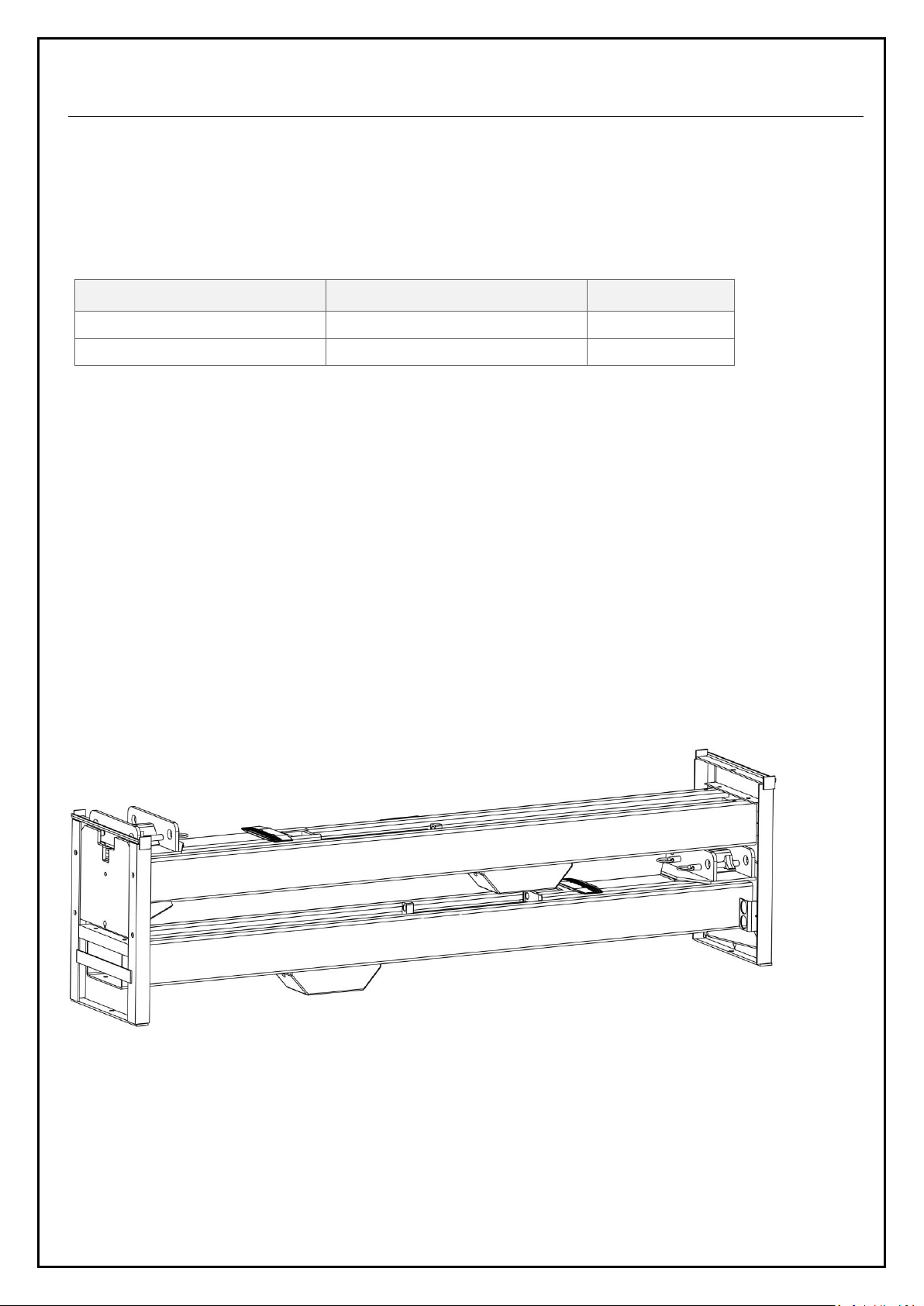

2.1 The lift was dismantled into the following 2 parts for transportation

Name

Packed by

Quantity

Lift

Steel brackets

Power unit

Carton

2.2 Storage

The packs must be kept in a covered and protected area in a temperature range 0f -10℃to +40℃. They must not be exposed to direct

sunlight, rain or water.

Stacking the packs

We advise against stacking because the packs are not designed for this type of storage. The narrow base, heavy weight and large size of the

packs make stacking difficult and potentially dangerous.

If stacking is unavoidable, use all appropriate precautions:

-never stack to more than 2 meters in height.

-never make stacks of single packs. Always stack pairs of packs in a cross pattern so that the base is bigger and the resulting stack is more

stable. Once the stack is complete, restrain it using straps, ropes or other suitable methods.

A maximum of two packs can be stacked on lorries, in containers, and in railway wagons, on condition that the packs are strapped together

and restrained to stop them falling.

2.3 Opening the packs

The packs can be lifted and transported only by using lift trucks. Never attempt to hoist or transport the unit using lifting slings.

When the lift is delivered make sure that it has not been damaged during transportation and that all the parts specified on the packing list

are present.

Packs must be opened adopting all the precautions required to avoid injury to persons (keep at a safe distance when cutting the straps) or

damage to parts of the machine (be careful that no parts are dropped while you are opening the packing).

Take special care with the hydraulic power unit, the control panel and the cylinder.

Installation, Operation and Parts Manual

SAE-C9P

PRODUCTS DESCRIPTIONS

3.1 General descriptions

This is chassis supporting vehicle lift for road vehicles.

It is mainly composed by two posts, two carriages, four swing arms and a power and control unit.

It is driven by an electro-hydraulic system. The gear pump delivers hydraulic oil to oil cylinders and pushes upwards its piston. The cylinder

piston drives to raise the carriage and swing arms. It is equipped with mechanical safety locking unit which ensures no risks of slipping off in

case of hydraulic failure.

3.2 Construction of the lift

3.3 Technical data

Lifting capacity

9000 lbs.

Full rise

1900mm (74 3/4”)

Min height

95mm (3 3/4”)

Full rise time (with rated load)

Approx.60s

Full descent time (with rated load)

Approx.50s

Power Supply

220V/1Ph/60Hz

Oil tank volume

10L

1. Overhead crossbeam

2. Extending post

3. Mechanical safety latch

4. Carriage

5. Hydraulic power unit

6. Lifting arm

7. Hydraulic cylinder

8. Post

Installation, Operation and Parts Manual

SAE-C9P

3.4 Dimensions

Installation, Operation and Parts Manual

SAE-C9P

3.5 Safety devices descriptions

POS.

Description

Function

Roof protective limit switch

Stop rising in case the overhead bar is touched.

Max rise limit switch

Stop rising at max height.

Mechanical safety locking unit

Catch the carriages in case of hydraulic failure.

Arm lock

Ensure the lifting arms are locked and avoid being swinging during lifting process.
