Stratus SAE-S66M Manuale utente

Model No. SAE-S66M

Single Post Li

Single (1) Point Manual Release

Liing Capacity 6600lbs

Installaon＆Operaon

Maintenance Instrucons

Important Note

1.This equipment can not be installed, operated or repaired without reading instrucons.

2.Electricity must be hooked up by cered electrician.

3.Do not use this equipment beyond its rated capacity.

STRATUS Single Post Li Installaon & Operaon & Maintenance Instrucons

Directory

1-Main features of the equipment……………………………………………………………………………………………………………………………………………………3

1.1-Product descripon…………………………………………………………………………………………………………………………………………………………………3

1.2-Features of the product……………………………………………………………………………………………………………………………………………………………3

1.3-Safety Marking of products………………………………………………………………………………………………………………………………………………………3

2-Basic parameters of equipment……………………………………………………………………………………………………………………………………………………4

3-Spare parts in the accessories box…………………………………………………………………………………………………………………………………………………5

4-Shape and size of equipment………………………………………………………………………………………………………………………………………………………5

4.1-Product structure group……………………………………………………………………………………………………………………………………………………………5

4.2-Shape and size of equipment……………………………………………………………………………………………………………………………………………………6

5-Installaon of equipment……………………………………………………………………………………………………………………………………………………………7

5.1-Installaon of columns and bases………………………………………………………………………………………………………………………………………………7

5.2-Installaon of carriage and liing plaorm……………………………………………………………………………………………………………………………………7

5.3-Swing arm lock sha assembly……………………………………………………………………………………………………………………………………………………8

5.4-Arm assembly…………………………………………………………………………………………………………………………………………………………………………8

5.5-Power unit installaon……………………………………………………………………………………………………………………………………………………………9

5.6-Mobil kit installaon………………………………………………………………………………………………………………………………………………………………9

5.7-Wire connecon……………………………………………………………………………………………………………………………………………………………………10

6-Operaon and commission of equipment……………………………………………………………………………………………………………………………………11

6.1-Instrucons for operaon instrucons………………………………………………………………………………………………………………………………………11

6.2-Operaon ow………………………………………………………………………………………………………………………………………………………………………11

7-Maintenance and inspecon of equipment……………………………………………………………………………………………………………………………………12

8-Common trouble shoong…………………………………………………………………………………………………………………………………………………………13

9-Structures and parts list……………………………………………………………………………………………………………………………………………………………14

9.1-Slide carriage exploded view……………………………………………………………………………………………………………………………………………………14

9.2-Loading supporng arm exploded view………………………………………………………………………………………………………………………………………15

9.3-Driven system exploded view…………………………………………………………………………………………………………………………………………………16

9.4-Base assembly………………………………………………………………………………………………………………………………………………………………………17

9.5-Casng front…………………………………………………………………………………………………………………………………………………………………………17

9.6-Swing arm le support arm assembly………………………………………………………………………………………………………………………………………18

9.7-Swing arm right arm assembly…………………………………………………………………………………………………………………………………………………18

9.8-Block assembly……………………………………………………………………………………………………………………………………………………………………19

1-Main features of the equipment

1.1-Product descripon

Model: SAE-S66M is a hydraulic li, the whole product can move, with electronic control box, easy to operate. It is

suitable for 6600lbs or less inspecon, repair and maintenance of various types of vehicles.

1.2-Features of the product

The hydraulic li adopts the support arm. Adjustment of the length and width of the outrigger. The li has the charac-

teriscs of compact structure, small space, easy to move, no need to install the base, etc.

1.3-Safety Marking of products

Do not operate the li unless you read and understand the operaon manual.

Don’t stand under the vehicle or on the li.

No stacking of debris，Always keep li area clear，when lowering or raising vehicle.

Do not li one side of the vehicle.

Only Authorized person can be in the li area.

Do not place feet under any part of the li while lowering.

1.Rise 2.Stop.

Always use safety stands when moving / installing heavy components.

Digest of safety operang li

＊The operaon of the li is permied by authorized persons only.

＊It is necessary to refer to the complete operaon instrucons, especially for trouble shoong.

＊Movable and mobile lis shall be prevented from moving unintenonally.

＊The eld of moon of the load and of the load carrying devices shall be free of obstrucons.

＊It shall draw aenon to the safe method of carrying the load and to the rule that, aer raising a short distance,

the vehicle shall be checked to ensure that it is correctly and safely posioned.

＊It shall draw aenon to the rule that the load carrying device shall be observed by the operator throughout the

moon of the li.

＊It is forbidden for people to stand in the eld of moon of the load and the load carrying device during the move-

ment.

＊It is forbidden to climb onto the load or load carrying device when they are raised.

2-Basic parameters of equipment

Model SAE-S66M

Liing capacity 6600lbs(3000Kg)

Max liing height 74 13/16″(1900mm)

Min height 3 9/16″(90mm)

Liing me About 50 Sec.

Lowering me About 40 Sec.

Column Thickness of Steel 5.5mm

Carriage Thickness of Steel 12mm/20mm

Arms Thickness of Steel 6mm

Arm range 15 3/16"-25 9/16"(386-650mm)

21 1/8"-32"(536.5-812mm)

Motor voltage 110V/220V

Motor Power 3 HP

Rated Frequency 60Hz

Breaker 30A

Hydraulic oil 3-5 Gallons AW32/AW46

Shipping Size 114″×59″×34″

Shipping Weight 2119lbs

4-Shape and size of equipment

4.1-Product Structure Group

3-Spare parts in the accessories box.

Serial

number Name Photo Parameter Quanty

1Swing arm big support arm combinaon and

block assembly connecon screw Hexagon Screw 8

2Column and base connecng screw Hexagon Screw 10

3Power unit xing screws Hexagon Screw M8×25 4

4An-collision tape 1

5Heightening sleeve bracket xing screw Hexagon socket screws 2

6Hose 1

7Plasc cable e 30

8Increased set Φ55×70L 4

9Round gasket 2

10 User’s manual 1

Serial

number Name

1Column assembly

2Base assembly

3Swing arm big support arm assembly

4Right swing arm assembly

5Le swing arm assembly

6Le front arm assembly

7Right front arm assembly

8Hydraulic power unit

9Press handle trolley assembly

10 An-collision tape

11 Screw base

12 Pillar curtain

4.2-Shape and size of equipment

5-Installaon of equipment

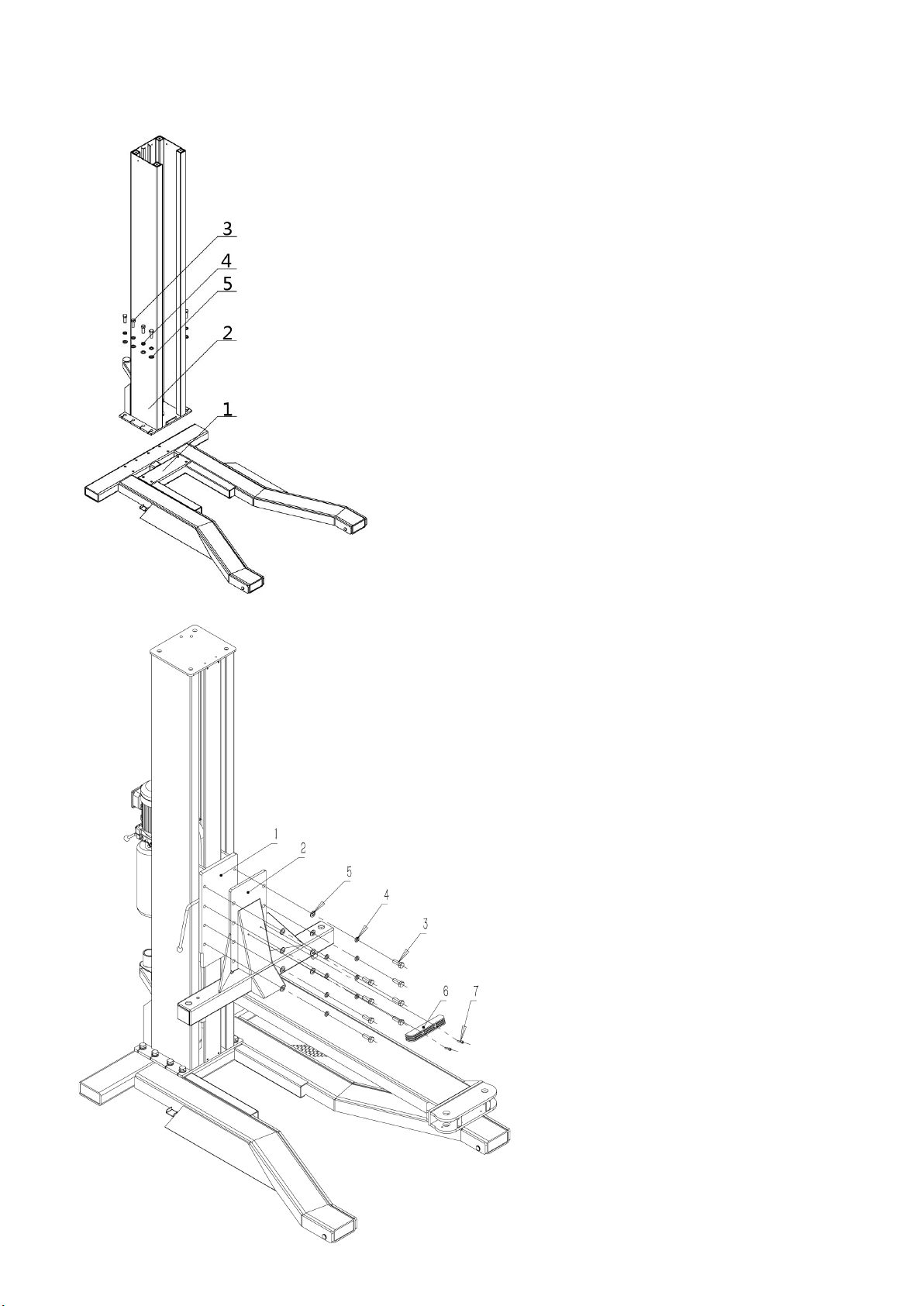

5.1-Installaon of columns and bases

5.2-Installaon of carriage and liing plaorm

1.Base

2. Column

3. Flat pad Φ20

4. Spring mat Φ20

5.Hexagon bolt M20×50

1. Carriage

2. Liing plaorm

3. Hexagon bolt M18×50

4. Spring mat Φ18

5. Flat pad Φ18

6. Rubber

7.Hexagon bolt M8×30

5.3-Swing arm lock sha assembly

1.Swing arm lock sha liing ring

2.CirclipΦ16

3.Small square lock spring

4.Swing arm lock sha

5.Small square lock tooth

6.Swing arm lock small sha

5.4-Arm assembly

1.Right swing arm welding

2.Le side swing arm welding

3.Front support has welding

4.Swing arm rear axle welding

5.Front arm sha welding

6.Flat head hexagon socket screwM8×10

7.Round gasket

8.Grease cup

5.5-Power unit installaon

5.6-Mobil kit installaon

1.Column assembly

2. Power unit

3. Hose

4.Hexagon screw M8×30

5. Spring cushionΦ8

6.Flat padΦ8

7.Hex nuts M8

1. Hydraulic liing assembly

2. Hydraulic liing sha

3. Axle clip spring Φ25

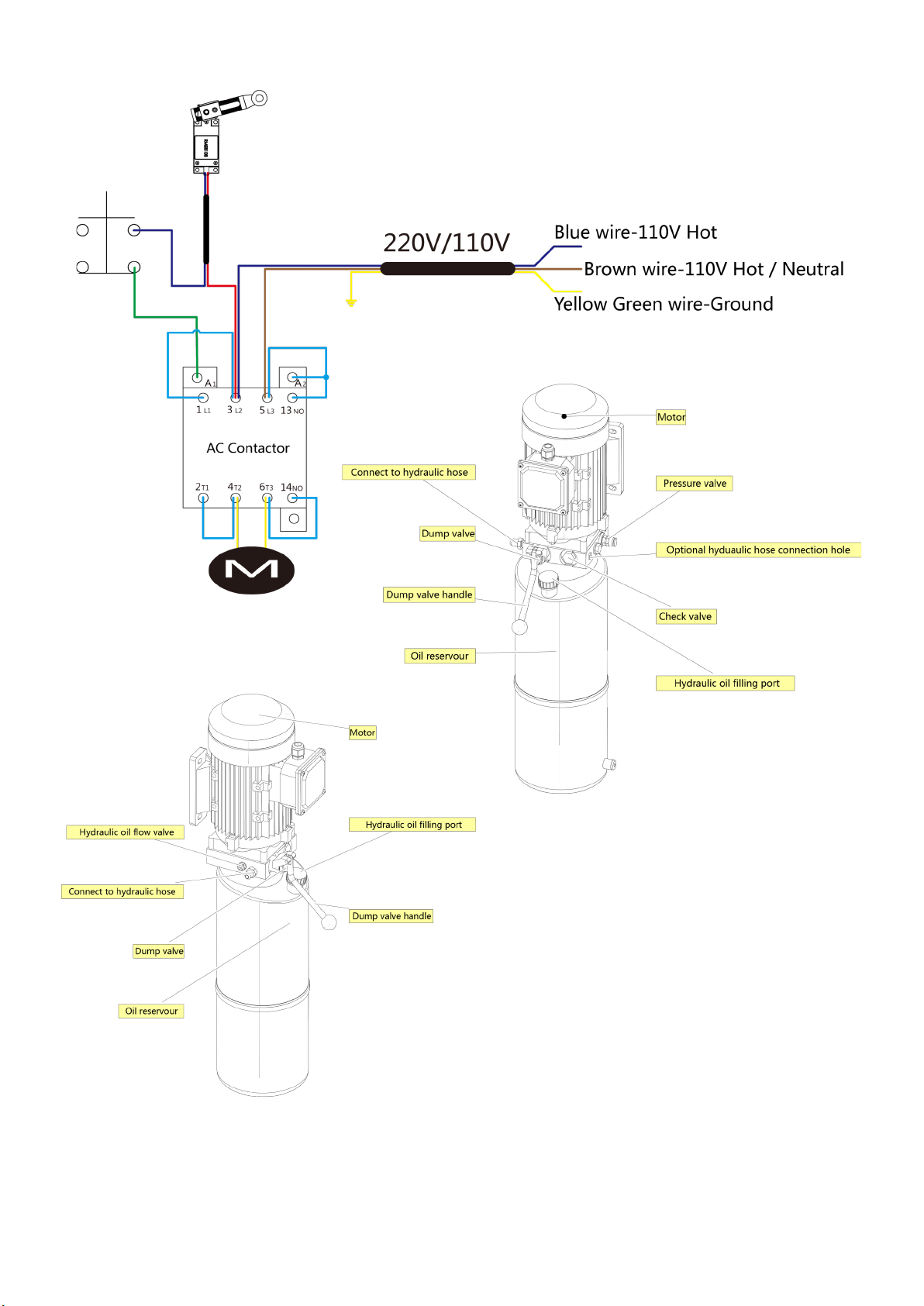

5.7-Wir connecon

**Important Informaon**

Pressure Valve: Clockwise adjustment increases pressure to make the power unit to have more power,

counterclockwise adjustment decreases pressure to make the power unit to have less power.

Hydraulic Oil ow valve: Clockwise adjustment to speed up, counterclockwise adjustment to slow down.
