Stratus SAE-F14X Guida
Stratus 2 Post Base Plate Li Installaon & Operaon & Maintenance Instrucons
Model No.: SAE-F14X
2 Post Base Plate Li
Single (1) Point Manual Release
Liing Capacity: 14000lbs
Installaon & Operaon
Maintenance Instrucons
Important Note
1.This equipment can not be installed, operated or repaired without reading instrucons.
2.Electricty must be hooked up by cered electrician.
3.Do not use this equipment beyond its rated capacity.
2
Directory
1-Equipment Descripon…………………………………………………………………………………………………3
1.1-Descripon ……………………………………………………………………………………………………………3
1.2-Technical Specicaons………………………………………………………………………………………………3
1.3-Installaon requirement……………………………………………………………………………………………5
2-Specicaons of concrete……………………………………………………………………………………………6
3-Installaon steps………………………………………………………………………………………………………7
4-Check Before Start……………………………………………………………………………………………………16
4.1-Mechanical Installaon Check……………………………………………………………………………………16
4.2-Electrical Hook Up Check……………………………………………………………………………………………16
4.3-Hydraulic System Tesng…………………………………………………………………………………………17
4.4-Load Test……………………………………………………………………………………………………………17
5-Operaon and Use……………………………………………………………………………………………………18
5.1-Operaon ……………………………………………………………………………………………………………18
5.2-Raising and Liing…………………………………………………………………………………………………18
5.3-Stopping………………………………………………………………………………………………………………18
5.4-Lowering………………………………………………………………………………………………………………18
6-Safety……………………………………………………………………………………………………………………18
6.1-Important Reminder: Personal and Equipment Safety…………………………………………………………18
6.2-Vehicle Posion……………………………………………………………………………………………………19
6.3- Risk of Vehicle Falling From The Li……………………………………………………………………………19
7-Maintenance……………………………………………………………………………………………………………20
7.1-Every Month………………………………………………………………………………………………………20
7.2-Every 3Month………………………………………………………………………………………………………20
7.3-Every 6Month………………………………………………………………………………………………………20
7.4-Every 12 Month……………………………………………………………………………………………………20
7.5-Regular Lubricaon…………………………………………………………………………………………………20
8-Troubleshoong Guide………………………………………………………………………………………………21
9-Structure and Parts List………………………………………………………………………………………………22
9.1-Main column assembly……………………………………………………………………………………………22
9.2-Sub-column assembly………………………………………………………………………………………………23
9.3-Carriage assembly……………………………………………………………………………………………………24
9.4-Hydraulic cylinder assembly………………………………………………………………………………………25
9.5-Main column safety lock assembly………………………………………………………………………………26
9.6-Secondary column safety lock assembly…………………………………………………………………………27
9.7-Three-secon arm assembly………………………………………………………………………………………28
3
Model SAE-F14X
Li Capacity 14000lbs;6300KG
Overall Height 122 3/16";3120mm
Overall Width 155 1/8";3940mm
Maximum Liing Height 74 13/16";1900mm
Minimum Height 4 1/8";105mm
Inside Column Width 129 15/16";3300mm
Drive Through 116 1/8";2949mm
Liing me About 50 sec.
Lowering me About 40 sec.
Column Thickness of Steel 6mm
Carriage Thickness of Steel 6mm
Arms Thickness of Steel 7.75mm
Arm range 35 1/16"-70 7/8";890-1800mm;
Cable Diameter 9mm
Voltage 220V
Power 3.0Kw/4Hp
Frequency 60Hz
Phase 1Ph
Breaker 30A
Hydraulic oil 3-5 Gallons AW32/AW46
Shipping Size 113"×42″×33";2870×1067×840mm
Equipment Weight 2155lbs/978KG
1-Equipment Descripon
1.1-Descripon
This 2 Post Floor Plate Li is an advanced car & truck maintenance equipment, mainly used for automove repair and
maintenance.
1.2-Technical Specicaons
4
Installaon( See Fig 1 )
FIG 1
Features (See Fig 2)
FIG 2
5
1.3-Installaon requirement
Tools required
Name Picture
Rotary hammer drill(Φ19)
carpenter's chalk
Hammer
Screw Sets
Level bar
Tap measure
English spanner(12")
Pliers
Ratchet spanner with socket(28#)
Socket head wrench(3#,5#,8#)
Lock wrench
Wrench set(10#,13#,14#,15#,17#,19,24#,27#,30#)
6
2-Specicaons of concrete ( See Fig 3 )
Specicaons of concrete must be adhered to the specicaon as following. Failure to do so may result in li and/or
vehicle falling.
◇Concrete must be thickness 200mm minimum and without reinforcing steel bars, and must be completely dry
before li installaon.
◇Concrete must be in good condion and must be of test strength 3500psi(245kg/cm²)minimum.
◇Floor must be level with no cracks or holes.
FIG 3
Steps of installaon
◇Locaon of installaon
Check and insure the installaon locaon( concrete, layout, space size etc.) is suitable for li installaon.
◇Use a carpenter's chalk line to establish installaon layout of baseplate( See Fig4).
FIG 4
7
3-Installaon steps
Step 1:Check the pats before assembly

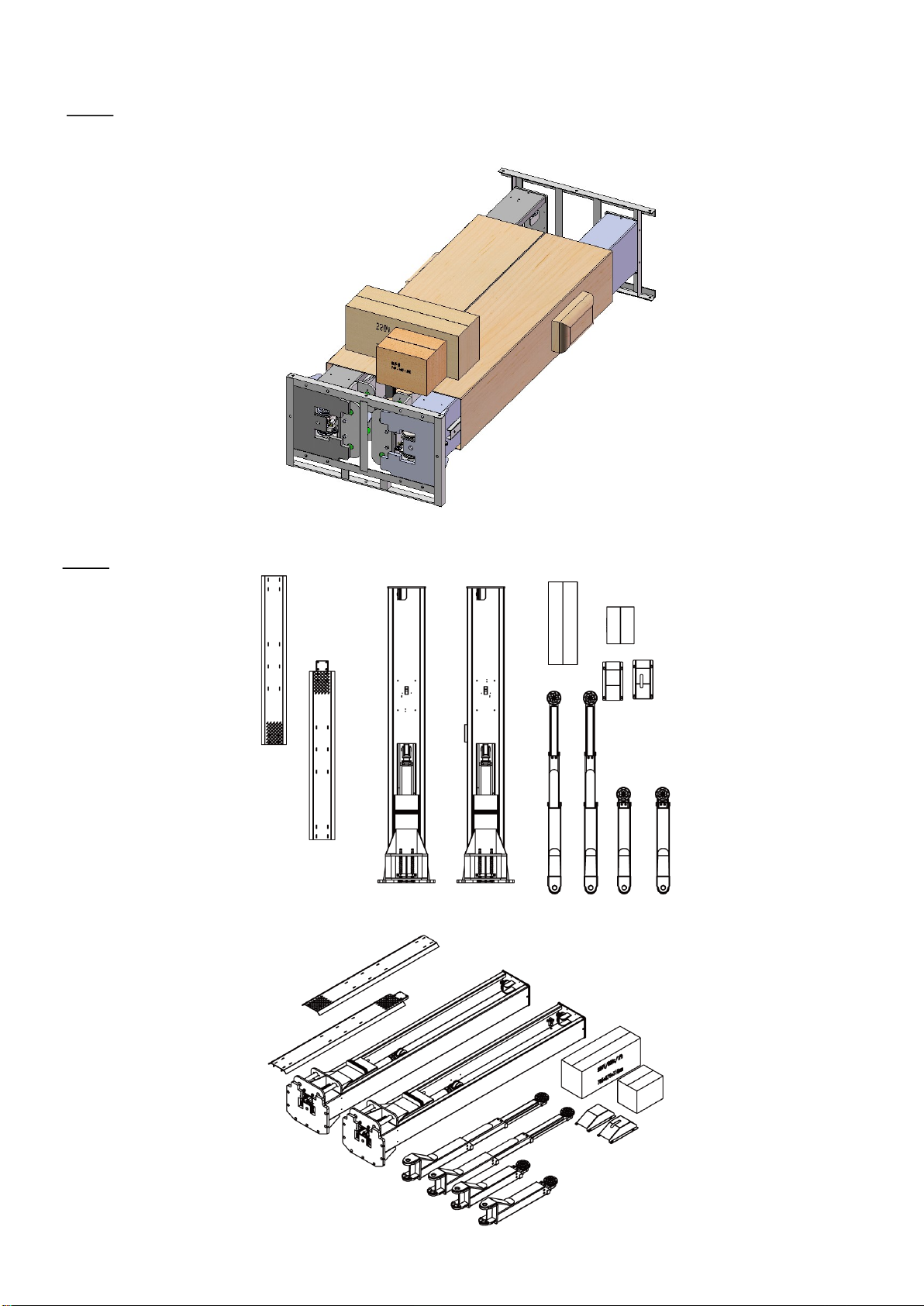

Packaged li and hydraulic power unit( See Fig 5 )
Step 2:Move aside the parts and check the parts according to the shipment parts list (See Fig 6).
FIG 6
FIG 5
8
Step 3: Spare parts in the accessories box.
NO. Name Photo Parameter Qty.
1Arm sha Φ40×250L 4
2Arm sha xing screw Countersunk Hexagon Screw M10×15L 4
3Arm boom pad Φ70mm 4
4Increased set 1 Φ60×38L 4
5Increased set 2 Φ60×63.5L 4
6Increased set 3 Φ60×127L 4
7Heightening bracket 2
8Heightening sleeve bracket xing screw Hexagon socket screws M8×10L 2
9An-collision tape 2
10 An-collision rubber strip xing screws Hexagon socket screws M8×30 4
11 Power unit frame 1
12 Power unit frame xing screws Hexagon socket screws M10×16L Each 2
13 Power unit xing screws Hexagon Screw M8×25L Each 4
14 Manual unlocking lever M10 Each 1
15 Unlock the wire rope 1
16 Wire rope U-shaped chuck M3 2
17 Expansion screw M20×160L 14
18 Plasc gasket 15
19 Plasc cable e 30
20 Main column upper limit switch 1
21 Main column upper limit switch xing
screw
Phillips round head screws M5×10L 2
22 Locking and unlocking rope seat assembly
accessories
6
23 User’s manual 1
9
Install Anchor Bolts (Fig 8)
1.Adjust the distance between 2 columns as required dimensions (Fig 8).
2.Adjust the opening direcon of the two columns in a straight line (visible).
3.Install Anchor Bolts (Suggest to use 3/4" Drill).
Note: Don’t Fasten/Tighten Nuts now in case any adjustment needed.
4.Adjust the vercality of the columns (visible) and use U-shape washer (come with package) if necessary.
5.Tighten anchor bolts nuts in diagonal order (Foot Pounds of Torque:90+,suggest to use hand wrench to ghten
nuts.
Note: Anchor bolts driven into the ground at least 150mm.(See Fig 8)
Step 4: Install anchor bolts
Posion the columns on the installaon layout of baseplate. Install the anchor bolts. Check the columns plumbness
with level bar, and adjusng with the shims if the columns are not vercal. Do not ghten the anchor bolts (See Fig 7).
FIG 8
FIG 7
10
Step 5: Adjust Carriage
Raise the carriage to the 1st locking posion located at the boom of the column (Fig 9).
Note: You can hear‘click’once locked.
Fig 9

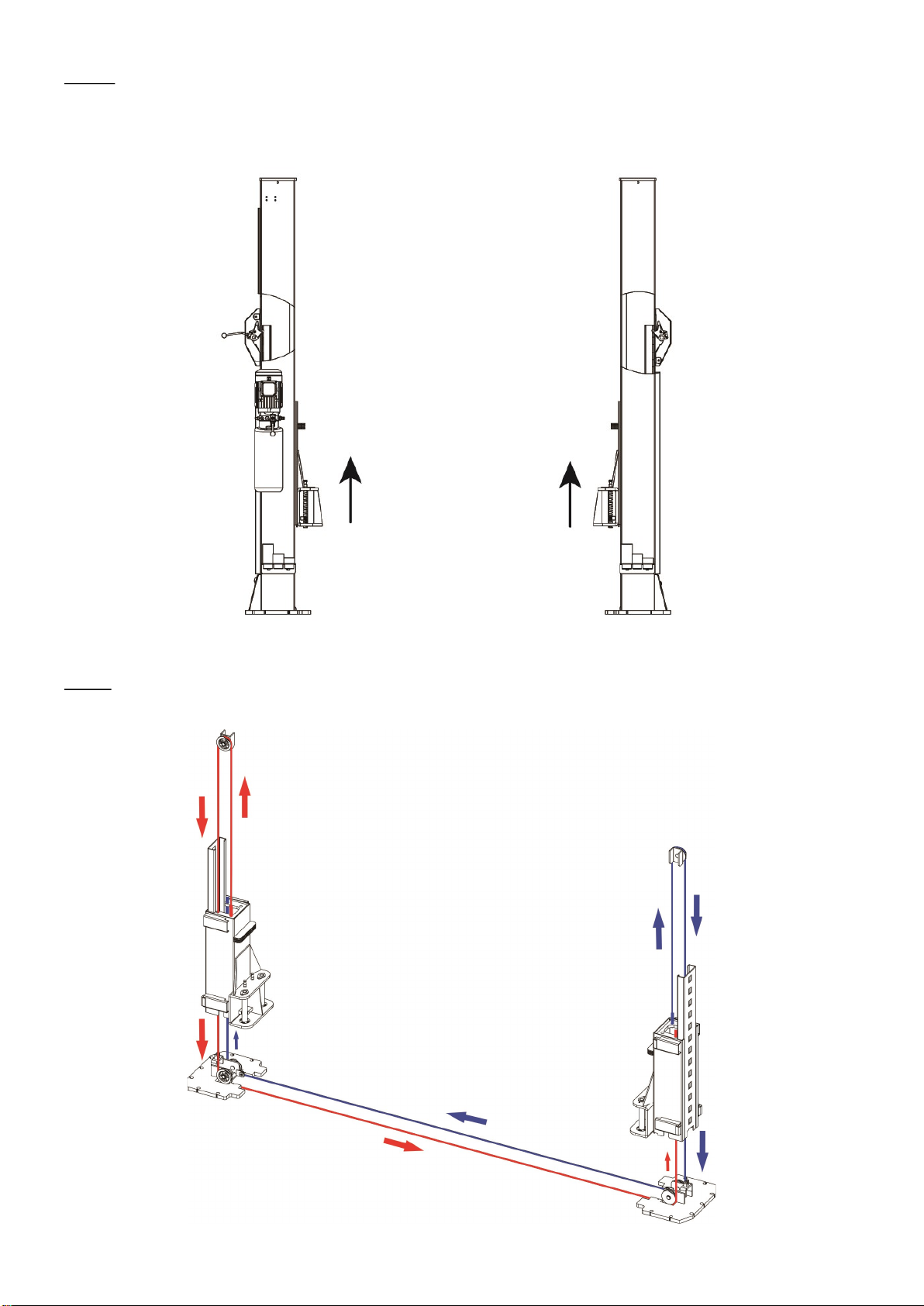

Step 6:Install Cables (2 Cables in total)
Red & Blue color in this Fig are showing how to route the 2 cables (Fig 10).
Fig 10
