Style selections SGY-GAR2 Manuale utente
150-Ft Capacity
Cabinet Hose Reel
ITEM #5133052
MODEL #SGY-GAR2
Español p. 10
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call
our customer service department at 877-888-8225, 8:00 a.m. - 8:00 p.m.,
1
AS22526
STYLES ELECTIONS and logo design are
trademarks or registered trademarks of
LF, LLC. All rights reserved.
TABLE OF CONTENTS
2
Package Contents ............................................................................................... 3
Safety Information ................................................................................................ 4
Preparation .......................................................................................................... 4
Assembly Instructions .......................................................................................... 5
Moving or Storing ................................................................................................ 8
Care and Maintenance ........................................................................................ 9
Troubleshooting ................................................................................................... 9
Warranty ..............................................................................................................9
Operation ..............................................................................................................8
Installation ............................................................................................................. 7
3

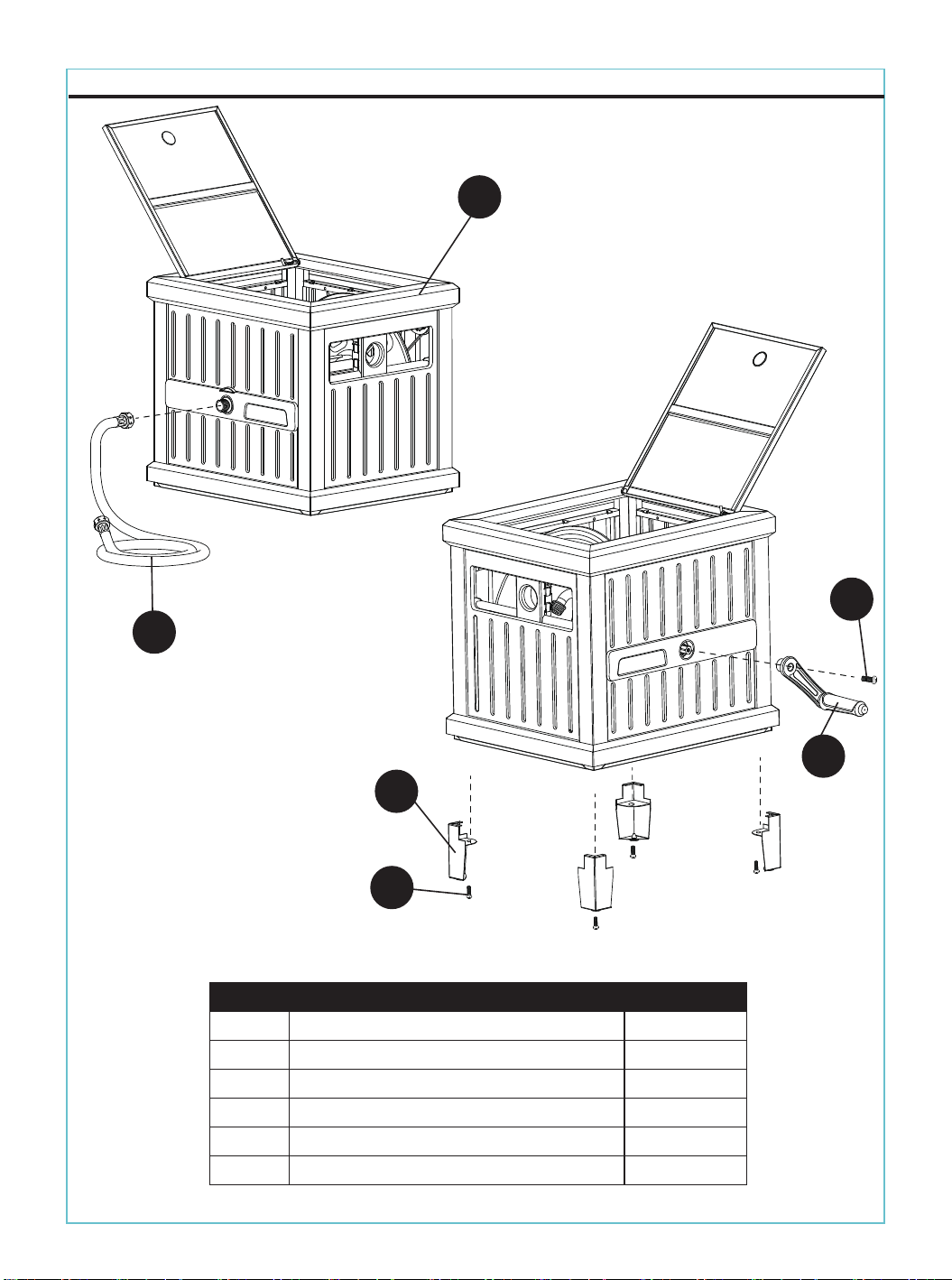

PACKAGE CONTENTS
DESCRIPTION
Leader Hose (5 ft)
Crank Handle
Crank Handle Screw
Legs
QUANTITY
1
1
1
1
4
PART
A
B
C
D
E
4
F
A
B
C
D
F
E
Leg Screws
Cabinet Hose Reel
4
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate
or install the product. If you have any questions regarding the product, please call
customer service at
877-888-8225
, 8:00 a.m.- 8:00 p.m., EST, Monday -
Sunday.
WARNING
Improper assembling or operation of this product could result in serious injury or
property assembly. Read and understand all assembly and operation instructions.
Connect only to water below 100 PSI.
DO NOT place your hands in your mouth after handling the product.
DO NOT place hose in your mouth.
DO NOT drink water from the hose.
Wash hands after use.
Release pressure when not in use.
When attaching the garden hose to the out-tube and/or the leader hose to the
in-tube, be sure to attach correctly. Cross-threading could cause permanent
damage.
Before assembling the product, make sure all parts are included. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged,
do not attempt to assemble the product.
Estimated Assembly Time: 5 - 10 minutes
Tools Required for assembly and installation (not included):
Phillips Screwdriver
PREPARATION
WARNING
Maximum coil length of hose: 150-ft and 5/8-inch standard vinyl hose, reel capacity
may vary depending on type of hose. Hose not included.
5
1
2
3
A
C
D
E
F
CD
B
F
E
Assemble Decorative Metal Hose Cabinet
1. Open metal cabinet hose reel cover (A),
remove crank handle (C) and screw (D) 5 ft
leader hose (B), four legs (E) and four leg
screws (F) from the separate box.
2. Hold lid closed with one hand, rotate unit
upside down and place on a piece of clean
cardboard or towel. Install 4 legs (E) and
screws (F) in bottom corner openings with
open sides of legs facing inward as shown.
Make sure the hole in the leg is properly
aligned with the hole in cabinet before
tightening the screw down.
3. Turn the Metal Cabinet hose reel upright and
stand it on a level surface. Use a phillips
screwdriver install crank handle (C) with
screw (D).
NOTE
ASSEMBLY INSTRUCTIONS
6
Attach the Leader Hose
1. Inspect and ensure the rubber washer is
properly seated on both ends of the leader
hose. Connect the leader hose to the in-tube
on the exterior of the hose reel. Connect the
opposite end of the leader hose to the water
supply (Step 2). Do not cross-thread the
leader hose.
Be careful not to cross thread the leader
hose to the inlet tube or to the water
supply.
ASSEMBLY INSTRUCTIONS
1
2
NOTE
7
Attach the Water Hose
1. Verify that hose guide is lined up with water
system outlet. If necessary, rotate the crank
handle until the hose guide is aligned with the
water system or unlock hose guide by lifting
latch on top of guide and align with water
system outlet. Re-lock hose guide for use.
NOTE
1
2. Verify that there is a rubber washer installed
on the inside of each female fitting on the
garden hose. Uncoil garden hose (not included)
and insert one end of the garden hose through
hose guide. Screw the female end onto the
outlet tube and had tighten. On the other end
of the hose attach the nozzle. Turn on water
supply and check for leaks.
3. To unwind your hose, pull the hose out away
from your hose reel in a straight line. To rewind
the hose, walk the end back to the hose reel so
the hose is in a “U” shape in front of the reel.
This assists in easier rewinding of the hose.
It maybe necessary to use a pair of
pliers to tighten down the fitting.
3
2
LOCK
UNLOCK
INSTALLATION
8
OPERATION:
MOVING OR STORING
Store hose reel indoors during colder months. If hose reel must be left in freezing
conditions, disconnect hose from faucet and drain all water out of hose and reel.
Freezing of trapped water may cause damage to reel, hose or pipes.
STEP 1: Remove length of hose needed from unit.
STEP 2: Turn water on at faucet.
STEP 3: To unwind your hose, pull the hose out away from your hose reel in a
straight line.
STEP 4: To rewind the hose, walk the end back to the hose reel so
the hose is in a “U” shape in front of the reel. This assists in easier
rewinding of the hose.
9
CARE AND MAINTENANCE
Always operate the product with care by following the operating instructions.
TROUBLESHOOTING
If you have any questions regarding the product, please call customer service at
877-888-8225
, 8:00 a.m. - 8:00 p.m., EST, Monday -
Sunday. You could also
WARRANTY
This water hose reel is warranted by the manufacturer to the original purchaser from
the original purchase date for five (5) years subject to the warranty coverage
described herein.
This water hose reel is warranted to the original user to be free from defects in
material and workmanship. If you believe that a water hose reel is defective, return
the water hose reel, with proper proof of purchase to the point of purchase. If it is
determined that the water hose reel is defective and covered by this warranty, the
distributor will replace the water hose reel or refund the purchase price.
This warranty is void if: defects in materials or workmanship or damages result from
repairs or alterations which have been made or attempted by others or the
unauthorized use of nonconforming parts; the damage is due to normal wear,
damage is due to abuse (including overloading of the water hose reel beyond
capacity), improper maintenance, neglect or accident; or the damage is due to the
use of the water hose reel after partial failure or use with improper accessories or
unauthorized repair or alteration.
This warranty gives you specific legal rights, and you may also have other rights that
vary from state to state.
For warranty questions, call our customer service department at 877-888-8225
,
8:00 a.m. - 8:00 p.m., EST, Monday -
Sunday. You could also contact us at
Printed in China
